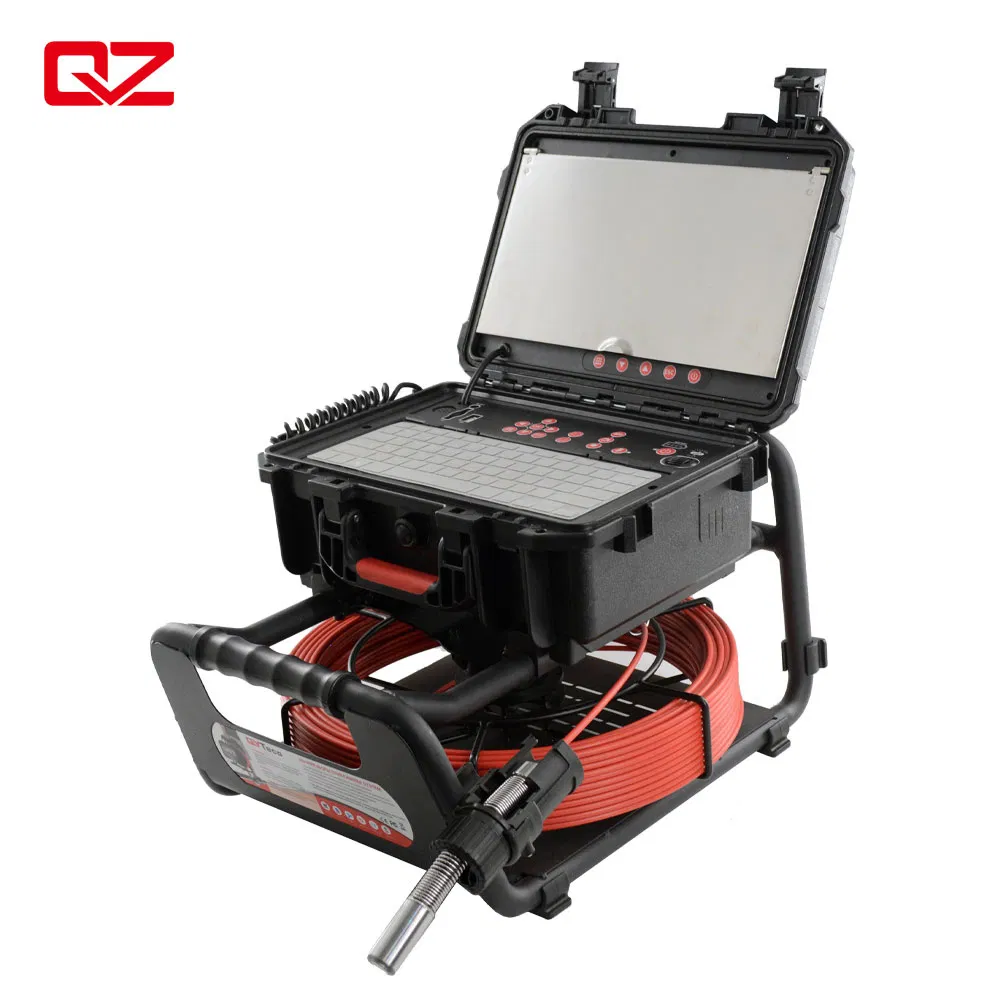

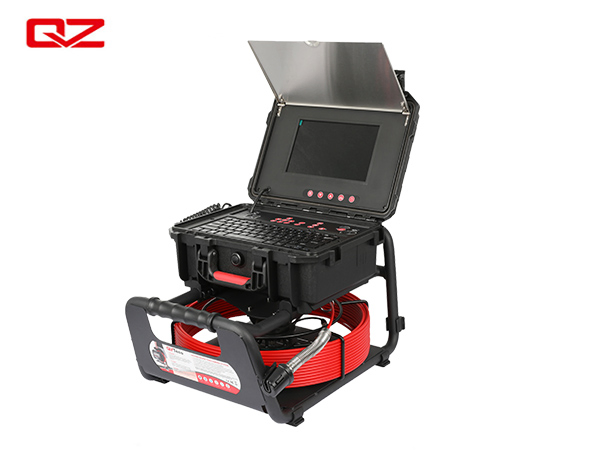

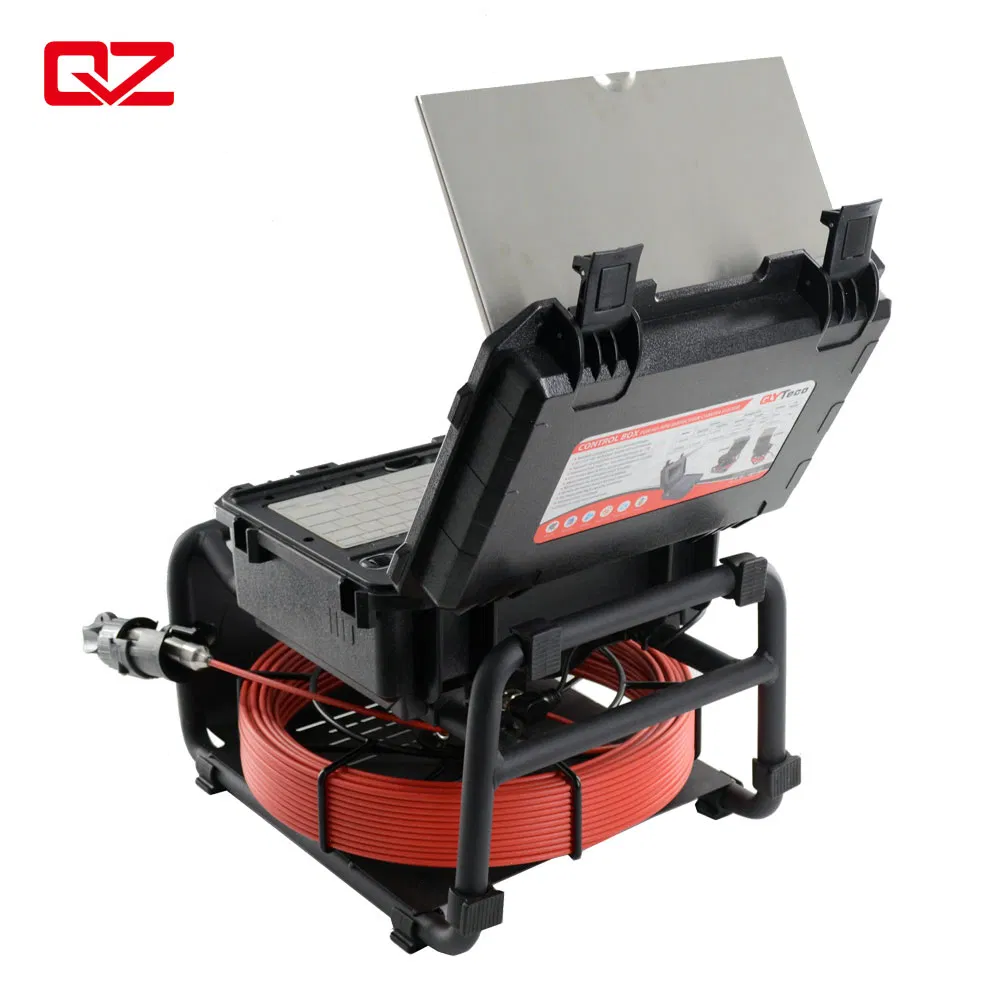

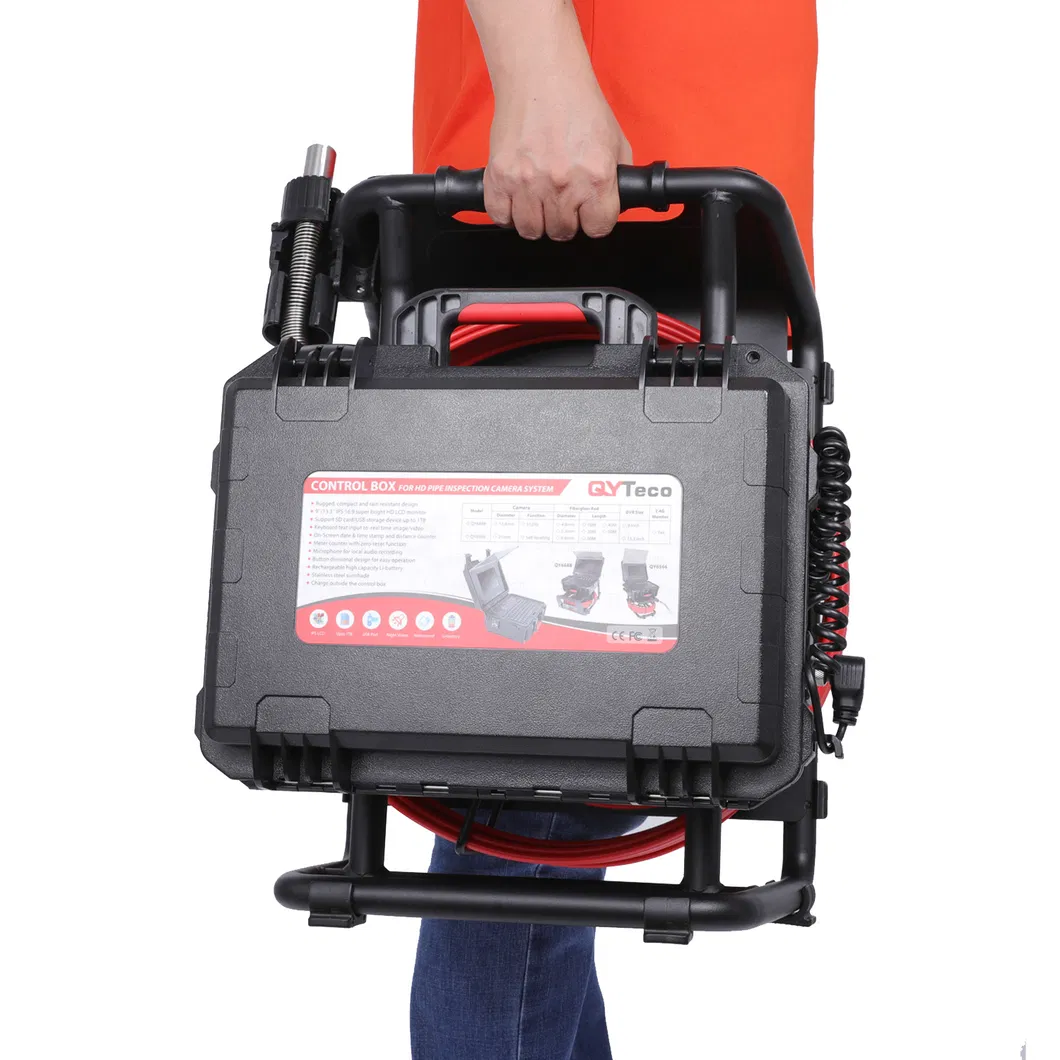

1080p pipe inspection camera with 50m cable and 120 degree field of view.

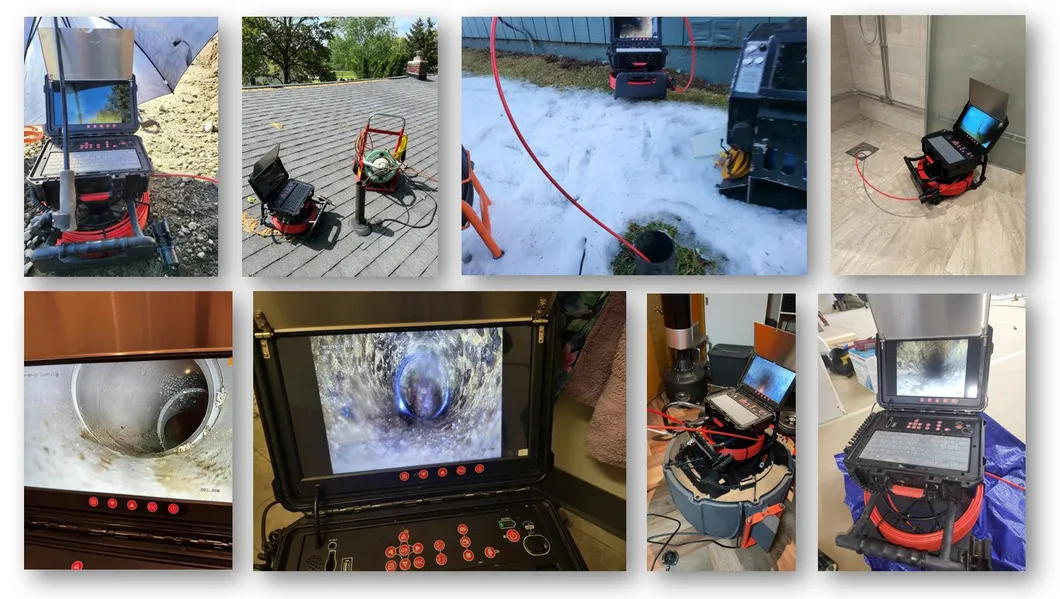

This pipe inspection camera system is designed as a HD real-time inspection camera to unveil internal objects and structures with highlight LED illumination. It is specialized for pipelines, sewers, drains, ducts, chimneys, plumbing, swimming pools, and central air conditioning systems.

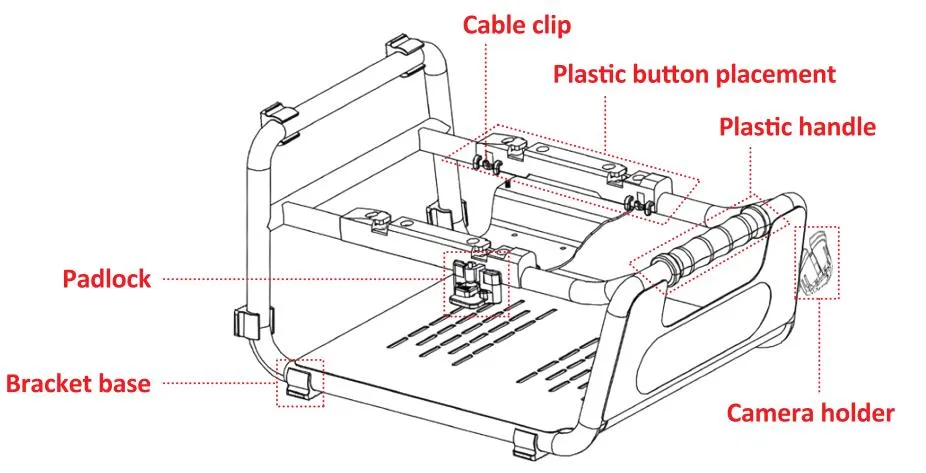

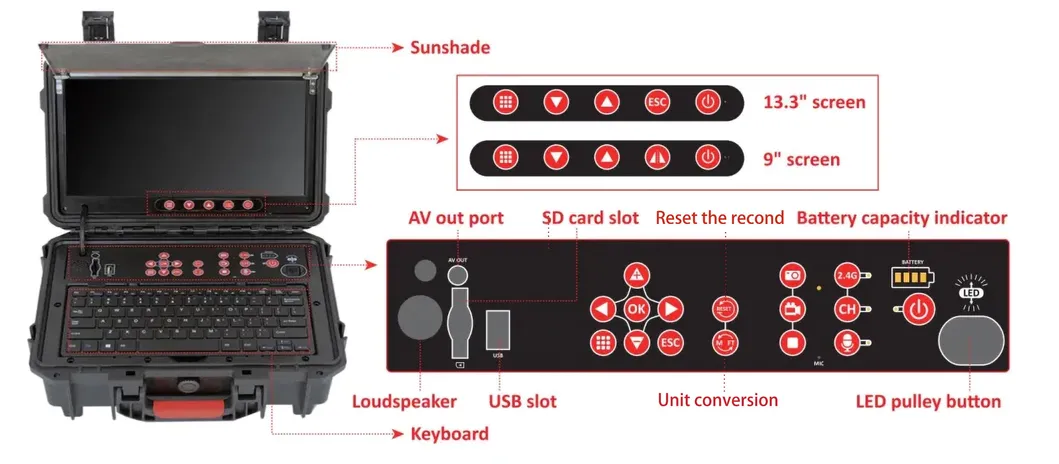

● Automatic Padlock DVR: No extra movement needed to lock the control box. Extremely easy to install on the metal frame.
● Distance Counter: One-button switch between Meter and Feet. Includes on-screen date, time stamp, and internal microphone.
| Category | Item | Specification |
|---|---|---|
| General | Operating Temperature | -10~50°C / +14~+122°F |
| Battery Capacity | 9000mAh Li-ion Battery | |
| Work Time | 7.5 Hours (9-inch DVR) | |
| Waterproof Level | IP66 (Whole machine when closed) | |
| Camera | Sensor | 1/4" CMOS |
| Resolution | 720P (1280*720) | |
| View Angle | 90° - 120° | |
| Lighting | Built-in 6×LED (White) with Dimmer | |
| Cable | Diameter | φ5.3mm |
| Color | Red | |
| Length Options | 20M / 30M / 40M / 50M |
Our systems are widely used in NDT (Non-destructive Testing) and mechanical diagnosis.
