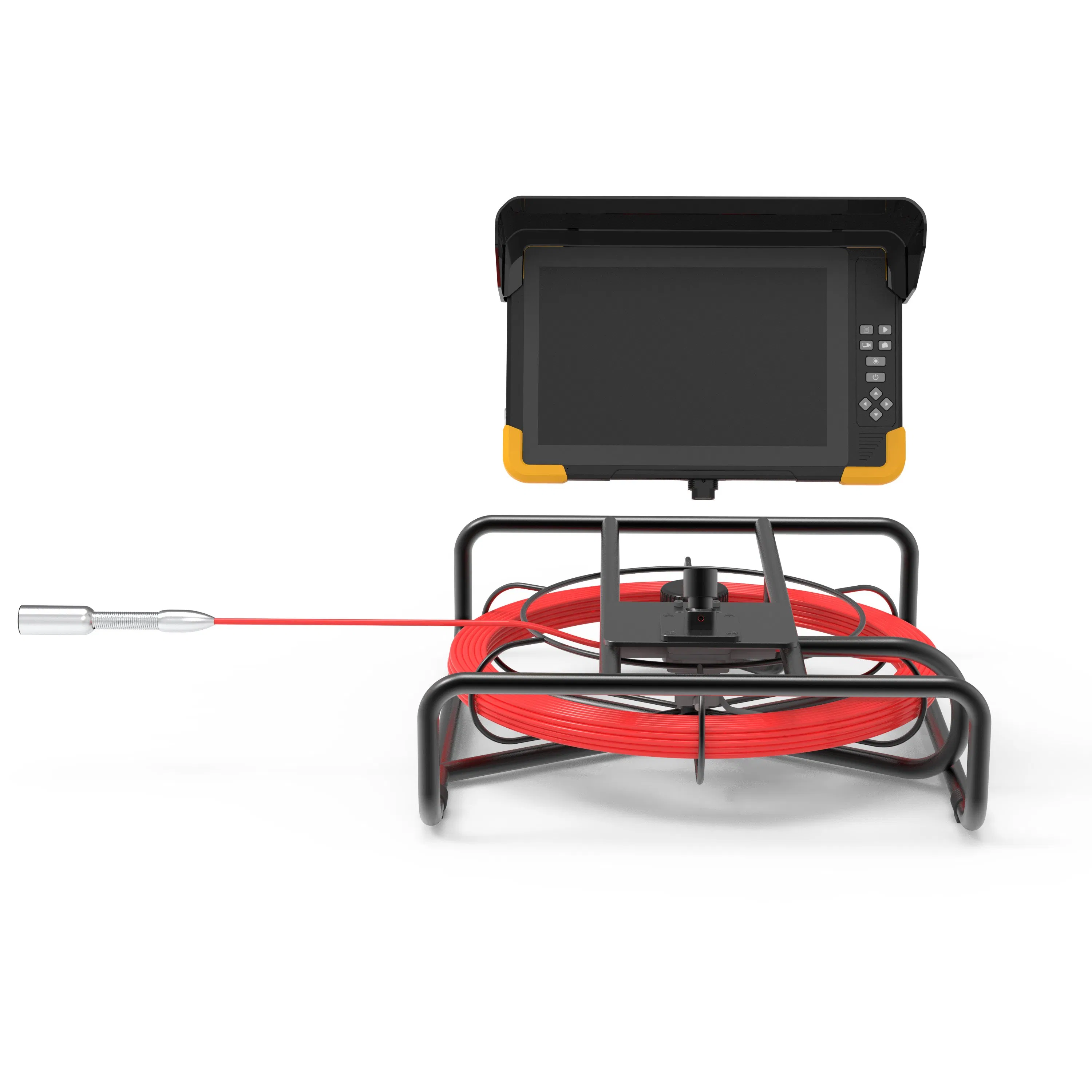

23mm Head 10inch LCD Monitor 30m Cable Endoscope Sewer Drain Pipeline Inspection Camera with 512Hz Locator

1 / 5

23mm Head 10inch LCD Monitor 30m Cable Endoscope Sewer Drain Pipeline Inspection Camera with 512Hz Locator

Customization:	Available
Technology:	28mm Head Camera
Style:	Box Camera

Send Inquiry

Product Description

Basic Information

Model NO.

PD160-23mm

Type

CCTV Camera

Sensor

CMOS

HDMI Format

2560*1940pix

Resolution

1200tvl

Certification

CE, FCC

Effective Distance

0-9m

Camera Diameter

23mm

Monitor

10inch LCD Monitor

Battery

6200mAh

Cable Length

30m

Cable Material

Glass Fiber

Product Overview

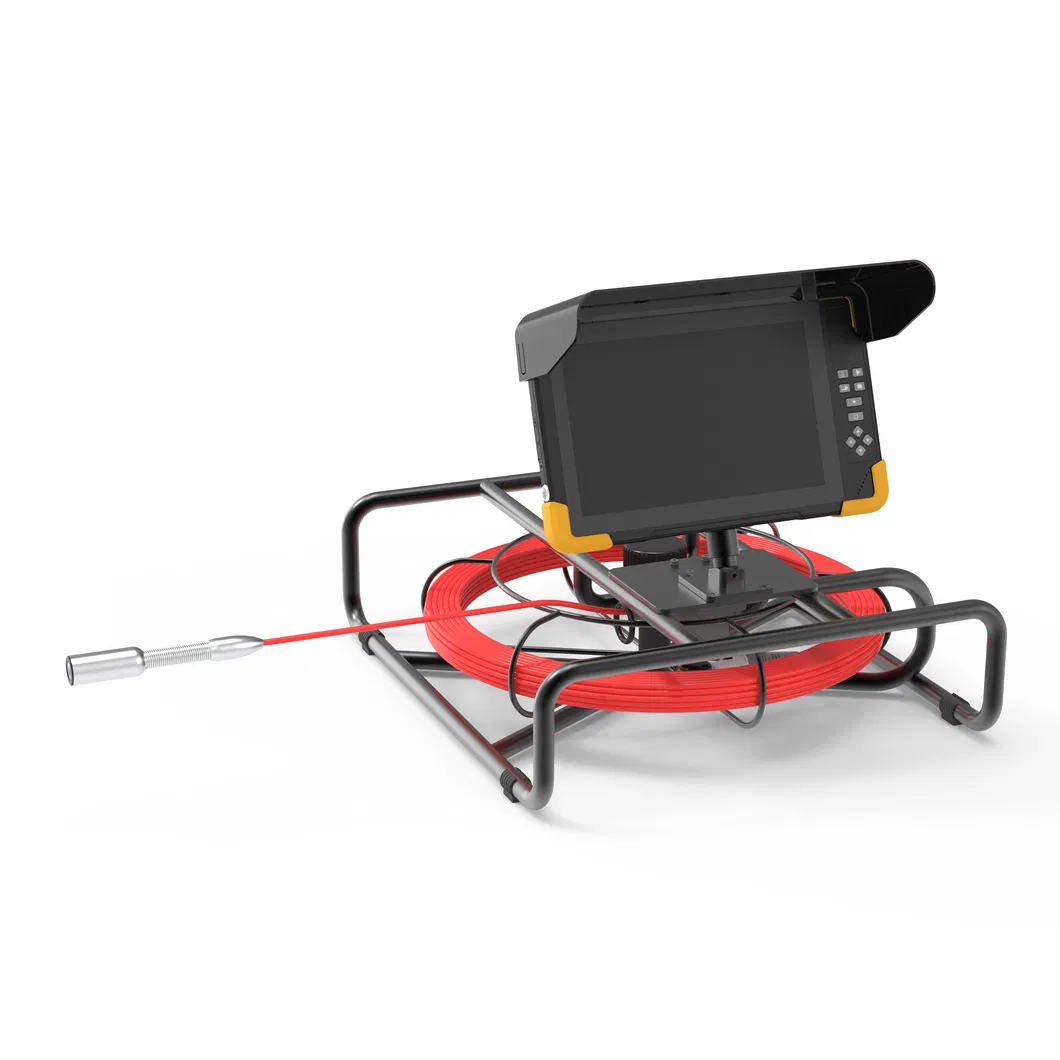

23MM Head 10Inch TFT Monitor 30M Cable Endoscope Sewer Drain Pipeline Inspection Camera With 512Hz Locator

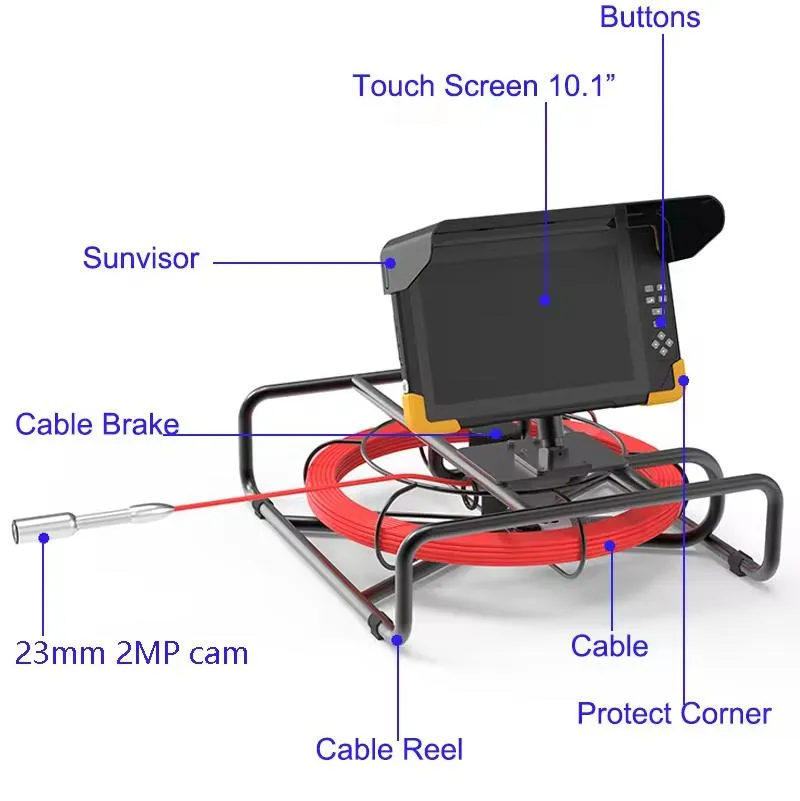

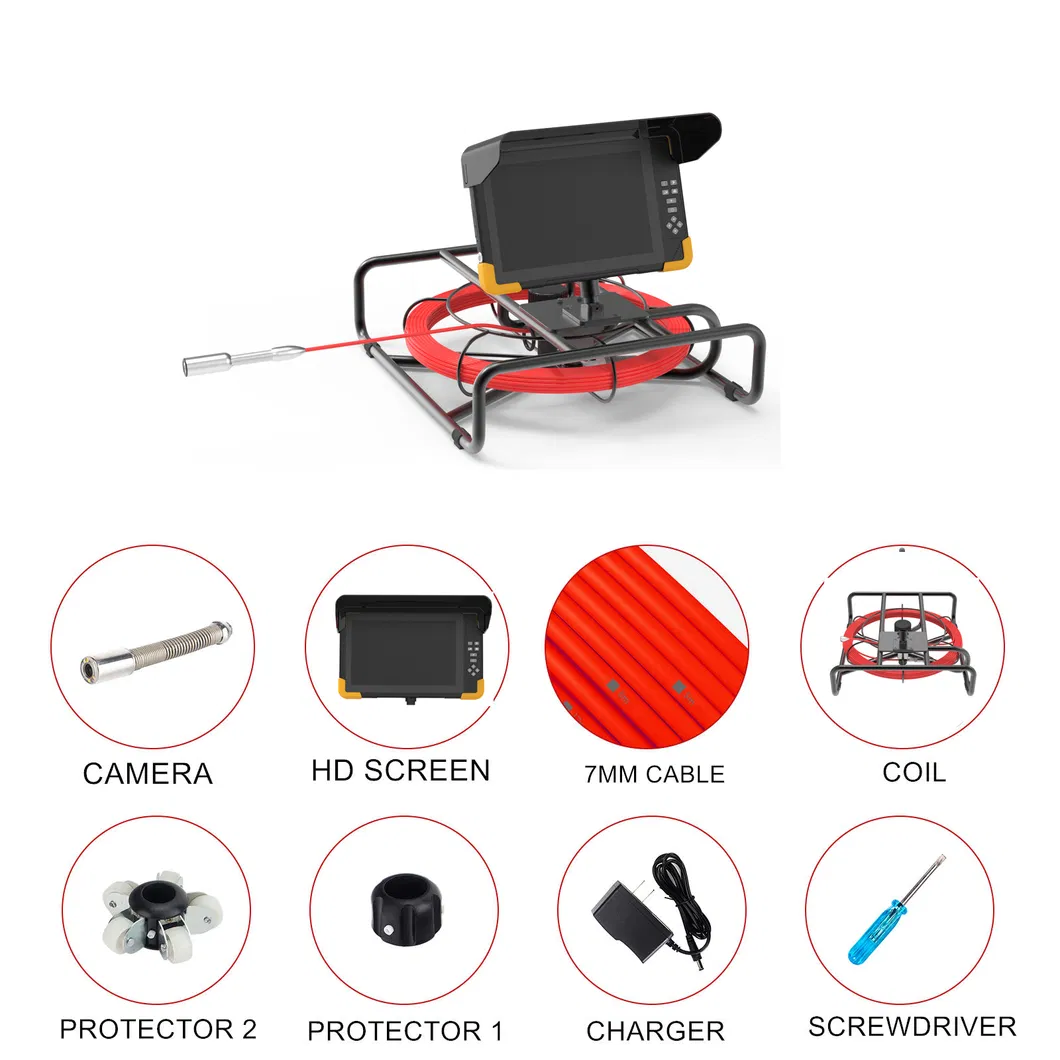

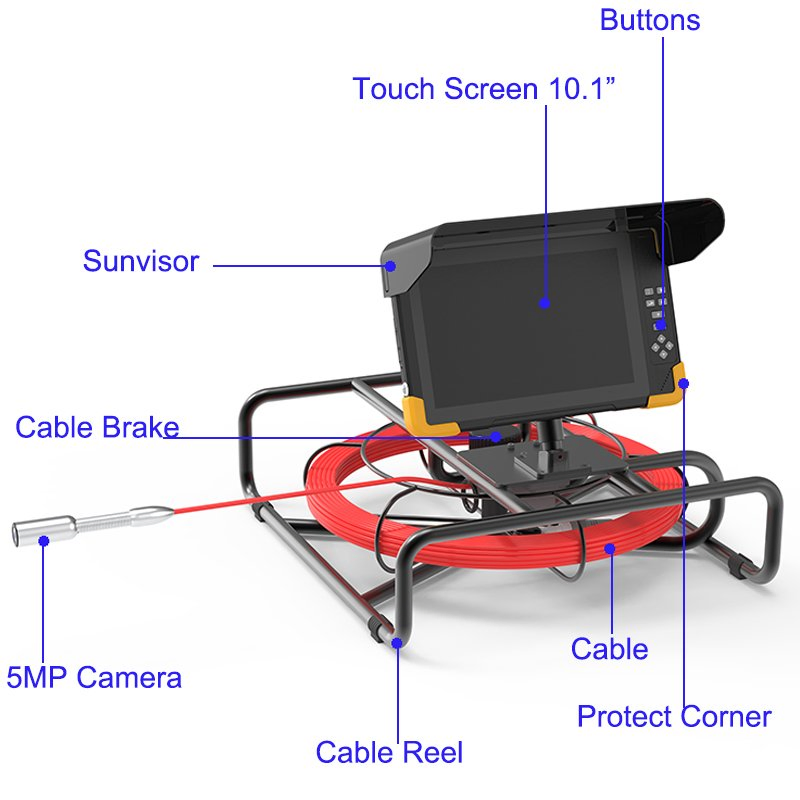

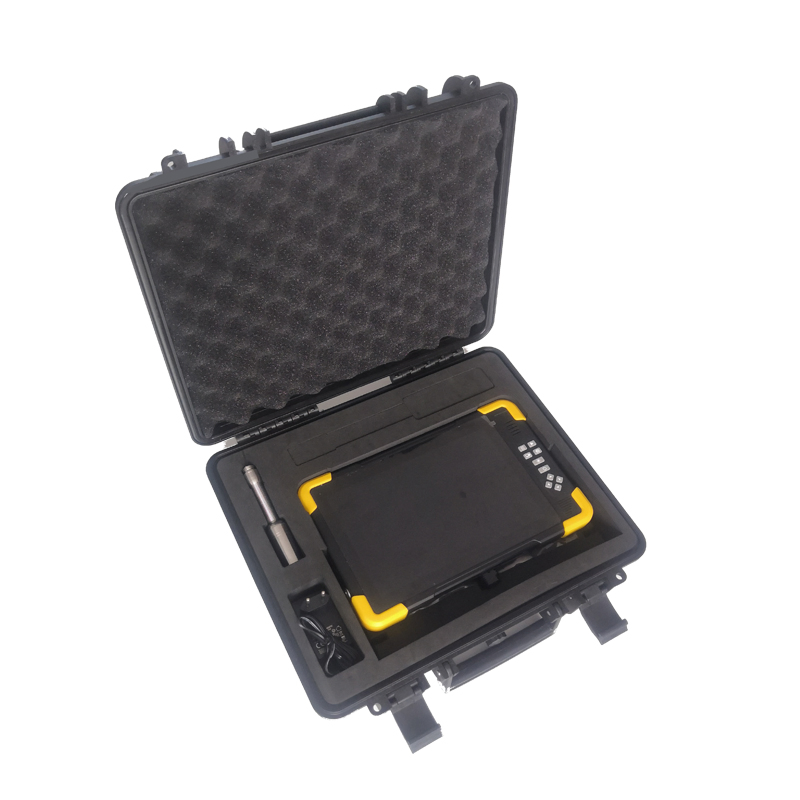

Configuration: 4MP 23MM camera + 30M push cable + professional cable reel + 10inch 4K monitor

Key Applications

Tubular/Water Pipe Cleaning & Inspection
Shipbuilding Industry (Boilers, Engines)
Industrial Machinery Scars & Wear Checks
Electronics Wiring & Working Conditions

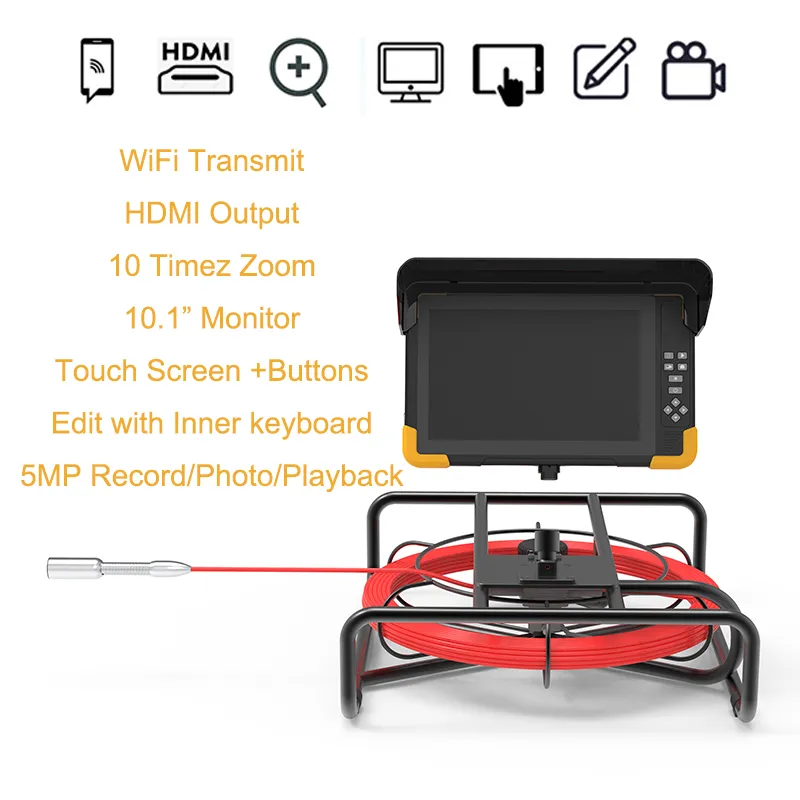

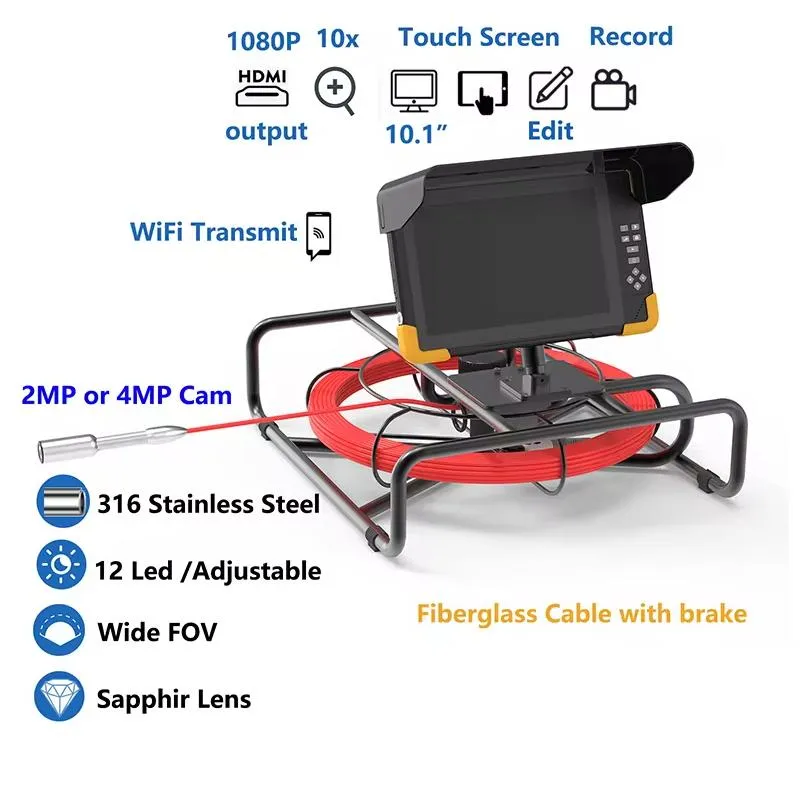

Main Features

4MP Sony Sensor (2560*1944px)
180° Ultra Wide View Angle
12 Adjustable LED Light Source

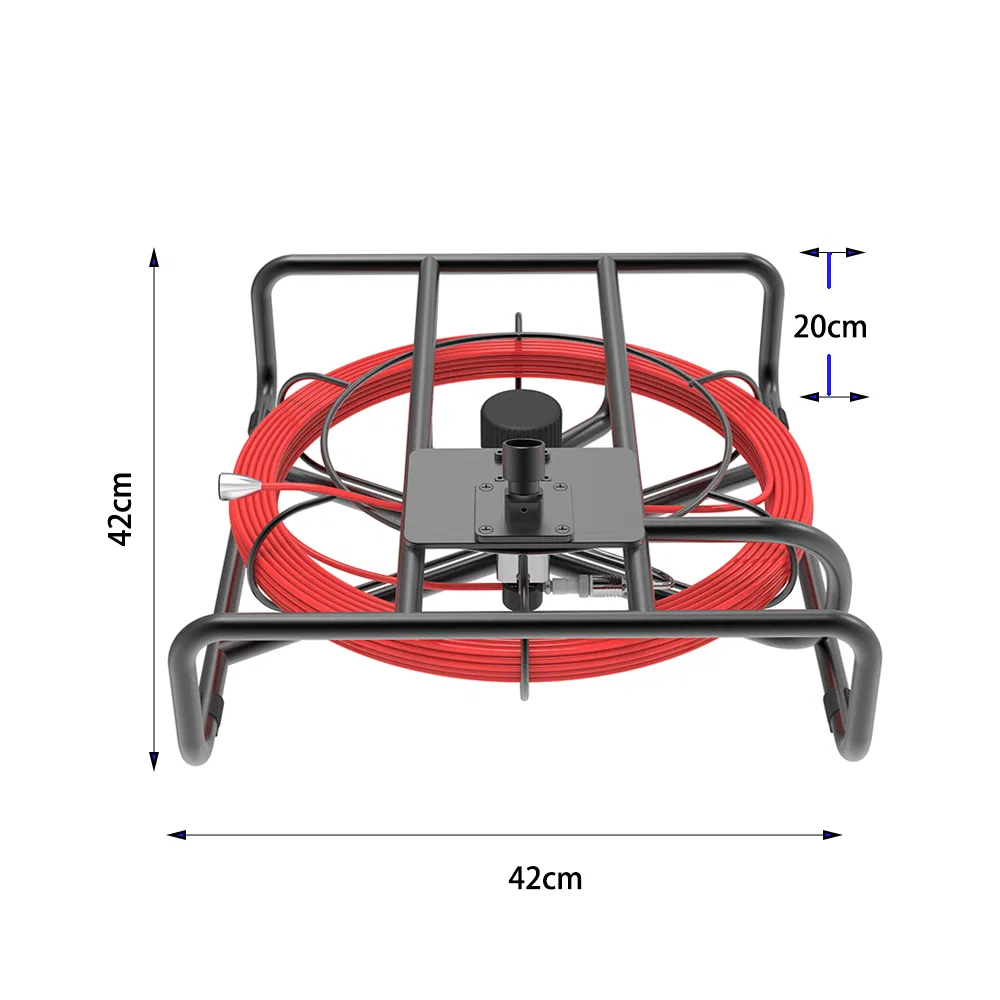

Stainless Steel Cable Reel with Brake
10.1 Inch IP66 Touch Screen
Support WiFi Wireless Transmission
H.264 Video Compression
6200mAh Exchangeable Battery

Technical Specifications

Camera	Resolution	4.0 Mega Pixel, 2560*1440px

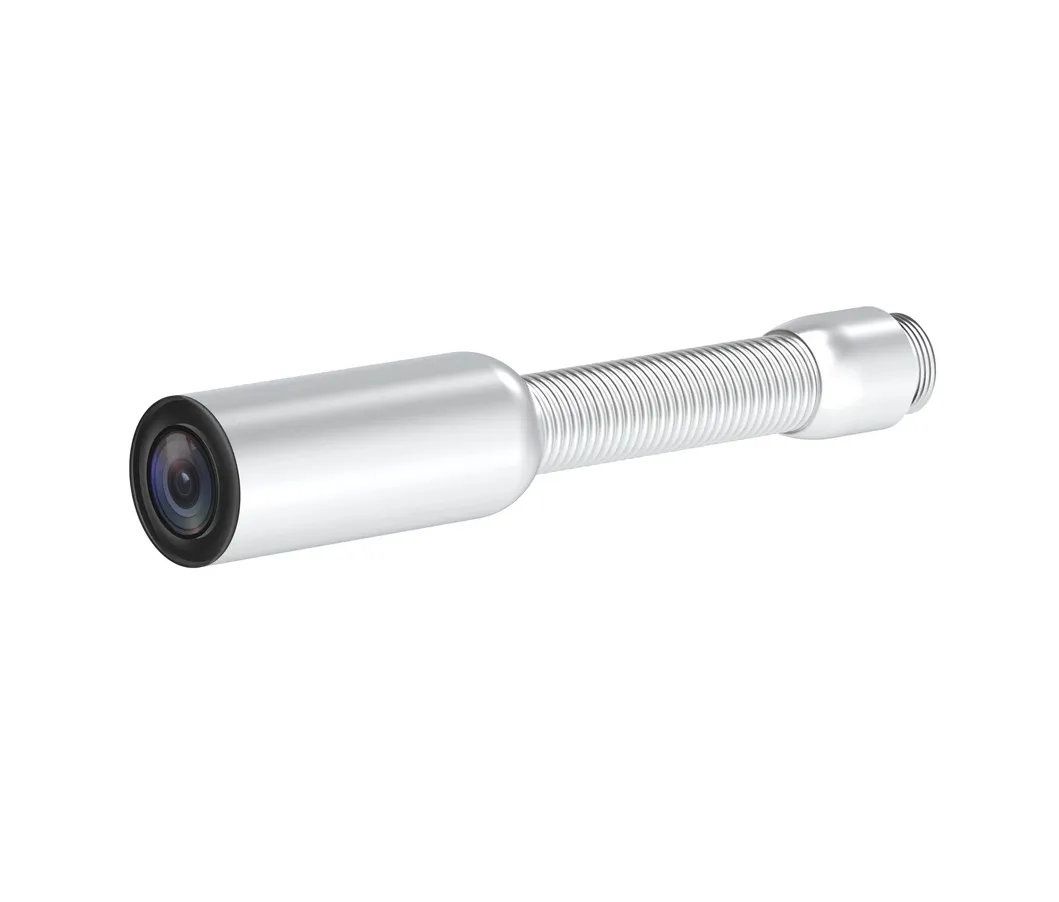

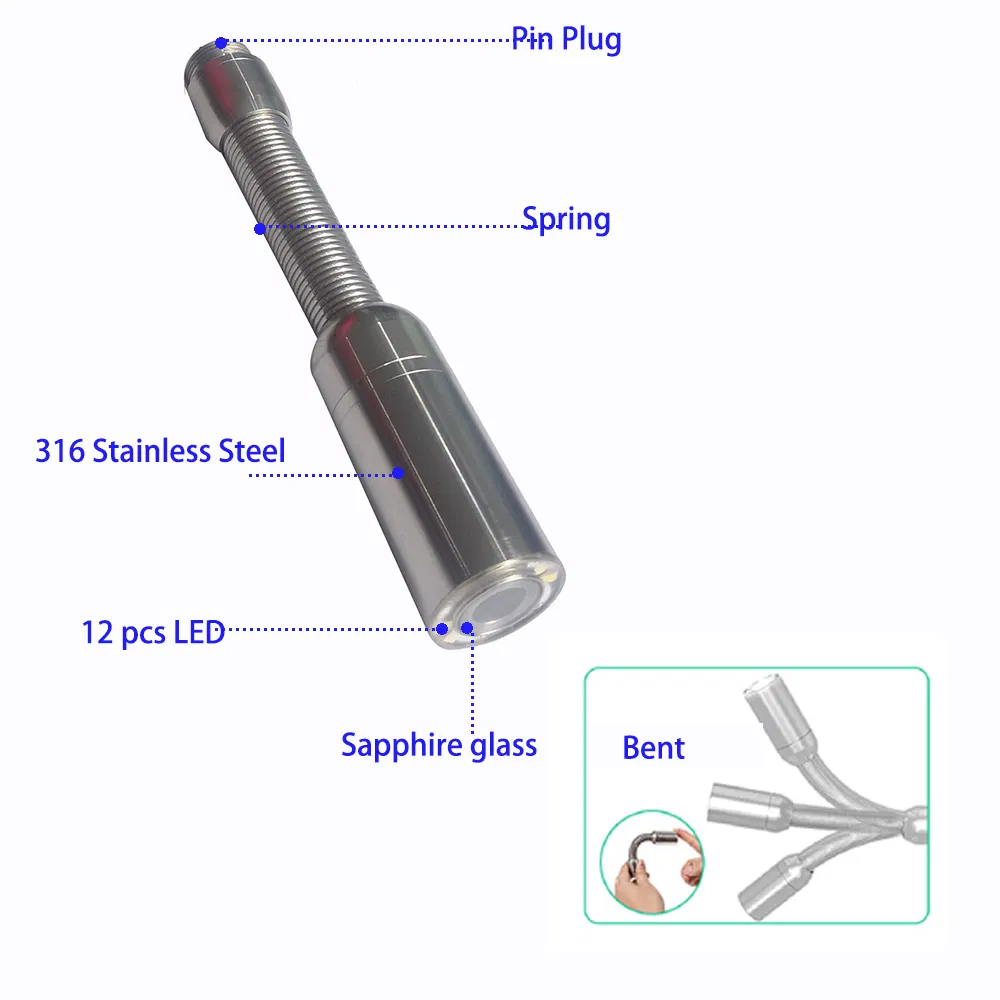

	Dimension	ø23mm*57mm (Total length: 133mm)
	Housing	316L Stainless Steel, Sapphire Glass
	View Angle	180°
Cable	Length	30m
	Material	Glass Fiber
	Diameter	7.5mm

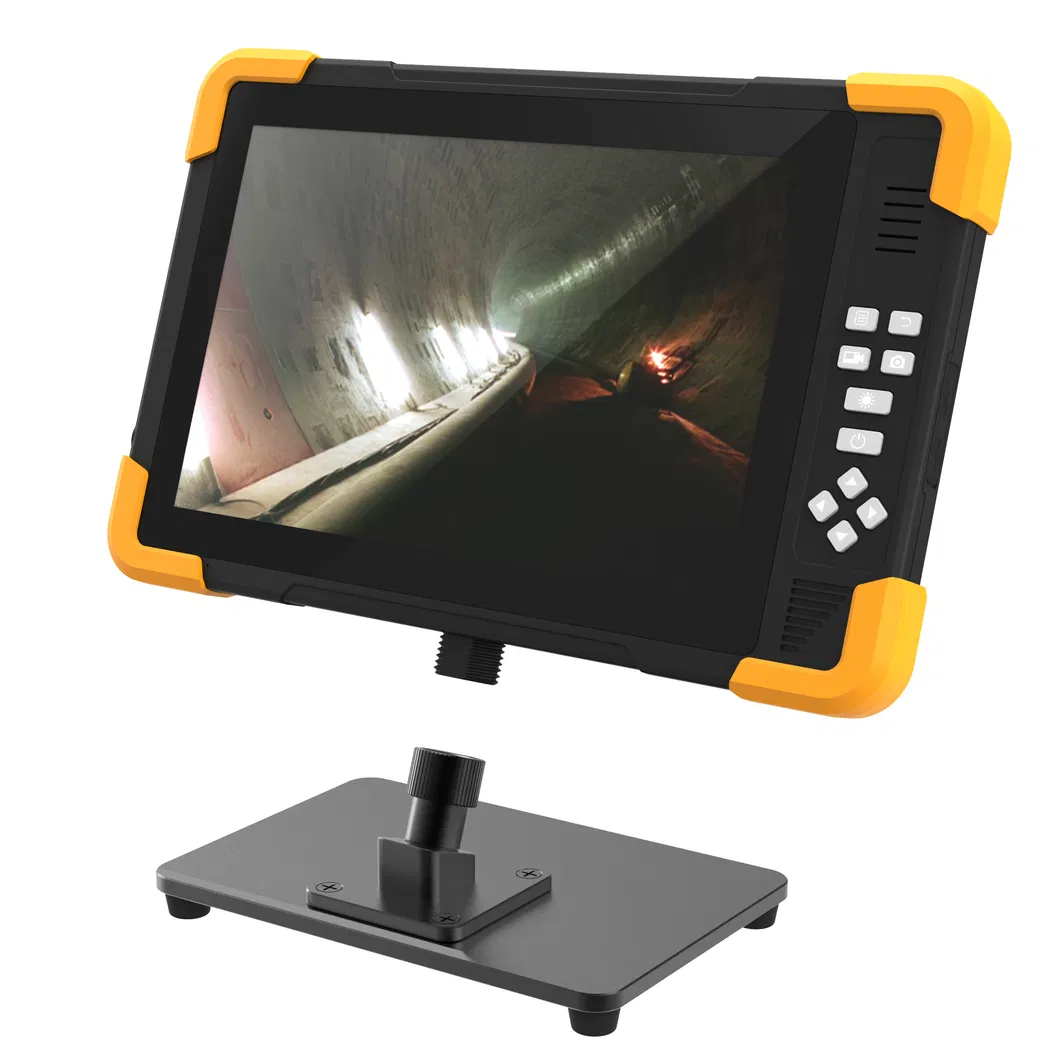

Monitor	Display	10.1 Inch Touch Screen (1280*800)
	Storage	TF Card 2GB-256GB (64GB Default)
	Output	HDMI 1080P / WiFi App View
	Battery	6200mAh (6-8 Working Hours)
	Protection	IP65 Waterproof Grade

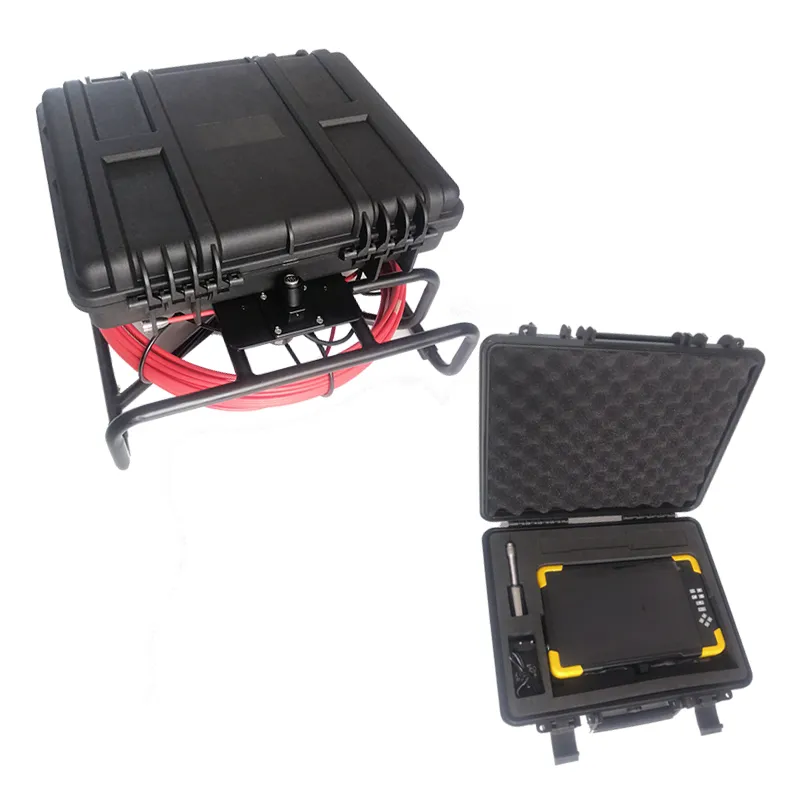

Detailed Product Gallery

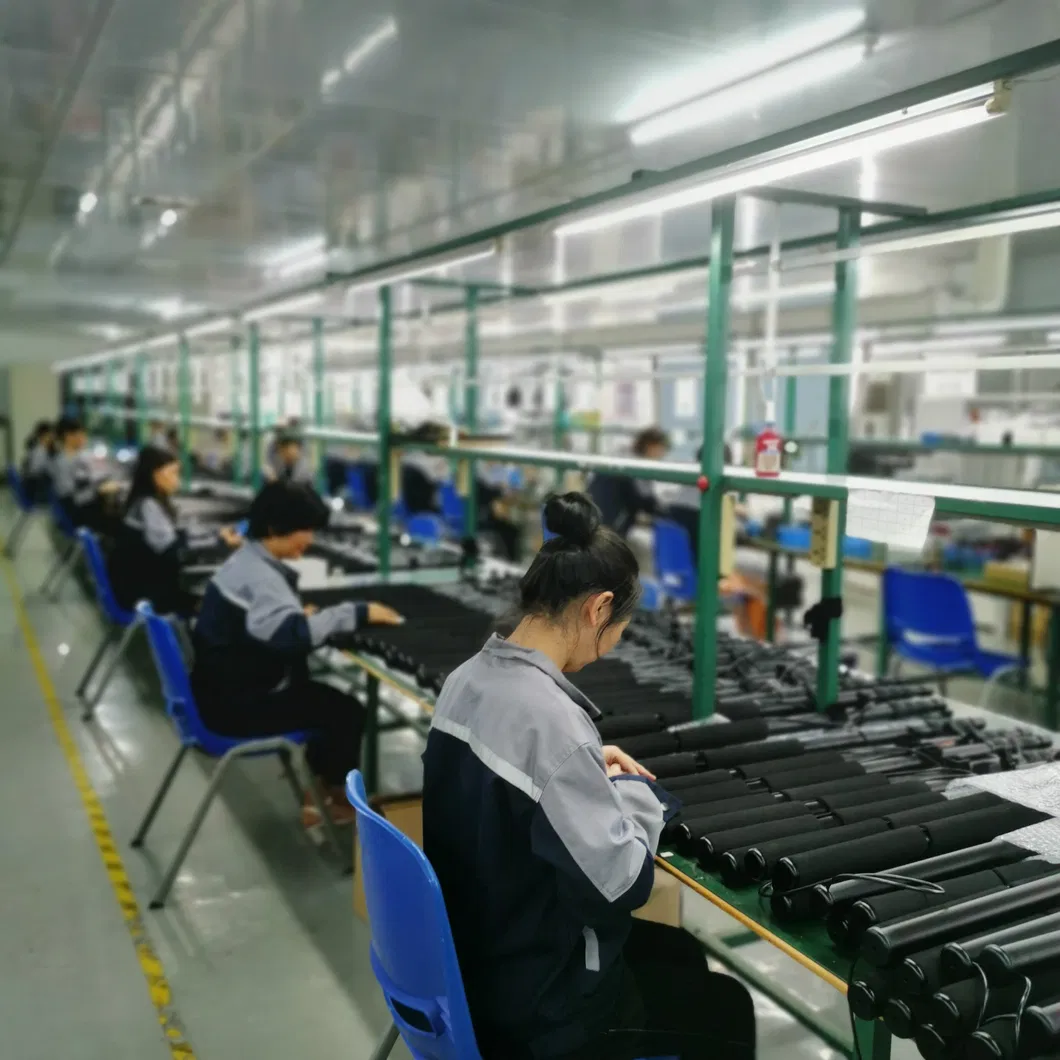

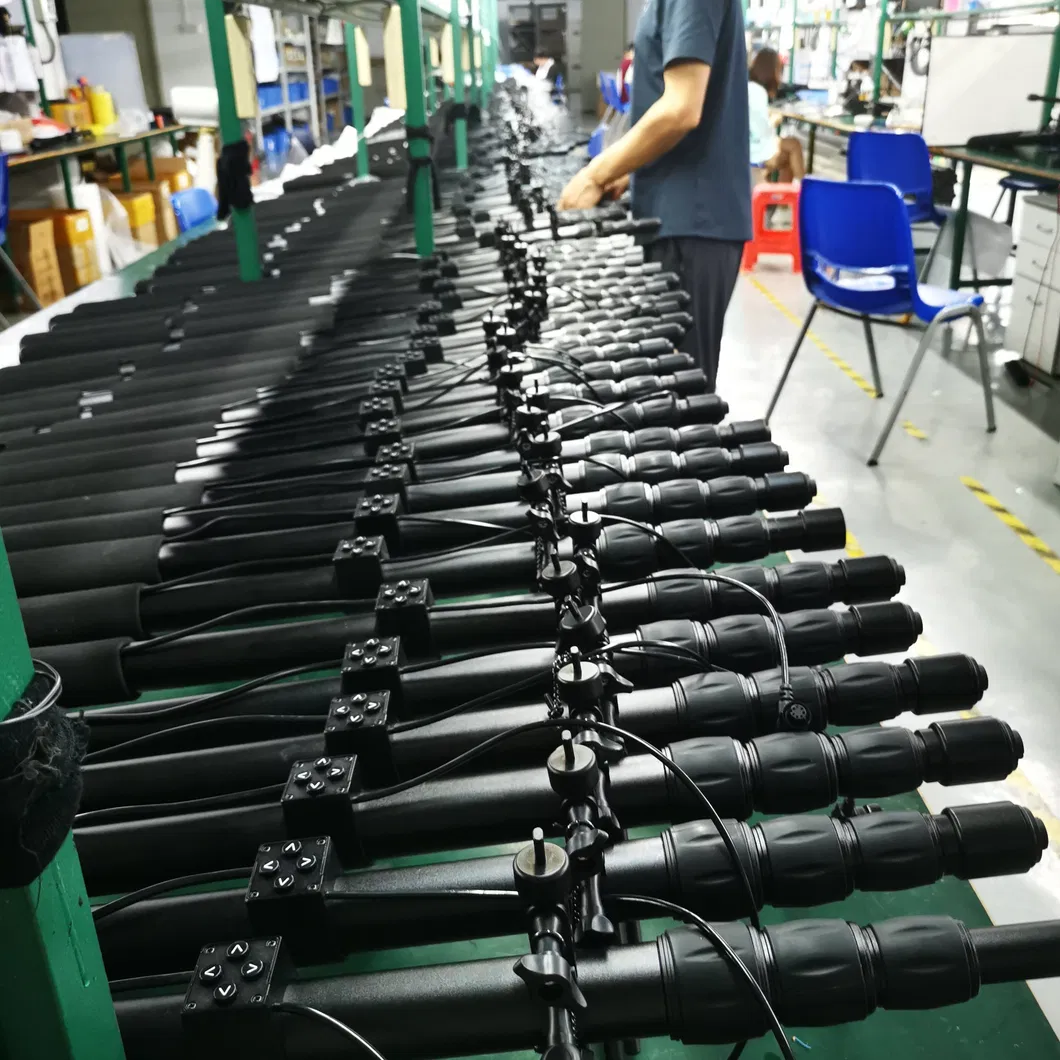

Production & Quality

Frequently Asked Questions

What is the resolution of the camera and monitor?

The system features a 4.0 Mega Pixel camera (2560*1440px) and a 10.1-inch high-definition touch screen with 1280*800 resolution for crystal clear inspections.

How long does the battery last on a single charge?

The 6200mAh exchangeable lithium battery supports approximately 6-8 hours of continuous working time.

Can I view the inspection footage on my mobile phone?

Yes, the system supports WiFi wireless transmission, allowing you to view and manage the inspection feed via a dedicated mobile APP.

Is the camera head waterproof for sewer use?

Absolutely. The camera head is made of 316L stainless steel and sapphire glass with a professional waterproof design suitable for harsh pipeline environments.

Does the camera have self-leveling and locator features?

Yes, this model includes a self-leveling function to keep the image upright and a 512Hz locator for precise position tracking underground.

What is the maximum storage capacity supported?

The system supports TF card storage from 2GB up to 256GB. A 64GB card is typically included by default.
