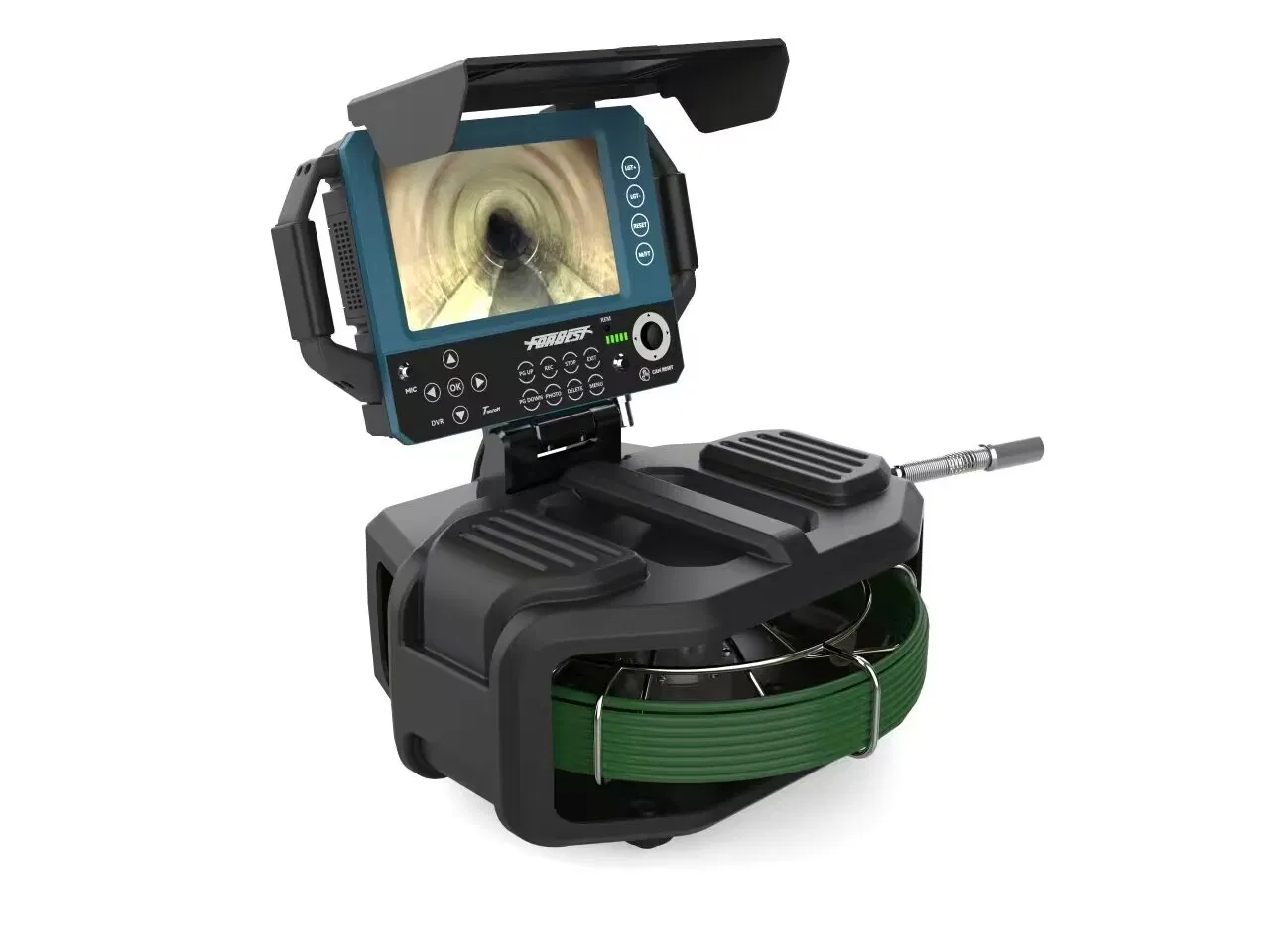

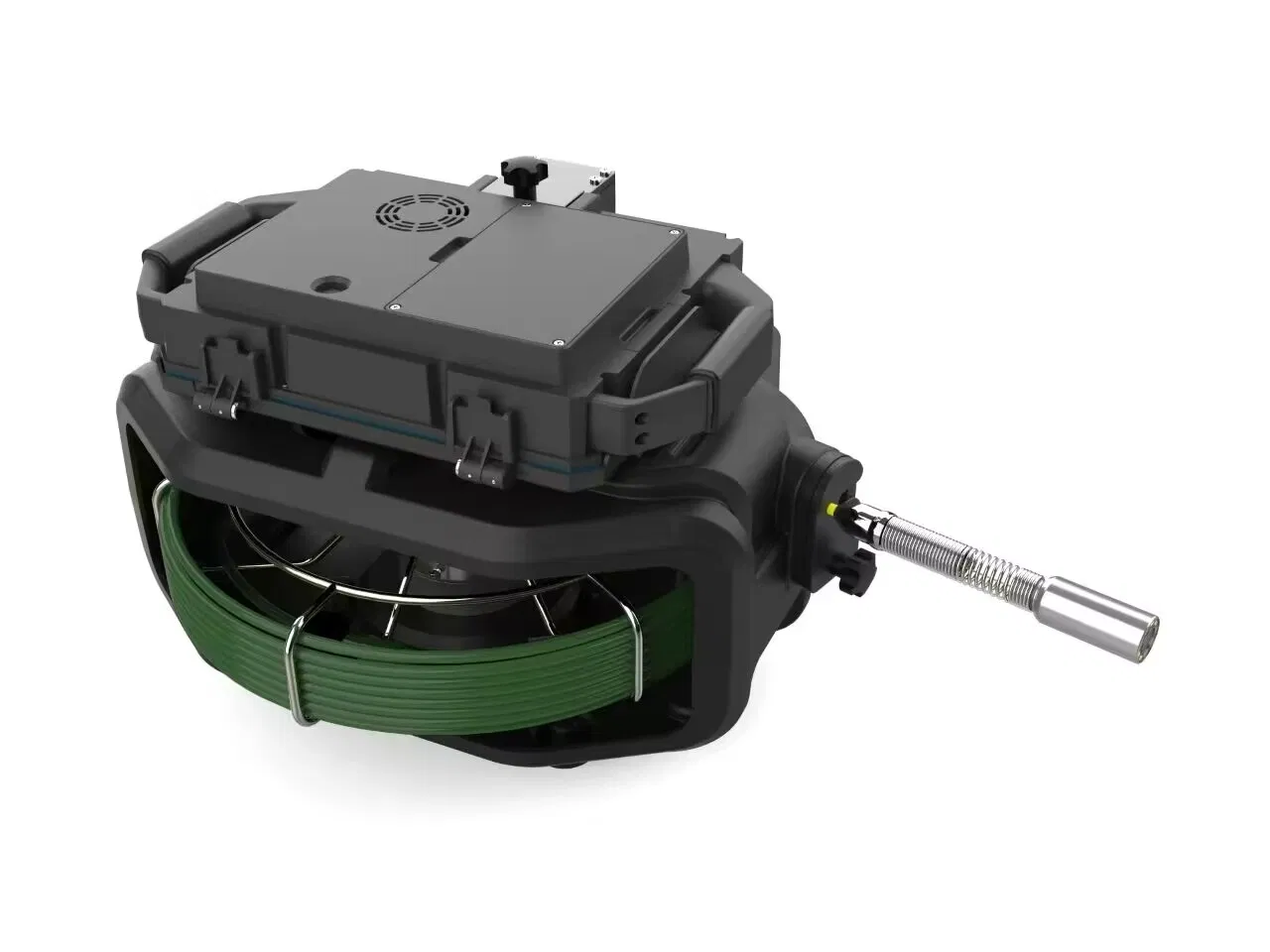

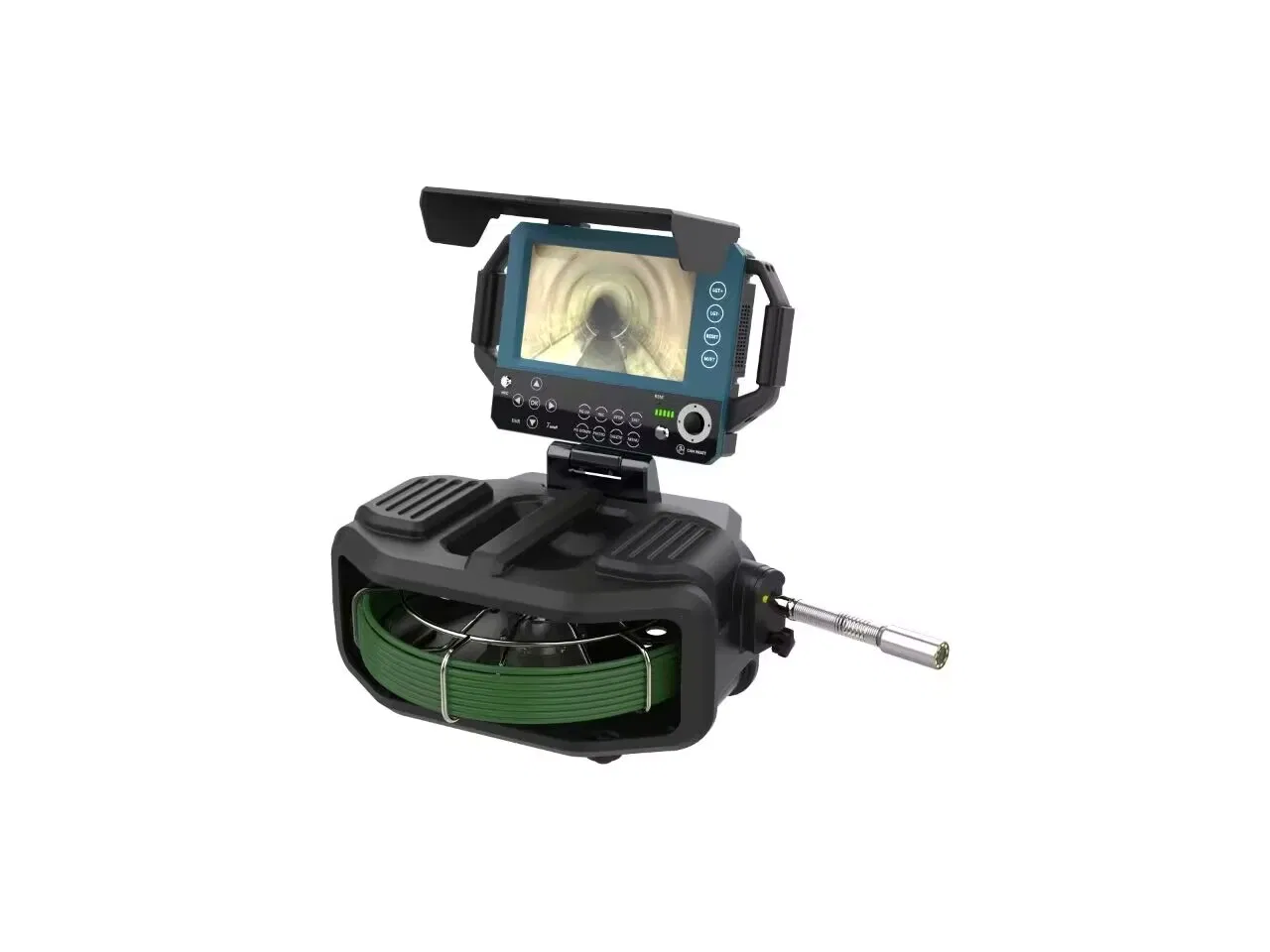

23mm Mini Head Endoscope Sewer Drain Pipeline Inspection Underwater Bulb Camera for Pipe Inspection with 512Hz Locator

1 / 5

23mm Mini Head Endoscope Sewer Drain Pipeline Inspection Underwater Bulb Camera for Pipe Inspection with 512Hz Locator

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

CD23HD

Camera Lens

23mm

Probe Tube

30m

Pixels

1920X1080 Full HD

Monitor

8in LCD Monitor

Cable Diameter

5.5mm

Power Supply

DC 5V

Light

9PCS Highlight White LEDs

HS Code

9031809090

Origin

China

Product Overview

23mm Mini Head Endoscope Sewer Drain Pipeline Inspection Underwater Bulb Camera for Pipe Inspection With 512hz Locator

Pixel	1280×800 (8" monitor) / 1920(H)x1080(V)
Power Supply	DC 5V
Screen	8" LCD Monitor

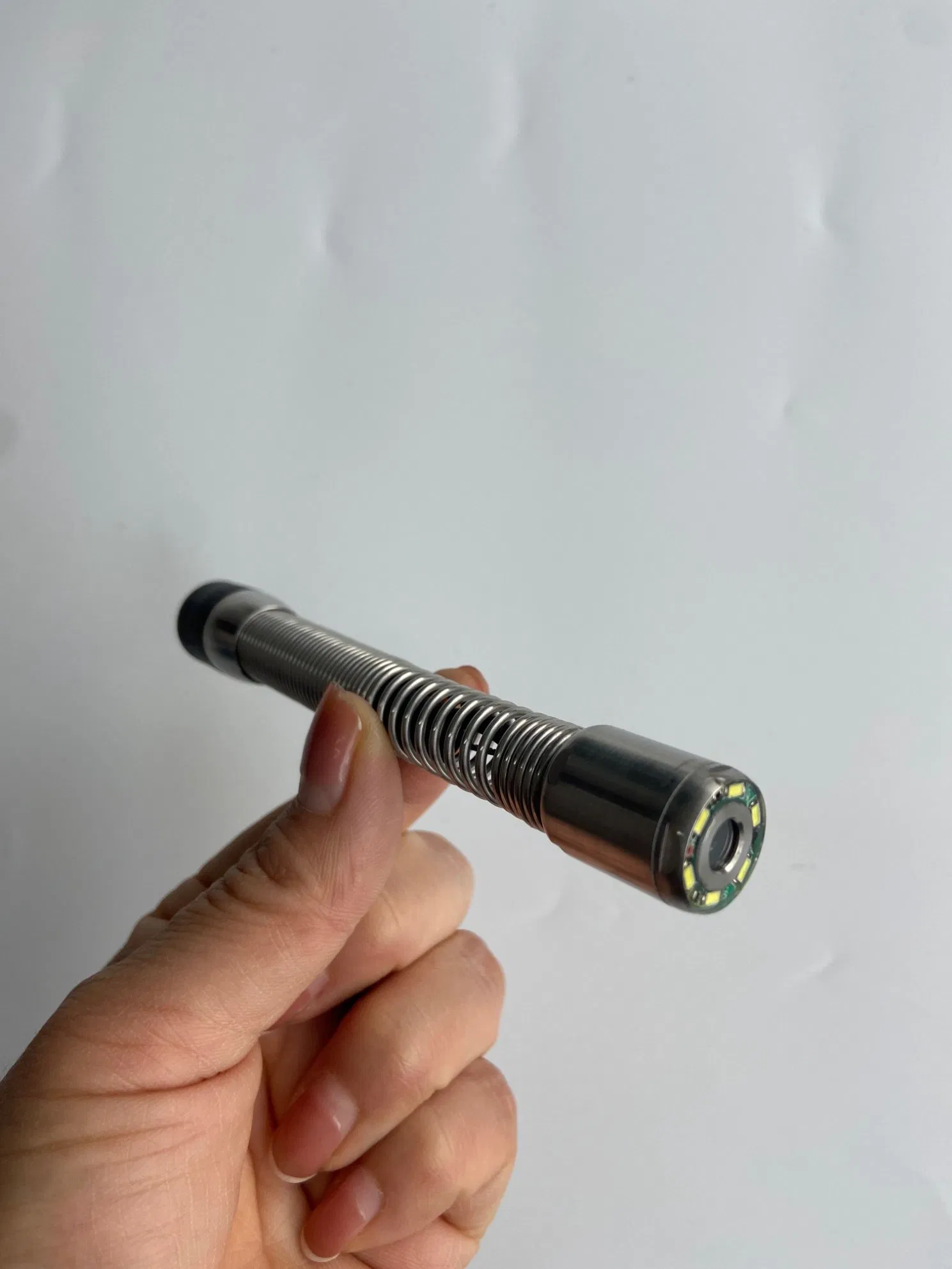

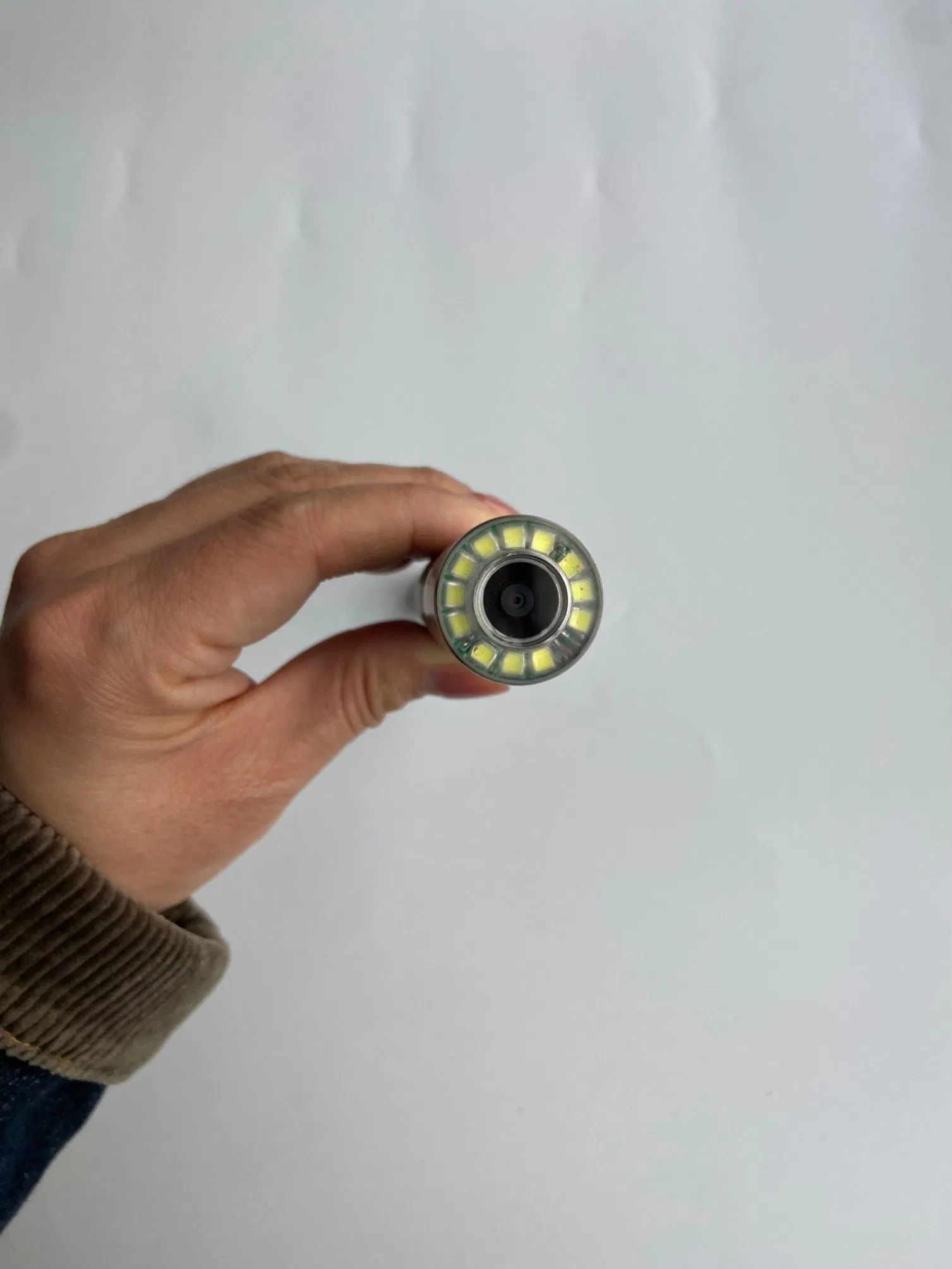

Camera Housing	Φ23mm
Light Source	9pcs Highlight White LEDS
Cable	Φ5.5mm Diameter, 30M Length (Max: 40m)

Technical Highlights

🌐 Wireless Connectivity Support Wireless WIFI Connection for remote viewing.

⚖️ Auto Balance HD Camera CD23H features AUTO BALANCE IMAGE for clear visuals.

🔋 Powerful Battery 12V 8000MAH Polymer lithium battery with 5~6 working hours.

📏 Meter Counter Photoelectric Counter on a Stainless Steel Wheel reel.

• Operation Temperature: -20°~+55°

• Camera Skids: External dimensions 44*44*46(mm), Inner diameter Φ23mm

• Material: Durable Fiberglass Cable with Stainless Steel Reel (402×352x228mm)

• Battery Management: Level Display and charge Indicate; AC 110V~240V Adapter included.

Frequently Asked Questions

What is the resolution of the inspection camera?

The system features Full HD 1920x1080 pixels for the camera, providing high-definition clarity for detailed pipeline inspections.

How long does the battery last on a single charge?

The high-capacity 8000MAH lithium battery provides approximately 5 to 6 hours of continuous working time.

Is the device capable of locating blockages?

Yes, this model is equipped with a 512hz locator, which is essential for pinpointing the exact position of the camera head underground or inside pipes.

Can I view the footage on my smartphone?

Absolutely. This system supports wireless WIFI connection, allowing you to sync and view the inspection feed on compatible mobile devices.

What are the environmental limits for this equipment?

The endoscope is designed to operate in temperatures ranging from -20°C to +55°C, making it suitable for various harsh industrial environments.

Does it track the length of the cable deployed?

Yes, the rod cable reel includes a photoelectric meter counter to accurately track the distance the fiberglass cable has traveled.
