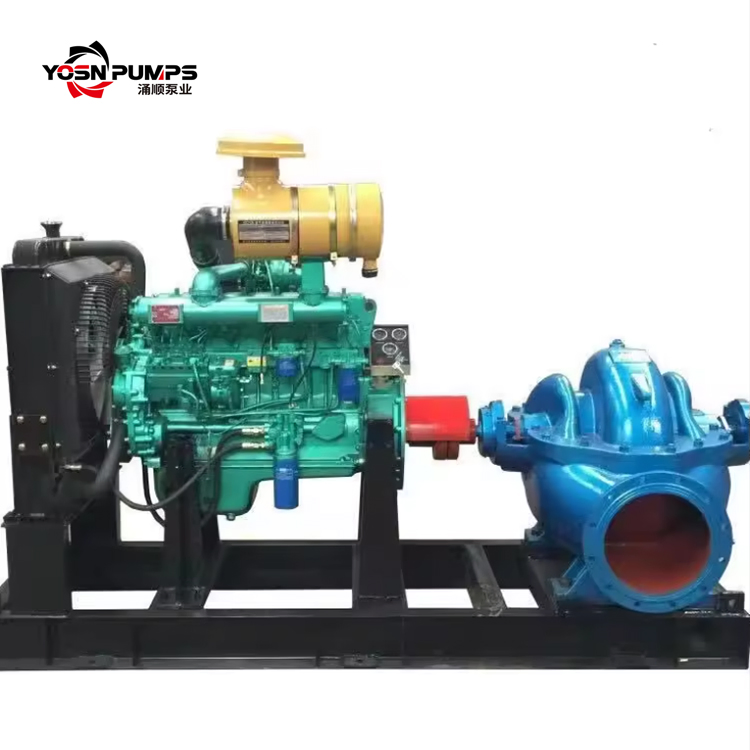

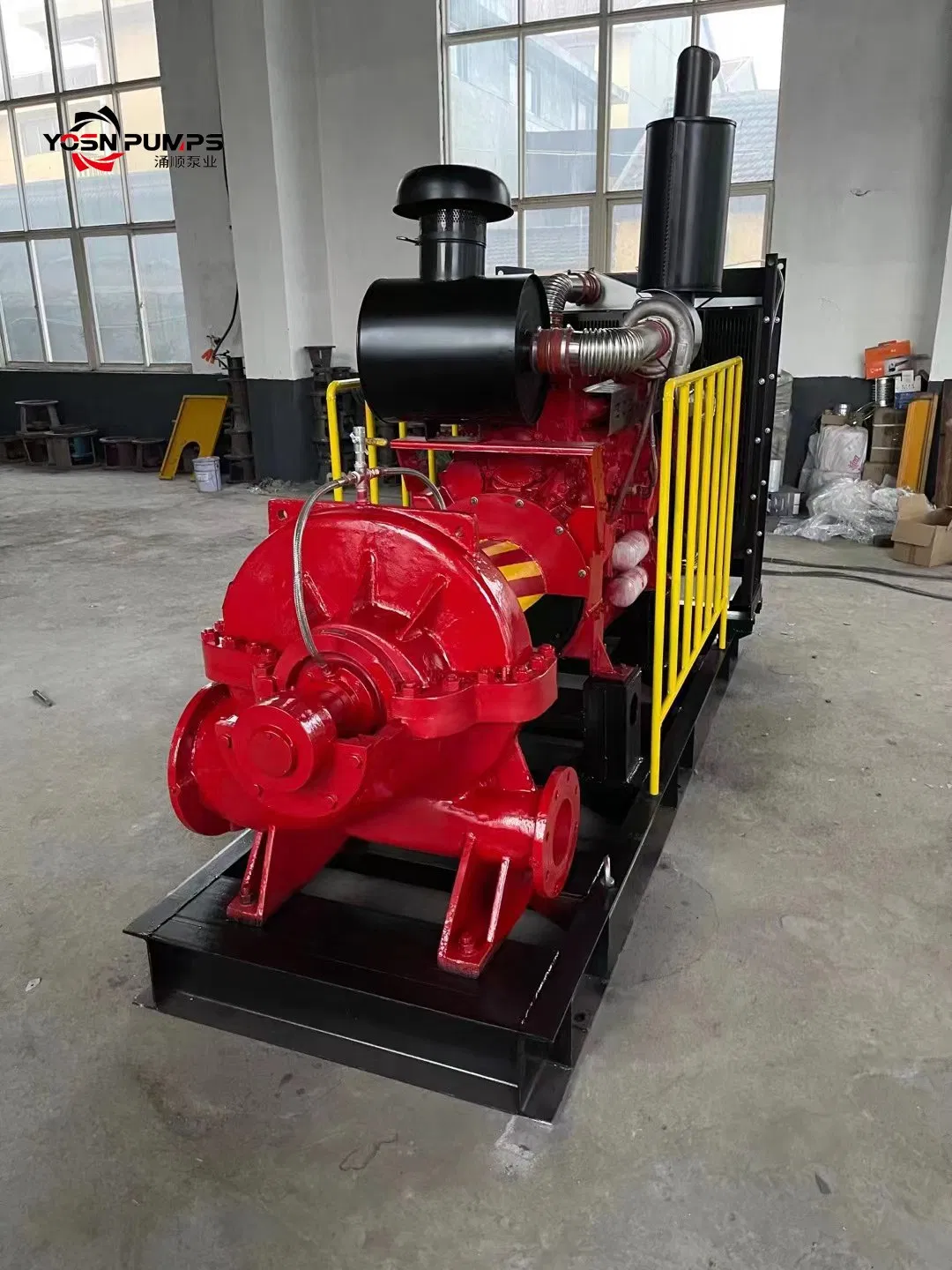

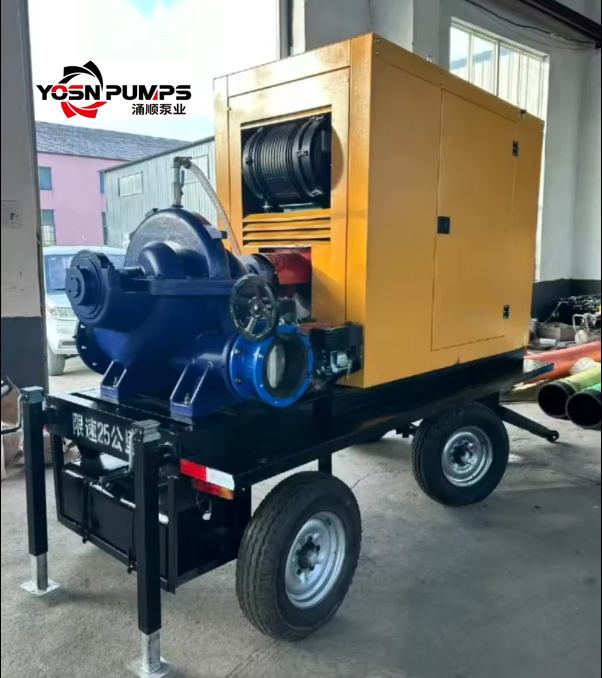

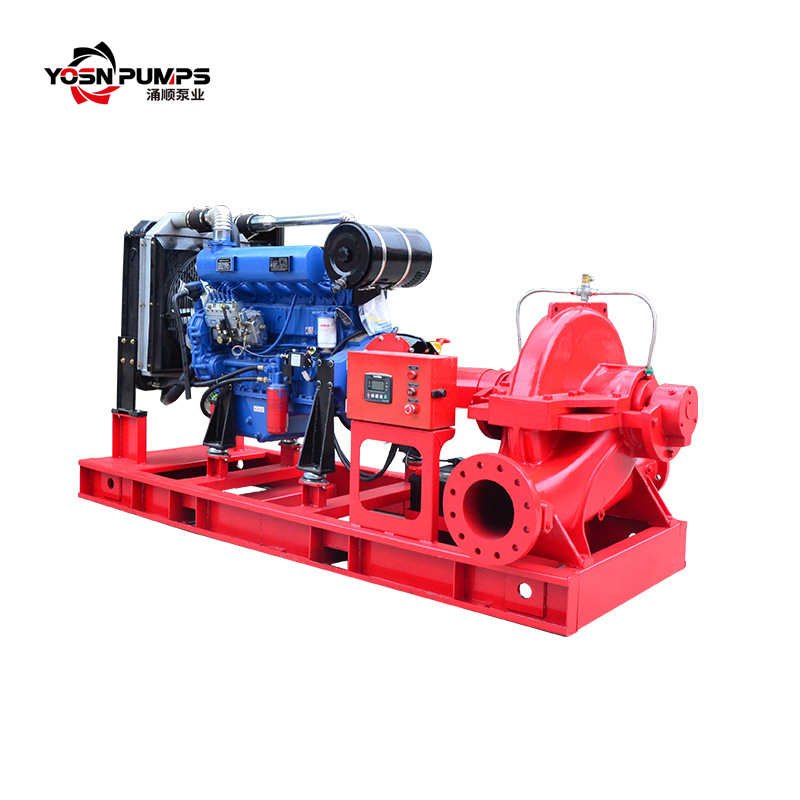

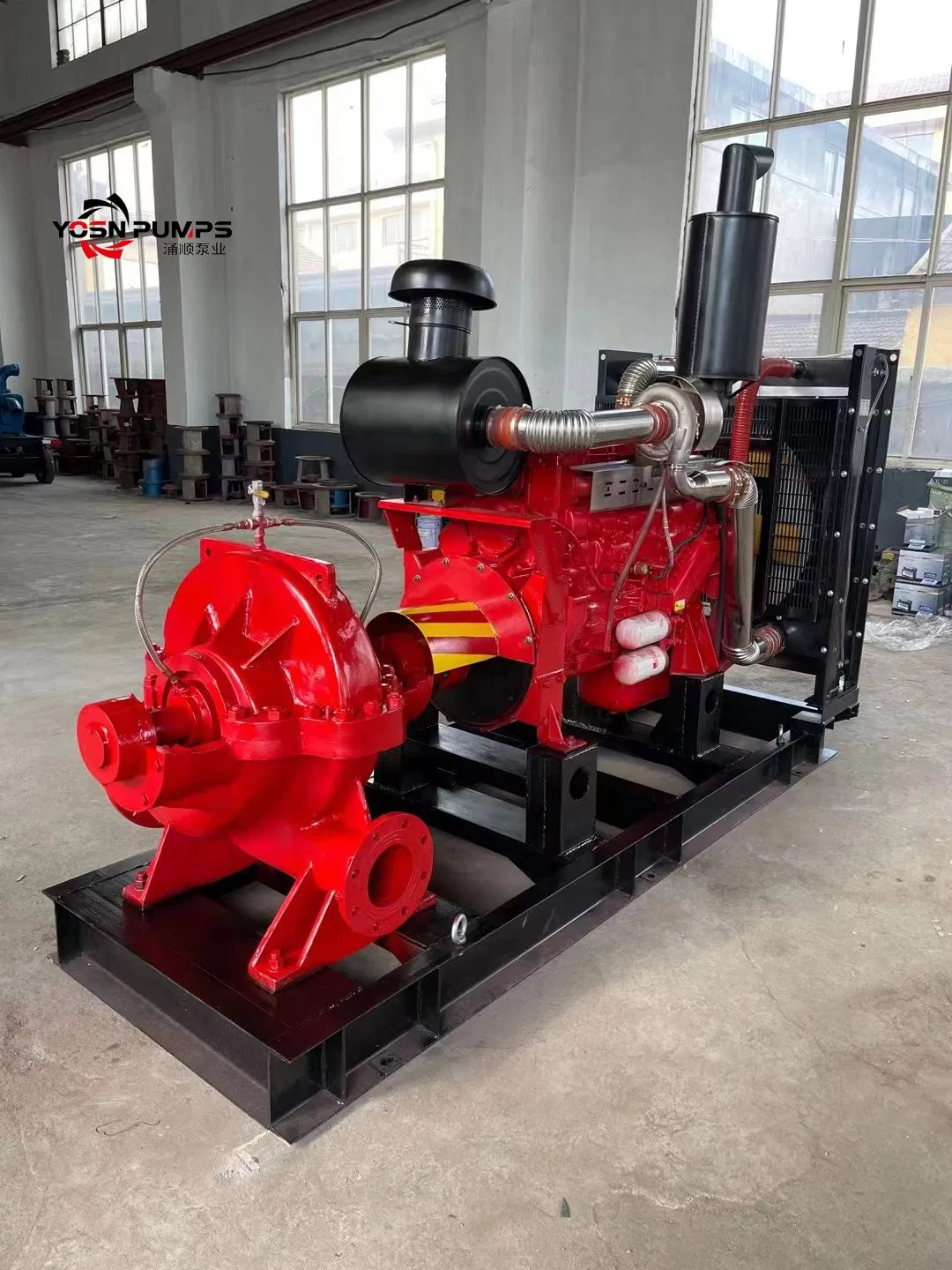

Factory Price Agricultural Irrigation Diesel Engine High Volume Split Case Casing Volute Double Suction Centrifugal Water Pump

⚙ Basic Information

Model NO.

S SH

Max.Head

140 M

Max.Capacity

12500 M3/H

Driving Type

Motor

Impeller

Single-Stage / Closed

Pump Shaft

Horizontal

Flow Range

111.6-12500 M3/H

Speed

970-2950 R/Min

Motor Power

30-850 Kw

Voltage

380V-10kV

Max Temperature

80 - 130 Degrees Celsius

Shaft Seal

Soft Packing or Mechanical Seal

📋 Product Description

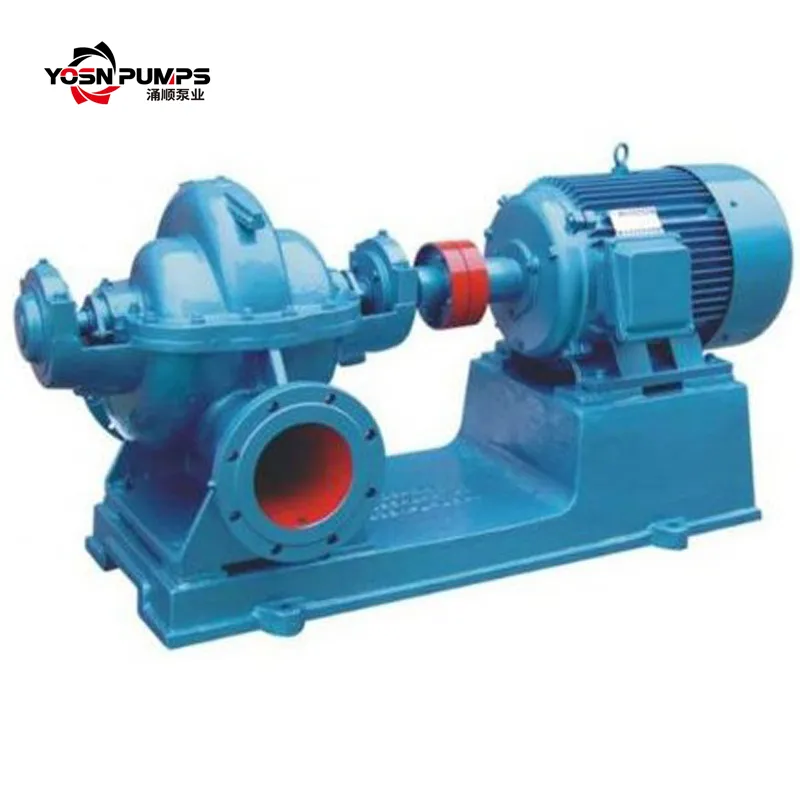

Horizontal Split Case Double Suction Centrifugal Pump

S SH series split case double suction centrifugal pumps are horizontal single stage double suction centrifugal pumps. They are widely used in industrial plants, mines, urban water supply, and large-scale water projects for transporting clean water and liquids with physical and chemical properties similar to water.

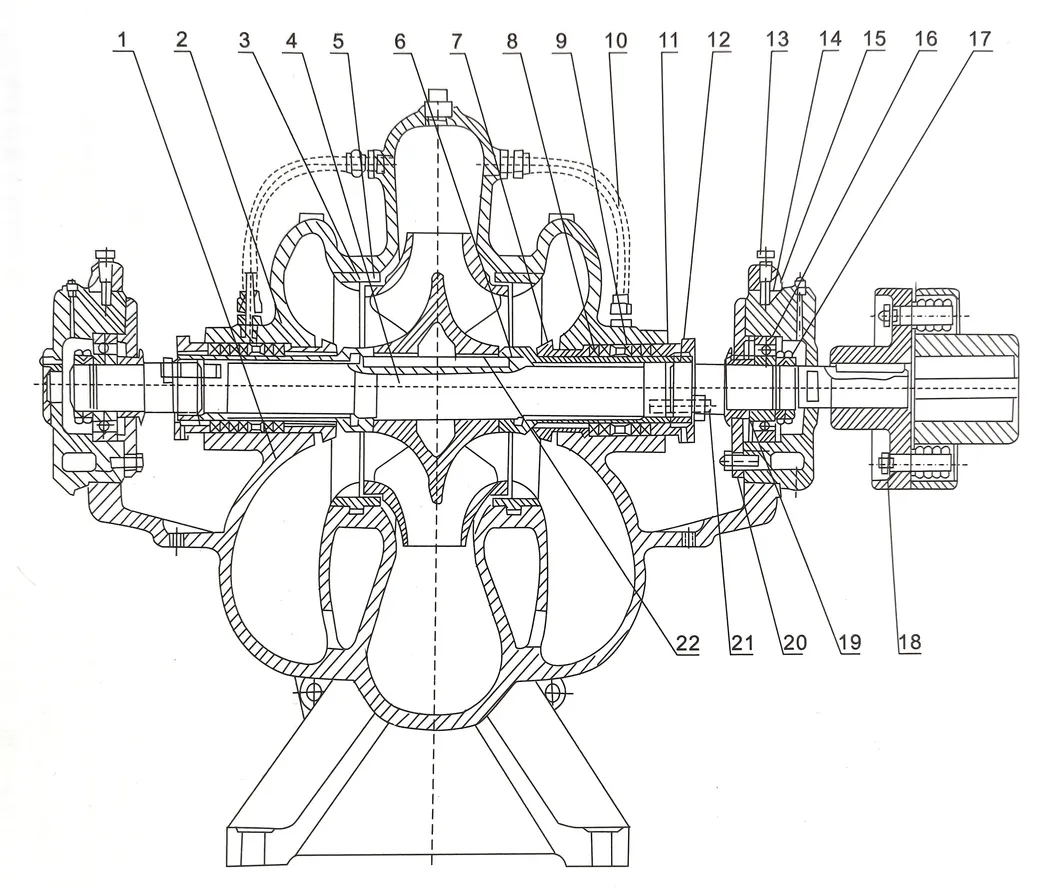

Key Components:

1. Pump body & Cover | 3. Impeller | 4. Shaft
5. Double suction sealing ring | 6. Shaft sleeve
10. Water seal pipe | 11. Packing gland
14. Bearing body | 16. Single row radial ball bearing

⭐ Technical Advantages

Versatile Media: By changing materials, it can pump muddy water containing sediment.
High Performance: Single set head can reach up to 140m with flow rates of 12500m³/h.
Temperature Resilience: With cooling water supply, medium temperature can reach 130 ºC.
Easy Maintenance: Split casing design allows inspection without disassembling pipelines or motors.
Energy Saving: Advanced water conservancy design with optional soft start and frequency control.

📊 Product Parameters

Model	Power (kw)	Capacity (m³/h)	Head (m)	Speed (r/min)	Efficiency (%)	NPSH (m)
150S / 6SH	30-55	111.6-200	35-85	2950	68-77.5	2.7-4.5
200S / 8SH	37-132	180-351	31-108	2950	67-82	4.2-7
250S / 10SH	22-132	320-576	8.6-71.5	1450	70-83.6	2.4-4.5
300S / 12SH	30-300	504-972	8.7-98	1450	31-85	3.4-6.8
350S / 14SH	55-680	328-1660	10-140	1450	63.5-86.2	3.5-8.2
500S / 20SH	115-850	1296-2448	10.7-105	970	72-87.2	4-6.6
600S / 24SH	190-780	2304-3960	13-71	970	77-91	1.3-2.5

🚀 Applications

📦 Packaging & Shipping

We ensure professional packaging, boxing, and nailing. We support freight via sea, air, and express transportation to provide the best service.

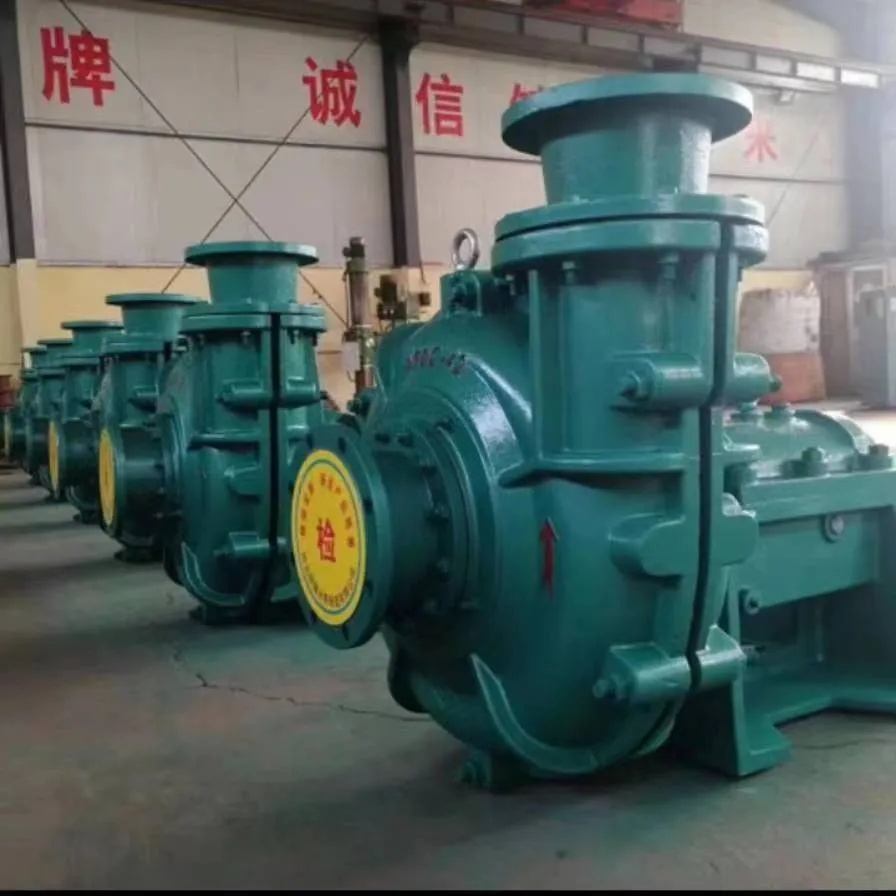

🏢 Profile

Business Type: Manufacturer and Exporter
Main Products: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, double suction pumps, booster pumps, and diesel water pumps.

📜 Certifications

❓ FAQ

How can I make an order online?

Send us an email or message via WhatsApp/WeChat. Once details are confirmed, we will process your order.

What is the Minimum Order Quantity (MOQ)?

Our MOQ is 1 set.

Which payment methods and shipping terms are available?

We accept T/T, L/C, Western Union, and Paypal. Shipping is available by sea, air, or Express.

What is the typical delivery time?

Delivery usually takes 3-7 working days after payment confirmation, depending on the quantity.

What kind of guarantee do you provide?

The warranty period is 2 years (excluding wearing parts). We offer free repairs or replacements for manufacturing defects.

Can I purchase pump parts separately?

Yes, all pump spare parts are available for separate purchase.
