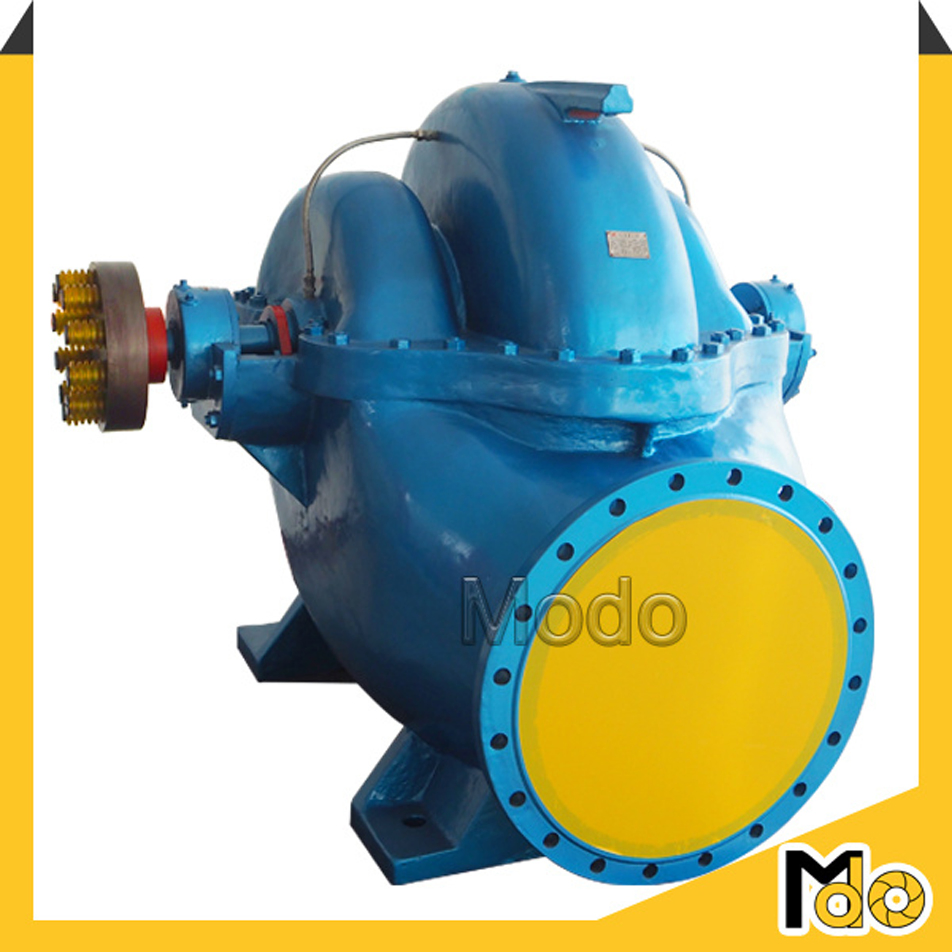

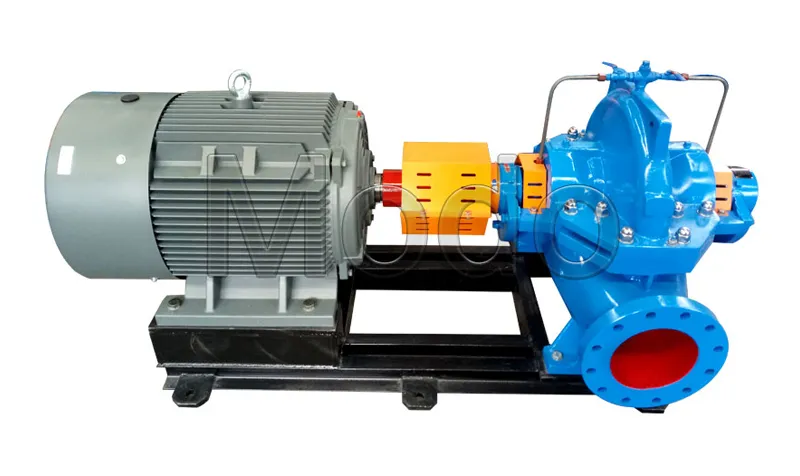

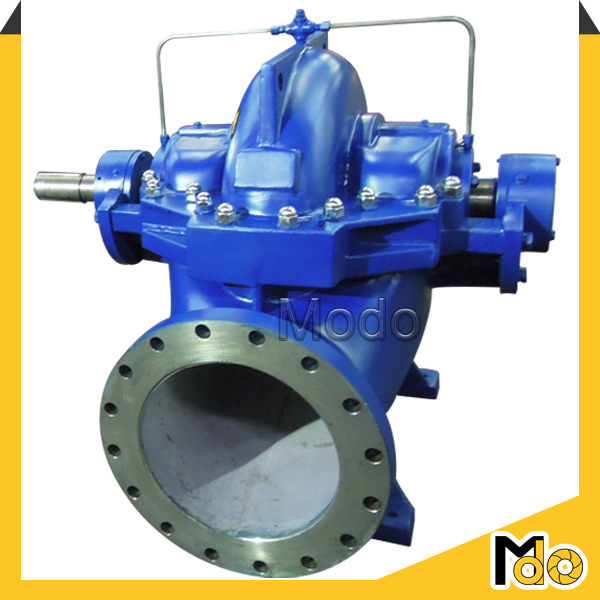

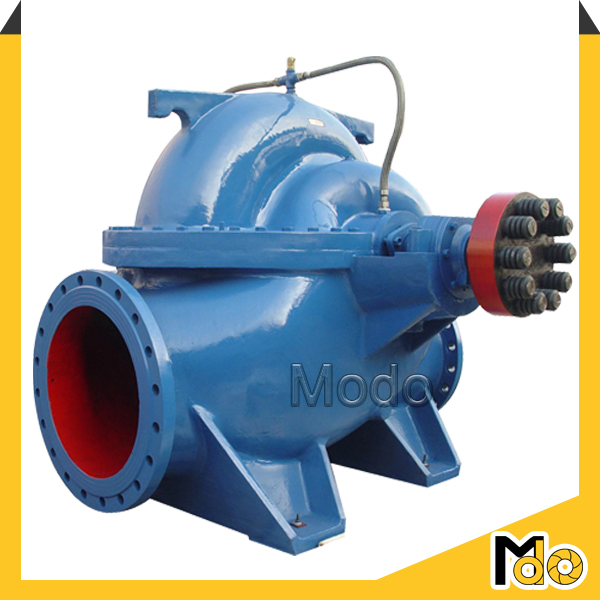

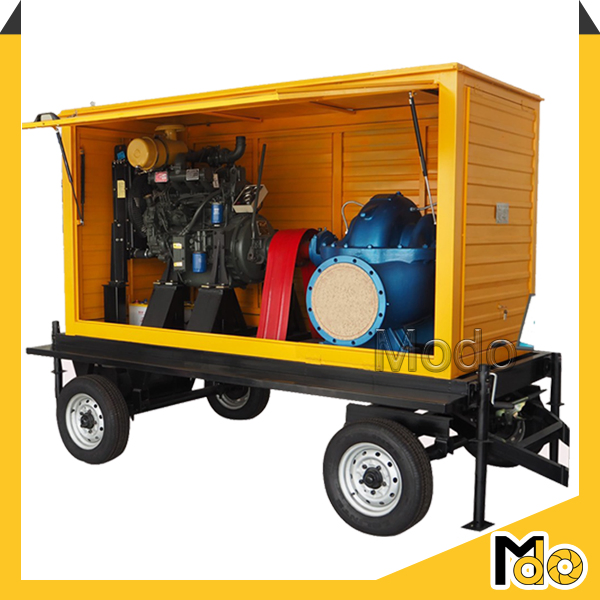

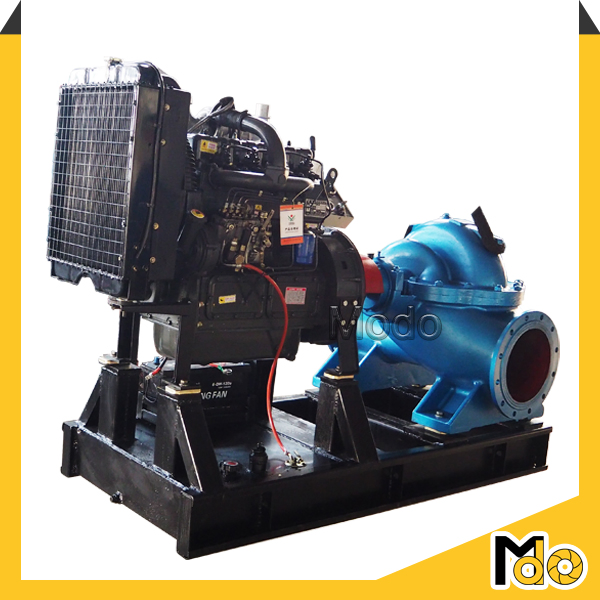

MS type Split casing water pump is a high-performance solution capable of handling 1000 cubic meters per hour. It is specifically designed to transport pure water and liquids with physical and chemical properties similar to water, with a maximum temperature threshold of 80 ºC.

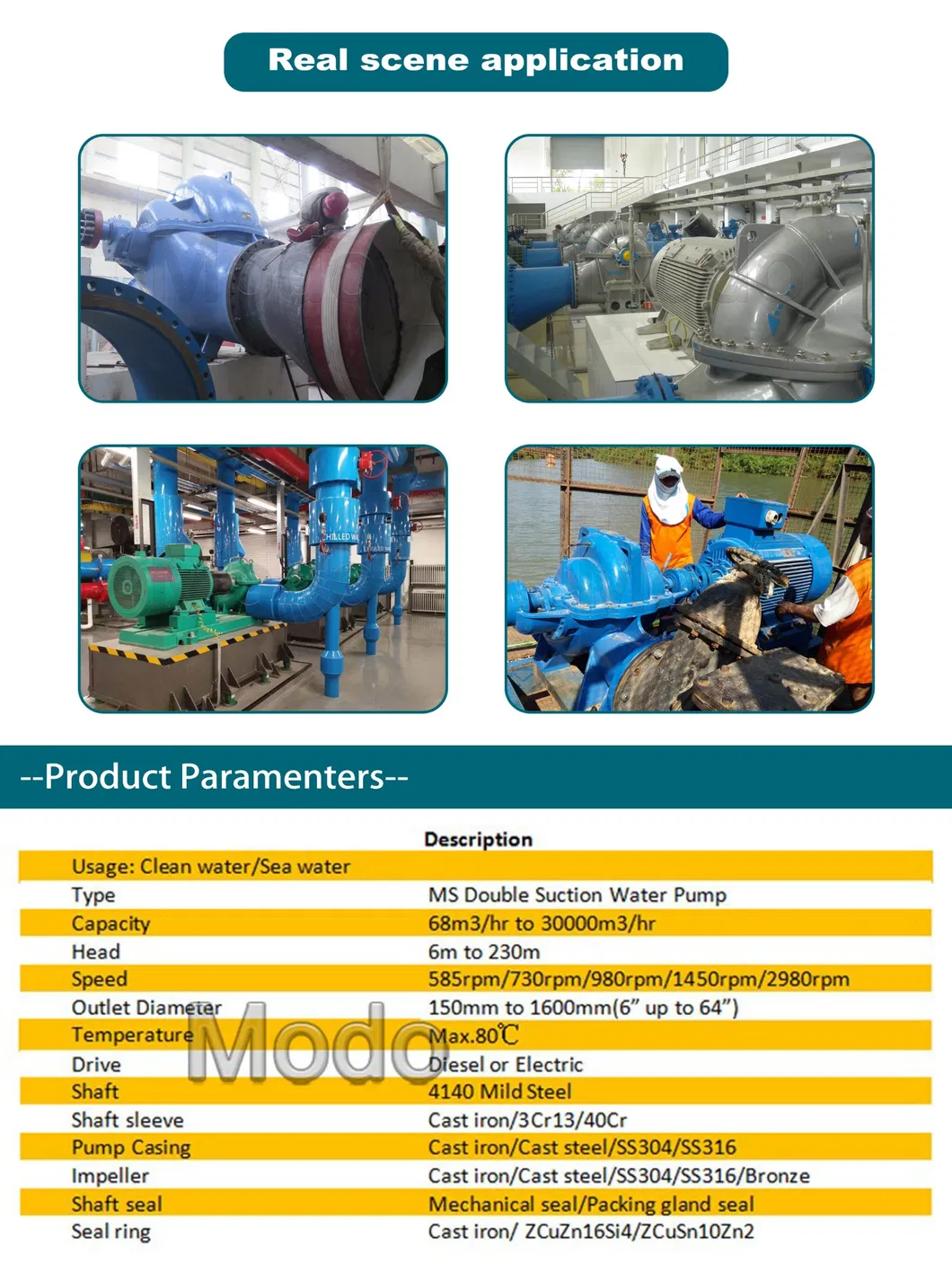

This series of pumps is ideal for water supply and drainage systems in factories, mines, and cities. It is also extensively used in power stations, agricultural irrigation, and various hydraulic projects.
| Model | Inlet/Outlet (mm) | Capacity m³/h | Head m | Speed (rpm) | Shaft Power (kw) |
|---|---|---|---|---|---|
| 200S-95 | 200/200 | 280 | 95 | 2900 | 94 |
| 200S-63 | 200/200 | 280 | 63 | 2900 | 59.3 |
| 250S-65 | 250/250 | 485 | 65 | 1450 | 108.7 |
| 300S-90 | 300/300 | 790 | 90 | 1450 | 249.8 |
| 350S-125 | 350/350 | 1260 | 125 | 1450 | 531 |
| 500S-98 | 500/500 | 2020 | 98 | 980 | 678 |
| 800S-47 | 800/800 | 5500 | 47 | 730 | 782.2 |
