Driving Type
Electric Motor or Diesel Engine
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type
Single Suction
Pump Shaft Position
Horizontal
Material
Cast Iron, Stainless Steel

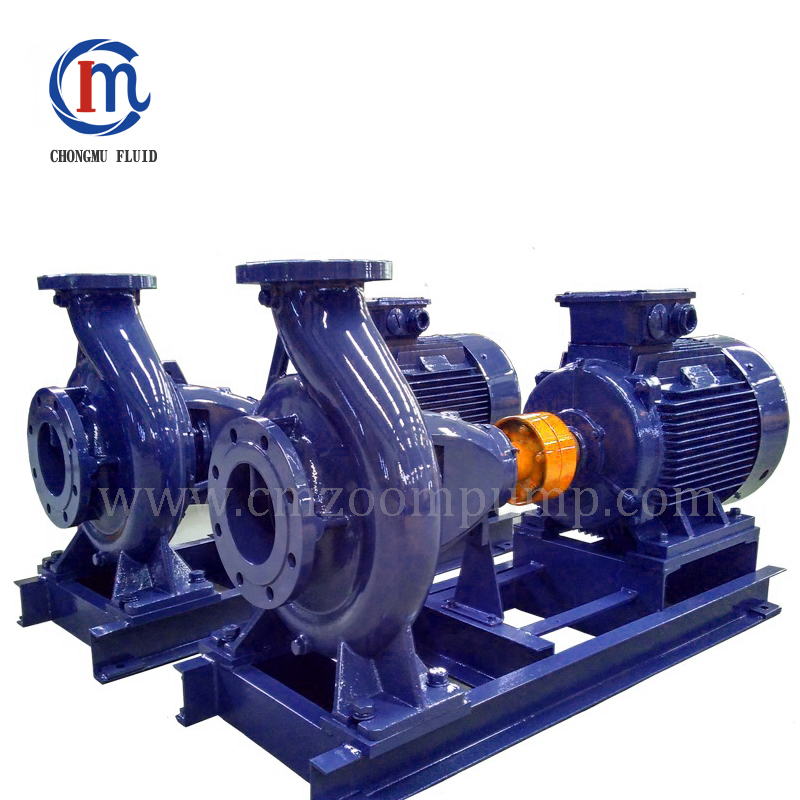

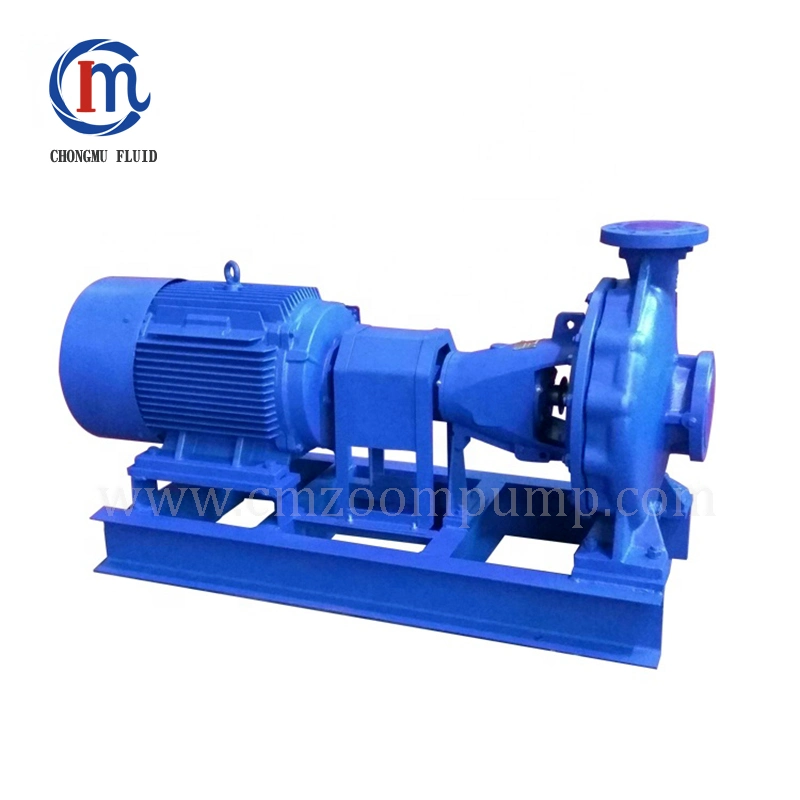

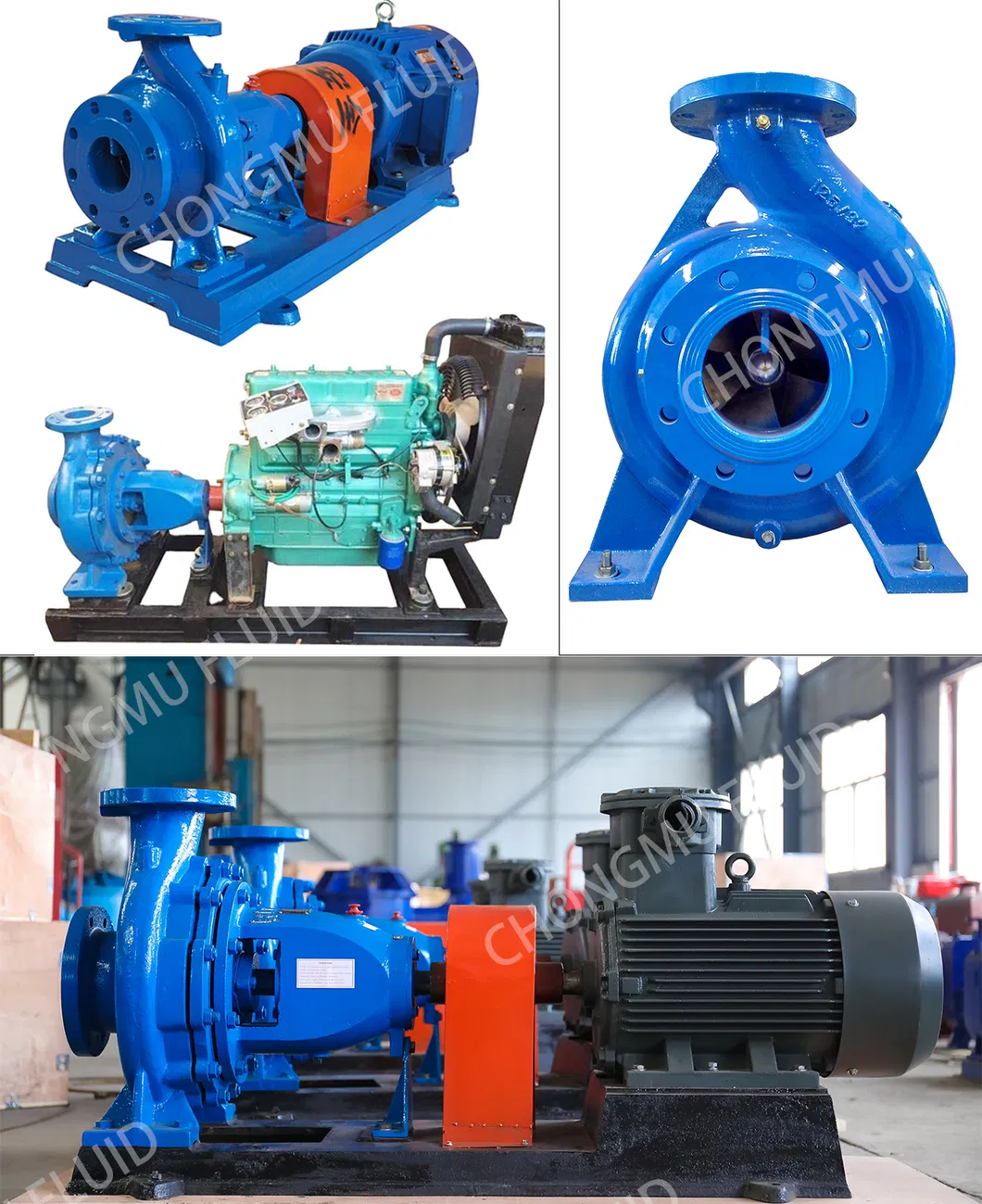

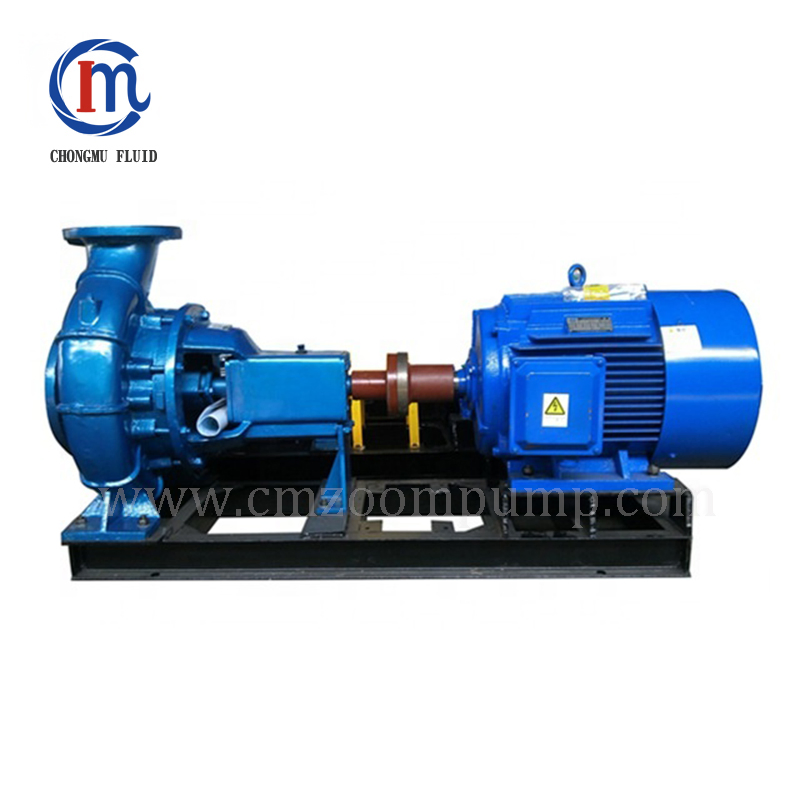

IS series single-stage single-suction clean water centrifugal pump is an international standard pump designed according to the performance and dimensions specified in the ISO2858 standard.
The whole series of hydraulic performance has reasonable layout, wide user selection range and convenient maintenance. The efficiency and suction range have reached the international average advanced level.
This type of pump is suitable for industrial and urban water supply and drainage, agricultural irrigation, and for transporting clear water or liquids with physical and chemical properties similar to clear water (temperature ≤ 80°C). It features a simple structure, reliable performance, small size, and low power consumption.
| Flow range: | 3.75-460m3/h |
| Head range: | 4-133m |
| Power: | 0.55-110kw |
| Material: | Cast Iron, Stainless Steel |
Slurry pumps
Gravel pumps
Submersible slurry pumps
Inline pumps
Multi-stage pumps
Split case pumps
Sewage pumps
Mixed flow pumps
Self priming pumps
High-quality Spare parts
What are the primary applications for the IS series centrifugal pump?
The IS series is ideal for industrial and urban water supply, drainage, and agricultural irrigation. It is designed for clear water or liquids with similar properties.
What standard is this pump manufactured to?
These pumps are designed and manufactured according to the international standard ISO2858, ensuring high efficiency and performance.
What is the maximum liquid temperature the pump can handle?
The standard IS series pump can transport liquids with temperatures up to 80°C.

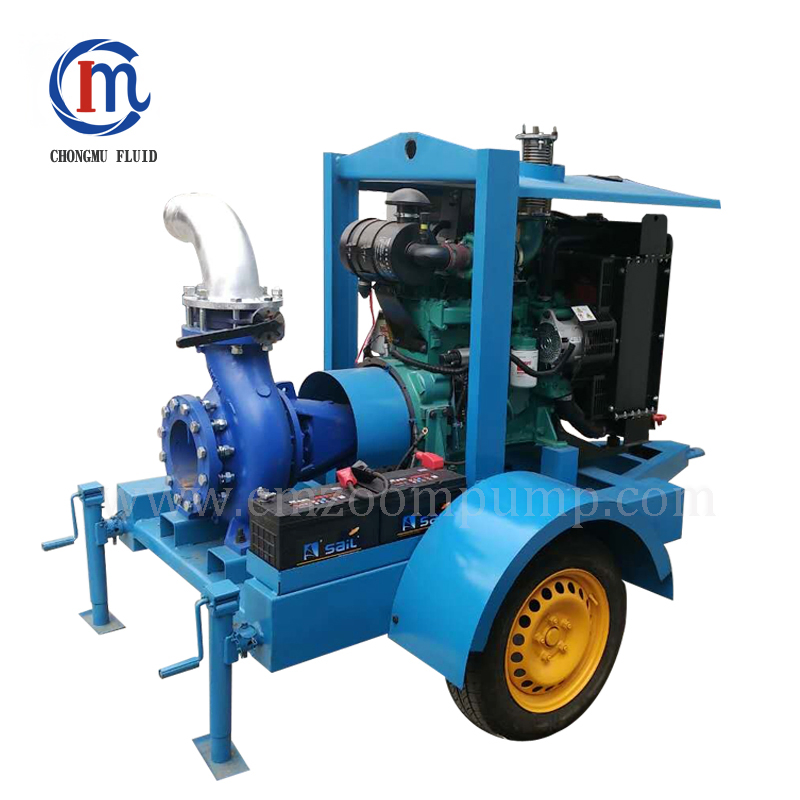

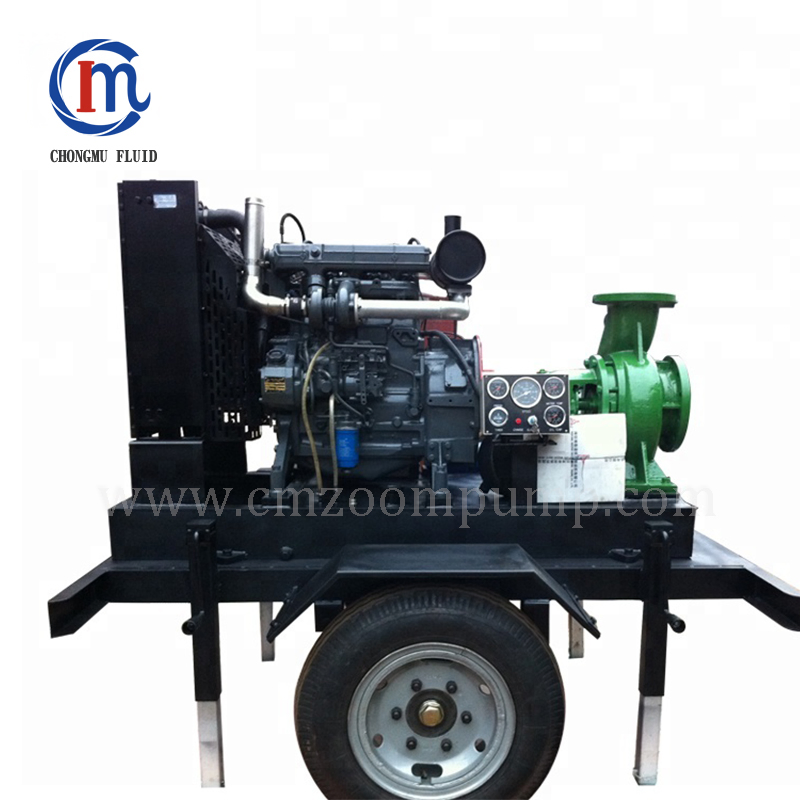

What driving types are available for this series?
The pumps can be driven by either an Electric Motor or a Diesel Engine, depending on your site requirements and power availability.
What information is needed to get an accurate quotation?
Please provide the liquid type, required flow capacity (m³/h), total head (m), pH value, specific gravity, and your local voltage/frequency.
Are different materials available for corrosive liquids?
Yes, while cast iron is standard, we offer stainless steel options for improved chemical resistance and durability in specific environments.
