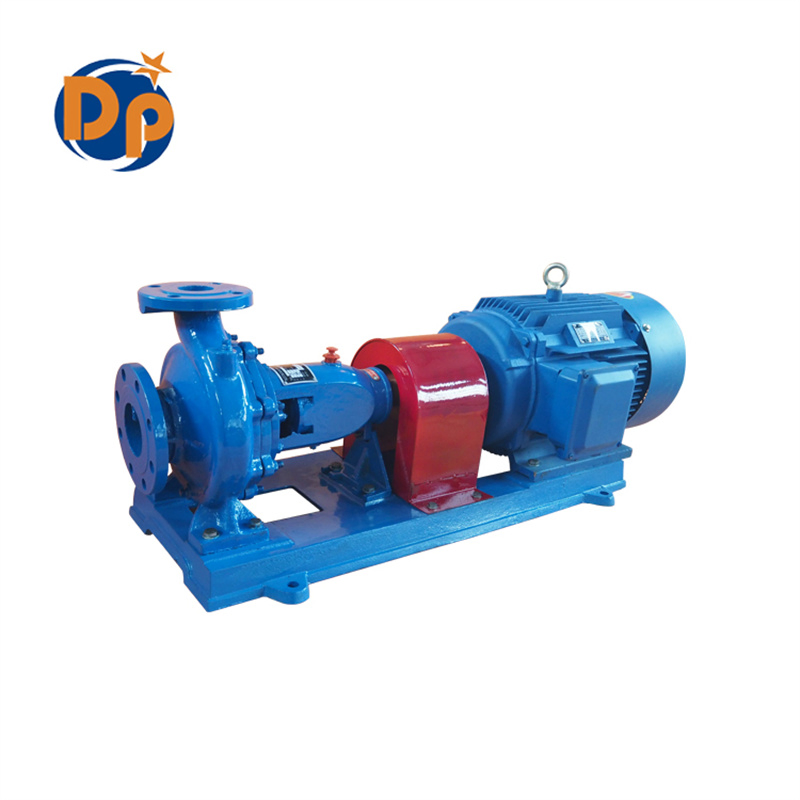

End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
1 / 5
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation
End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation

End Suction Single Water Pump Cast Iron Fire Feed Fighting Centrifugal Pump for Farmland Irrigation

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.IS
Max.Capacity>400 L/min
Driving TypeMotor
Impeller NumberSingle-Stage Pump
Working PressureHigh Pressure Pump
Position of ShaftHorizontal Pump
ImpellerClosed
Voltage220V/380V/410V/460V
Frequency50Hz/60Hz
OriginChina
Product Description
💡
General Application Water Pump Small Booster Pump
This series of centrifugal water pumps are single stage suction cantilever centrifugal pumps. They are designed to deliver clean water and liquids with physical and chemical properties similar to clean water.

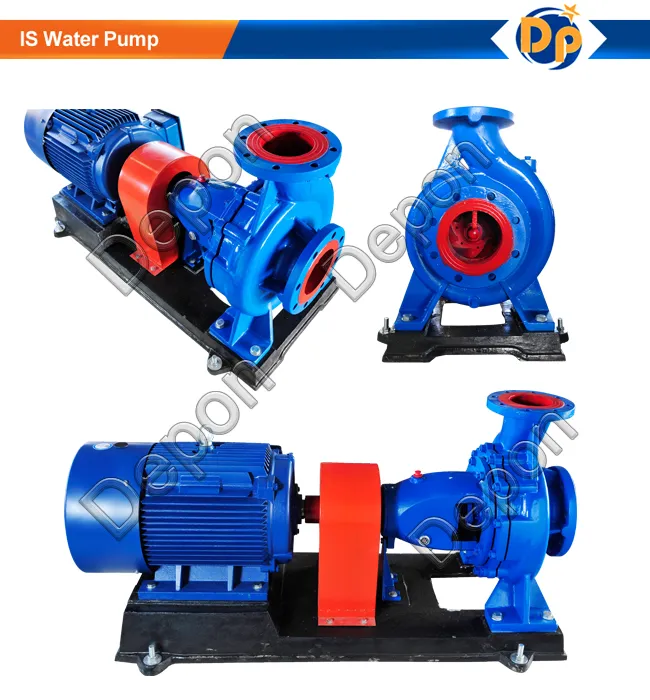

Centrifugal Pump Main View

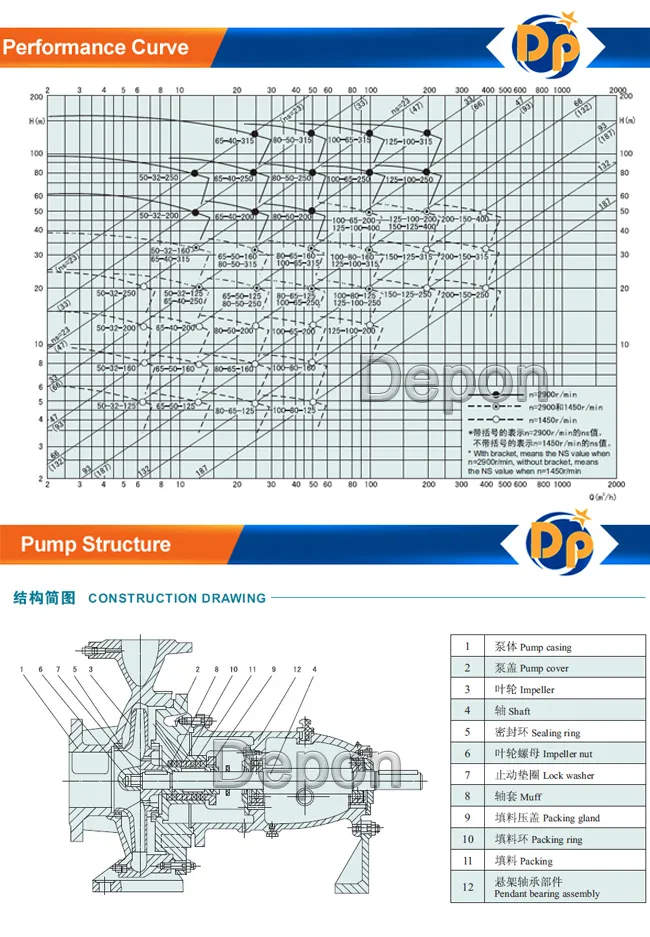

Pump Technical Structure
Key Applications
Domestic water boosters
Sprinkler & Firefighting
Water treatment plants
Seawater pumping
Chemical Processing
Food processing
Agriculture Irrigation
Mines & Construction sites
Technical Data & Features
⚙️
Performance Range:
• Head: Up to 160m
• Discharge: Up to 250 litres per sec
• Pressure rating: 1600kPa
Heavy duty oil lubricated taper roller bearings
Superior hydraulic design for higher efficiency
High strength cast iron bearing housing
Mechanical seals fitted as standard
Double curvature impeller blades for suction performance
Taper mounted impeller for easy removal
Replaceable stainless steel or bronze wear rings
Model Notation (e.g., IS 65-40-200 A D)
• IS - Model Series
• 65 - Inlet Diameter (mm)
• 40 - Outlet Diameter (mm)
• 200 - Nominal Impeller Diameter (mm)
• A - Sign of cut impeller (O: Prototype, A/B/C: Progressive cuts, Z: Increased OD)
Models & Performance Data
Model Flow (m3/h) Lift Head (m) Speed (r/min) Power (kw) Inlet (mm) Outlet (mm)
IS50-32-12512.5 / 6.320 / 52900 / 14502.2 / 0.555032
IS50-32-16012.5 / 6.332 / 82900 / 14503 / 0.555032
IS50-32-20012.5 / 6.350 / 12.52900 / 14505.5 / 0.755032
IS65-50-12525 / 12.520 / 52900 / 14503 / 0.556550
IS65-40-20025 / 12.550 / 12.52900 / 14507.5 / 1.16540
IS80-65-16050 / 2532 / 82900 / 14507.5 / 1.58065
IS100-80-160100 / 5032 / 82900 / 145015 / 2.210080
IS125-100-200200 / 10050 / 12.52900 / 145045 / 7.5125100
IS200-150-40040050145090200150

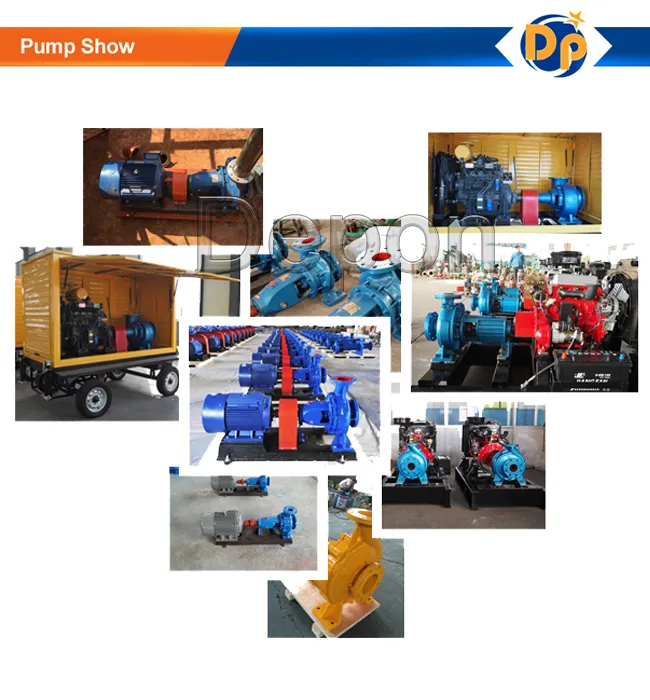

Centrifugal Pump Detail
Pump Assembly View
Frequently Asked Questions
Q: What type of manufacturer are you? A: We are a professional pump manufacturer with a complete system for pump design, selection, application, manufacture, and maintenance. We hold CE and SGS certifications.
Q: What is the Minimum Order Quantity (MOQ)? A: Trial sample orders are welcome and accepted.
Q: What are your accepted payment terms? A: We accept T/T, L/C, D/P, D/A, or other terms as required by the customer.
Q: What is the warranty period for your pumps? A: We provide a one-year warranty, which may vary depending on specific pump working conditions.
Q: What is the standard delivery time? A: Delivery usually takes between 7 to 30 days, depending on the order quantity.
Q: Do you offer OEM branding services? A: Yes, we welcome OEM brand projects and can manufacture according to your requirements.
