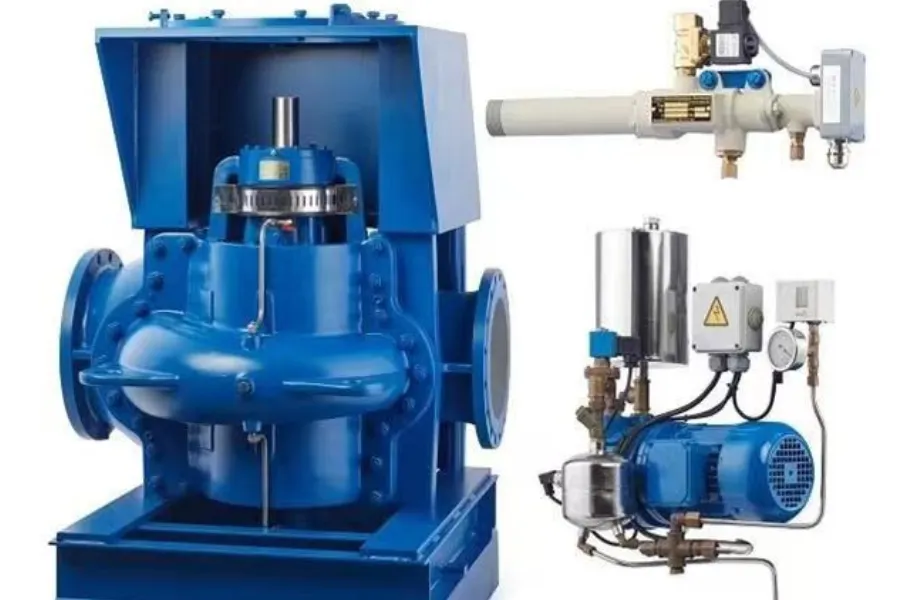

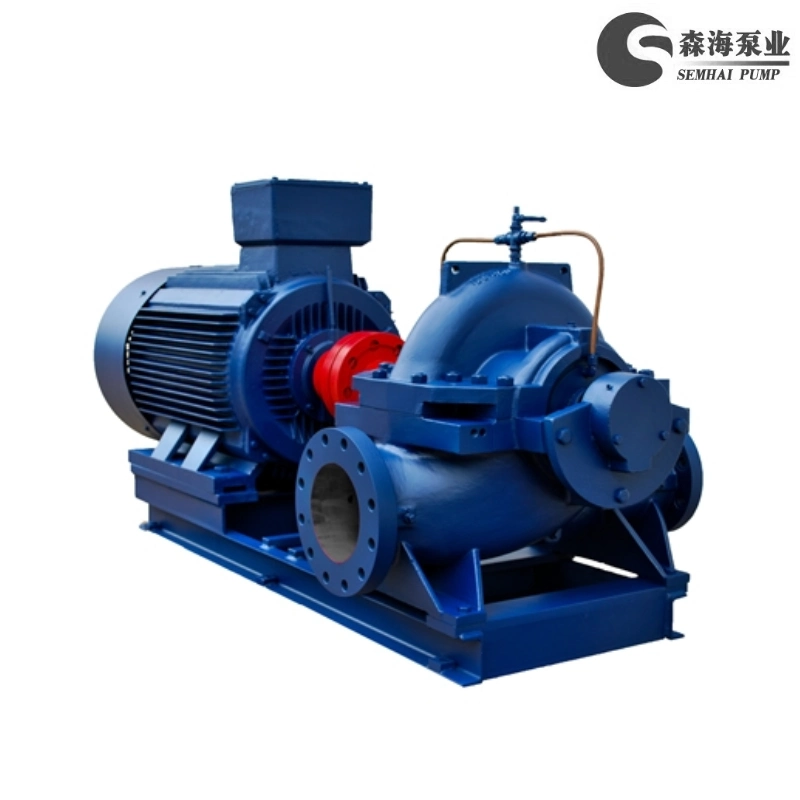

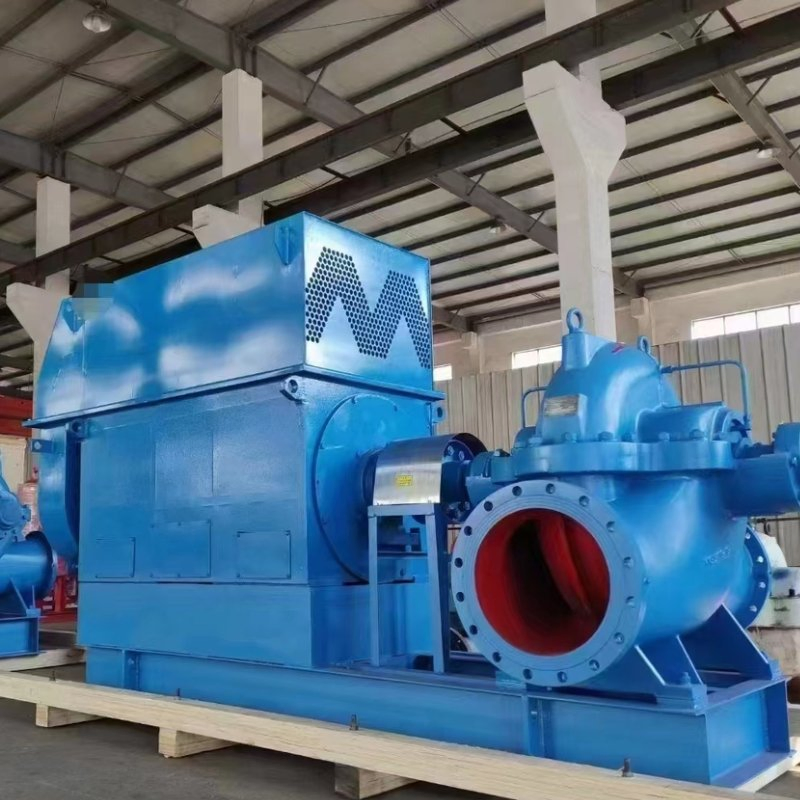

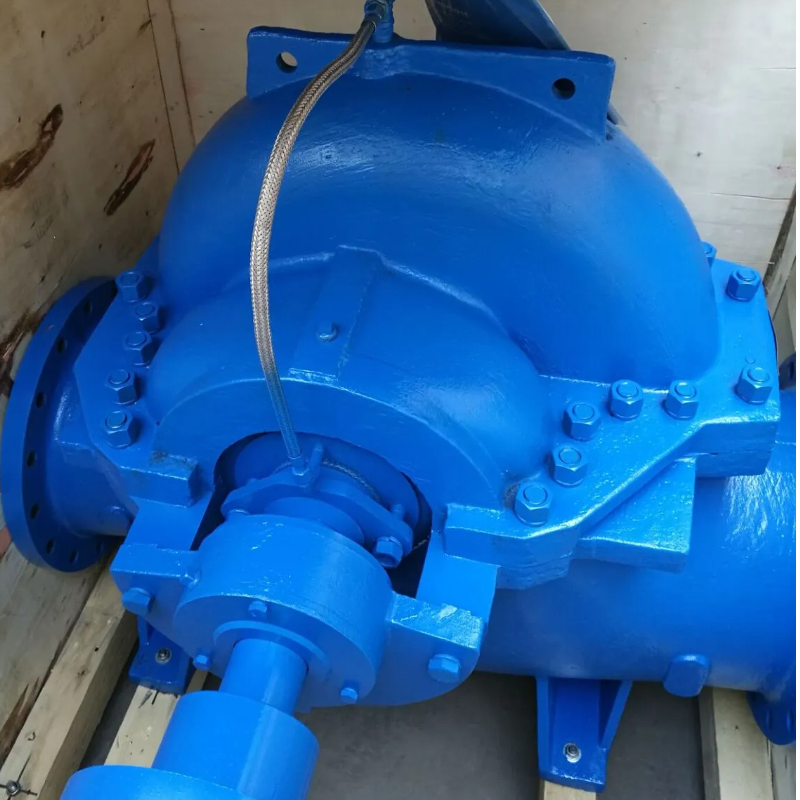

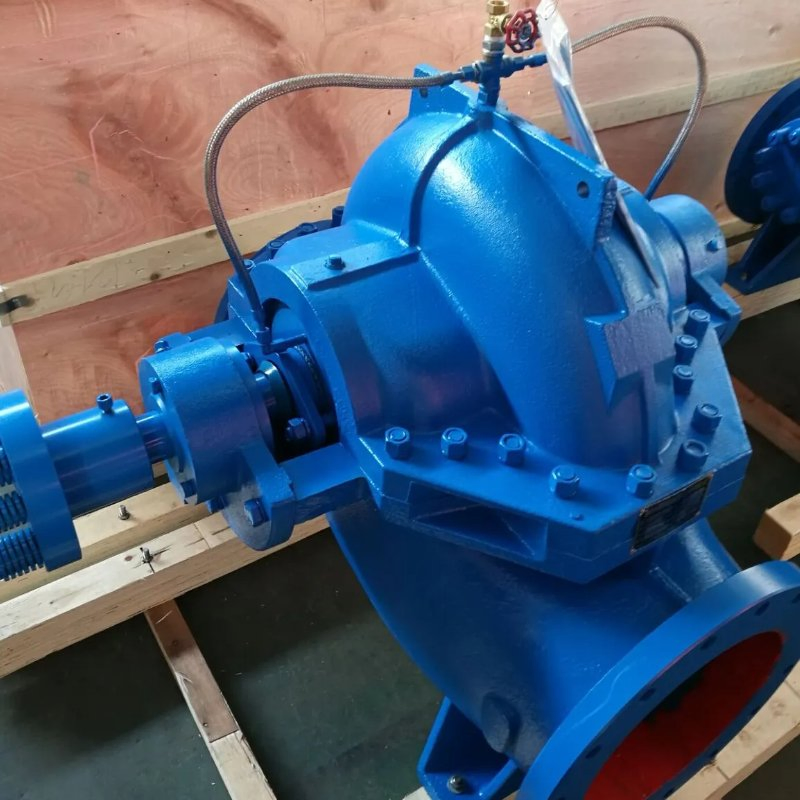

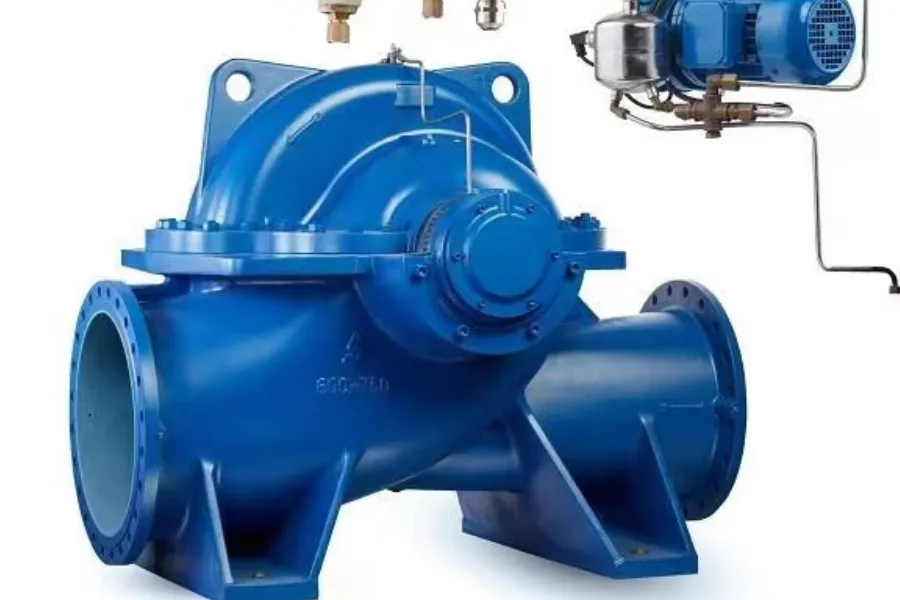

The SOW series horizontal single-stage split-casing double-suction centrifugal pump represents the latest generation of high-performance pumping technology. It features a perfect spectrum of models, outstanding efficiency, and a reliable structure designed for easy maintenance and longevity. With over 46 models and 390 basic specifications, this series meets various user needs through impeller modifications and precise engineering.
Key Advantages: Double-suction impellers minimize axial force, while CAD hydraulic models optimize performance. The double volute design reduces radial forces, extending bearing life. Precision casting ensures smooth surfaces for significant anti-cavitation performance and high efficiency.
| Pump Speed | 298, 372, 490, 585, 740, 990, 1480 and 2950rpm |
| Motor Voltage | 380V/415V, 3.3KV, 6KV and 10KV |
| Caliber Range | 80-1600mm |
| Flow Range | 68-30000 m³/hr |
| Head Range | 6-230m |
| Temperature | Medium max ≤80°C, Ambient max ≤40°C |
| Operating Pressure | 1.0Mpa to 1.6Mpa (Special configuration up to 2.5Mpa) |
| Transmission Medium | Water or liquids with similar physical/chemical properties |

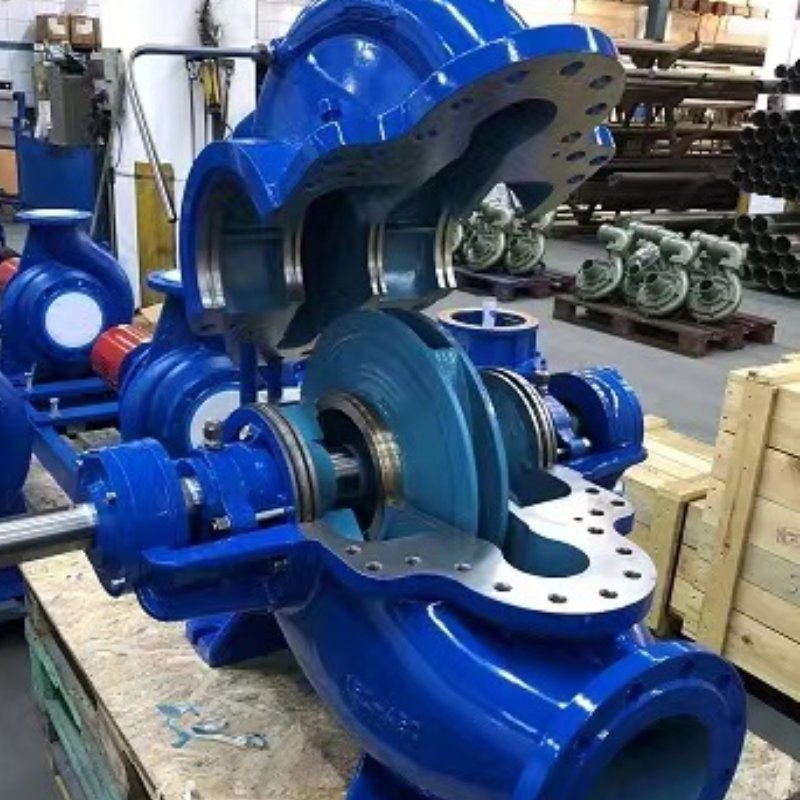

Between-the-bearings Design: Split-case pumps mount the impeller on a shaft supported by bearings on both sides, ensuring stability and balanced loads.

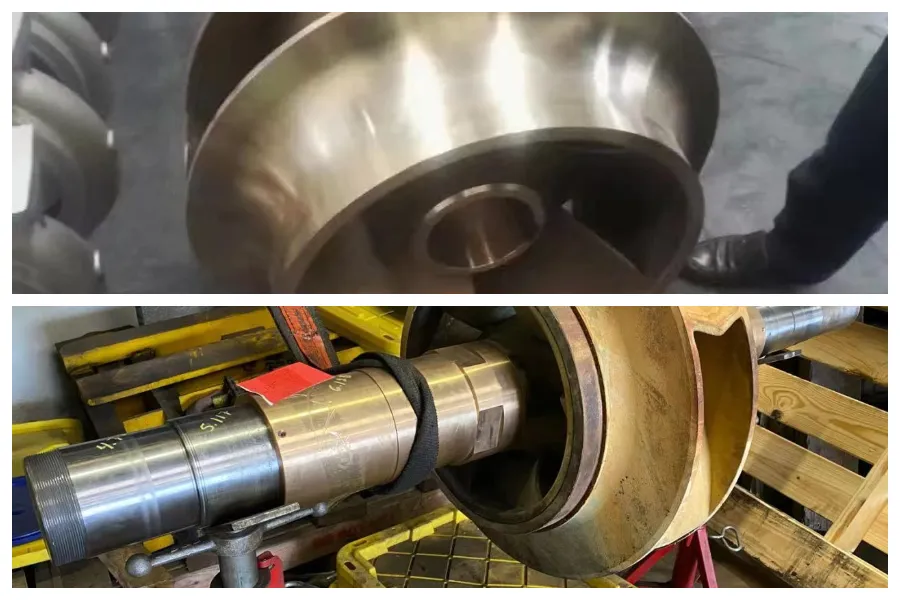

Double-suction Impeller: Dramatically reduces loads on the bearings compared to single-suction types. High-precision casting available in cast iron, stainless steel, or bronze.

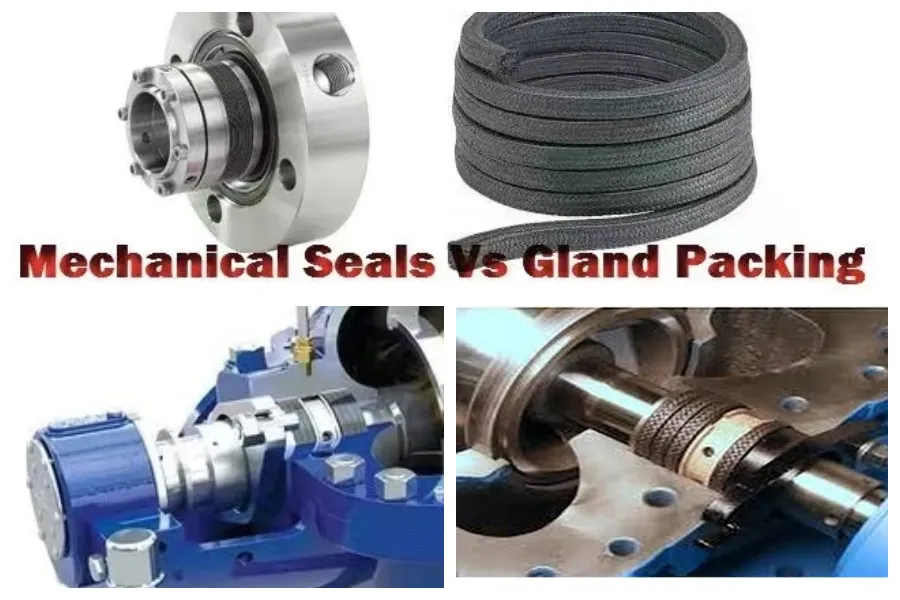

Sealing Solutions: Traditional Packing Seals are available for wide-ranging utility, while Mechanical Seals are preferred for leak-free operations and enhanced durability in demanding applications.

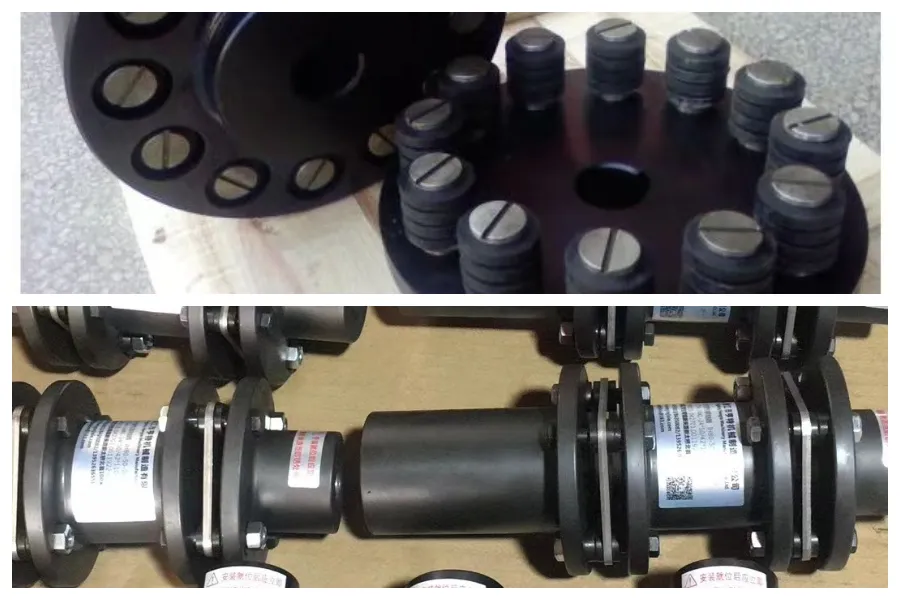

Flexible Couplings: We utilize wear-resistant disc or pin couplings to accommodate vibrations and thermal expansion, protecting shafts and bearings from premature wear.
These pumps are widely utilized across various sectors:

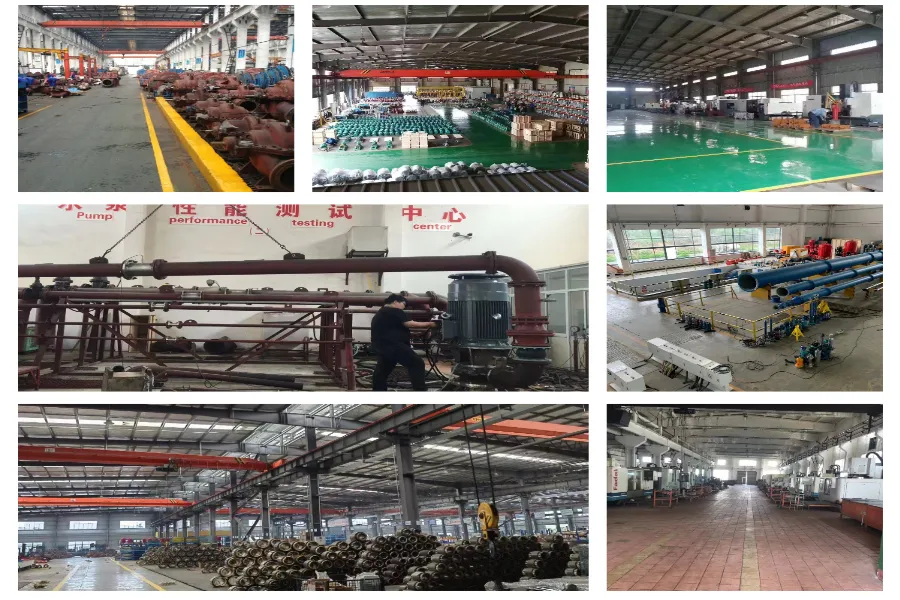

Our products undergo rigorous testing in cooperation with leading industrial pump inspection centers, ensuring compliance with ISO2548C and GB standards for mechanical and electrical product quality.
