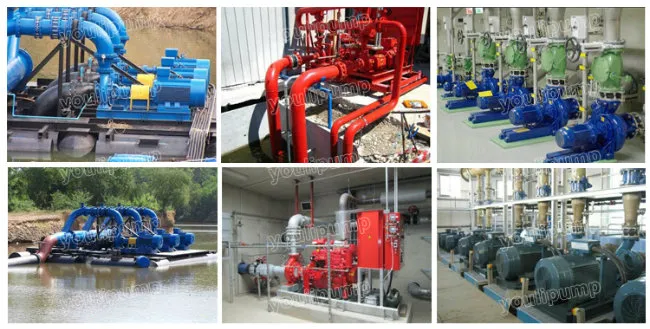

DA series centrifugal pump is specialized in pumping water, liquid, and chemical substances. With optional rotation speeds of 1450rpm, 1750rpm, 2900rpm, and 3500rpm, this pump is a versatile solution for water transfer systems, farmland irrigation, fire water supply, urban drainage, and cooling water circulation.
| Specification | 2900 r/min | 1450 / 1480 r/min |
|---|---|---|
| Max. Capacity | 132 L/s | 300 L/s |
| Max. Head | 150 m | 550 m |
| Max. Temperature | 105ºC | |
| Shaft Seal | Packing Seal or Mechanical Seal | |
| Working Pressure | 1.0 Mpa (Up to 1.6 Mpa with nodular cast iron/cast steel) | |
| Model | Capacity (m3/h) | Head (m) | Speed (r/min) | Power (kw) | Eff. (%) | Inlet/Outlet (mm) |
|---|---|---|---|---|---|---|
| DA40/13 | 14.5 | 6.0 | 1450 | 0.55 | 71 | 65 / 40 |
| DA40/13 | 30.0 | 23.5 | 2900 | 3.0 | 73 | 65 / 40 |
| DA40/13A | 13.6 | 5.2 | 1450 | 0.55 | 71 | 65 / 40 |
| DA40/13B | 12.5 | 4.3 | 1450 | 0.55 | 69 | 65 / 40 |
| DA40/13C | 11.5 | 3.6 | 1450 | 0.55 | 64 | 65 / 40 |
| DA40/13D | 10.4 | 3.0 | 1450 | 0.55 | 58 | 65 / 40 |
