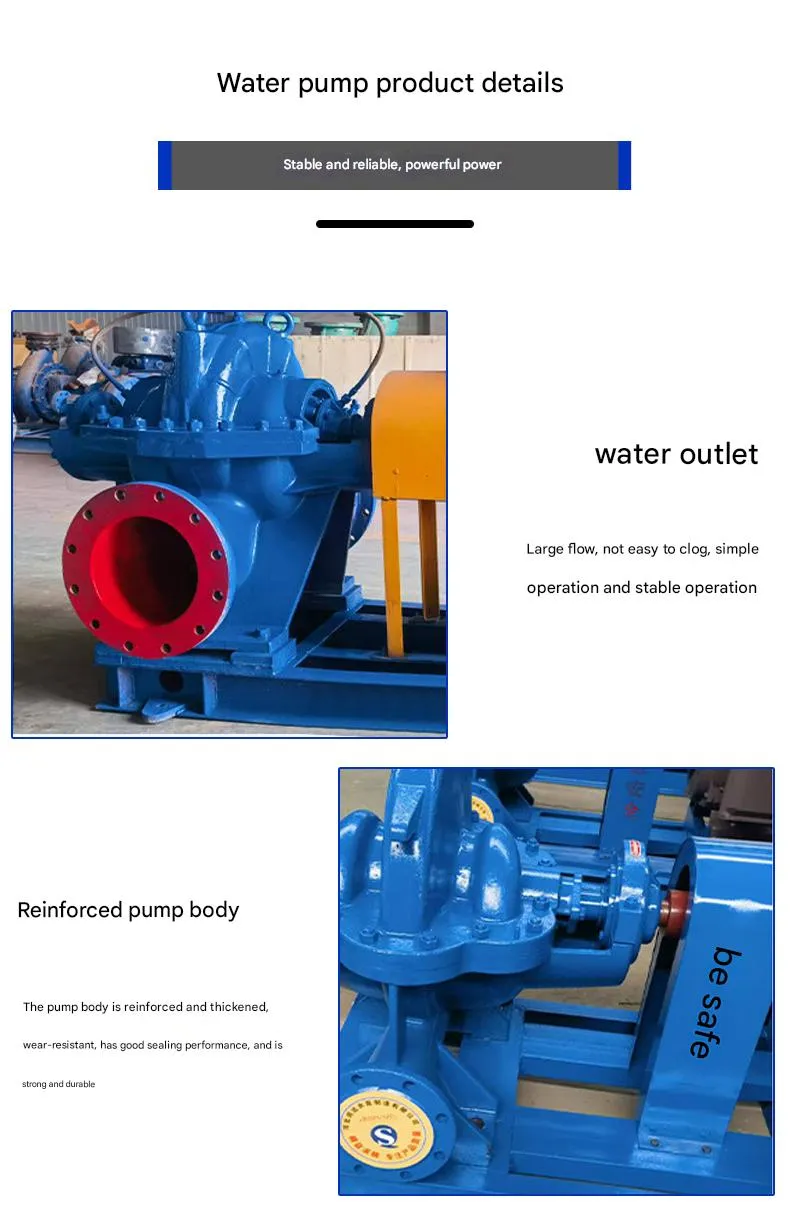

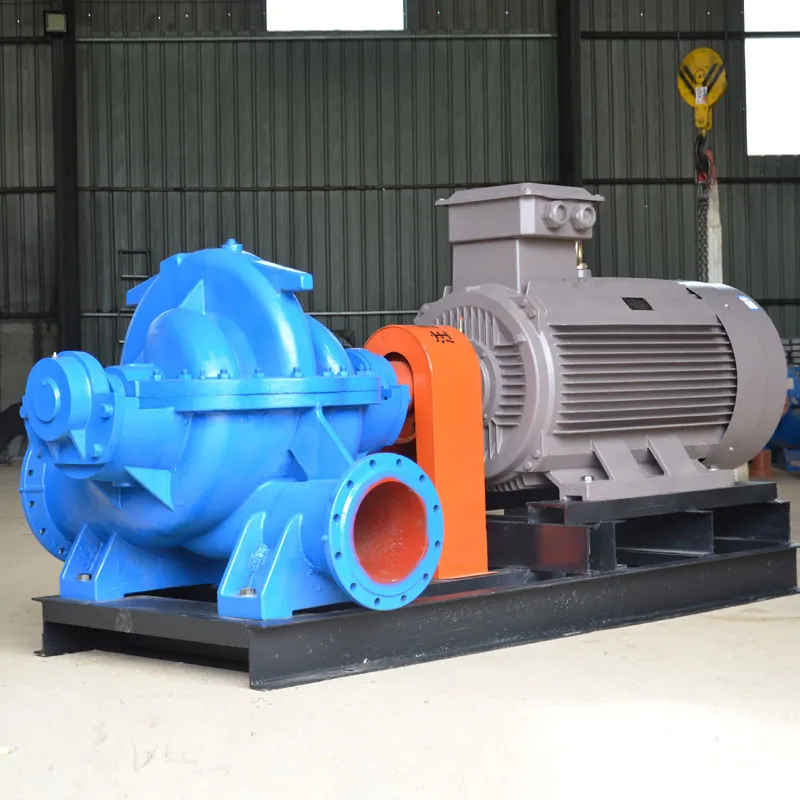

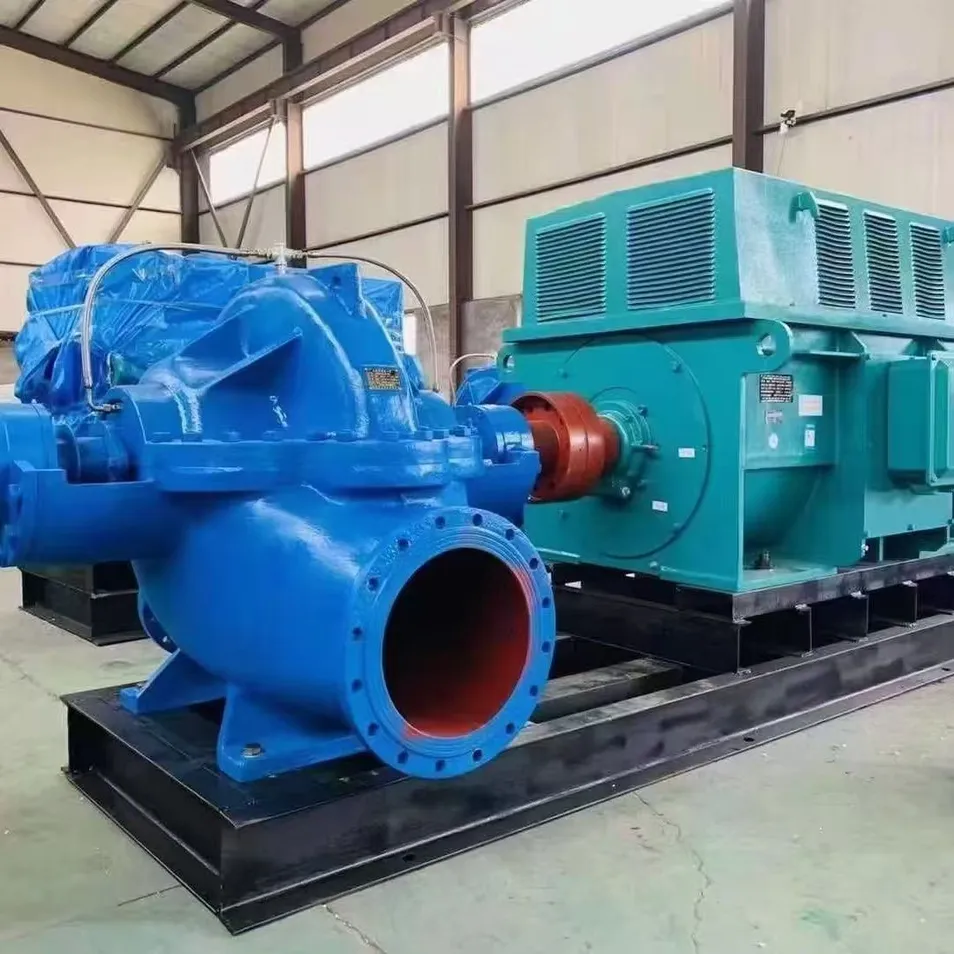

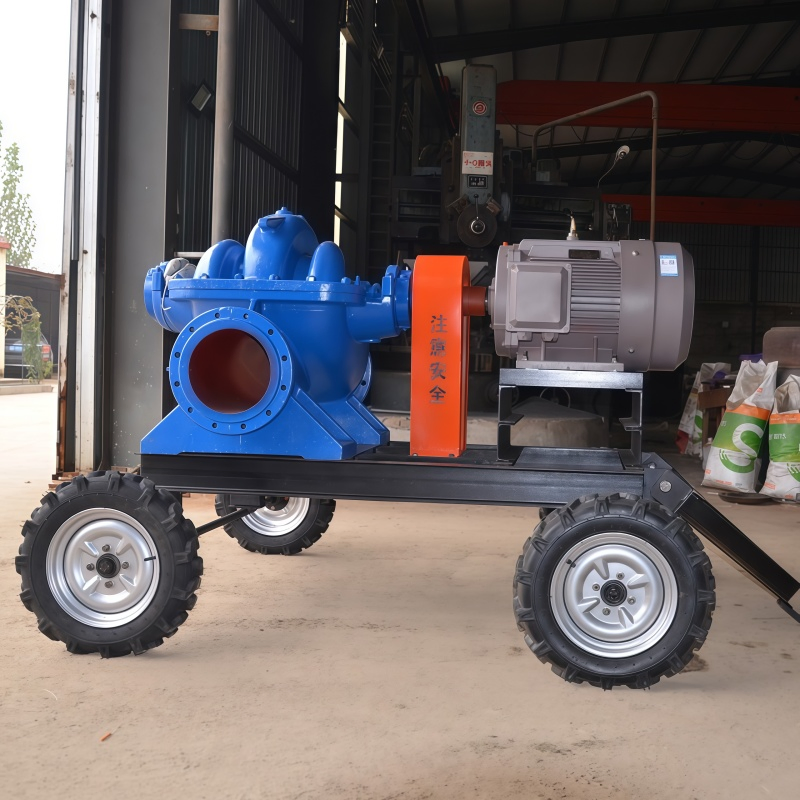

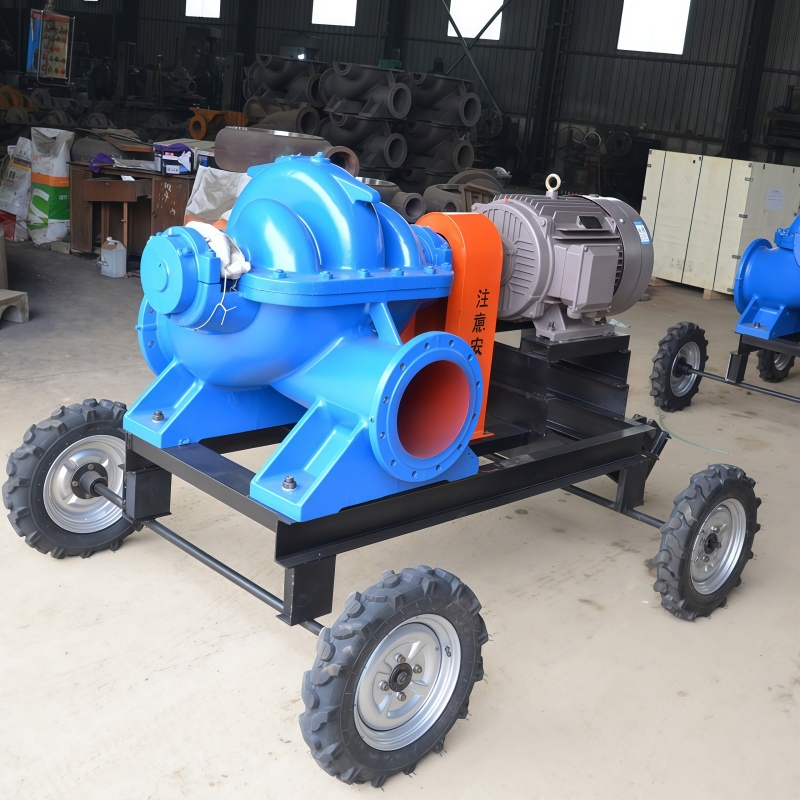

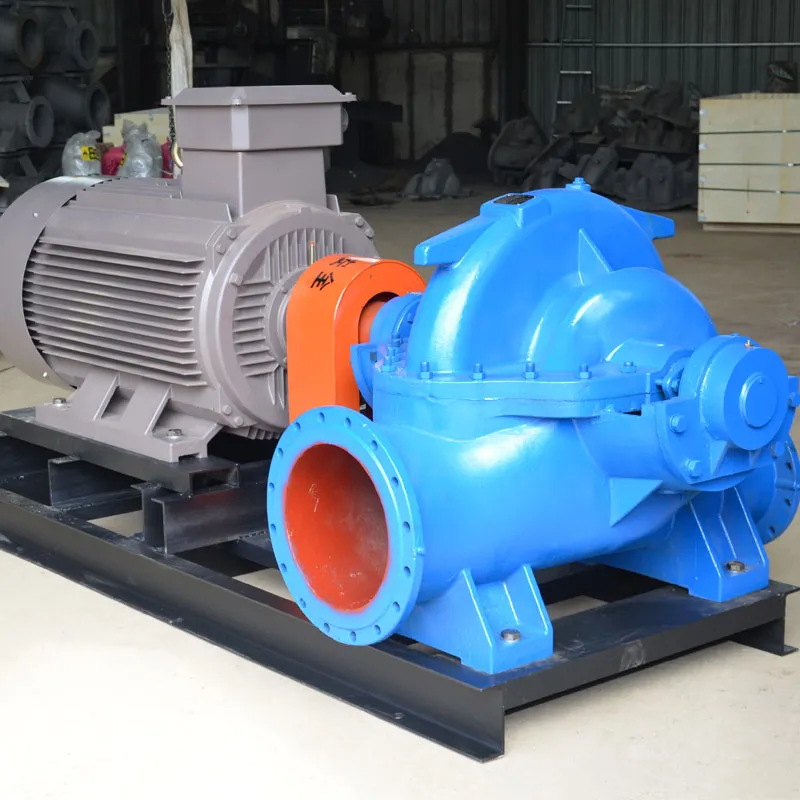

The SH series pumps are single-stage, double-suction pumps featuring a horizontally split casing design. They are suitable for conveying clean water and liquids with physical and chemical properties similar to water. The medium temperature should not exceed 80°C. If cooling water is supplied to both ends of the bearings, the medium temperature can reach up to 130°C. By replacing the impeller, seal ring, and bushing materials, these pumps can handle liquids containing sediments or slurry.
| Model Number | Flow (m³/h) | Head (m) | Power (kW) | Rotational Speed |
|---|---|---|---|---|
| 6SH-6 / 150S78 | 126 / 160 / 200 | 85 / 78 / 70 | 55 | 2950 |
| 8SH-6 / 200S95 | 216 / 280 / 351 | 108 / 95 / 84 | 110 / 132 | 2950 |
| 10SH-6 / 250S65 | 360 / 486 / 576 | 71.5 / 65.1 / 57 | 132 | 2950 |
| 12SH-6 / 300S90 | 590 / 790 / 936 | 98 / 90 / 82 | 315 | 1450 |
| 14SH-6 / 300S125 | 850 / 1250 / 1663 | 140 / 125 / 100 | 680 | 1470 |
| 32SH-9 / 800S76 | 4400 / 5500 / 6600 | 82 / 76 / 68 | 1500 | 740 |

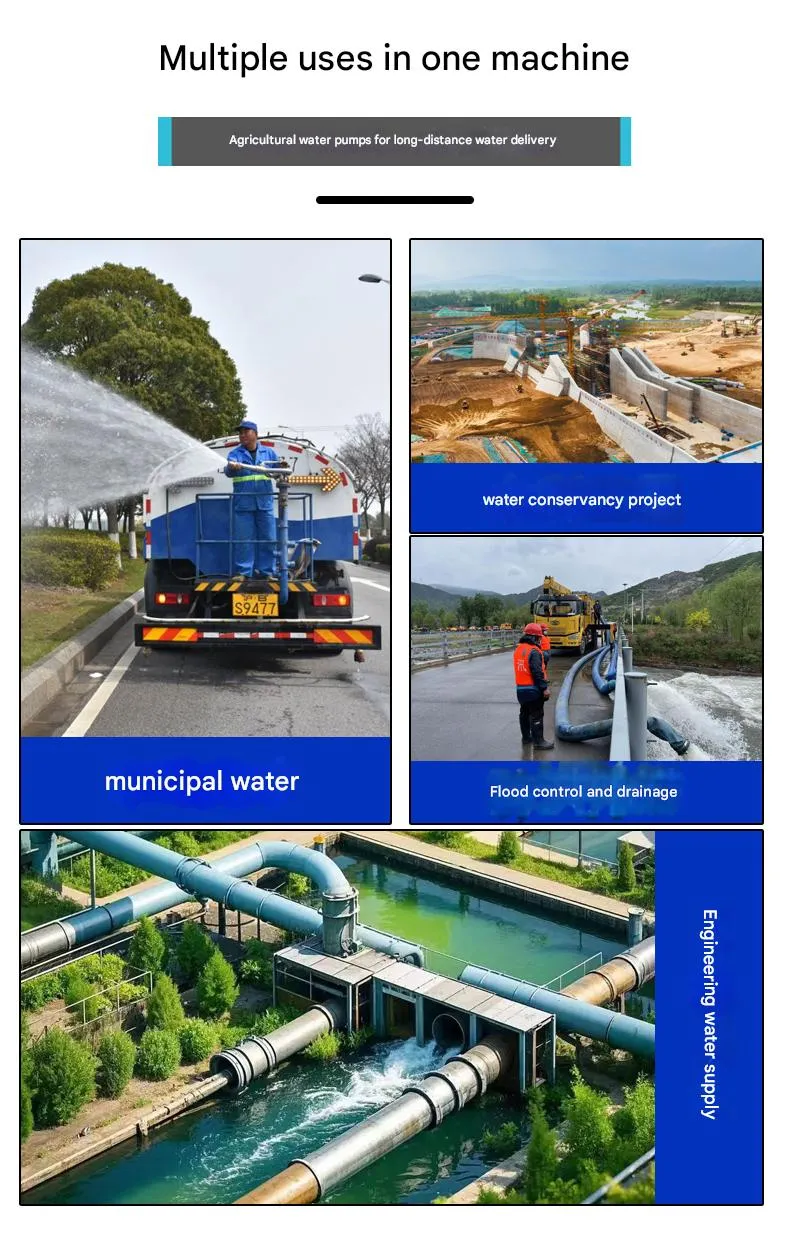

These pumps are widely used in irrigation, water treatment, petrochemical plants, power stations, thermal power plants, pipeline boosting, crude oil transportation, and seawater desalination. Typical applications include dilute/concentrated solution pumps in large ammonia plants and main pumps in crude oil pipelines.
