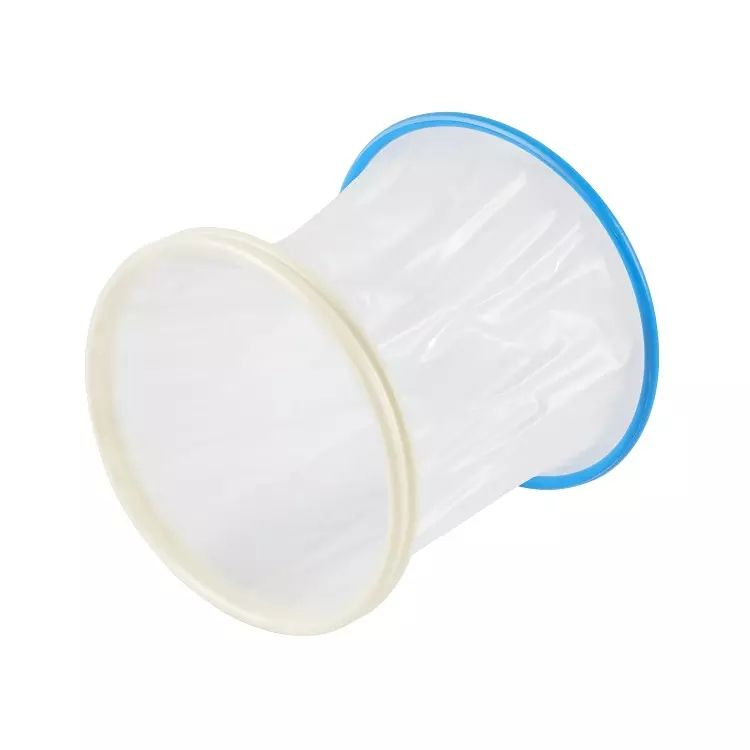

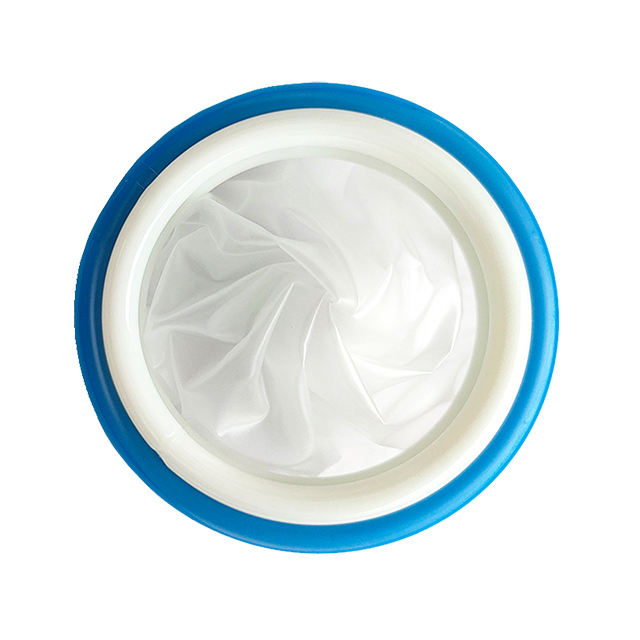

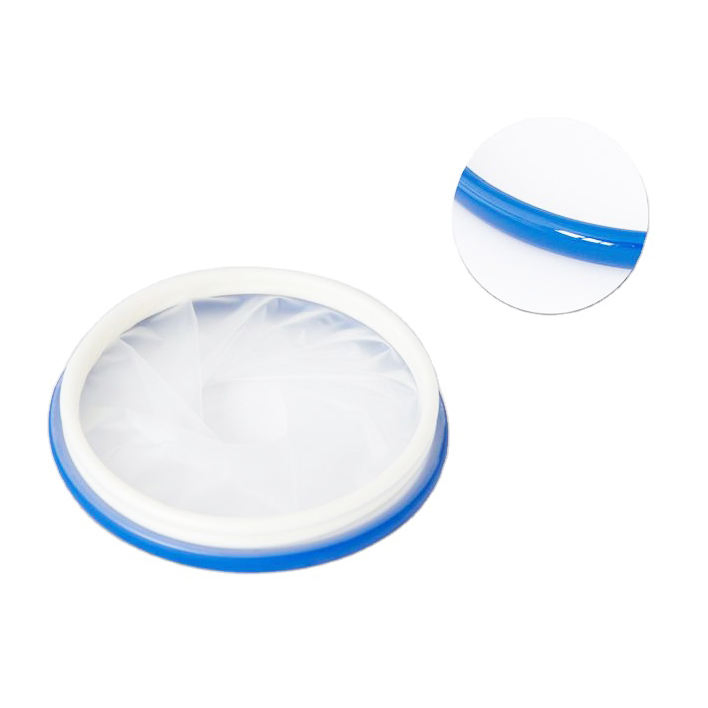

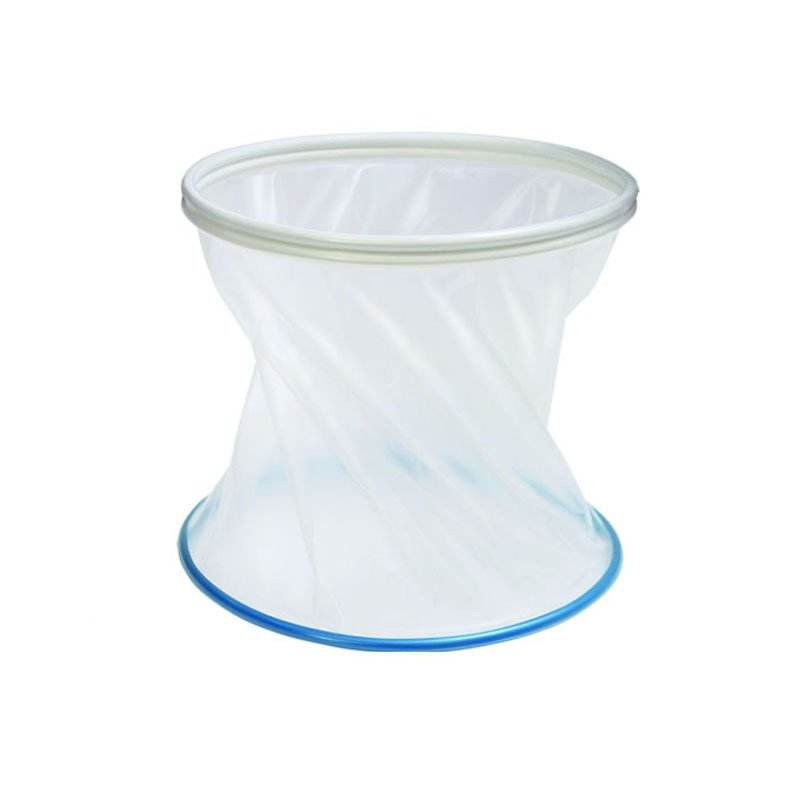

Cheap Price Disposable Medical Incision Single-Use Wound Retractor Protector for Laparoscopic Surgery

Customization:	Available
Type:	Basic Surgical Instruments Sets
Material:	TPU

Basic Info.

Model NO.

WPQA250/260-250/250

Sterilization

Ethylene Oxide (EOS)

Guarantee Period

Two Years

Shelf Life

3 Years

Group

Adult

Logo Printing

Without Logo Printing

Certification

CE/ISO 13485 / 93/42/EEC

Classification

Class II

Feature

Eco-Friendly

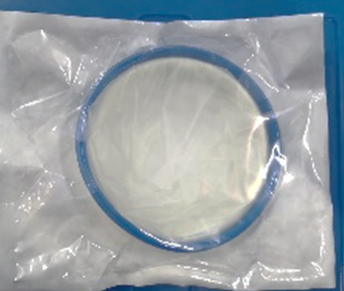

Packing

Blister

Product Description

Wound Protector-Retractor SET UP GUIDE

1
Make an incision along the marked incision line.

2
Insert the wound protector-retractor's green ring into the operative site.

3
Carefully check to ensure no bowel or tissue entrapment has occurred.

4
Grasp white retraction ring at 10 and 2 o'clock and pull up until the green ring sits tightly.

5
Flip the outer ring inward or outward until desired retraction is achieved.

6
Retrieve by simply removing the green inner ring from the peritoneal cavity.

Application and Product Features

Propping the incision evenly to broaden the surgical field.
Comprehensive protection of incision, effectively prevent incision infection and tumor cell metastasis.
Keep the wound moist and prevent tissue damage due to misoperation.
Simple and convenient operation, improve surgical efficiency.
Single use to avoid cross-infection.

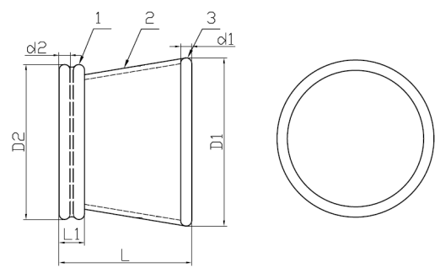

Model: WPQA (Material: TPU)
1. Outer Ring | 2. Channel | 3. Insert Ring

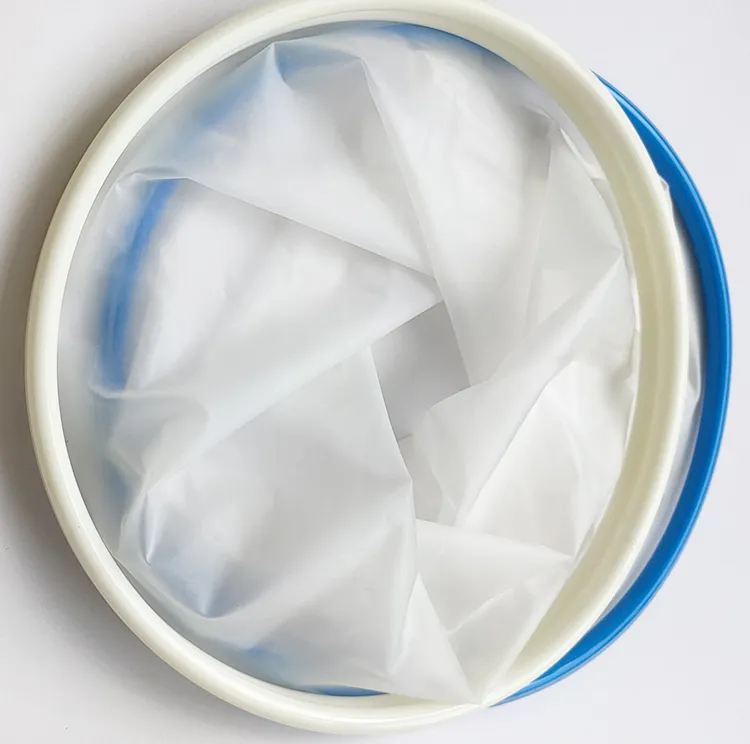

Model: WPQB (Material: Silicone)
1. Insert Ring | 2. Channel | 3. Outer Ring

Product Parameters

Parameter	Standard Specification
Product Name	Disposable Wounder protector/retractor
Appearance	Smooth, soft, clear outline, no burrs or scratches
Heat Sealing Strength	Model WPQA channel ≥ 0.140 N/mm
Elastic Performance	Elastic recovery after 20 N radial external force
Sterility	Ethylene Oxide (EO) Sterilized
Residual EO	≤ 10μg/g

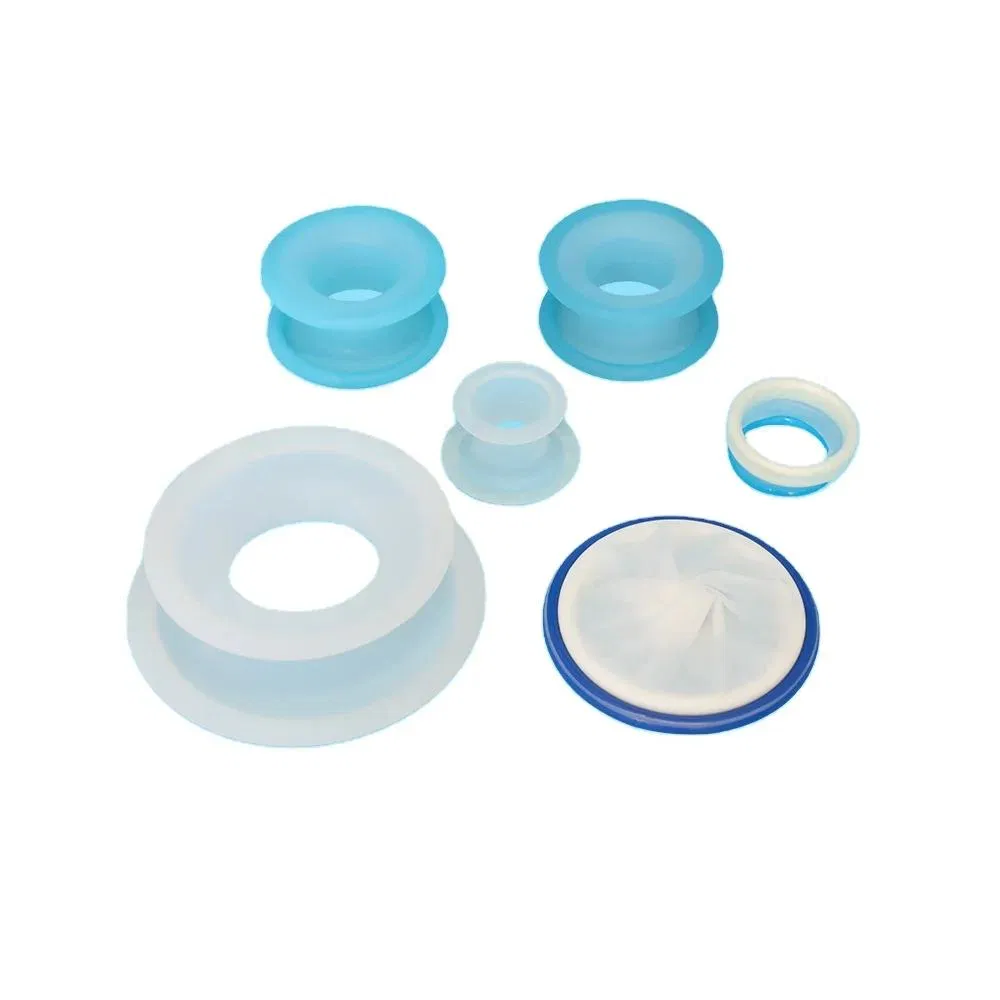

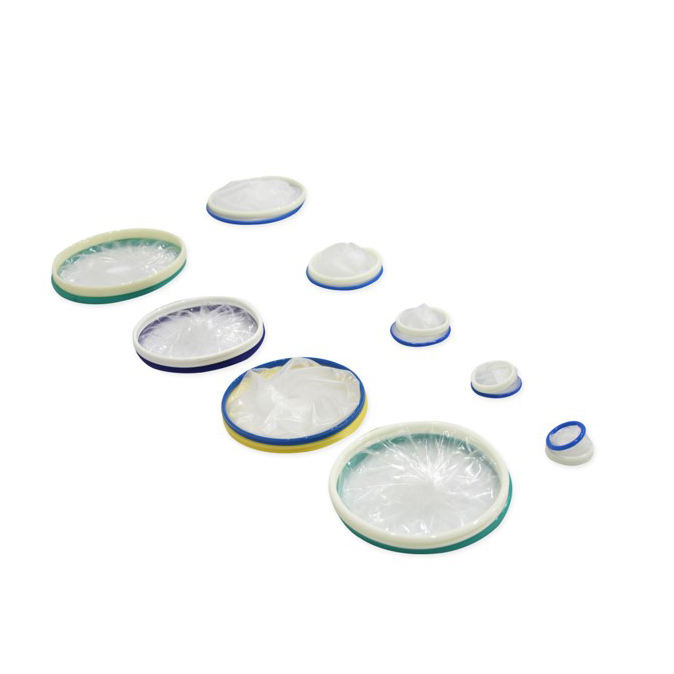

Specifications Catalogue

Model	Specification	Outer D (mm)	Insert D (mm)	Channel L (mm)
WPQA	WPQA40/40-40/100	40	40	100
WPQA	WPQA60/70-60/150	60	70	150
WPQA	WPQA100/100-100/150	100	100	150
WPQA	WPQA150/160-150/250	150	160	250
WPQA	WPQA250/260-250/250	250	260	250
WPQB	WPQB40/30-15/25	40	30	25
WPQB	WPQB70/70-35/30	70	70	30
