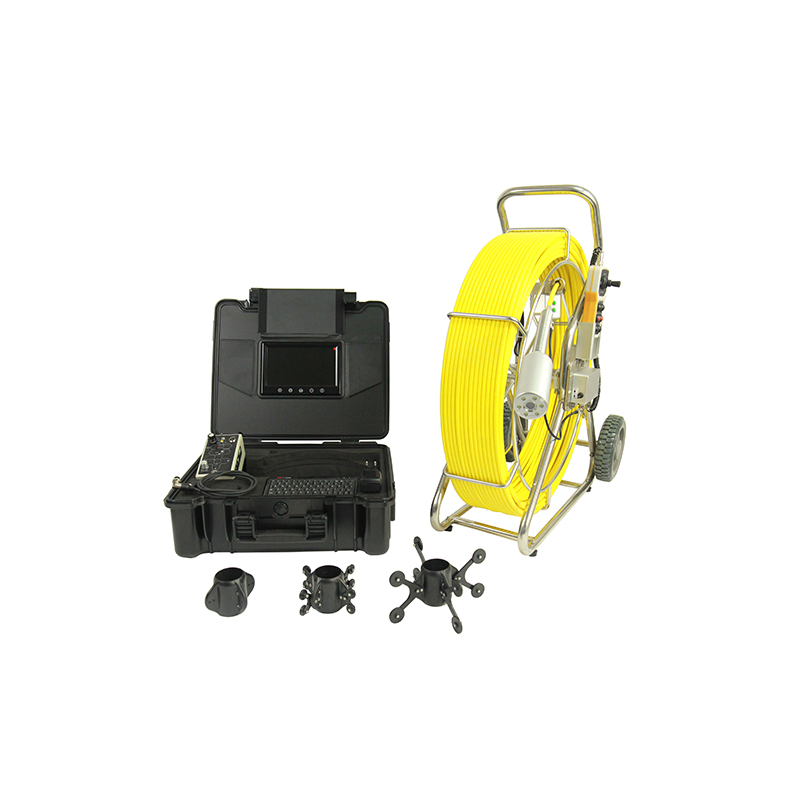

Drainage Endoscope Camera with 50mm Camera Head and 120m Cable

Customization: Available
Type: Pipe Inspection
Model: X3

Product Description

INFO Basic Specifications
Model NO.
X3-M50
View Angle
90 Degree
Pipeline Diameter
60-400mm
Cable Length
60-120m
Charging Time
5h
HS Code
8525801390
Capacity
200 Sets Per Month

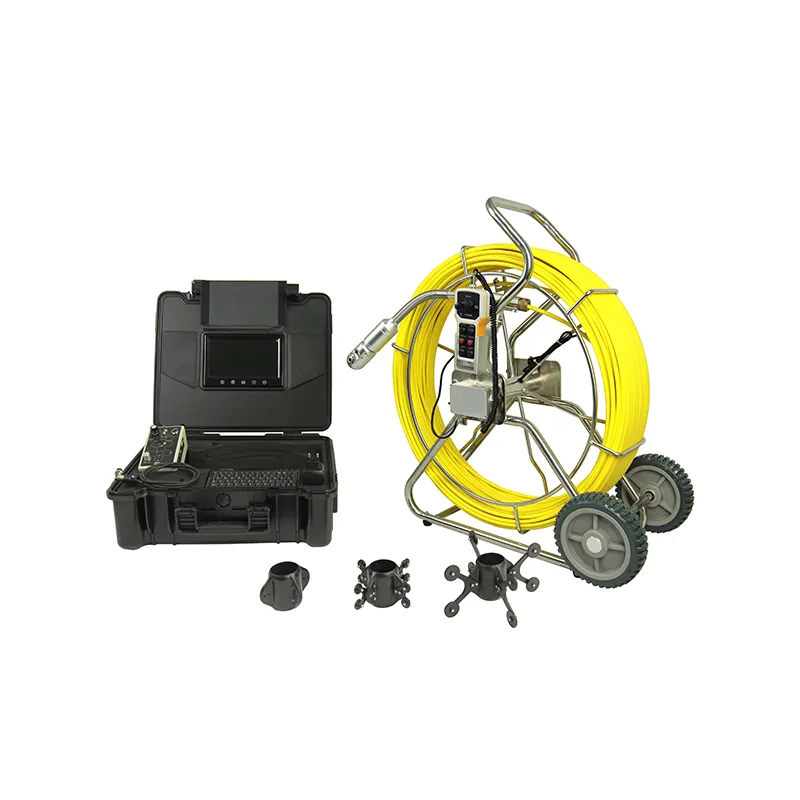

PRO Drainage Endoscope Camera X3-M50

The push-rod type pipeline endoscope camera is designed for rapid video survey, acceptance, and census evaluation for drainage pipelines or networks. This system features simple operation and powerful functions, making it applicable for surveying the interior of pipelines in residential areas, small business places, special factories, and municipal works. It is particularly effective for long, narrow, or curved pipelines that cannot be accessed with other testing instruments.

SPEC Technical Component Specifications
Camera Head

Camera Head

  • Size: ø50mm * L160mm
  • Sensor: 1/3 inch CCD, 960 TVLine
  • View Angle: 90 degree
  • Rotation: Horizontal 360°, Vertical 180°
  • Light: 6 pcs highlight LEDs
  • Material: Sapphire glass & Aluminum alloy/Stainless steel

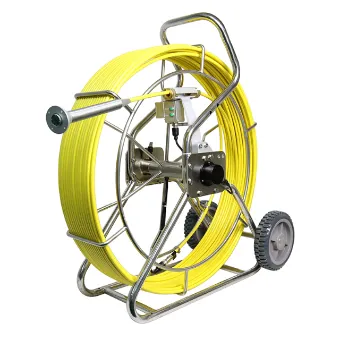

Cable Wheel

Cable Wheel

  • Material: Fiberglass rod, Stainless steel wheel
  • Length: 60m - 120m options
  • Diameter: ø9.5mm, 9 cores
  • Features: Meter counter & handle-brake
  • Accuracy: 0.1m counter accuracy

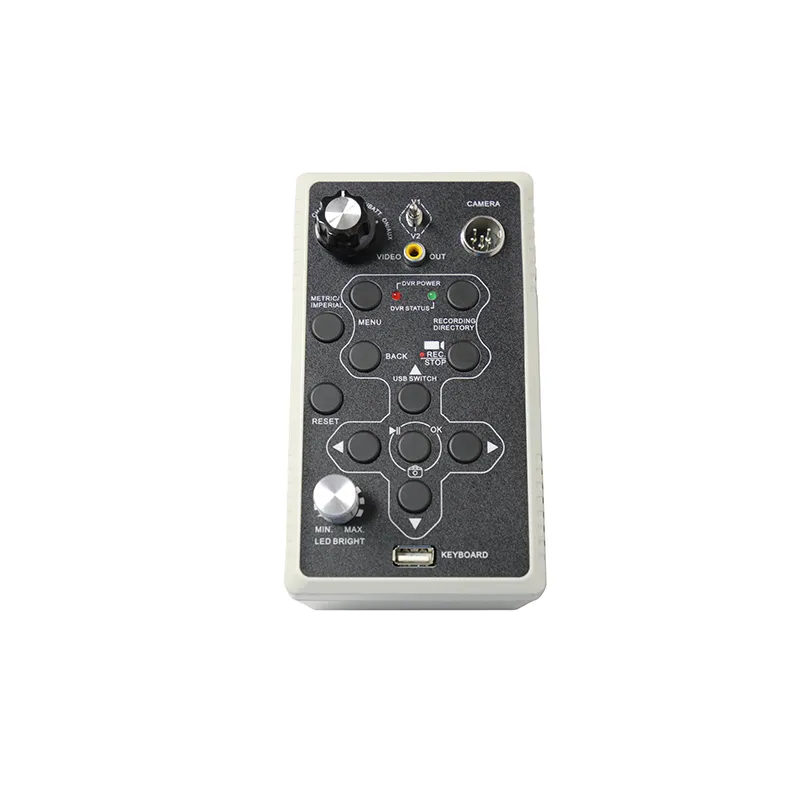

Control Box

Control Box & Monitor

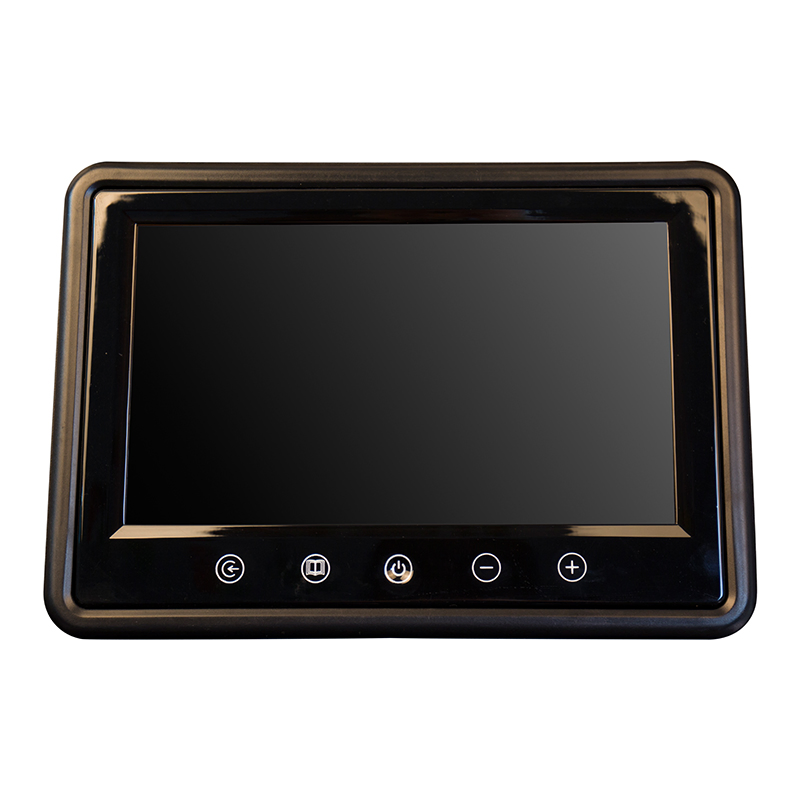

  • Monitor: 9 inch TFT (800x480 pixels)
  • Storage: SD card & USB stick (max 256G)
  • Recording: Video (mp4) & Picture snap (jpg)
  • Zoom: 10 levels digital zoom
  • Audio: Microphone record & Stereo earphone output

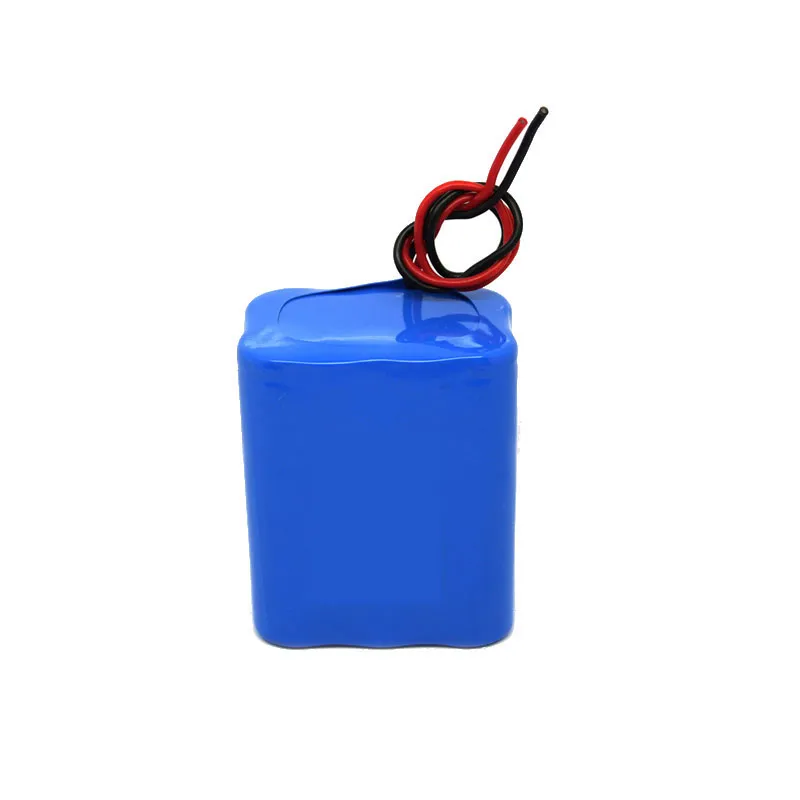

Battery

Power System

  • Battery: 4400MAH Li-ion
  • Working Time: Approx 420 minutes
  • Charge Time: 5 hours
  • Protective Voltage: 9.3 V
CERT Quality Assurance & Packaging

Our products adhere to international standards including ISO9001, ISO14001, and OHSA18001. All equipment has passed FCC and CE certifications to ensure safety and performance in professional environments.

SRV Professional Services
  • Warranty: 12 months from arrival date with lifelong maintenance.
  • Technical Help: Efficient and environmentally friendly drainage network solutions.
  • Quality Control: Every machine is strictly tested before packaging.
  • OEM Orders: Brand logo printing available free of charge.
  • Training: Detailed manuals and video training provided.
Frequently Asked Questions
What kind of packaging is used for shipping?
We use standard plywood cases. The machine is covered by foam to prevent shaking and a thick plastic bag for waterproofing.
Is the equipment protected against damage during transport?
Yes, our packaging considers all damage factors. Our shipping agents are highly experienced in safe transportation to ensure the parcel arrives in good condition.
How difficult is the installation and operation?
The main unit is installed before shipping. For small components, we provide detailed training videos and a user manual. Most customers learn to operate it independently very quickly.
What is the response time for technical issues?
If you encounter any problems, contact us immediately. We respond within 24 hours to provide solutions and technical guidance.
Does the system support OEM branding?
Yes, OEM orders are welcomed. We can print your custom brand logo on the product free of charge.
What is the warranty period for this endoscope camera?
We provide a 12-month warranty starting from the date the commodity arrives at the destination port, along with lifelong technical support.
