| Pump Speed | 298, 372, 490, 585, 740, 990, 1480 and 2950rpm |
| Motor Voltage | 380V/415V, 3.3KV, 6KV and 10KV |
| Caliber | 80-1600mm |
| Flow Range | 68-30000m3 / hr |
| Head Range | 6-230m |
| Temperature | Medium maximum ≤80°C, ambient ≤40°C |
| Operating Pressure | 1.0Mpa to 1.6Mpa (Special configuration up to 2.5Mpa) |

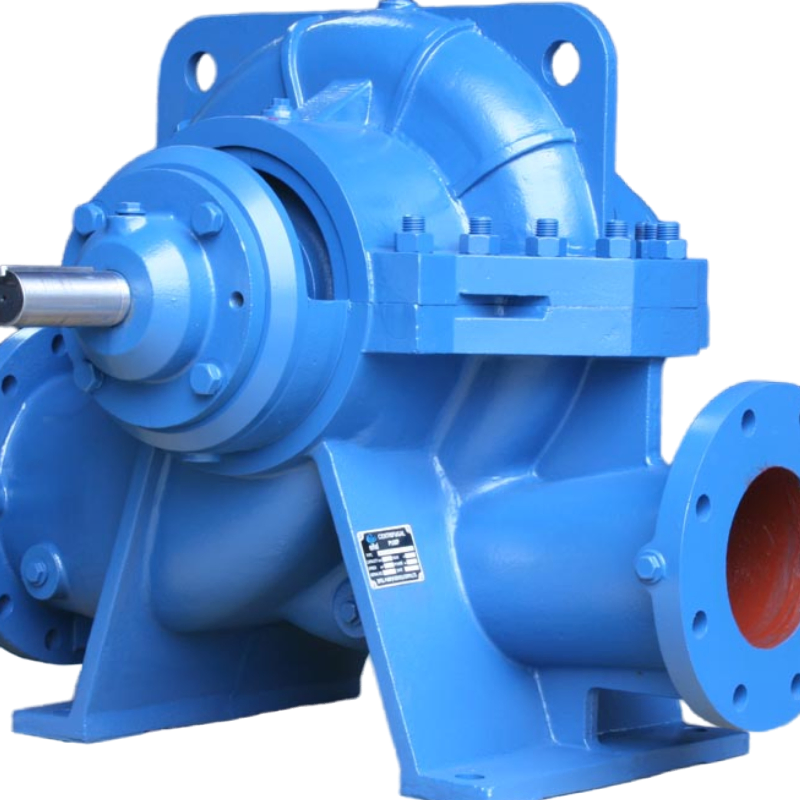

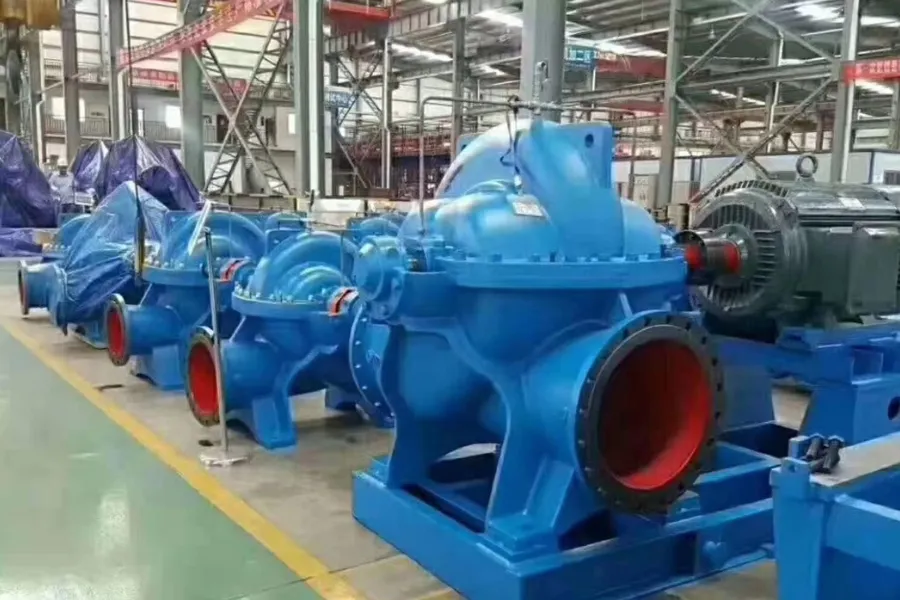

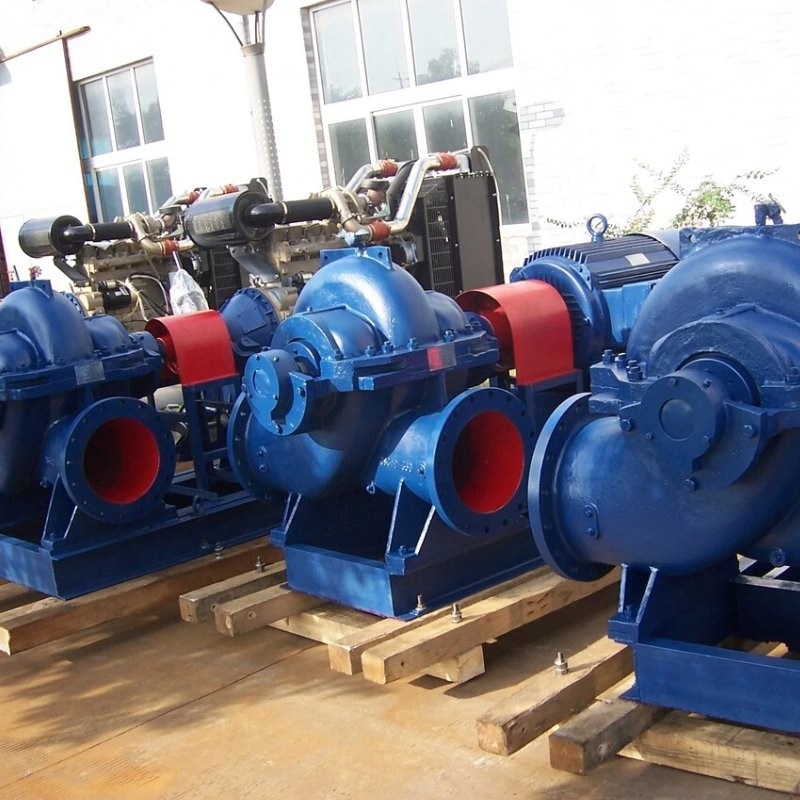

| Structural Design | Single-stage double-suction volute axial centrifugal pump, horizontal installation |

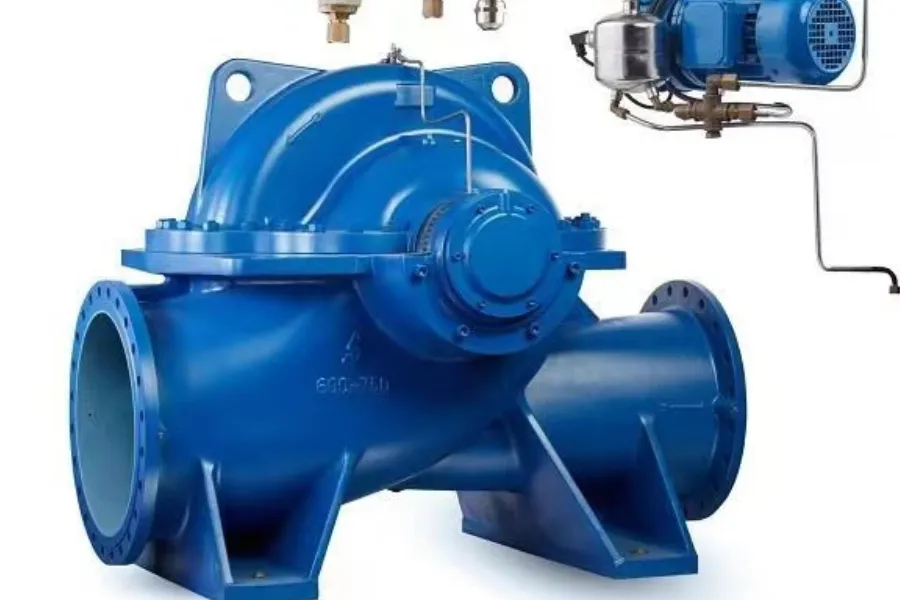

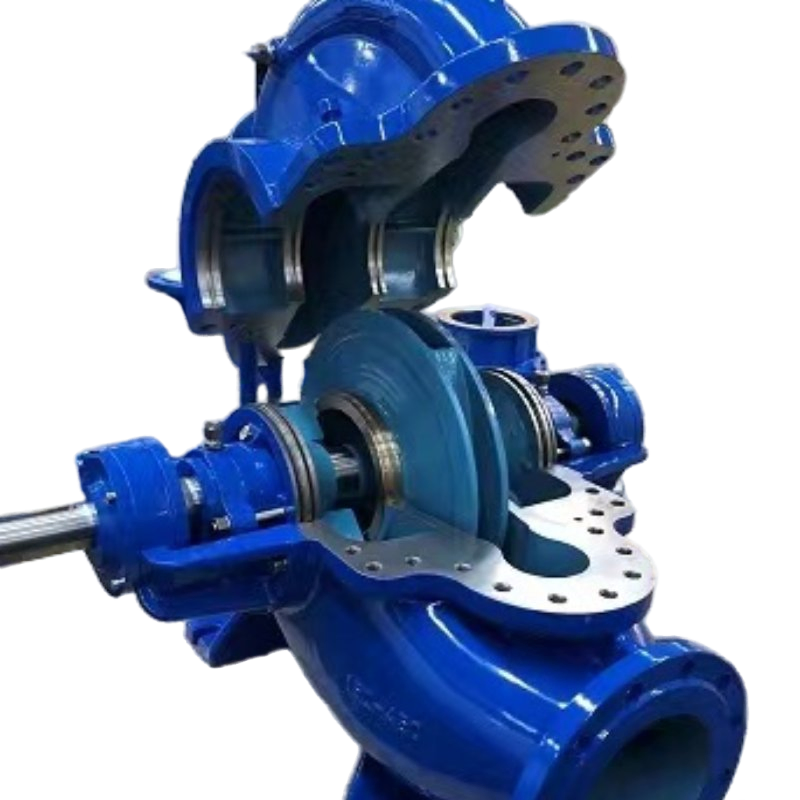

Between-the-bearings: Split-case pumps mount the impeller on a shaft that is supported by bearings on both sides of the impeller, providing superior stability.

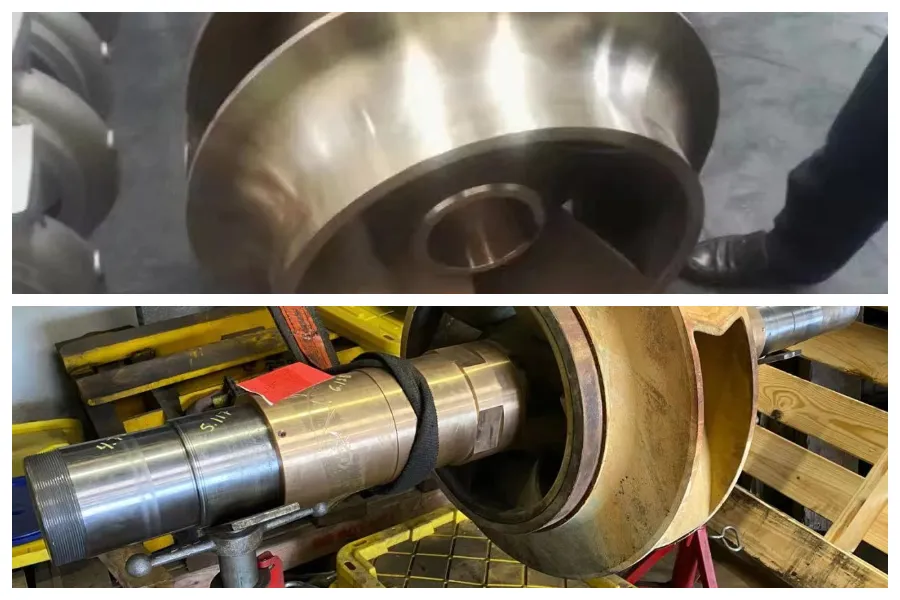

Double-suction Impeller: This design imposes dramatically fewer loads on the bearings compared to single-suction impellers. High-precision casting ensures performance in cast iron, stainless steel, or bronze.

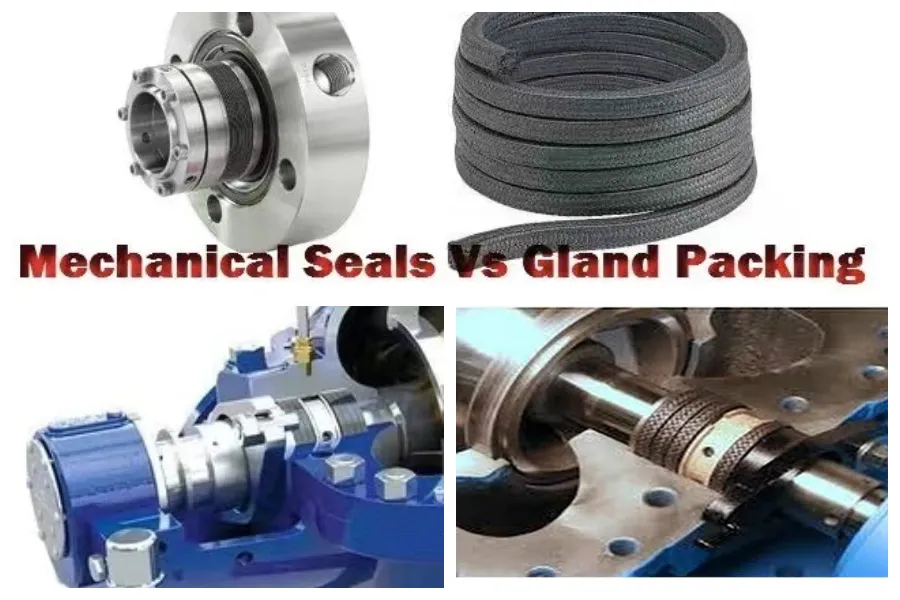

Sealing Solutions: We offer both traditional packing seals and advanced mechanical seals. Mechanical seals are preferred for diverse applications where leakage must be strictly avoided, offering greater durability.

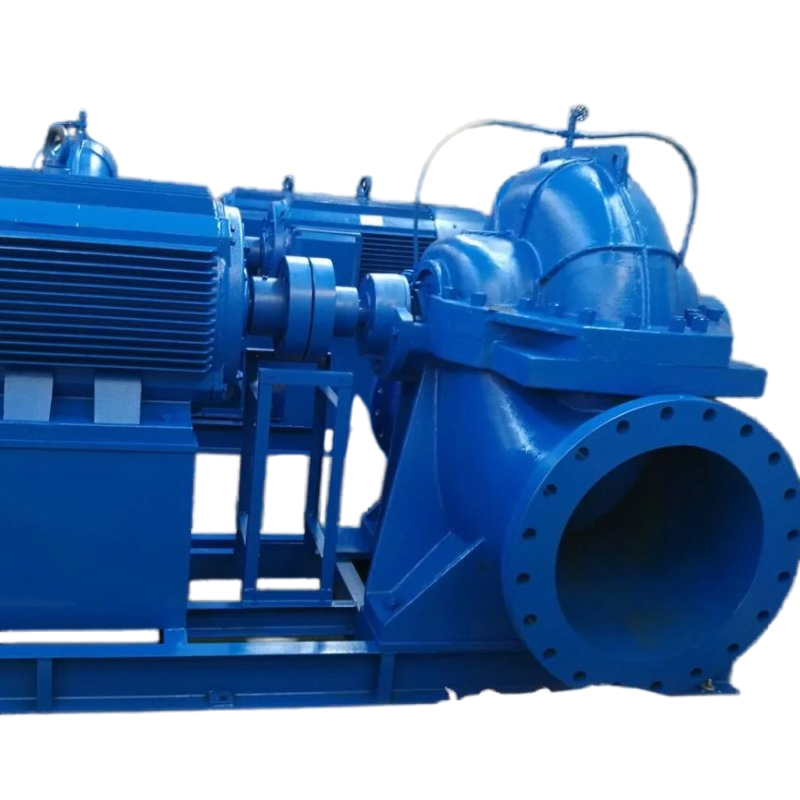

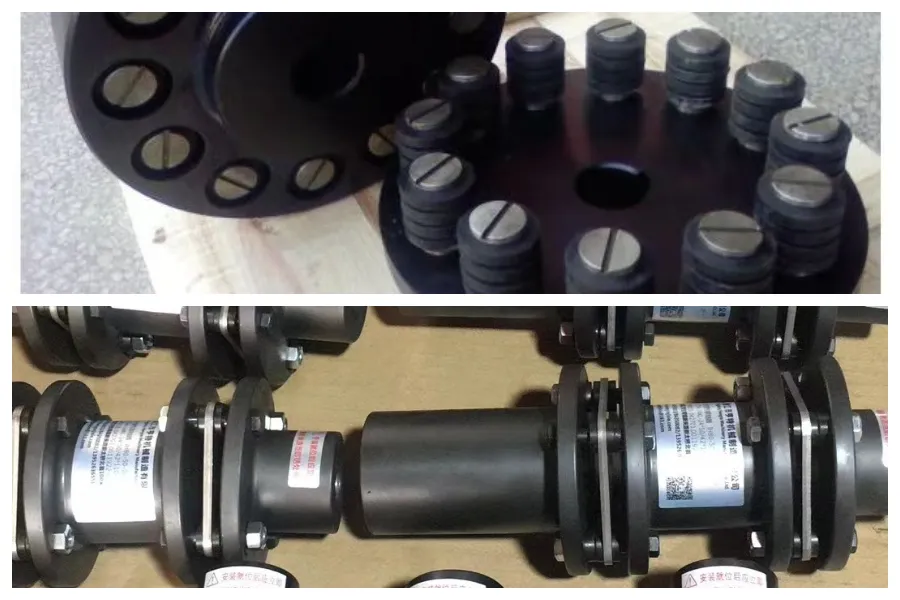

Flexible Couplings: We use wear-resisting disc or pin couplings to accommodate vibrations and thermal expansion, protecting the shaft and bearings from premature wear.
Widely used in urban water supply and drainage, central heating systems, iron and steel metallurgy, oil refineries, paper mills, power plants, airport construction, chemical plants, sugar mills, and agricultural irrigation projects.
