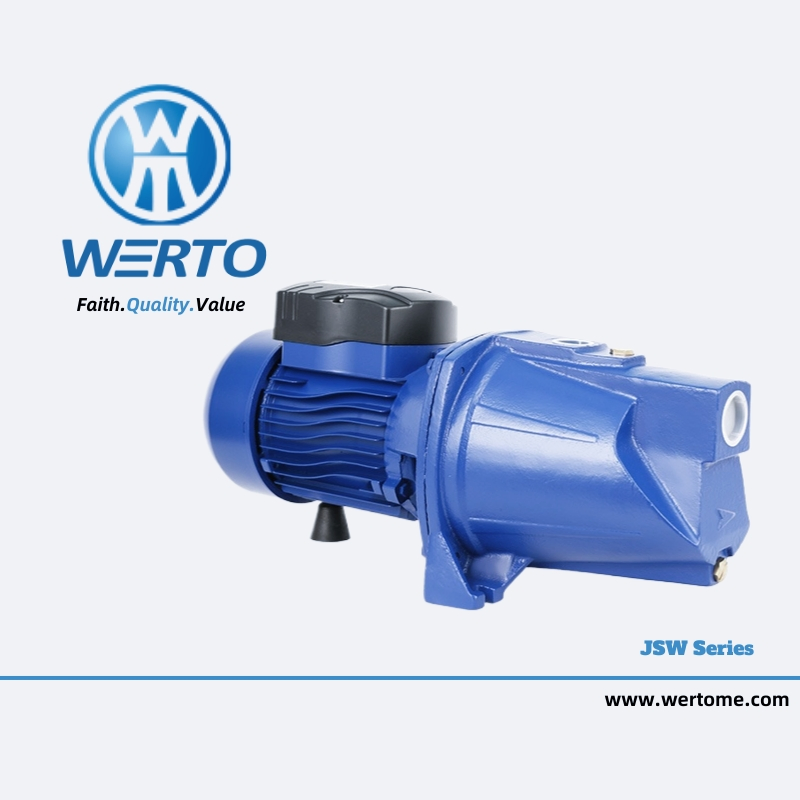

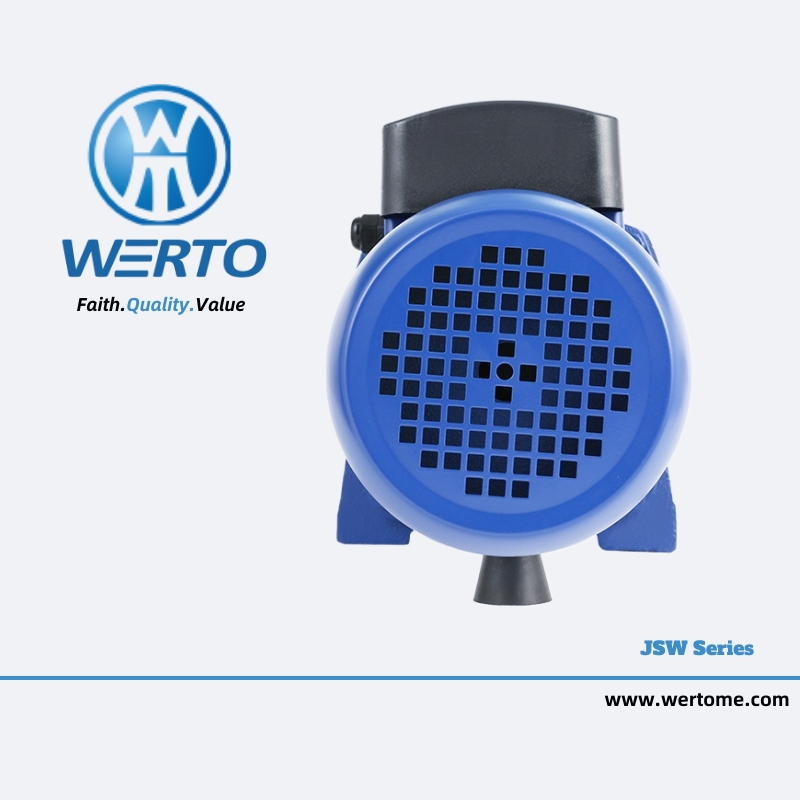

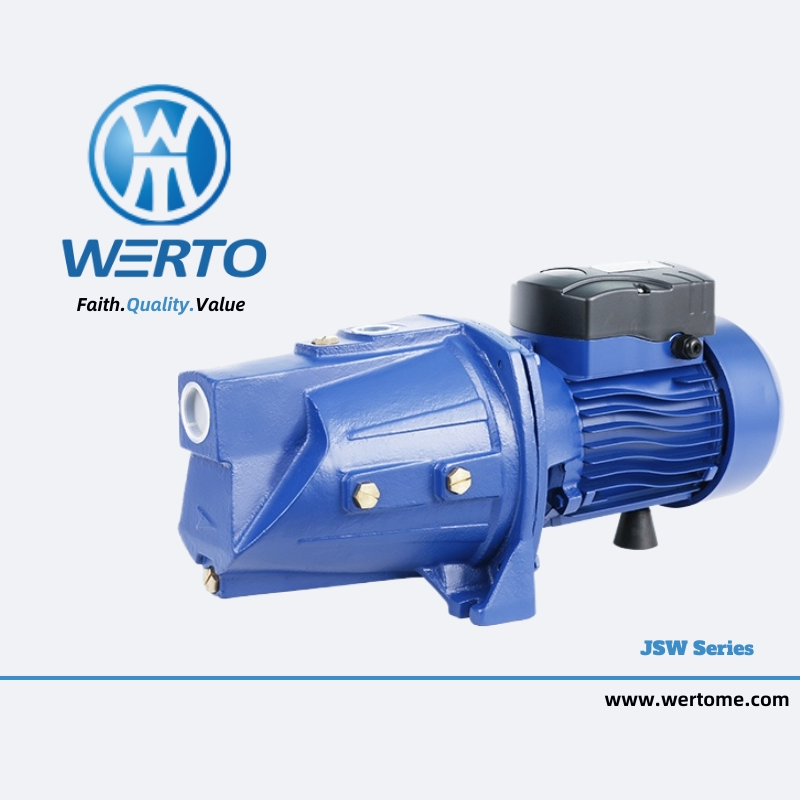

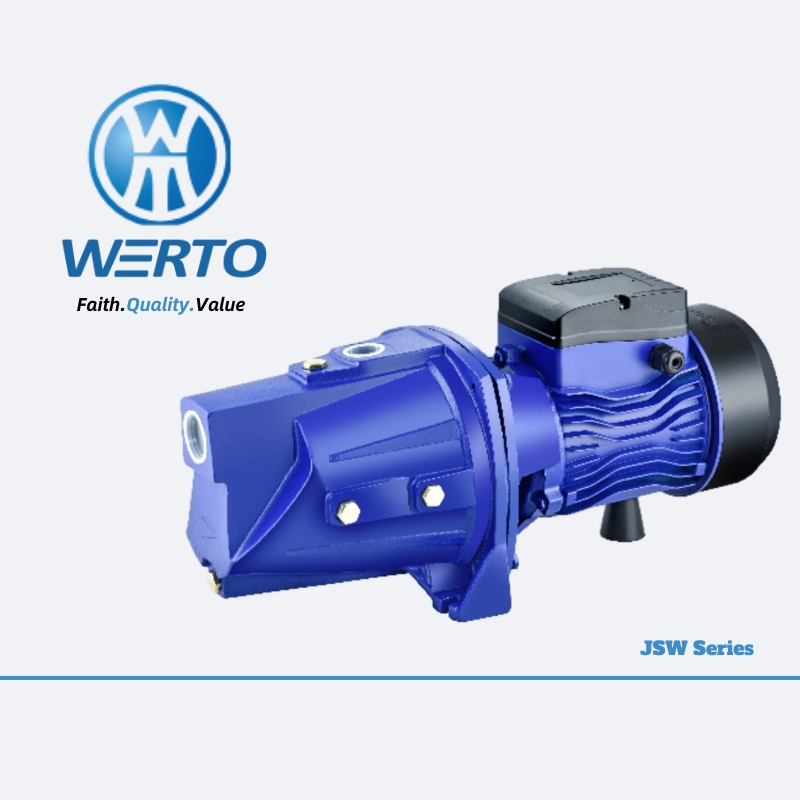

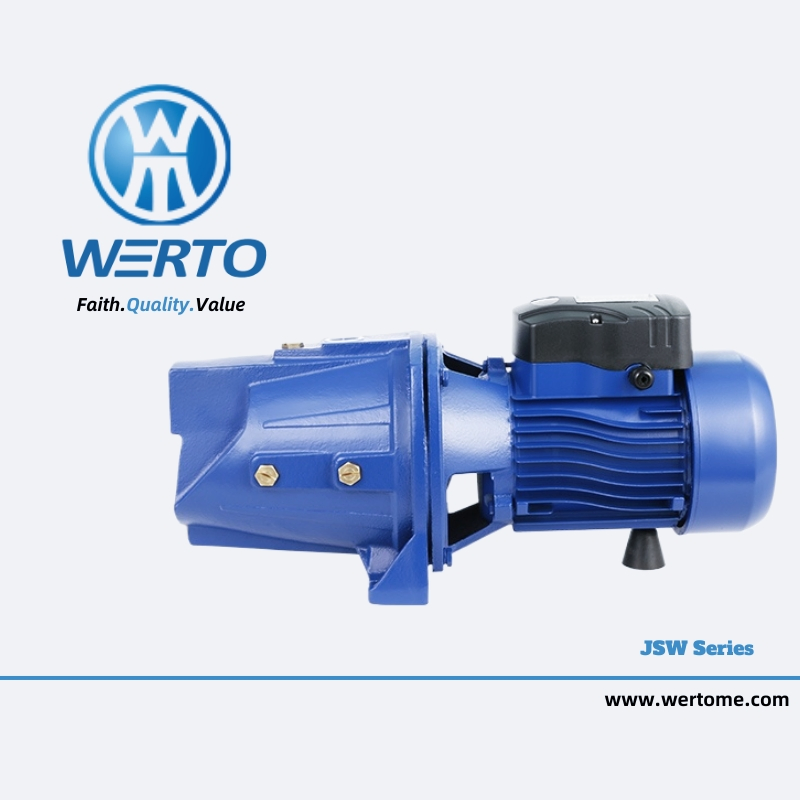

High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
1 / 5
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System
High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System

High Suction Lift Self-Priming Water Pump Jet Pump for Irrigation System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specification
Model:JSW Series
Max.Head:30-50m
Max.Capacity:50-100 L/min
Driving Type:Motor
Material:Cast Iron
Power:Electric (0.75KW/1HP)
Structure:Single-stage Pump
Media:Clarified Water
Product Description

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The Self-Priming JET pumps are designed to pump water even in cases where air is present. They are highly reliable and easy to use, recommended for domestic applications, water distribution with pressure sets, and garden irrigation.

Jet Pump Overview

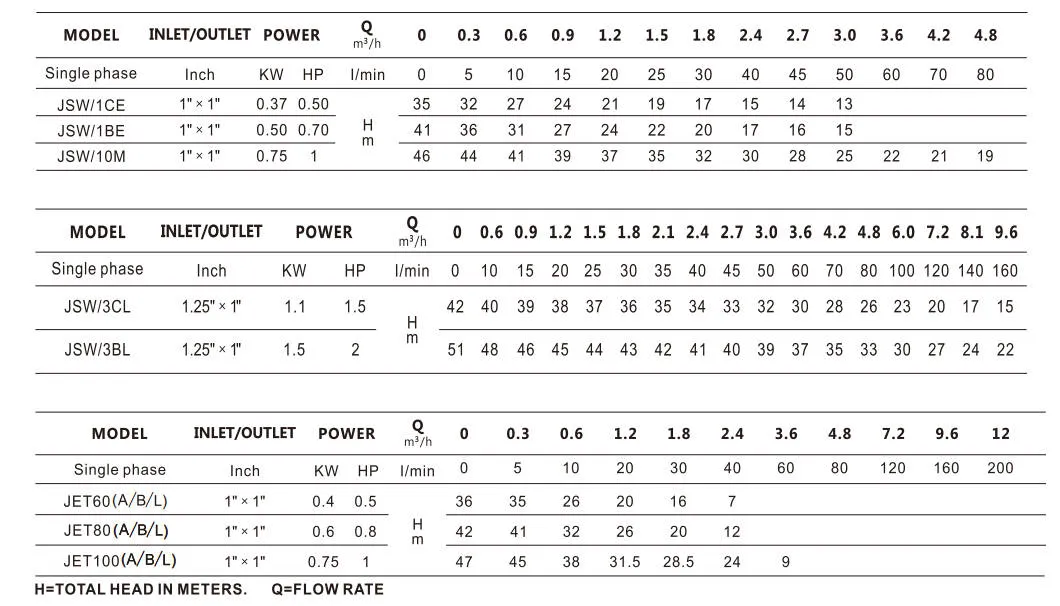

Water Pump Details

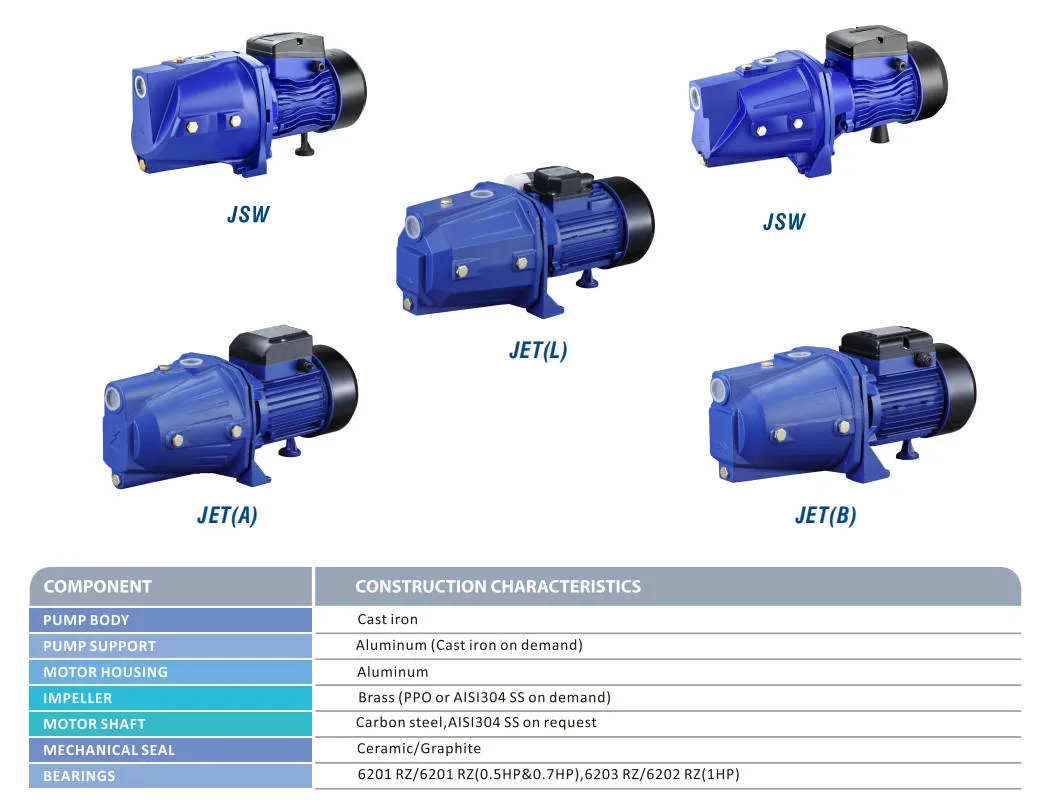

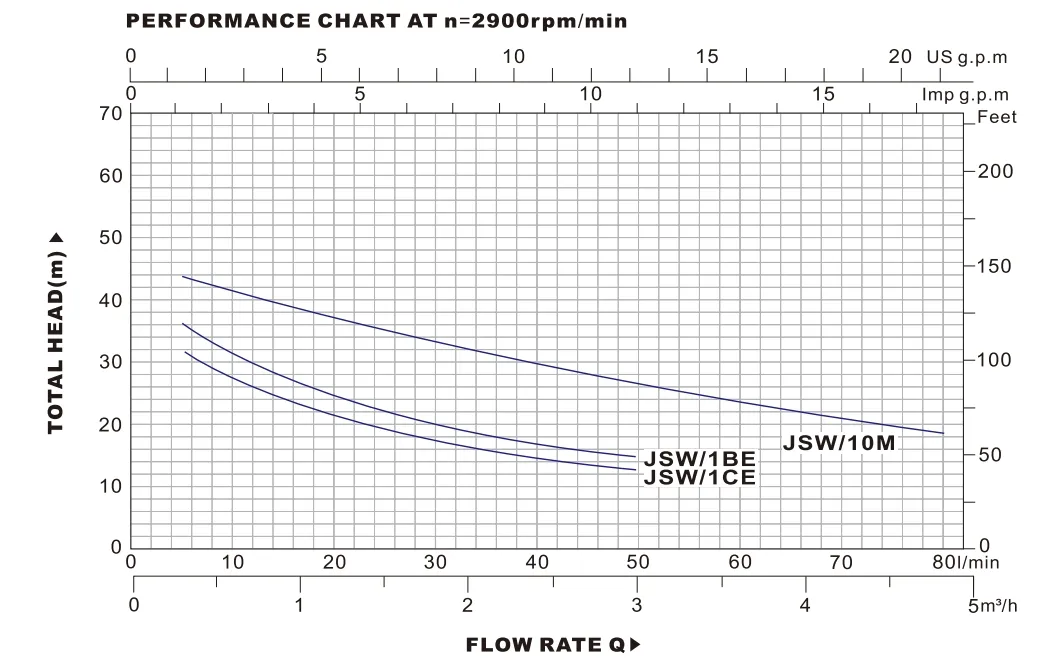

Pump Performance
Technical Features
  • ◈ Insulation: Class B
  • ◈ Protection: IP44
  • ◈ Service: S1 (Continuous)
  • ◈ Thermal Protector included
  • ◈ Suction Lift: up to 8m
  • ◈ Liquid Temp: up to 60°C
  • ◈ Ambient Temp: up to 40°C
Construction Characteristics
COMPONENT MATERIAL CONSTRUCTION
PUMP BODYCast iron
PUMP SUPPORTAluminum (Cast iron on demand)
MOTOR HOUSINGAluminum
IMPELLERBrass (PPO or AISI304 SS on demand)
MOTOR SHAFTCarbon steel (AISI304 SS on request)
MECHANICAL SEALCeramic/Graphite
BEARINGS6201 RZ / 6203 RZ depending on HP
Applications & Quality
Applications
Advantages
Certifications
Certificates
Frequently Asked Questions
? What applications is this pump suitable for?
It is ideal for clean water distribution in domestic settings, garden irrigation, and small to medium-sized pressure sets.
? Can this pump handle air in the water?
Yes, the Self-Priming JET design is specifically engineered to pump water even when air is present.
? What are the installation requirements?
The pump should be installed in an enclosed environment or sheltered from inclement weather to ensure longevity.
? What is the maximum suction depth?
This series provides a suction lift of up to 8 meters.
? What kind of protection does the motor have?
The motor features IP44 protection, Class B insulation, and a built-in thermal protector for continuous S1 service.
? What certifications do these pumps hold?
The products are compliant with GS, TUV, CE, ROHS, and ISO9001 standards.
