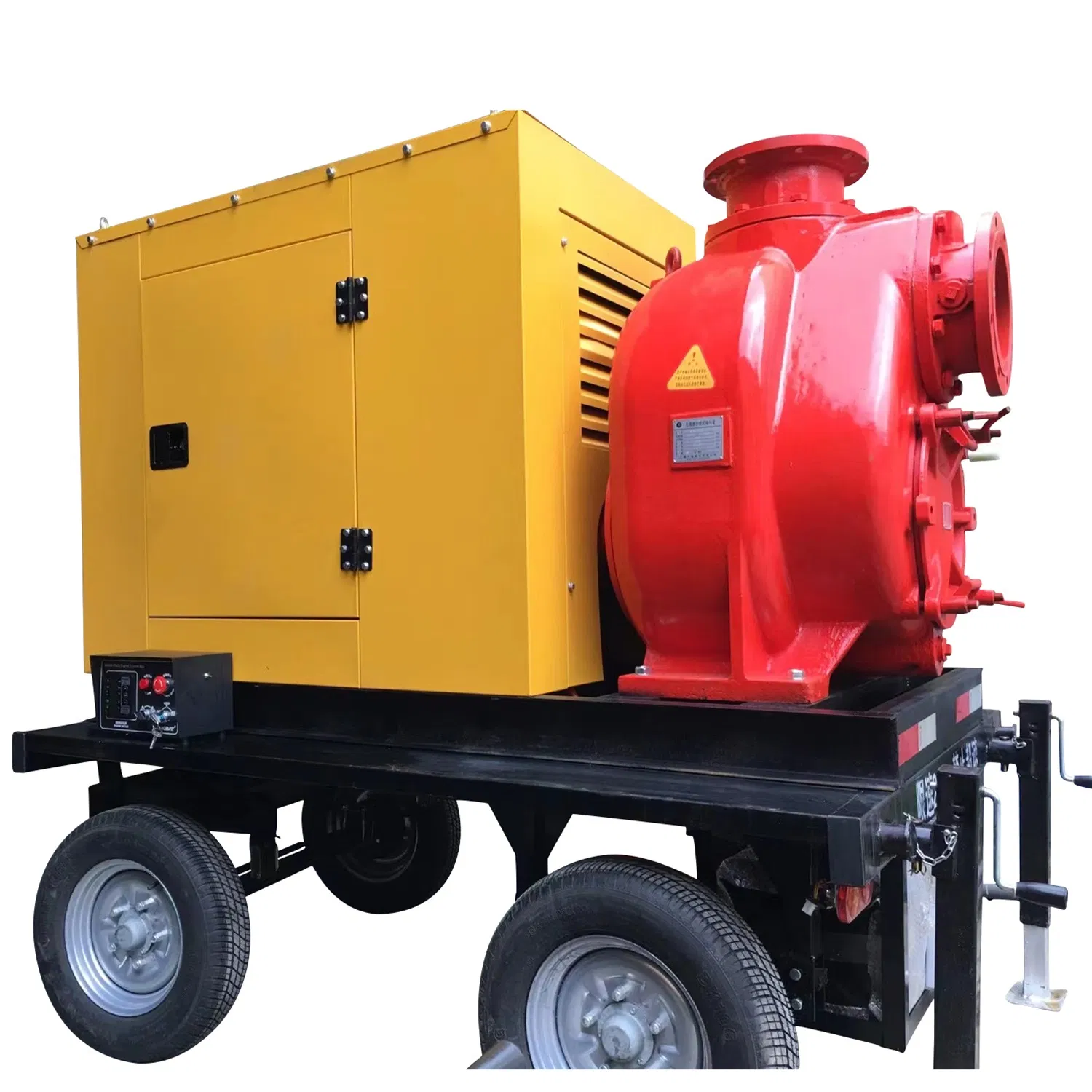

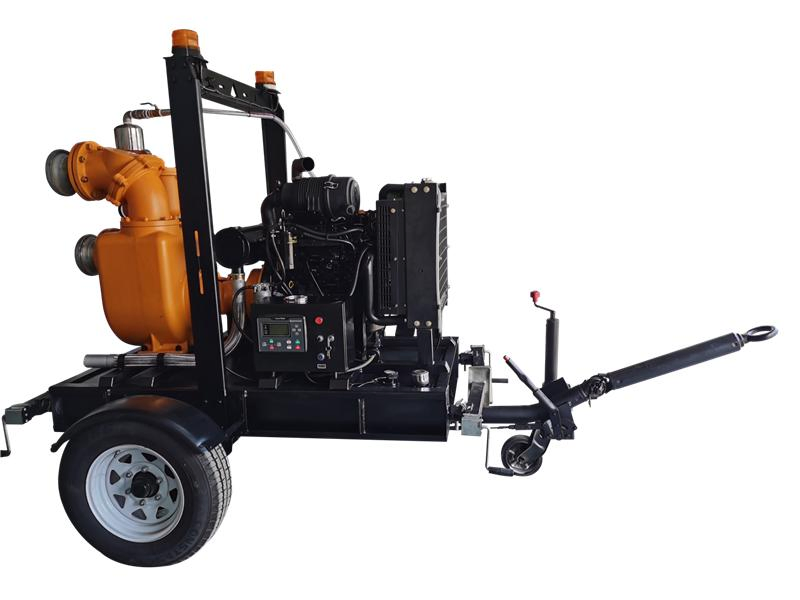

High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year

Product Description

Basic Info
Model NO.
SCP-6
Max.Head
10-30m
Max.Capacity
>400 L/min
Driving Type
Motor
Material
Cast Iron
Structure
Single-stage Pump
Assembly
Booster Pump
Power
Solar Energy
Start Up
Electric Pump
Application
Sewage Pump
Theory
Centrifugal Pump
Max.Flow
400 M³/H
Suction Lift
7.6 M
Specification
6 inch
Product Description
The flood control mobile drainage pump truck can suck and discharge liquids containing large solid particles and long fiber impurities, and can be widely used in municipal sewage and flood control projects, agricultural irrigation, etc. The pump unit has the characteristics of a simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, easy use and maintenance, and integrated or outdoor movable design. This product is more convenient and flexible than a fixed diesel engine pump and is easy to move to suit different places. High-quality domestic or imported diesel engines can be selected according to different working conditions and matched with high-quality and efficient self-priming (or vacuum water diversion device) centrifugal pumps.
Flood Control Pump Truck

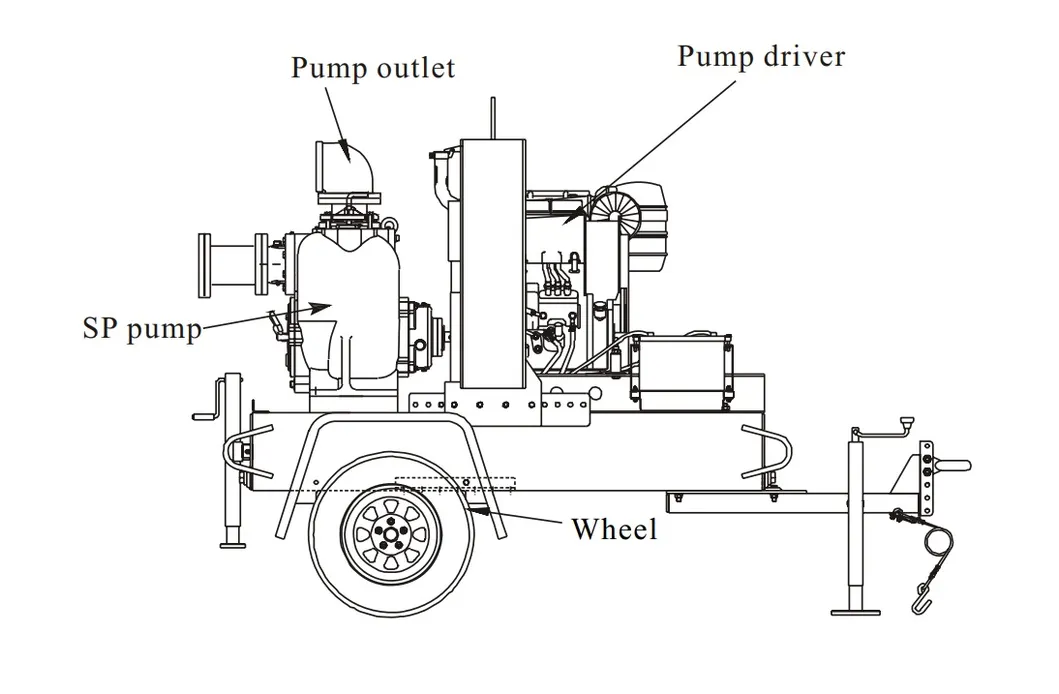

Structure Chart
Structure Chart
Product Parameters
Pump Information Pump Model: SCP-6
Pump Type: Portable diesel engine pump
Inlet*outlet size: 6 inch *6inch DN150
Material of Construction Pump Casing: Cast iron
Impeller: Iron
Shaft: 45# steel
Seal Type: Mechanical seal
Pump Performance Max Flow Rate: 350m3/h
Max Head: 30m
Operating point : 300m3/h @ 18 m
Self priming: 7.6 m
Max solids: 76.2 mm
Driving motor Brand: SP-6
Prime Power: 42kw @ 1500 rpm
Displacement: 3.12L
Fuel Cum: 258g/kw.h
Configuration Bare Pump + Diesel engine + High elastic coupling + Control panel + Two wheels trailer + raining cover + Steel base plate with 60 liters fuel tank
Packing info With plywood case
Each case measures 3.8*1.6*1.6m
Each case gross weight is 1100kg
Detailed Photos

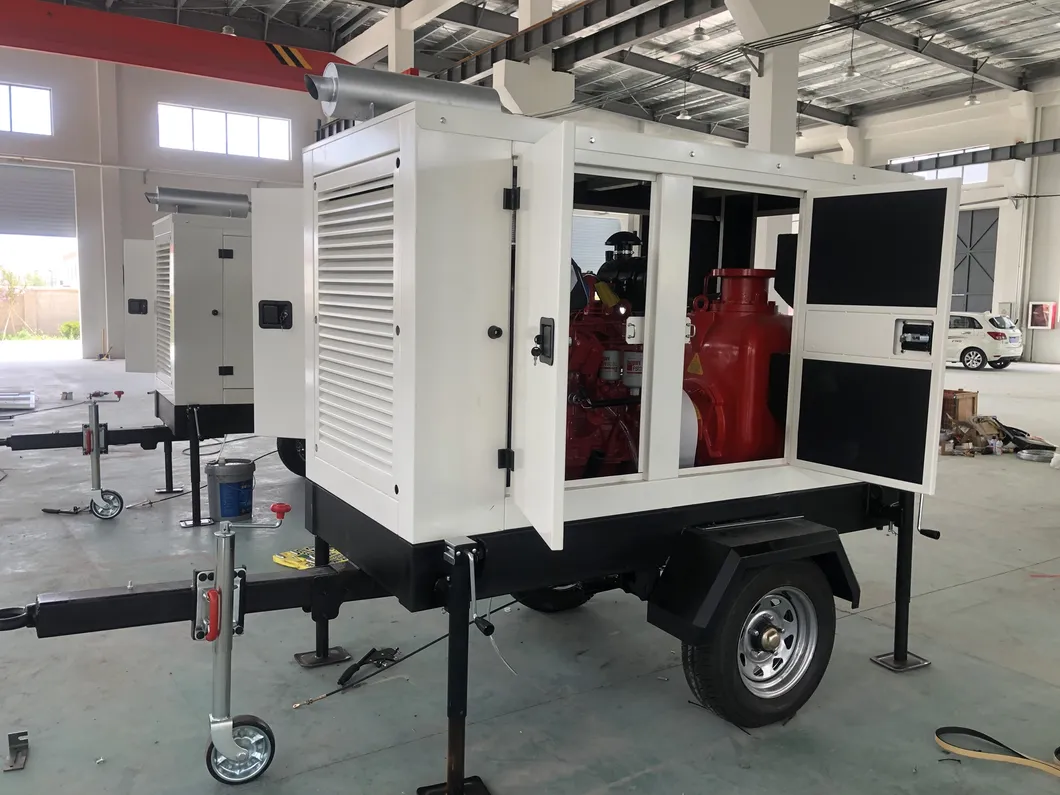

Detail 1

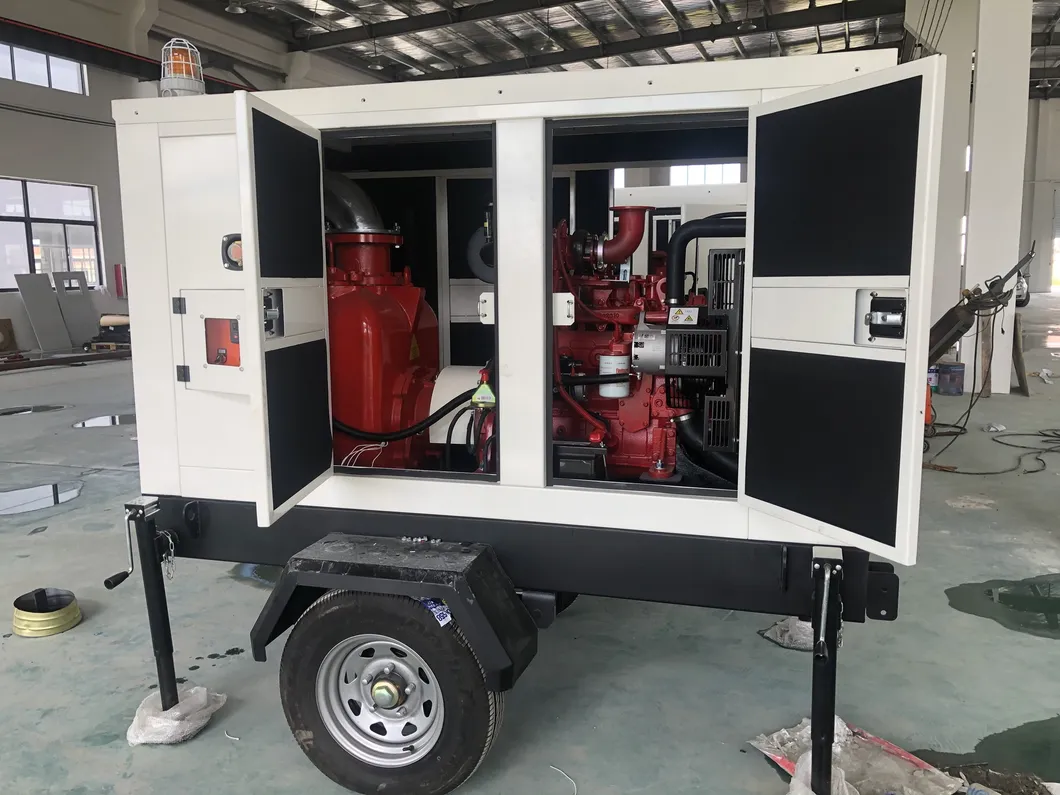

Detail 2
Packaging & Shipping

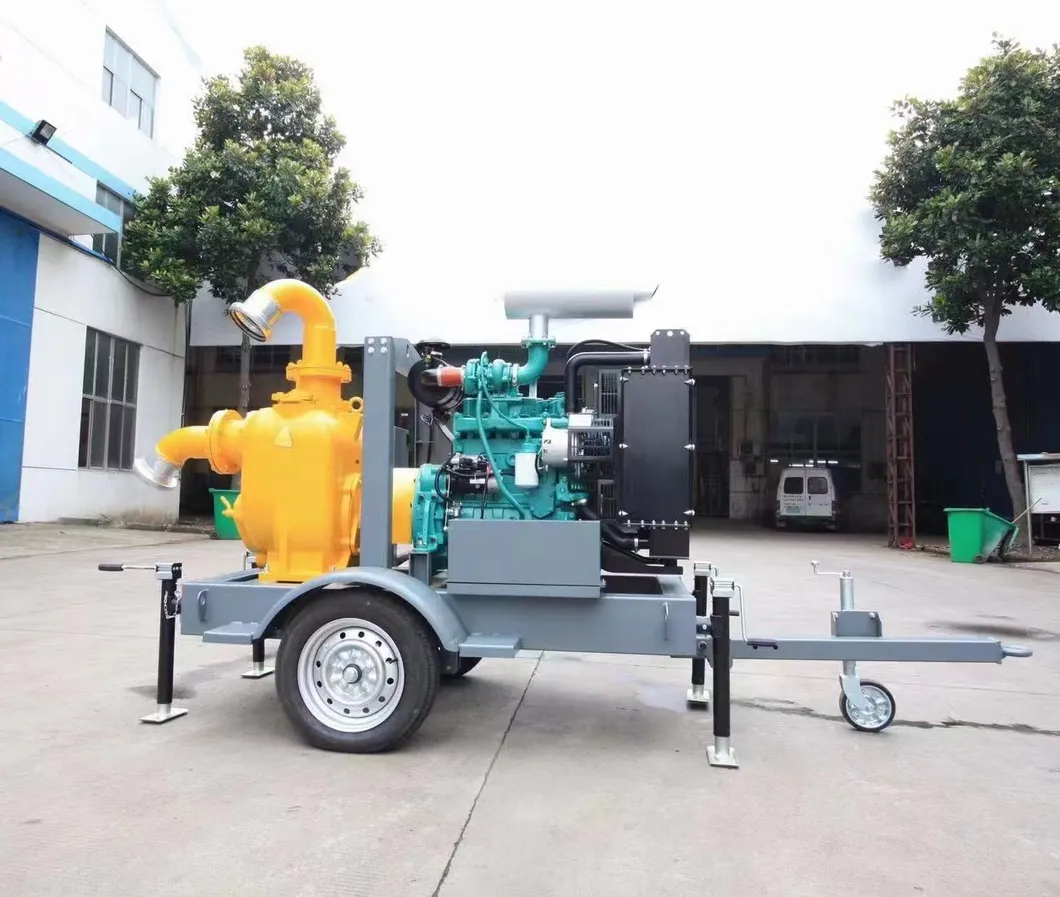

Packaging 1

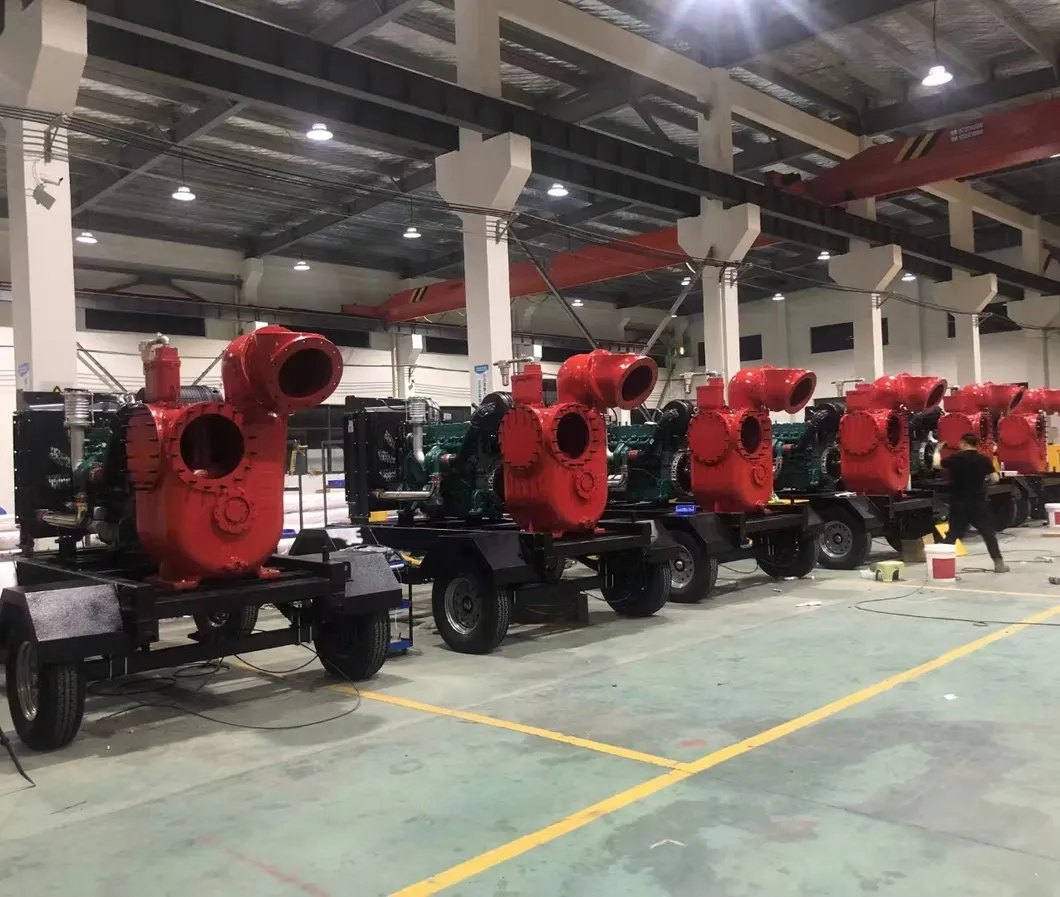

Packaging 2

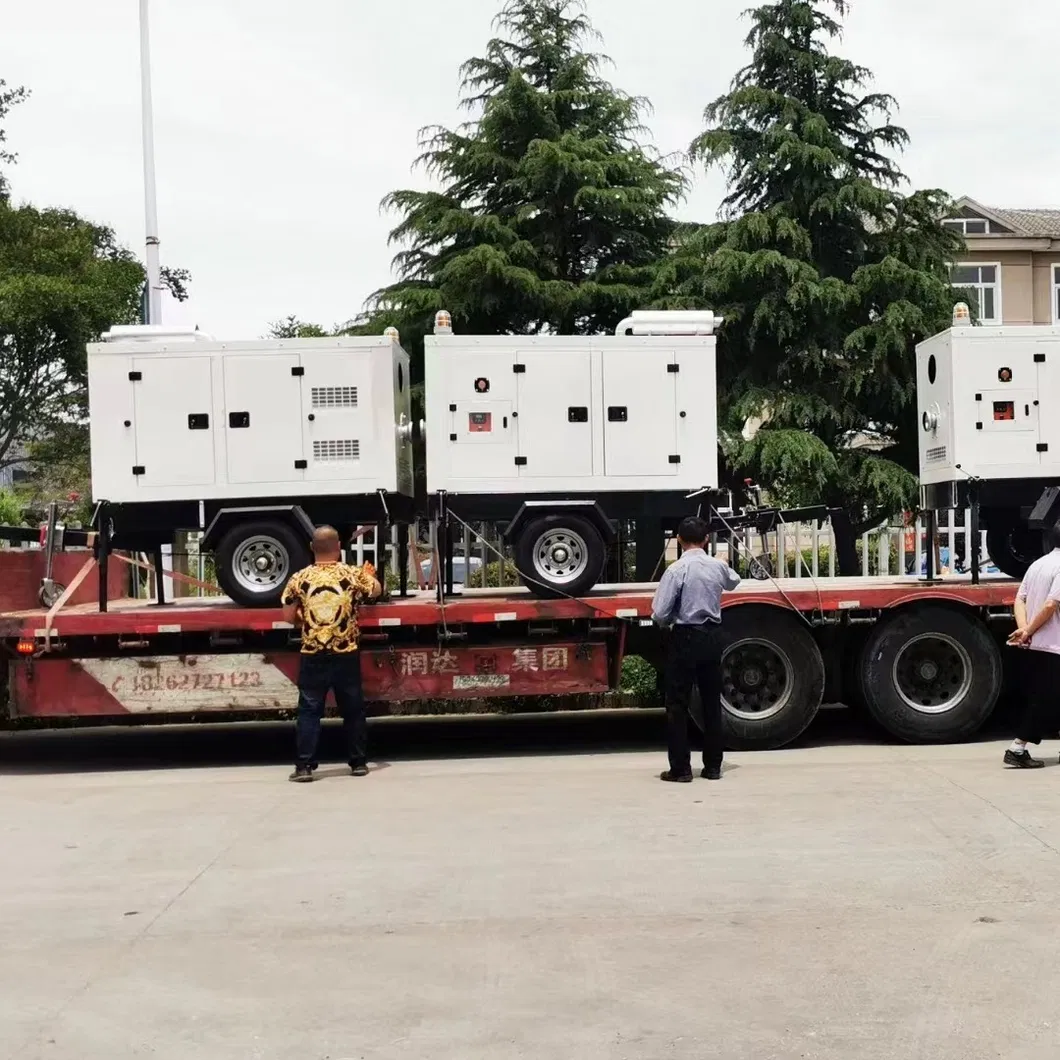

Shipping 1

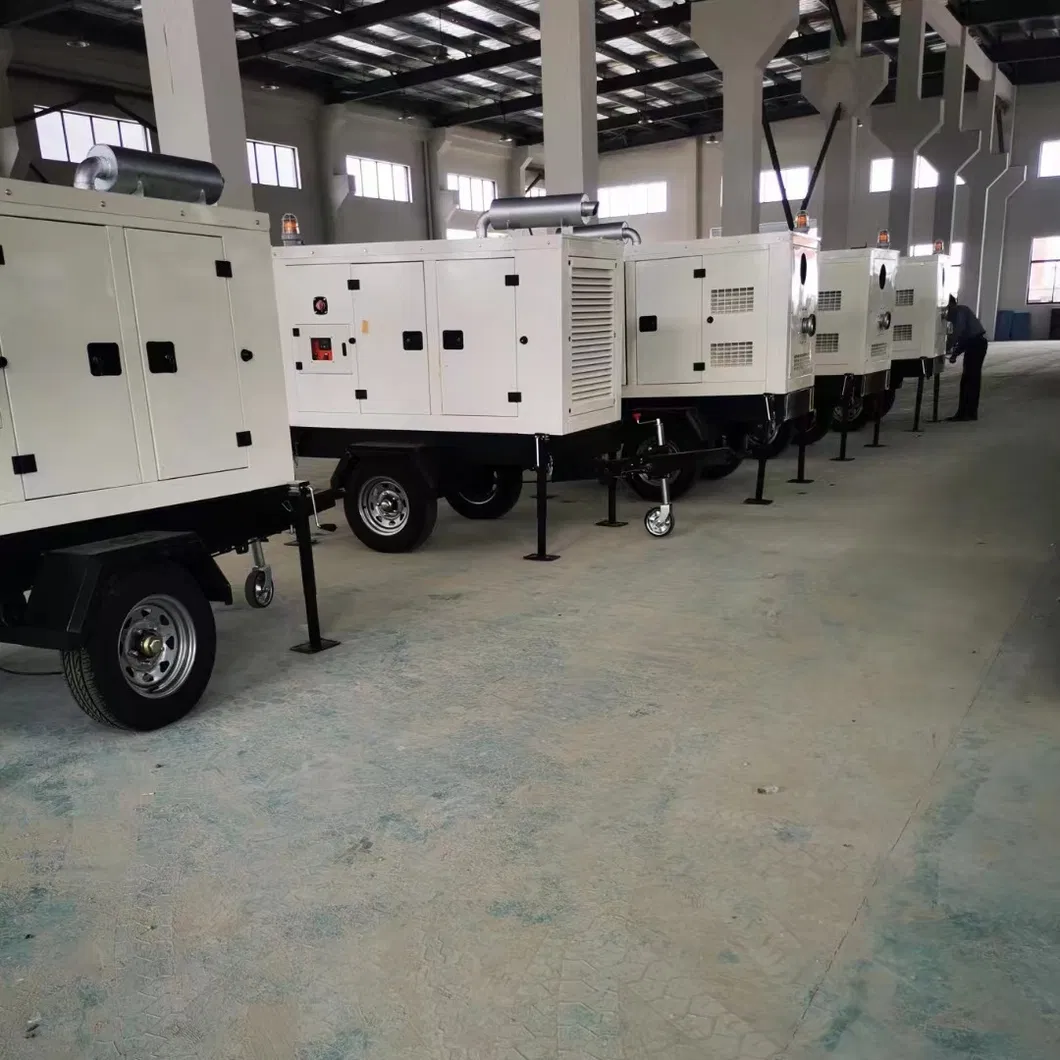

Shipping 2
Shipping 3
Exhibition
Exhibition
Frequently Asked Questions
What are the primary applications for this mobile drainage pump truck?
This pump truck is ideal for municipal sewage management, flood control projects, agricultural irrigation, and industrial water pumping where mobility is required.
Can this pump handle liquids with solid particles?
Yes, it is designed to discharge liquids containing large solid particles (up to 76.2 mm) and long fiber impurities without clogging.
What is the self-priming capability of the SCP-6 model?
The SCP-6 pump features excellent self-priming performance with a suction lift capability of up to 7.6 meters.
Is the unit suitable for outdoor use in rain?
Absolutely. The configuration includes a rain cover and is designed for integrated outdoor movable use, making it durable for various weather conditions.
How is the pump unit transported and installed?
The unit comes with a two-wheel trailer for easy movement. It is a highly integrated system that requires minimal installation, offering a plug-and-play solution for mobile water supply.
What type of engine drives the pump?
The unit is powered by a high-quality diesel engine (SP-6 brand) providing 42kw at 1500 rpm, ensuring high efficiency and energy saving.
