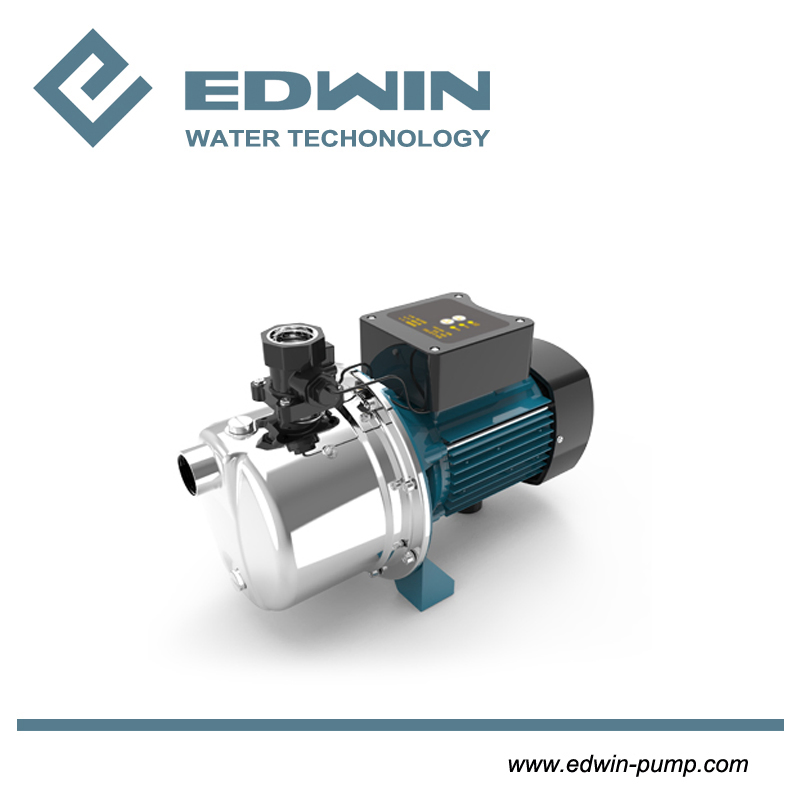

High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
1 / 5
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump
High Suction Stainless Steel Irrigation Jet Water Pump

High Suction Stainless Steel Irrigation Jet Water Pump

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.*ITSJET
Max. Head30-50m
Max. Capacity50-100 L/min
Driving TypeMotor
MaterialStainless Steel
StructureSingle-stage Pump
PowerElectric
TypeJet Pump
ApplicationSelf-Priming / Irrigation
Protection ClassIP44
Insulation ClassF
Voltage220V

Packaging & Delivery

Package Size44.50cm * 23.00cm * 29.50cm
Gross Weight11.500kg
Transport PackageWooden Box

Product Description

A 1HP High suction stainless steel irrigation jet water pump is a professional solution for agricultural and residential irrigation. Equipped with a 1 horsepower motor and high-quality stainless steel construction, it ensures efficient water flow and long-term durability against corrosion.

🌟 Key Features

✔
High Performance: 1HP motor provides sufficient power for demanding irrigation systems.
✔
Durable Construction: Stainless steel pump body and support resist rust and harsh environments.
✔
Deep Suction: Capable of drawing water from a maximum depth of 9 meters.
✔
Intelligent Control: Independent identification of pipeline pressure and adaptive learning.
✔
Safety Standards: Includes thermal overload protection and IP44 safety grading.

🔧 Advanced Functions

🔸
Embedded microchip with memory module
🔸
User-friendly plug-and-play installation
🔸
Auto-activation upon water provision restoration
🔸
Electrostatic anti-corrosion outer layer

Components & Materials

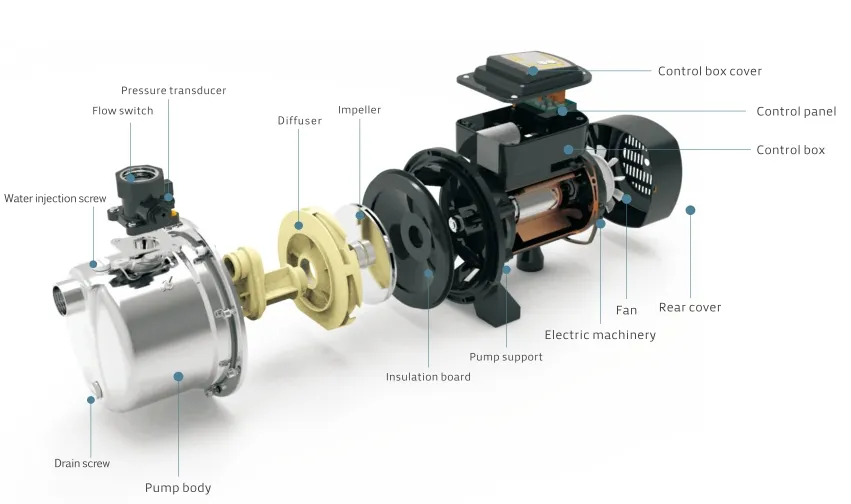

Components Diagram
Components Construction Material
Pump bodyStainless steel
Pump supportStainless steel
Motor housingAluminum
ImpellerStainless steel
Mechanical SealSilicon carbide
Bearing6201 (370W) / 6202 (550W-750W)

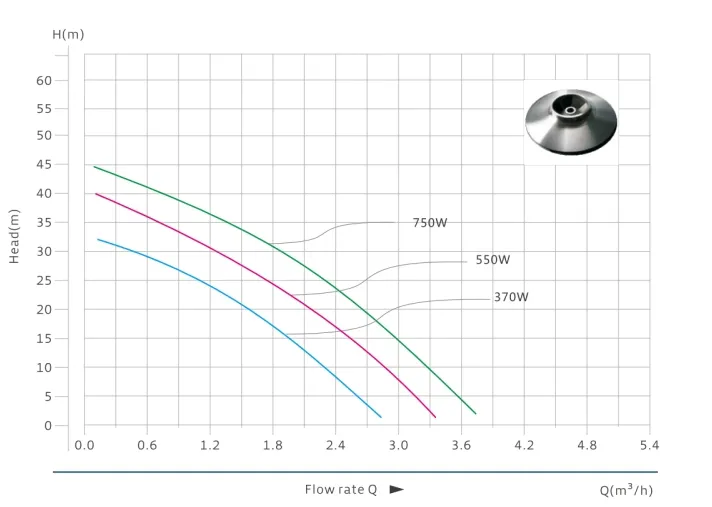

Performance Curves

Performance Curves

Product Parameters

Model Power (W) Power (Hp) Max.Flow (m³/h) Max.Head (m) Max.Suct (m) Pipe (Inch) G.W. (kg)
ITSJET-3703700.52.63261"×1"8.8
ITSJET-5505500.73.54091"×1"10.2
ITSJET-7507501.03.84591"×1"10.5

Related Products

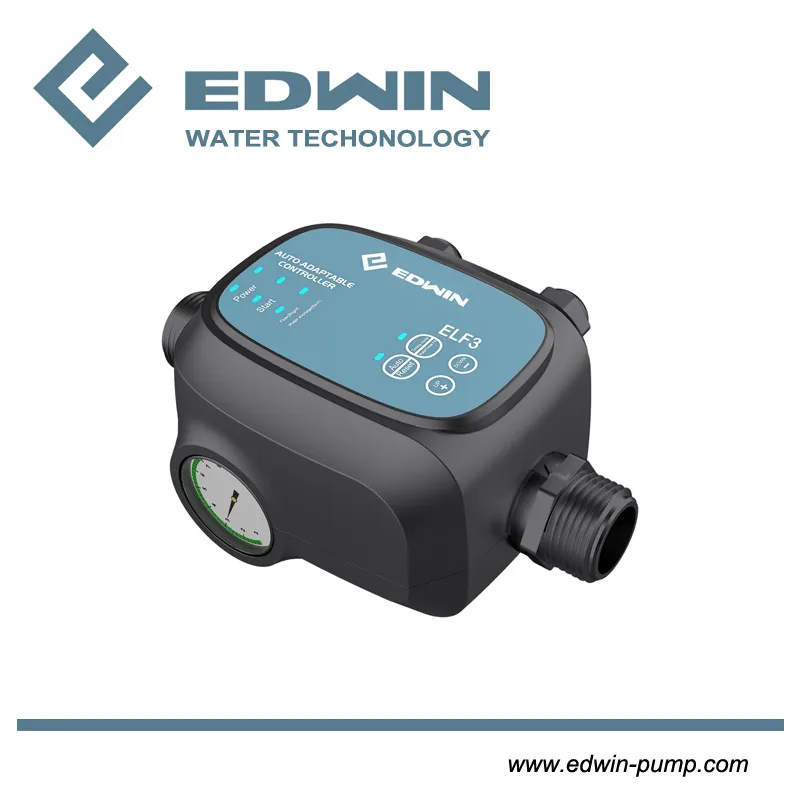

Controller

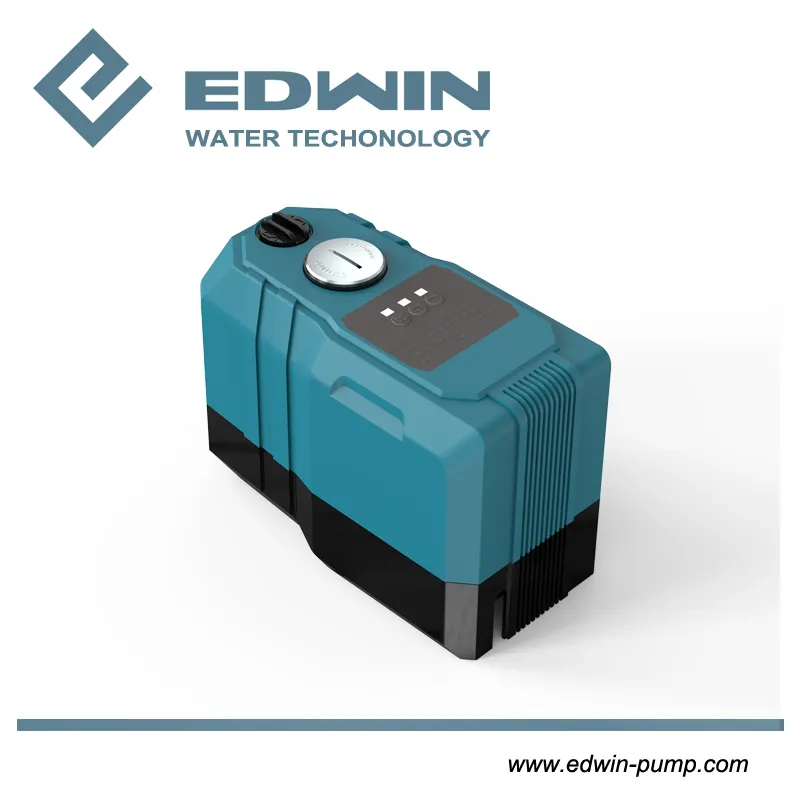

Booster Pump

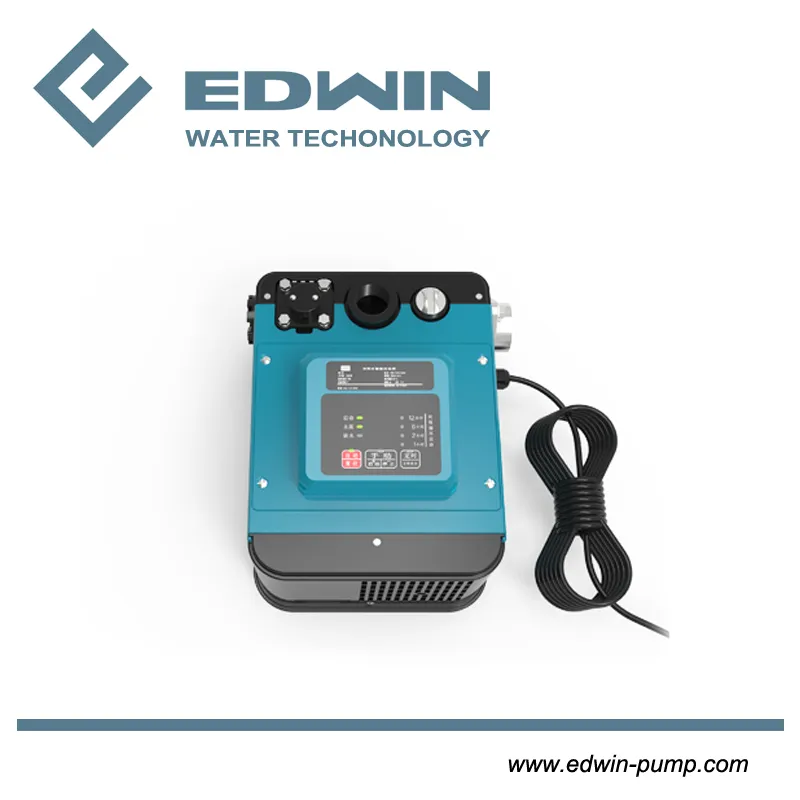

Jet Pump

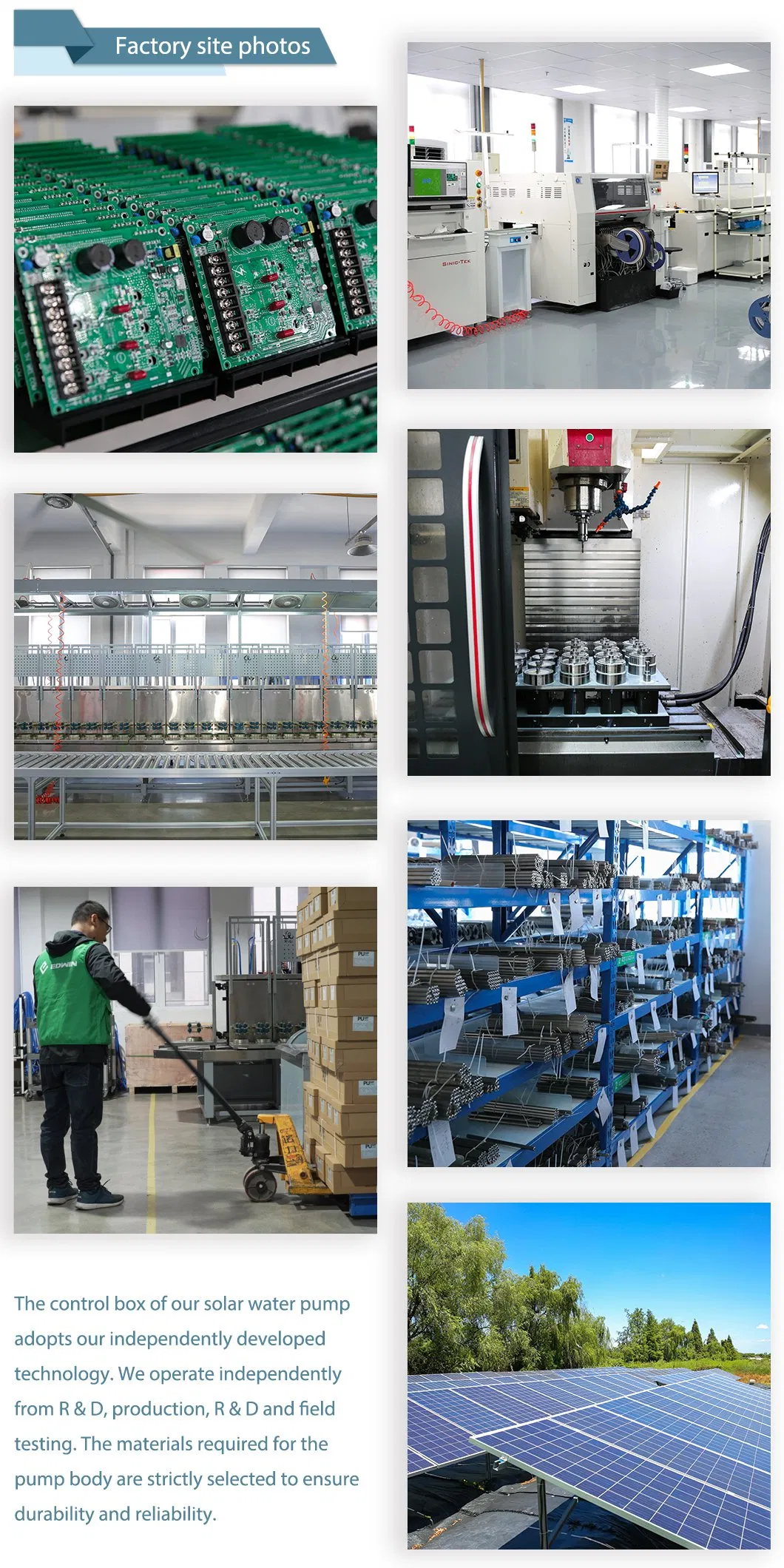

Exhibition & Production Line

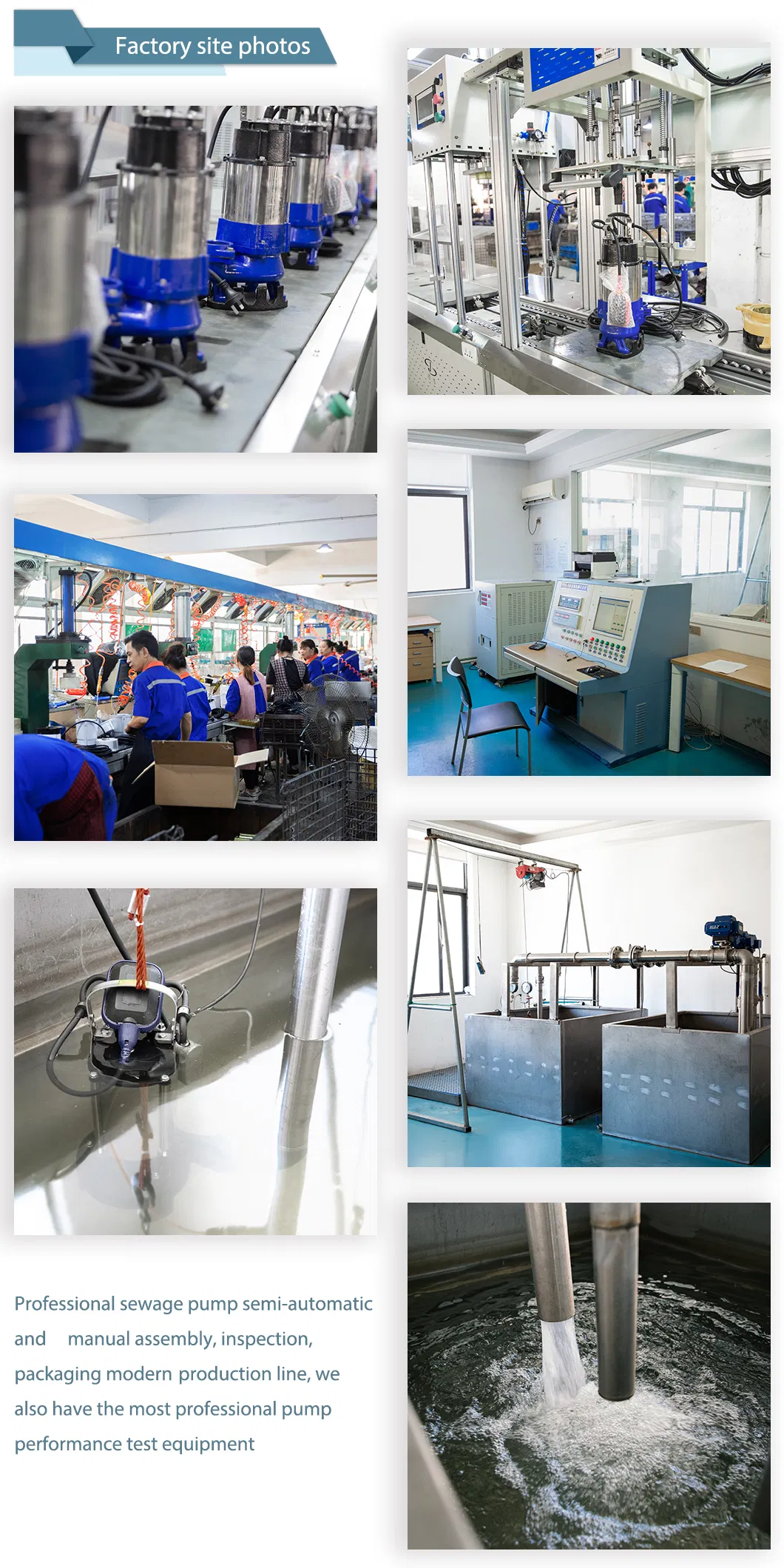

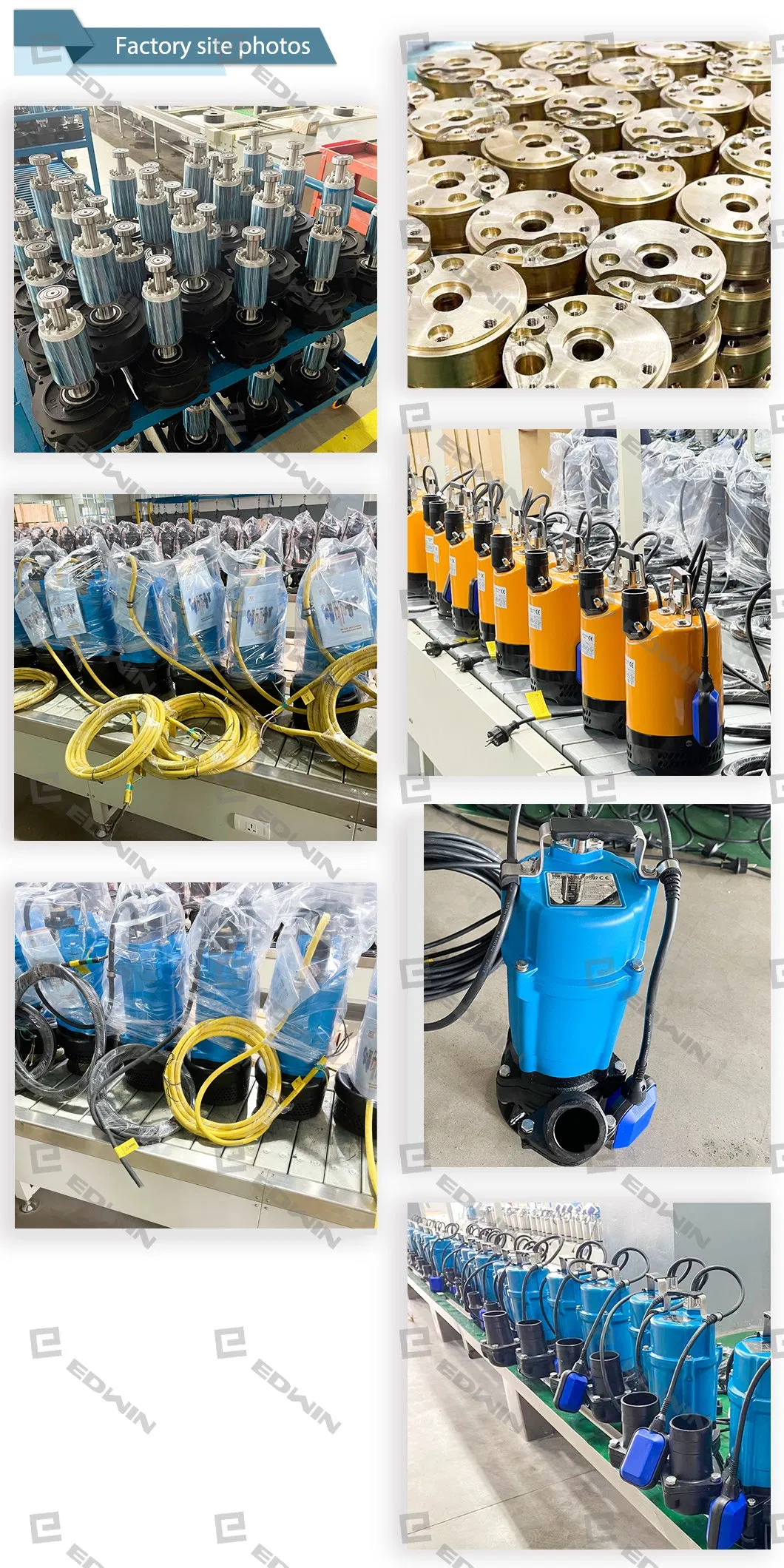

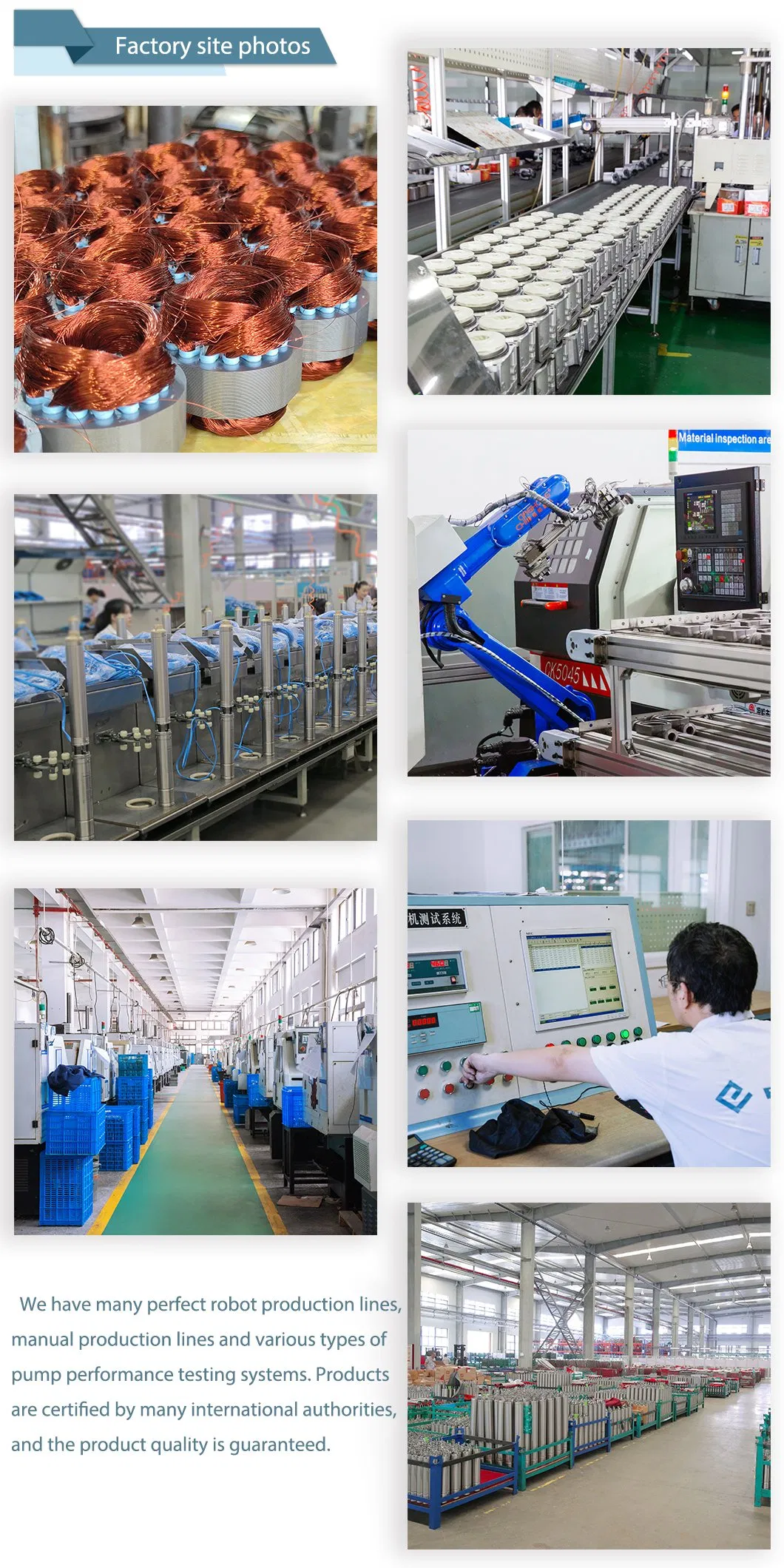

Exhibition Product Line 1 Product Line 2 Product Line 3 Product Line 4

Frequently Asked Questions

What is the maximum suction depth of this pump?
This jet pump is designed for high suction applications, capable of drawing water from a maximum depth of up to 9 meters.
What materials are used for the pump body?
The pump body and pump support are constructed from high-grade stainless steel to ensure durability and excellent corrosion resistance.
Is the pump suitable for continuous operation?
Yes, the motor is rated for S1 Class continuous operational capacity with Class F insulation and IP44 protection.
Does the pump include any smart control features?
Yes, it features an electronic pressure sensor and an intelligent adaptive learning module that automatically adjusts initiation pressure and manages flow control.
What are the power options available for this series?
The ITSJET series offers power ratings of 370W (0.5HP), 550W (0.7HP), and 750W (1.0HP) to suit different irrigation needs.
Can this pump handle high liquid temperatures?
The pump is designed to handle liquid temperatures up to 100°C, making it versatile for various clean water applications.
