Home > Irrigation and Suction Pumps > 2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation

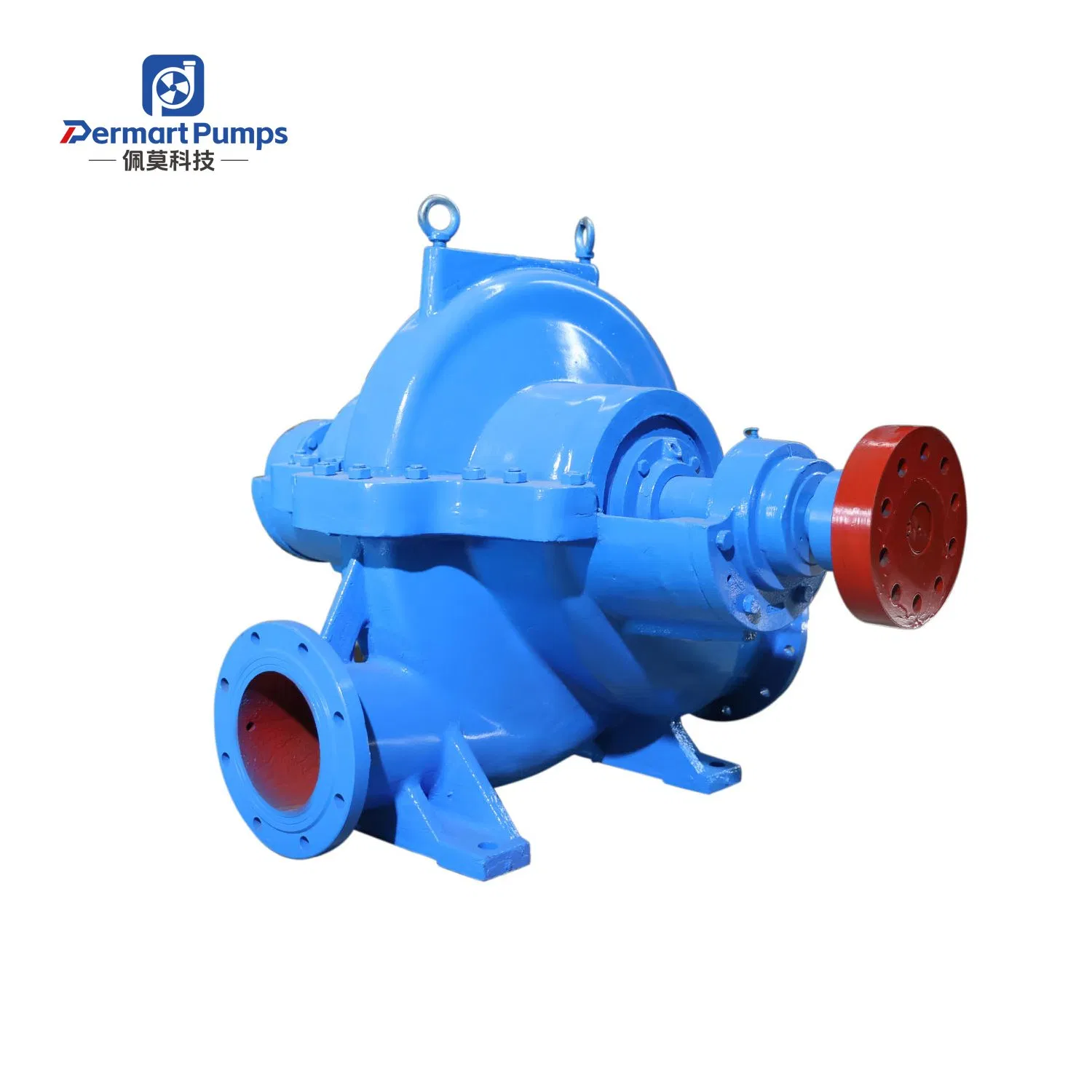

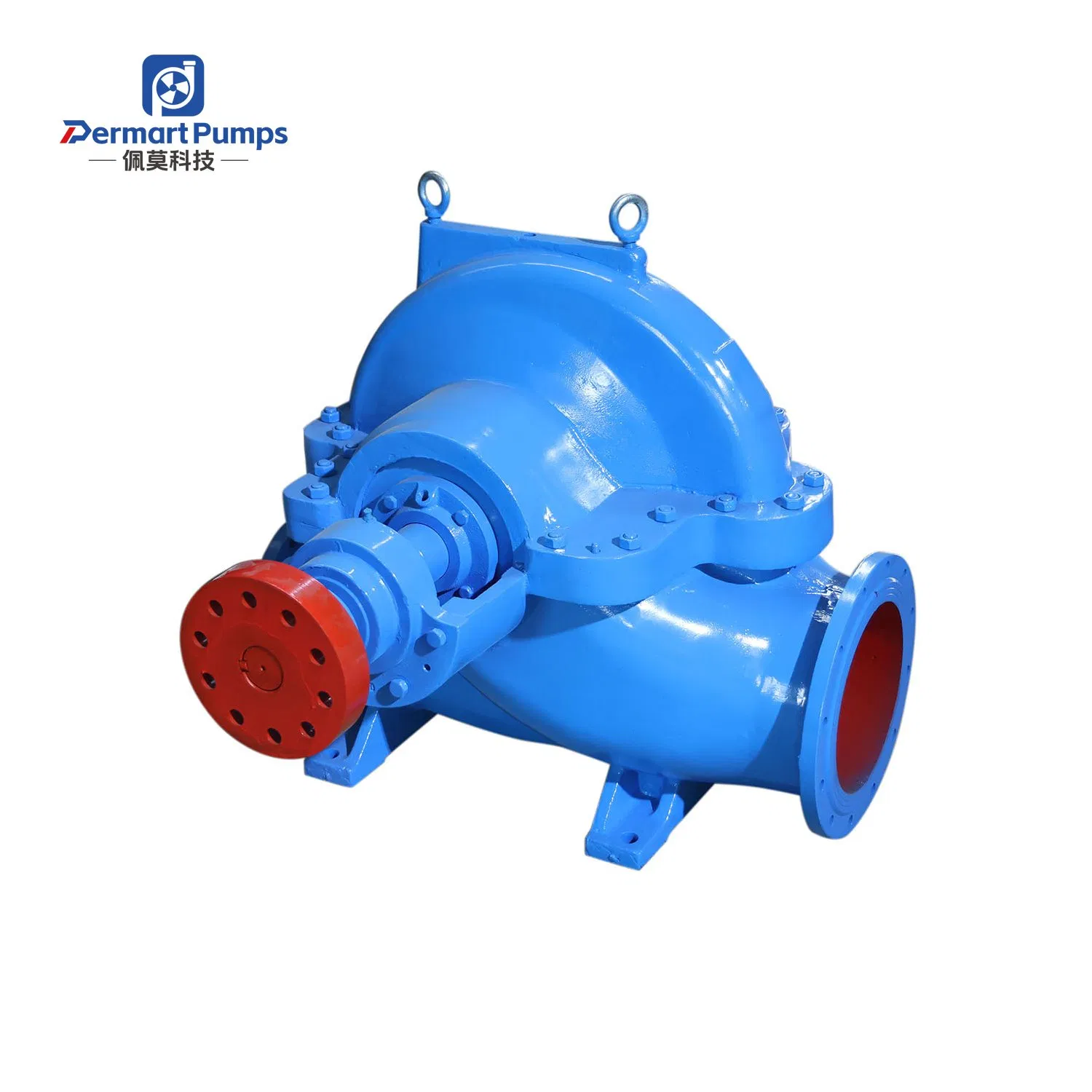

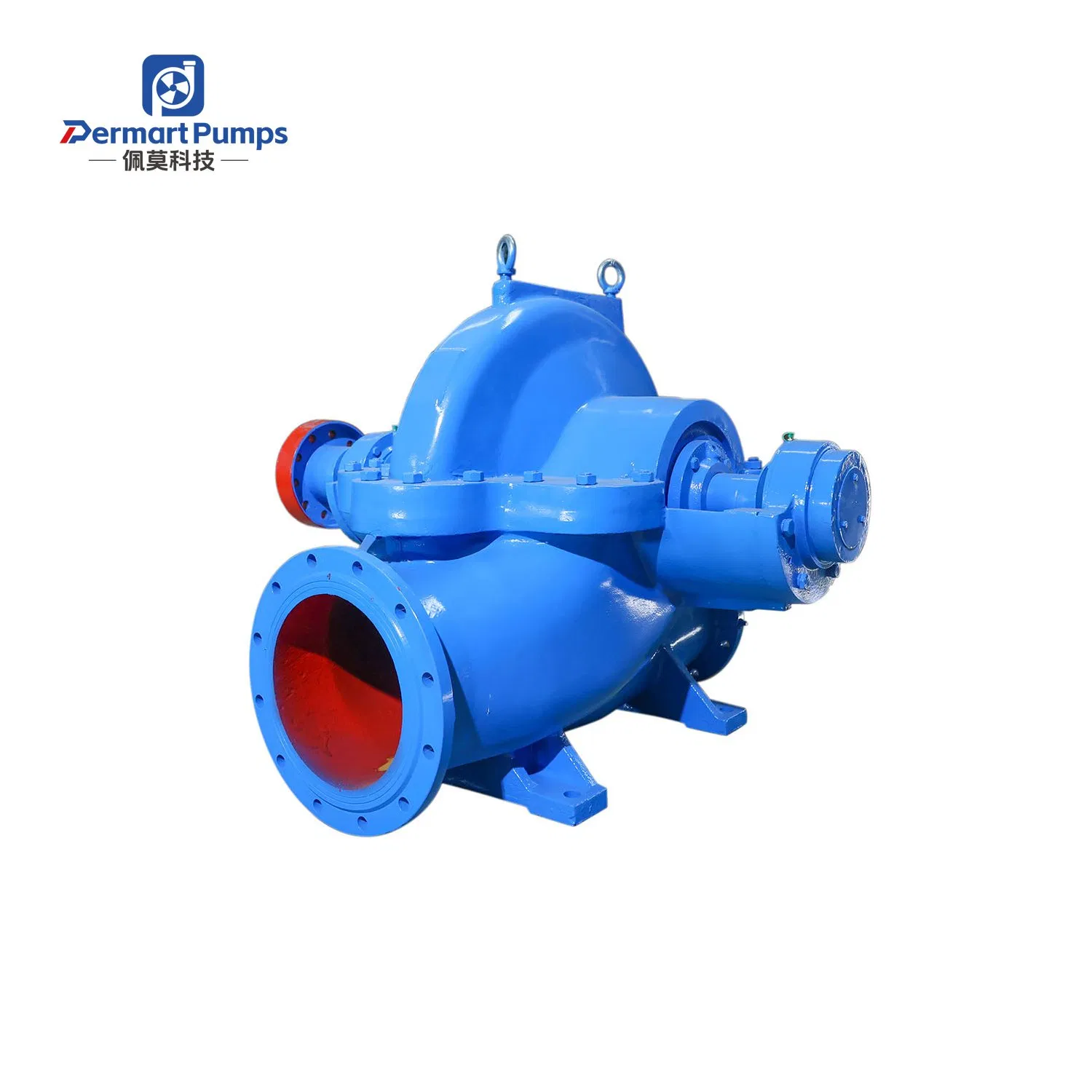

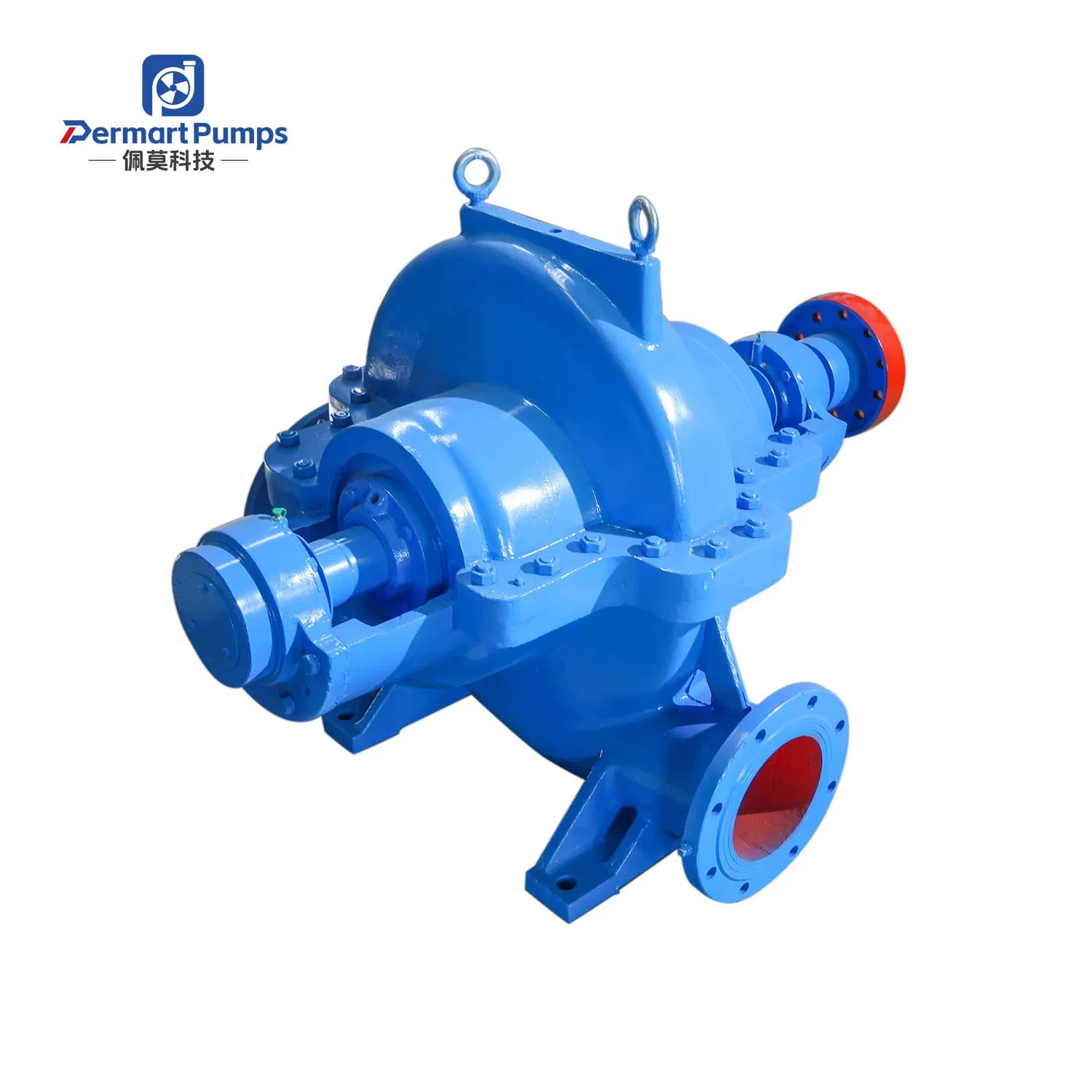

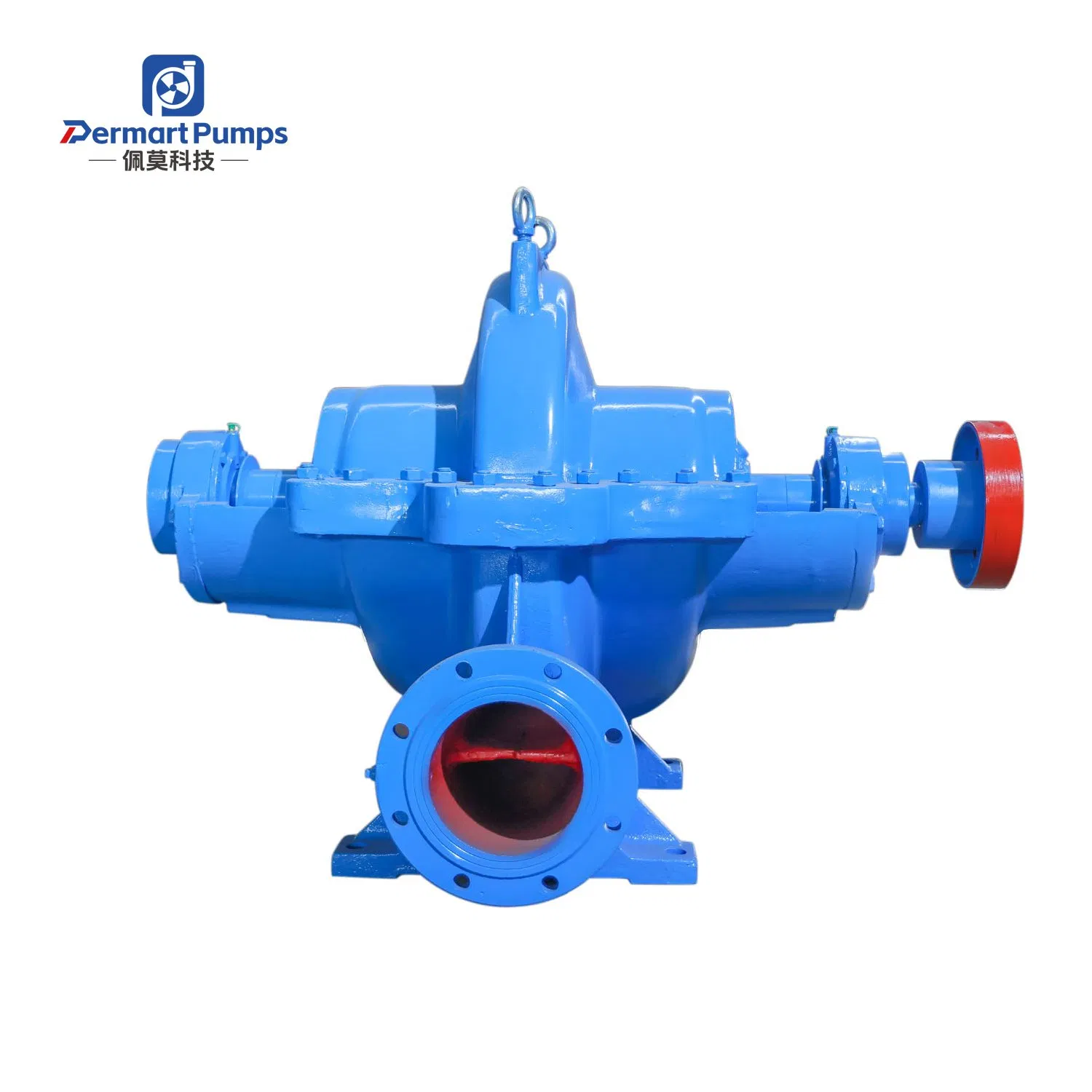

2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
1 / 5
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation
2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation

2016m3/H Flow 59m Head 520kw Horizontal Water Split Case Double Suction Centrifugal Pump for Farmland Irrigation

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

!

Overview - Basic Info

Model NO.
500S-59/20SH-9
Max.Capacity
2448 M3/H
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Influent Type
Double-Suction Pump
Position
Horizontal Pump
Flow
1548-2448 M3/H
Head
50-66 M
Speed
970 R/Min
Motor Power
520 Kw
Voltage
380V-10kv
Efficiency
77%-83%
Shaft Seal
Soft Packing or Mechanical Seal
i

Product Description

S SH series split case double suction centrifugal pumps are horizontal single stage double suction centrifugal pumps. They are widely used in factories, mines, urban water supply, power stations, and farmland irrigation for transporting clean water and liquids with properties similar to water.

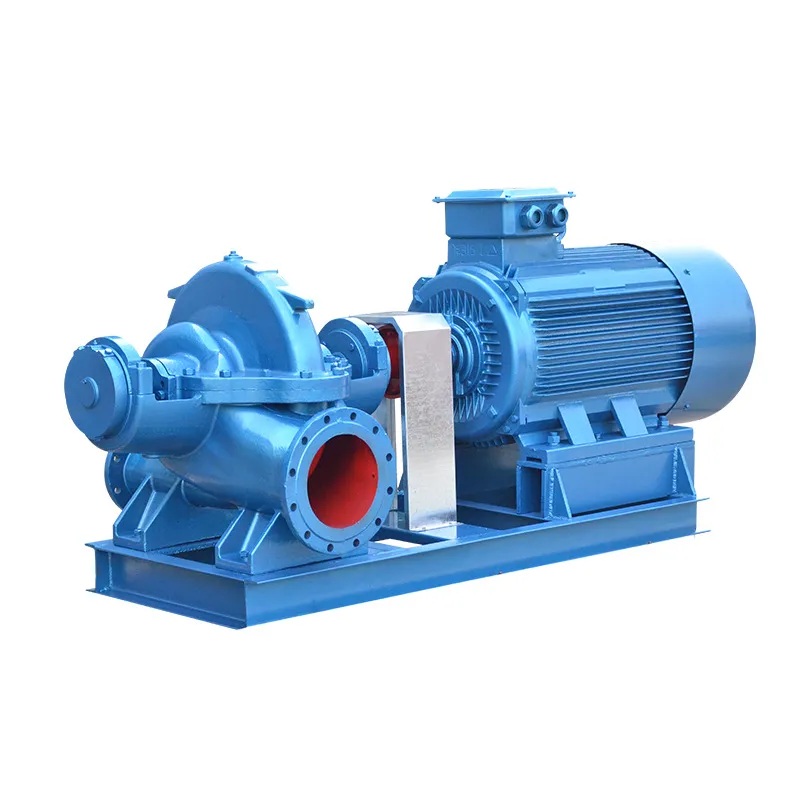

Horizontal Split Case Pump

Key Advantages:

  • Comprehensive performance with high head up to 140m.
  • High flow rate capacity reaching 12500m3/h.
  • By changing materials, it can pump muddy water containing sediment.
  • Medium temperature can reach 130 ºC with cooling bearing supply.
  • Energy saving and cost reducing design with advanced water conservancy.
  • Convenient maintenance: No need to disassemble pipelines to inspect internal parts.

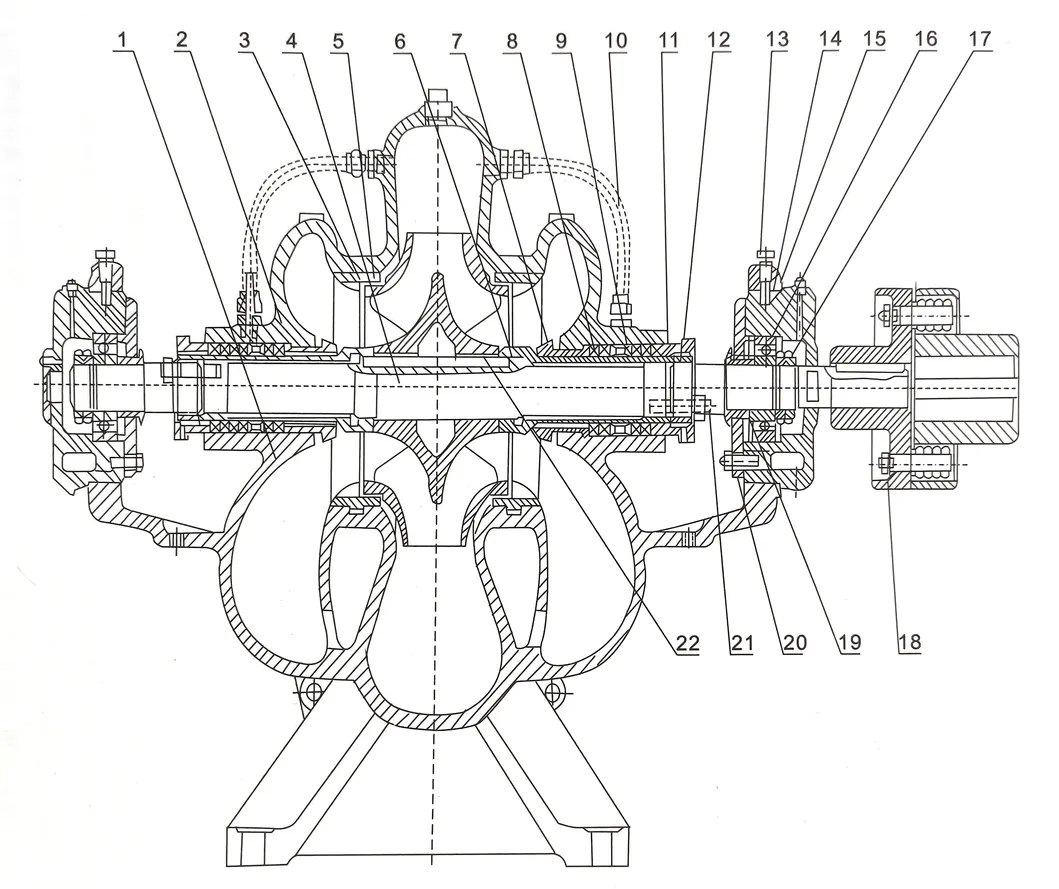

Construction Diagram
Construction Details:
1. Pump body | 2. Pump cover | 3. Impeller | 4. Shaft | 5. Sealing ring | 6. Shaft sleeve | 11. Packing gland | 14. Bearing body | 16. Radial ball bearing | 20. Bearing end cover.
⚙

Product Parameters

Model Power (kw) Capacity Head (m) Speed (r/min) Efficiency (%) NPSH (m)
m³/h L/S
150S / 6SH30-55111.6-20031-55.5635-85295068-77.52.7-4.5
200S / 8SH37-132180-35150-97.531-108295067-824.2-7
250S / 10SH22-132320-57688.89-1608.6-71.5145070-83.62.4-4.5
300S / 12SH30-300504-972140-2708.7-98145031-853.4-6.8
500S / 20SH115-8501296-2448360-68010.7-10597072-87.24-6.6
★

Applications

Mines
Mines
Power Station
Power Station
Factories
Factories
Urban water supply
Urban Water Supply
Water conservancy
Water Conservancy
Farmland irrigation
Farmland Irrigation
📦

Packaging & Shipping

Packaging and Shipping
We support professional product packaging, boxing, nailing, and loading. Our logistics include freight, air, sea, and express methods to ensure safe arrival at your port or location.
🏢

Company Profile

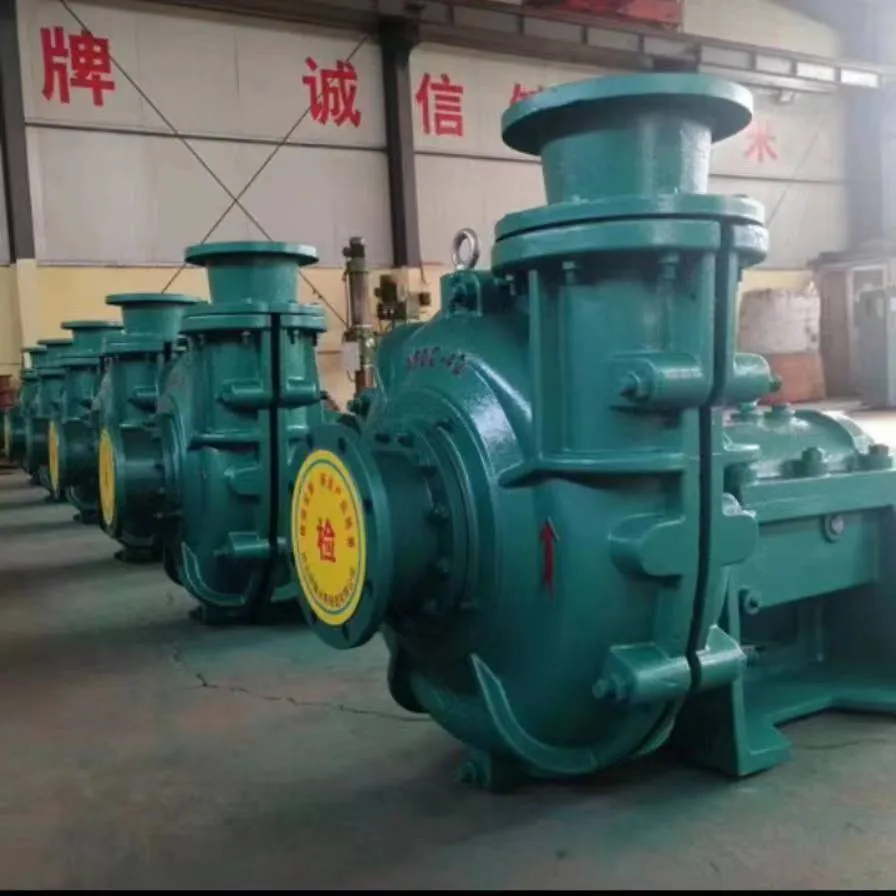

Factory

Factory History: Established in 2016

Business Type: Manufacturer and exporter

Main Products: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, double suction split case pumps, booster pumps, and diesel water pumps.

✔

Certifications

CE
ISO
Credit Cert
Standard Certificate No.
2006/42/EC CEM.2023.206.C82652
ISO9001626018Q12046R6S
Credit LevelZXXY-ZXDJ20158
?

Frequently Asked Questions

Q: How can I place an order online?
A: Send us an email or message via WhatsApp/WeChat. Once all details are confirmed, we can finalize the order.
Q: Is there a Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set.
Q: What payment methods are accepted?
A: We accept T/T, L/C, Western Union, and PayPal.
Q: What are the available shipping terms?
A: Shipping is available by sea, air, and express.
Q: What is the typical delivery time?
A: Delivery typically takes 3-7 working days after payment confirmation, depending on the order quantity.
Q: What kind of guarantee do you provide?
A: The product warranty is 2 years (excluding wearing parts). We repair or replace parts free of charge for manufacturing defects.
