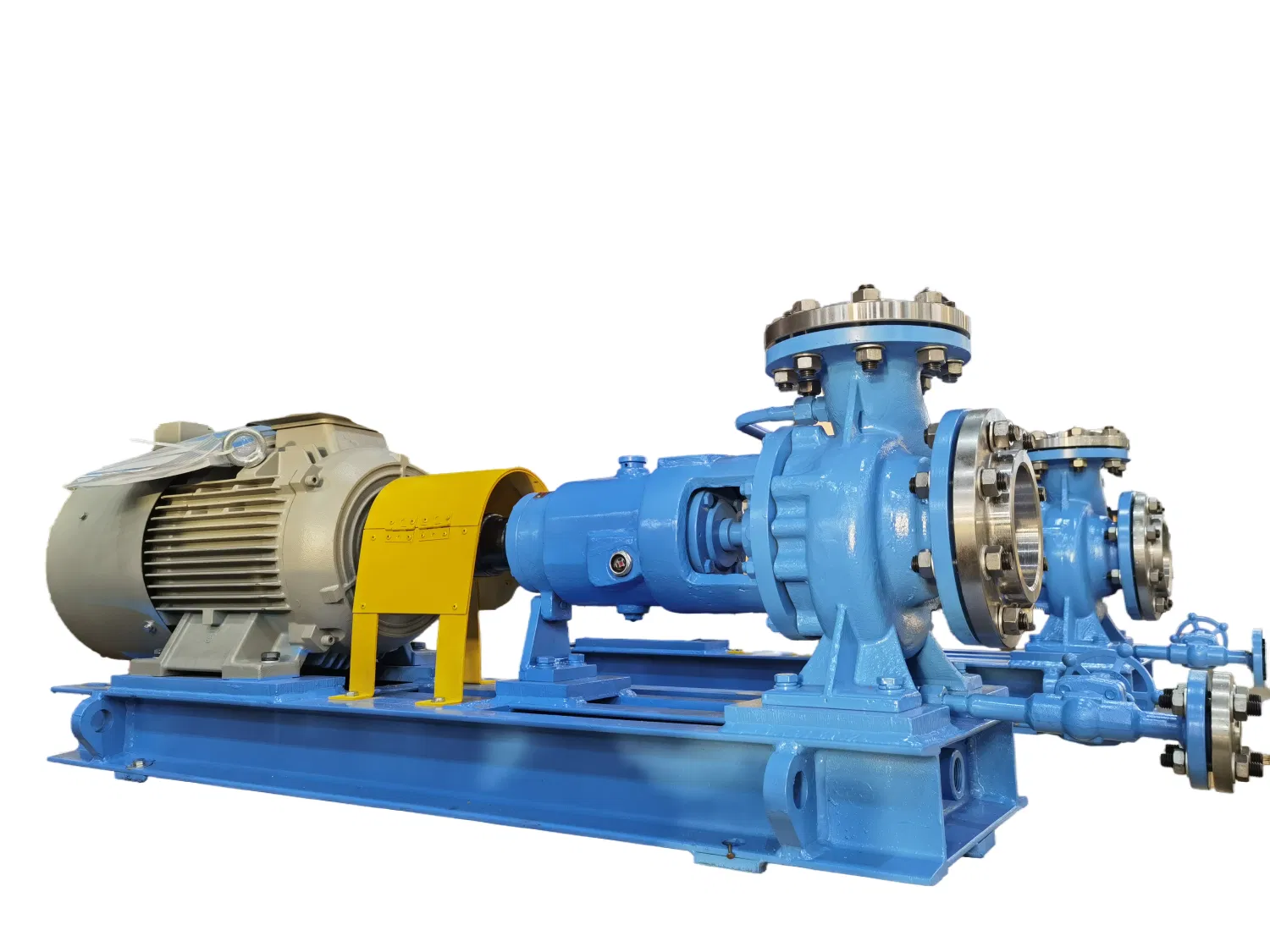

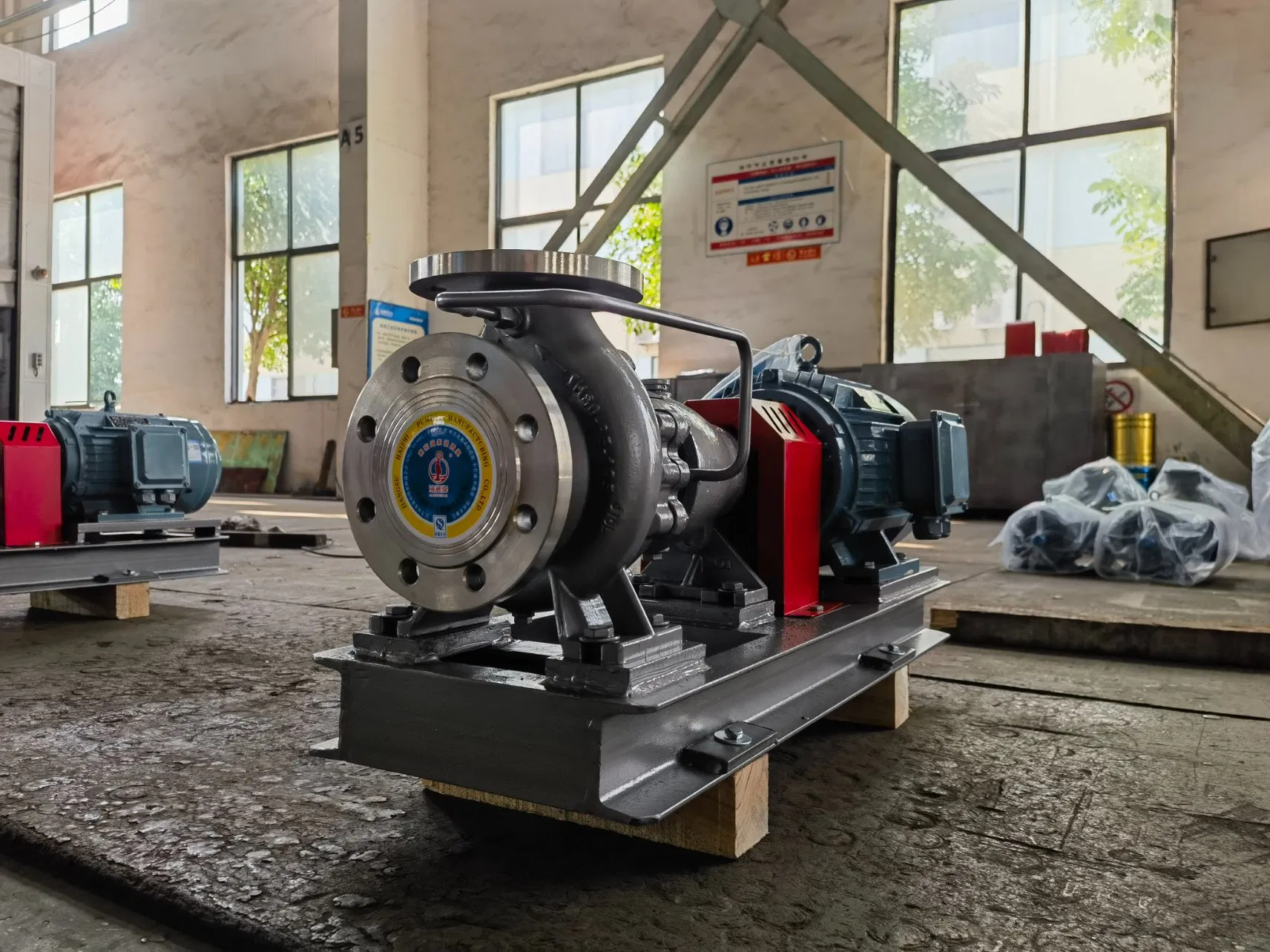

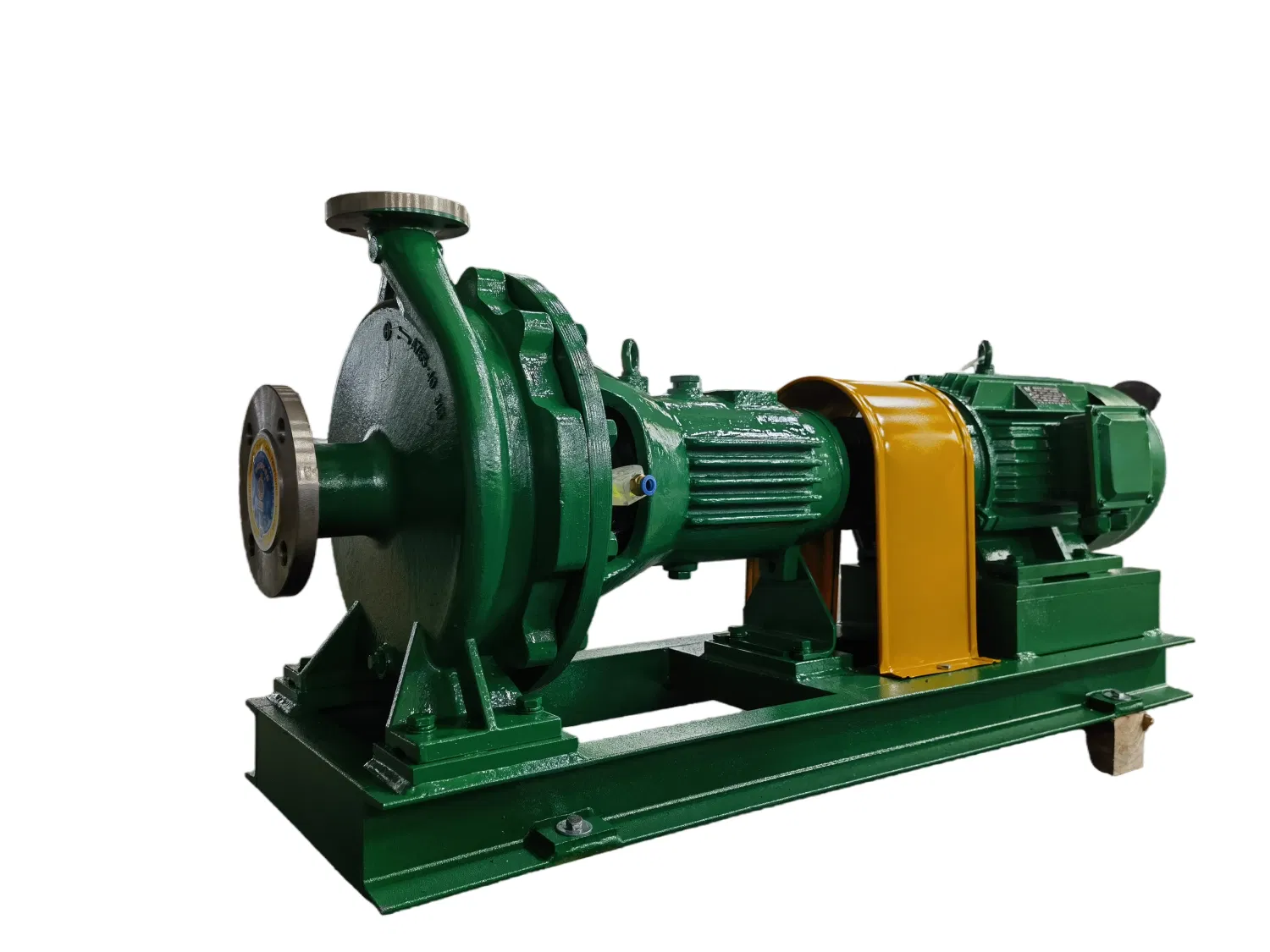

Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
1 / 5
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump
Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump

Hot Haishi Single Suction Booster Irrigation Fire Vertical Self Priming Centrifugal Pump

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
HZA
Max.Head
>150m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
Middle Pressure Pump
Position of Shaft
Horizontal Pump
Standard
API610
Temperature
-80~450 Degrees
Capacity Range
3~2600m³/H
Origin
Jiangsu, China
Production Cap.
5000 Units
🚀

Product Introduction

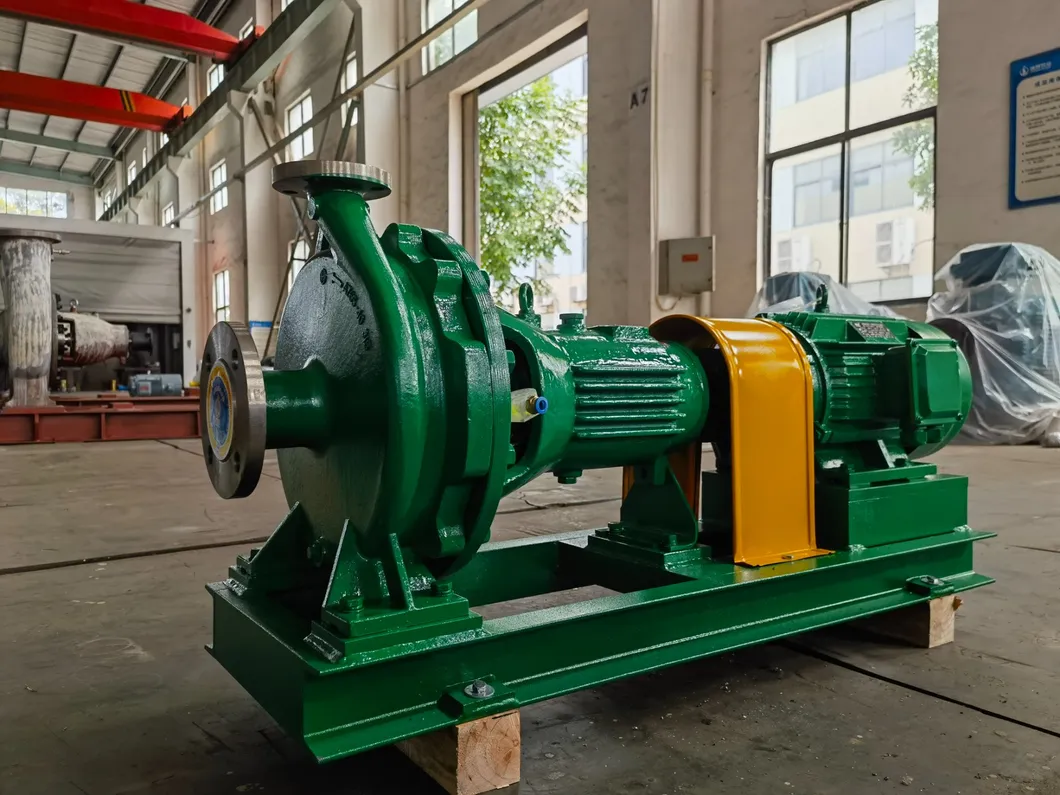

Centrifugal Pump
HZA and HZE series petrochemical process pumps are horizontal, radially split, single-stage cantilevered centrifugal pumps with a volute-type pump body. They are designed and manufactured in accordance with API 610, "Petroleum, Refinery, and Gas Industry Centrifugal Pumps."
Type Demonstration Range of Application Performance Parameter
HZA50-250 (Foot Support) Oil refinery, petrochemical industry, coal processing Discharge: ~2600m³/h
HZAO (Open Impeller) Chemical industry, paper, pulp, sugar industry Head: ~250m
HZE (Center Support) General process, desalination, seawater plant Speed: 1450~2950r/min
HZEO (Center Open) Heating, power plant, environmental engineering Pressure: ~2.5MPa
⚙️

Structural Features

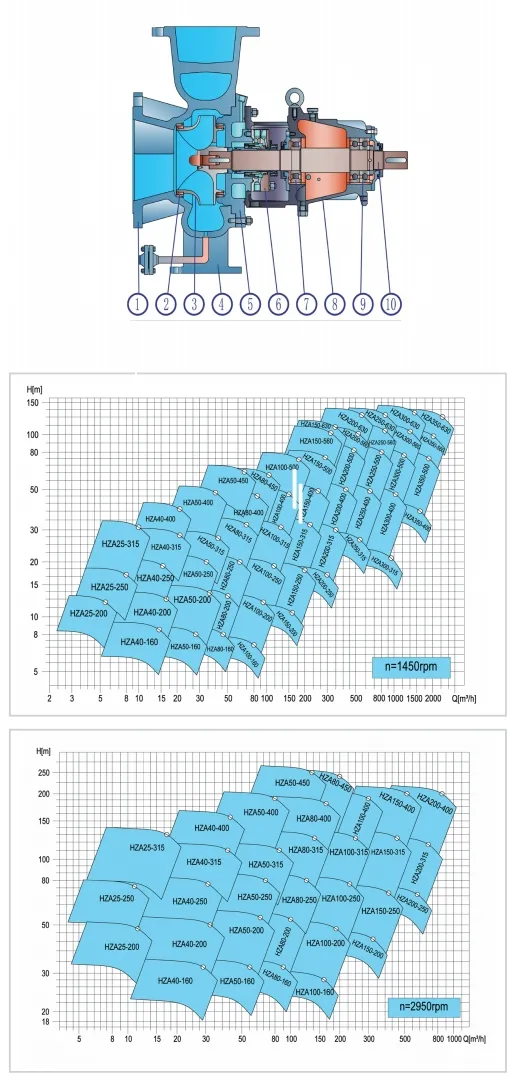

Pump Structure
  1. 01 Pump body & Seal ring
  2. 02 Impeller & Pump foot
  3. 03 Pump cover & Shaft seal
  4. 04 Bearing bracket (Drive/Non-drive end)

The sealing system is designed in accordance with API 682 standards. It can be equipped with various types of seals and flushing schemes to suit complex operating conditions.

🖼️

Main Product Gallery

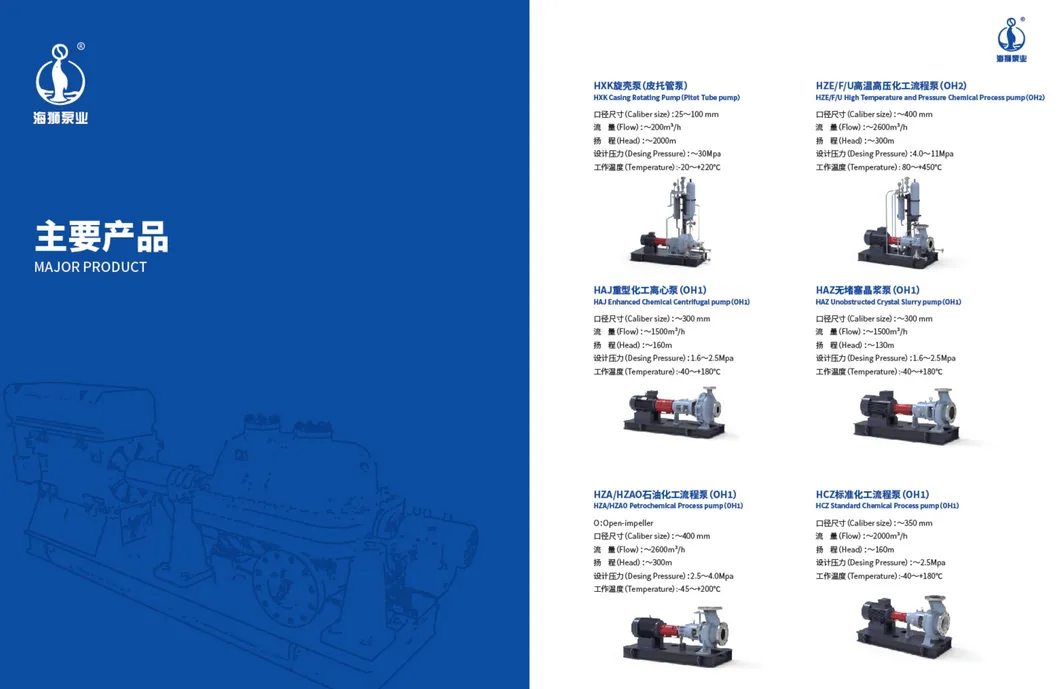

Pump Display 1

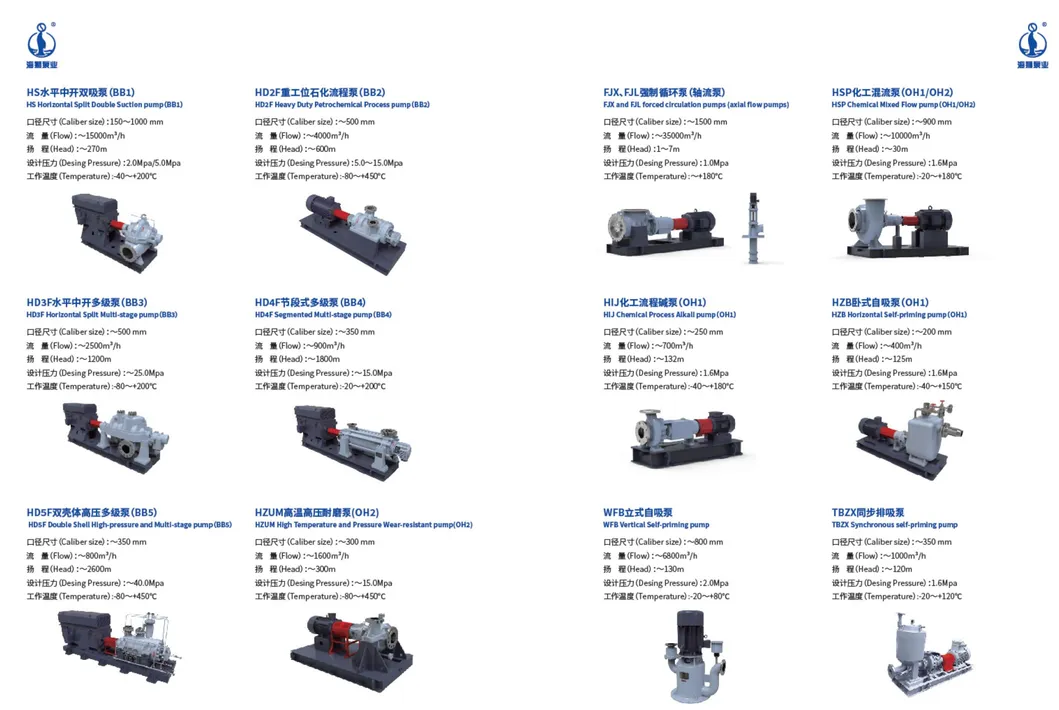

Pump Display 2

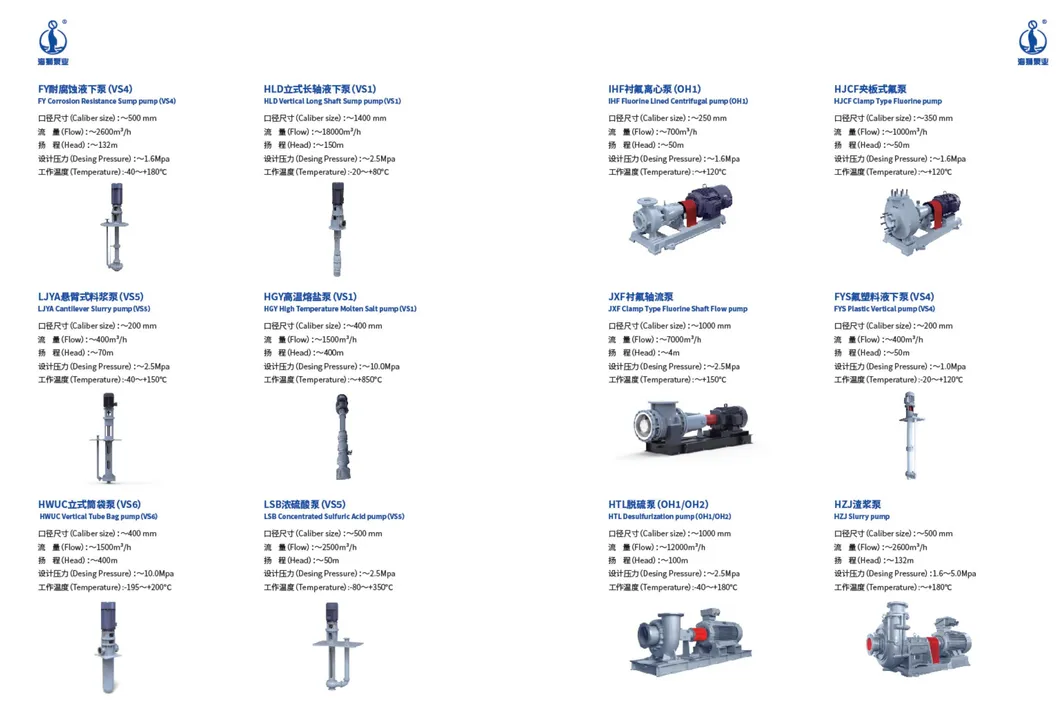

Pump Display 3

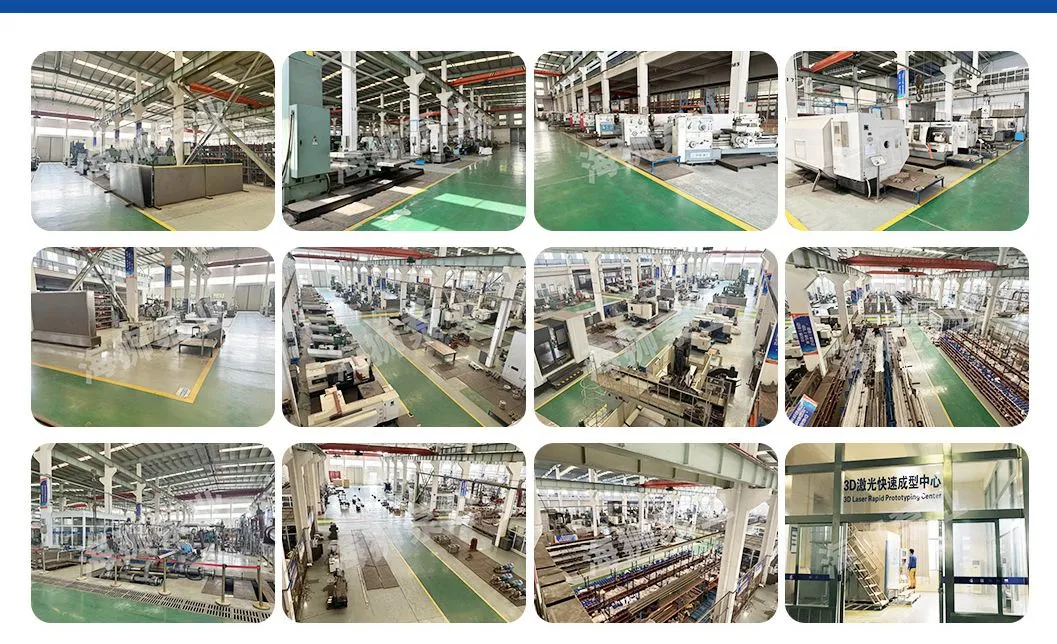

Workshop
🏗️

Application Areas

  • ✔ Coal chemical and petroleum petrochemical industry
  • ✔ Natural gas and fine chemical industry
  • ✔ Thermal power, biomass power generation
  • ✔ Environmental protection and wastewater treatment
  • ✔ Ocean engineering and new energy industries
🏅

Exhibition & Quality Control

Exhibition 1
Exhibition 2
Exhibition 3
Certificates
⭐

Why Choose Our Solutions?

5 Decades of Expertise
Long history in pump manufacturing since 1977 ensures rich experience and professional reliability.
Modernized Workshops
100,000m² modernized facilities enabling efficient and strict QA/QC procedures.
20+ Patents
Proven R&D ability and innovative designs for complex industrial requirements.
Packaging
❓

Frequently Asked Questions

What standards do these petrochemical pumps follow?
All HZA and HZE series pumps are designed and manufactured in strict accordance with the API 610 standard for centrifugal pumps in the petroleum and gas industries.
What is the temperature and pressure range for these pumps?
The pumps can handle temperatures ranging from -80°C up to 450°C, with design pressures reaching up to 11MPa depending on the specific model and configuration.
Are different impeller types available?
Yes, we offer both closed impeller (HZA/HZE) and open impeller (HZAO/HZEO) configurations to meet different medium requirements, including liquids with small particles.
What kind of shaft sealing system is used?
The sealing systems are designed according to API 682, providing various flushing and cooling schemes to ensure safe operation in hazardous or complex environments.
What is the typical lead time and production capacity?
We have an annual output capacity of approximately 20,000 units. With integrated casting and machining workshops, we offer controlled quality and short lead times for complete machines.
What is the warranty period for your pumps?
The standard warranty is 12 months from commissioning or 18 months after shipment, whichever comes first.
