Medical Endoscope Camera System with Waterproof Camera Head

1 / 4

Medical Endoscope Camera System with Waterproof Camera Head

Customized:	Customized
Certification:	CE, ISO13485
Scale:	Large

Send Inquiry

Product Description

Basic Specifications

Model NO.

NCM-CP16

Camera Sensor

1/1.8'' Sony Signal CMOS

LED Light Source

80W

Monitor

15.6 Inches

Resolution

1080*1920p

Output

HDMI, DVI, SDI, CVBS, USB

Package

Aluminium Alloy/Carton Box

Origin

China

Portable Full HD 1080P Endoscopy Camera System

Clinical Applications:

Laparoscopy Arthroscopy E.N.T. Endoscopy Fiberscopy Veterinary Uroscopy Spine Laryngoscopy Cystoscopy Dermatoscopy

Technical Specifications
Monitor Size	15.6 inch Medical Class
Output Video	16:9 1920X1080P 50/60fps
Effective Pixels	≥ 2 Mega Pixels
Scanning System	Progressive Scanning
Image Settings	AWB, Freeze, Zoom, Brightness, Color adjustment, etc.
Light System	80W American Luminus LED, 2,000,000 Lux
Color Temp / CRI	5700-6500K / >90
Lamp Life	60,000 hours
Camera Head	Waterproof IPX67, Autoclave support, 200g
Processor Outputs	HDMI + DVI + SDI + CVBS + USB

Key Features

Customizable Controls: Key buttons on the camera head can be customized per user's preference.
Multimedia Integration: Capture pictures & record video with direct playback on the camera.
USB Support: Seamlessly supports video display and storage via USB.
Precision Operation: Mouse control for easy navigation and direct file renaming on the system.
Comparative Diagnosis: Four-state display mode for convenient comparison of lesion status.
Versatile OEM/ODM: Support for customized appearance, functions, ports, and keypad positions.

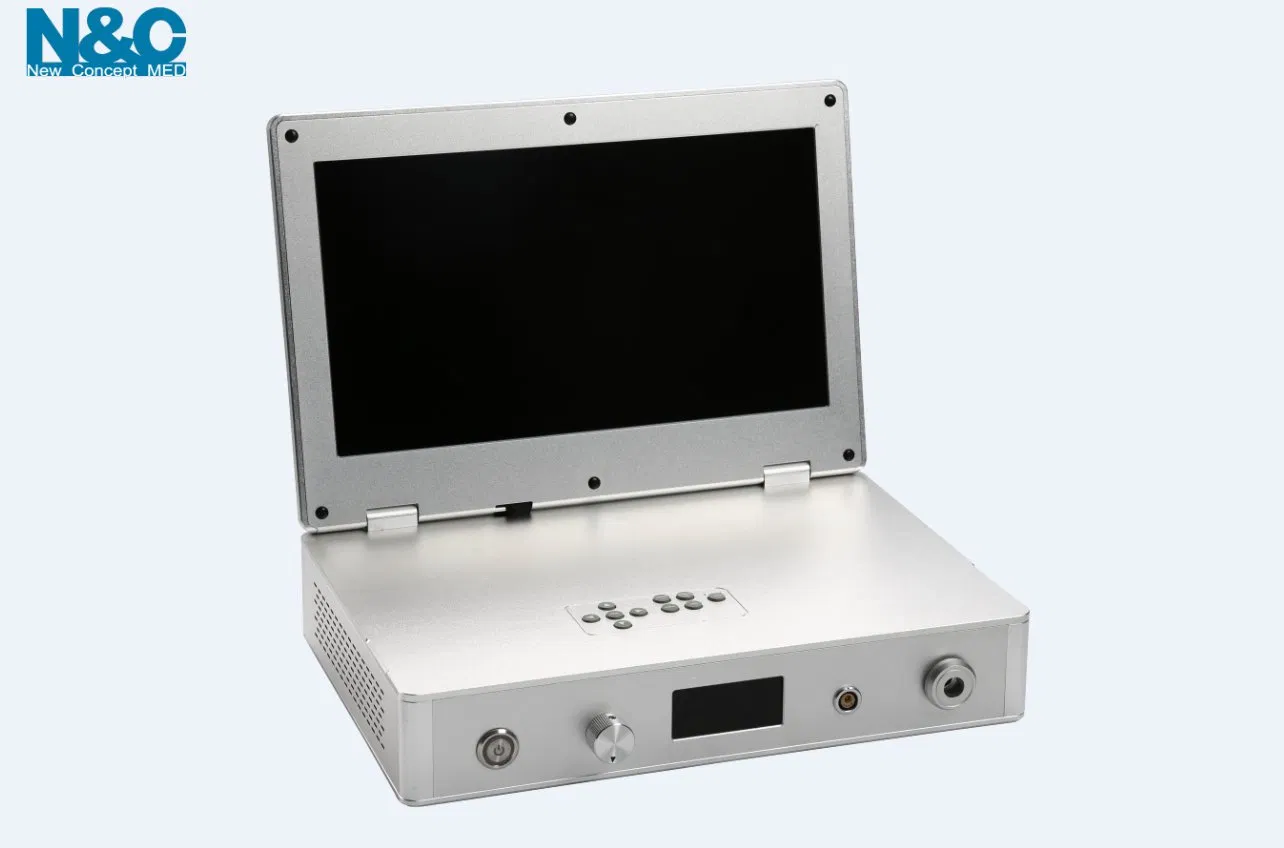

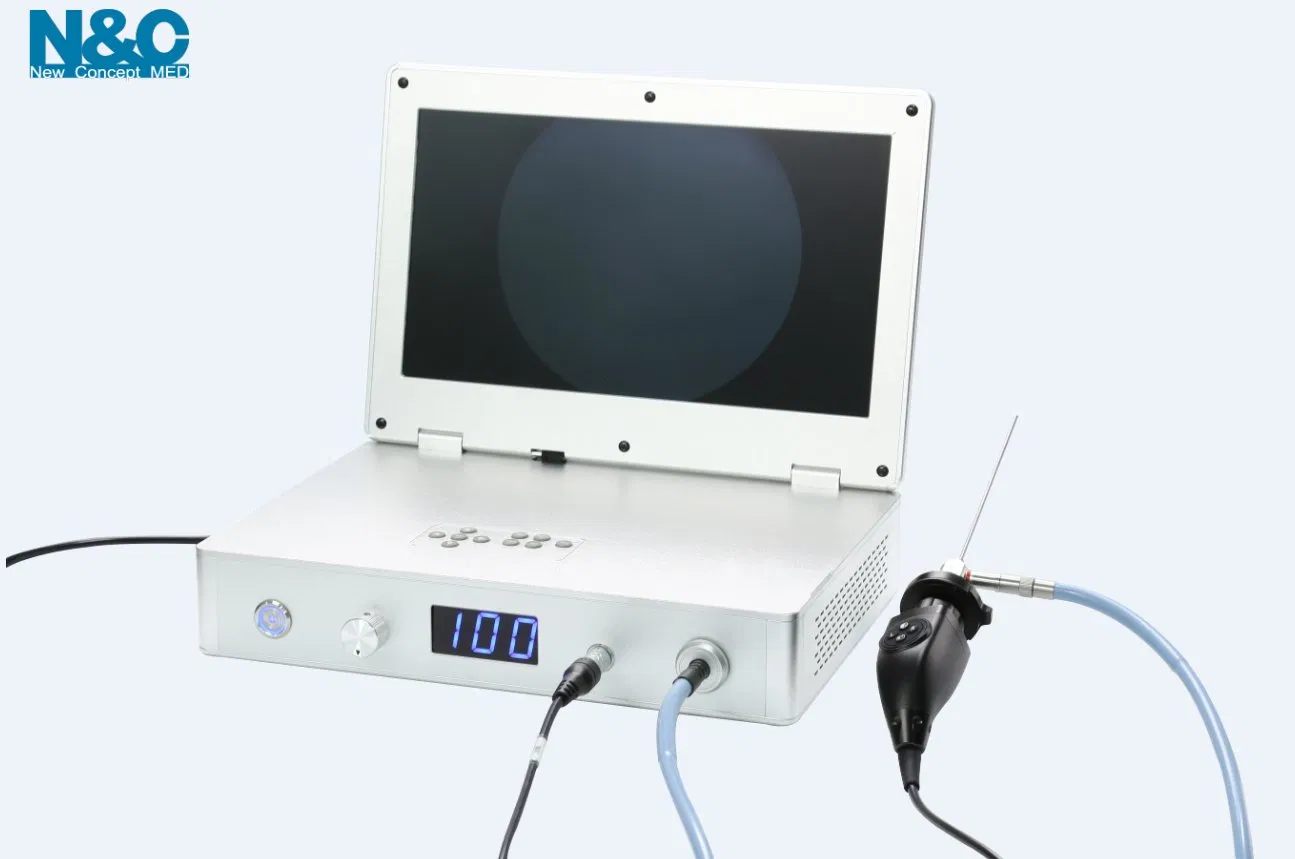

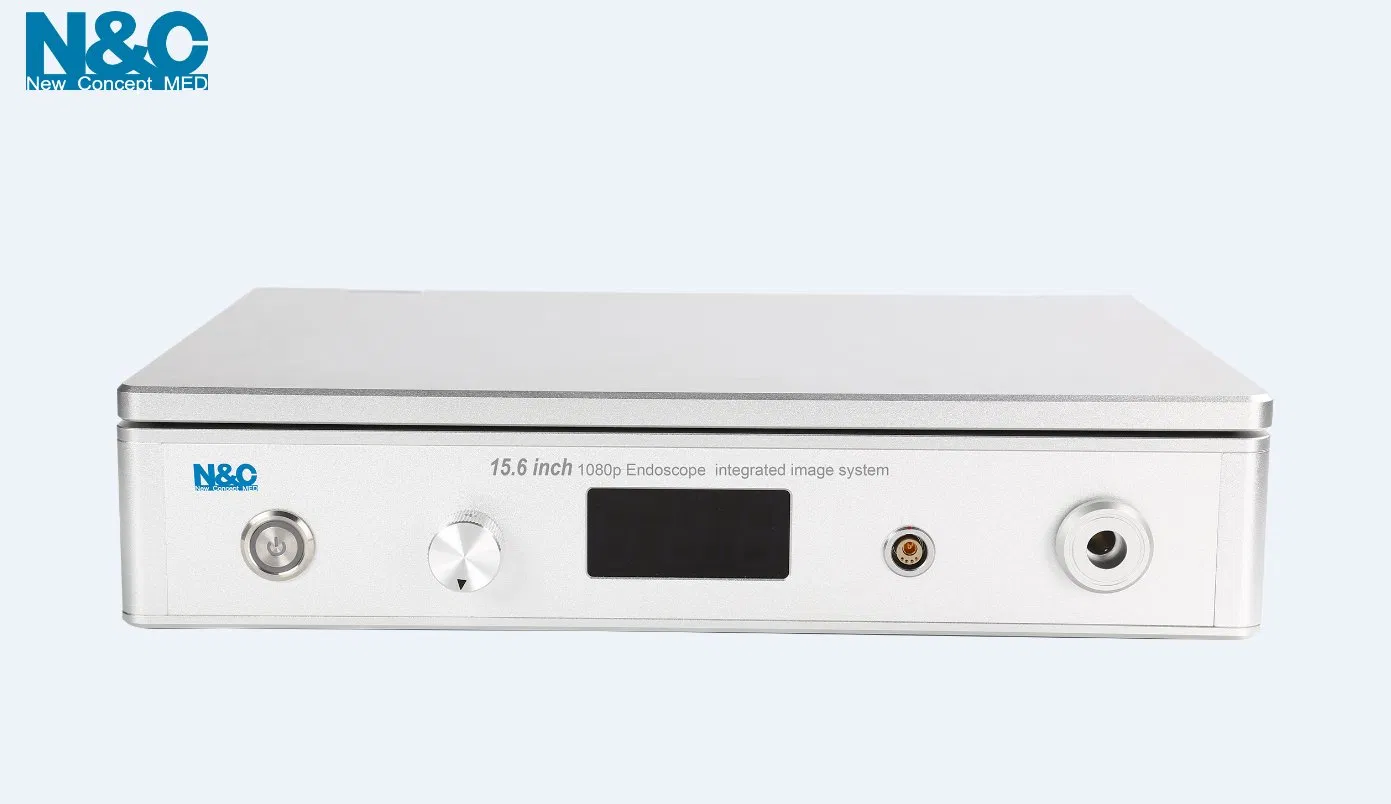

Medical Endoscope Camera System - Front View

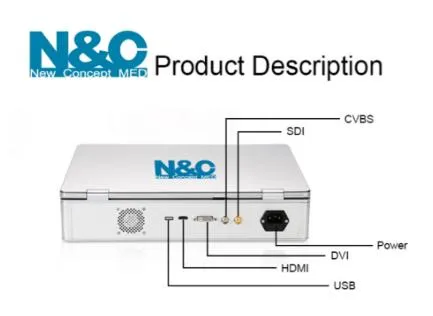

Medical Endoscope Camera System - Interface

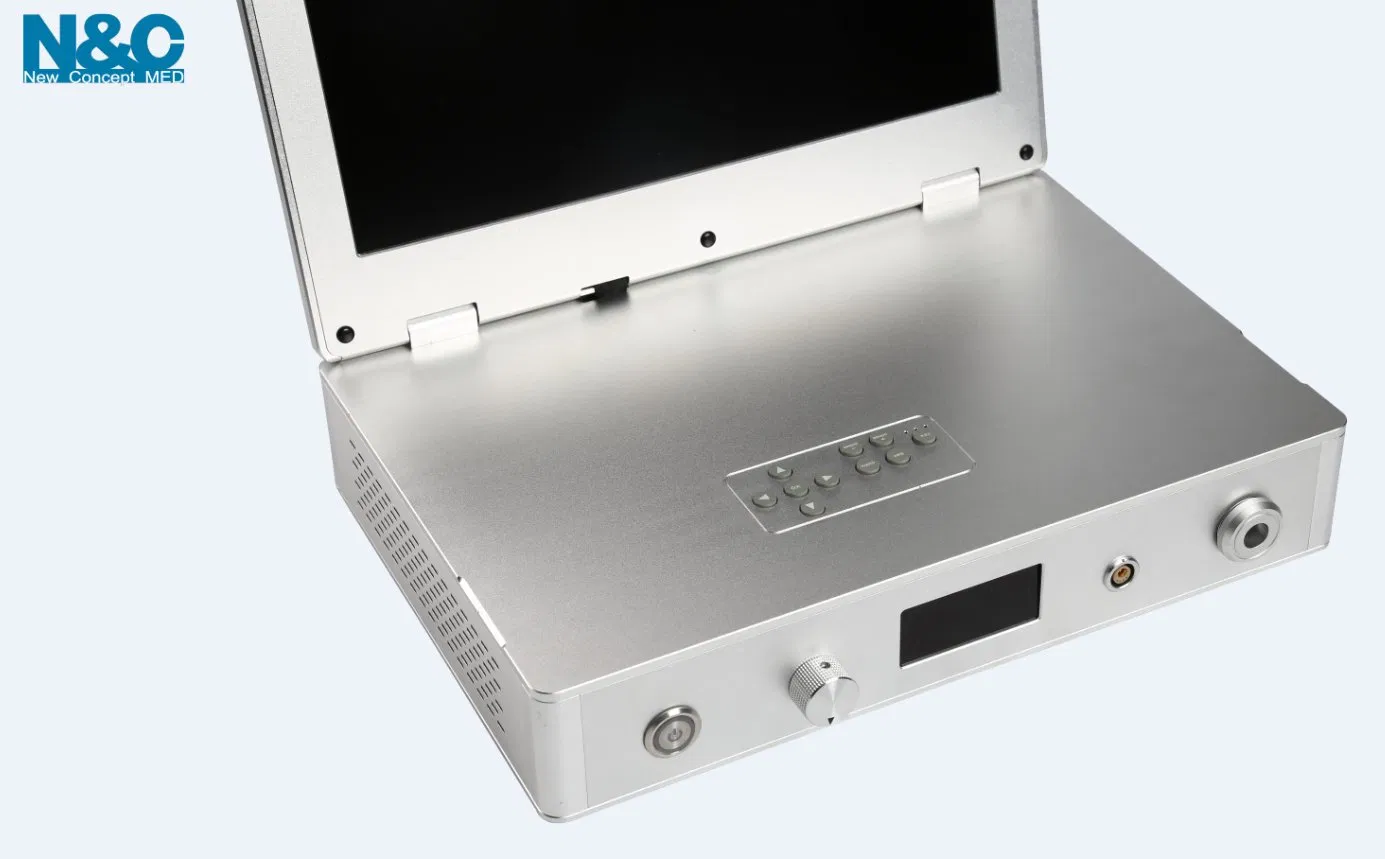

Medical Endoscope Camera System - Detail

Frequently Asked Questions

Q1: What is the resolution of this endoscopy system? A: The system provides Full HD 1080P (1920x1080) resolution at 50/60fps for crystal clear medical imaging.

Q2: Is the camera head waterproof? A: Yes, the camera head is rated IPX67 waterproof and is designed to withstand autoclave sterilization.

Q3: Can I record surgery videos directly? A: Absolutely. The system supports capturing high-quality images and recording MP4 videos directly to a USB device.

Q4: What light source does the system use? A: It features a powerful 80W American Luminus LED light source with an illumination of 2,000,000 Lux and a 60,000-hour lifespan.

Q5: What are the video output options? A: The processor provides multiple output interfaces including HDMI, DVI, SDI, CVBS, and USB to ensure compatibility with various medical monitors.

Q6: Is mouse control supported? A: Yes, you can use a mouse to operate the system, making it easier to manage files and adjust settings directly on the camera interface.

Medical Endoscope Camera System with Waterproof Camera Head

Product Description

Basic Specifications

Portable Full HD 1080P Endoscopy Camera System

Key Features

Frequently Asked Questions
