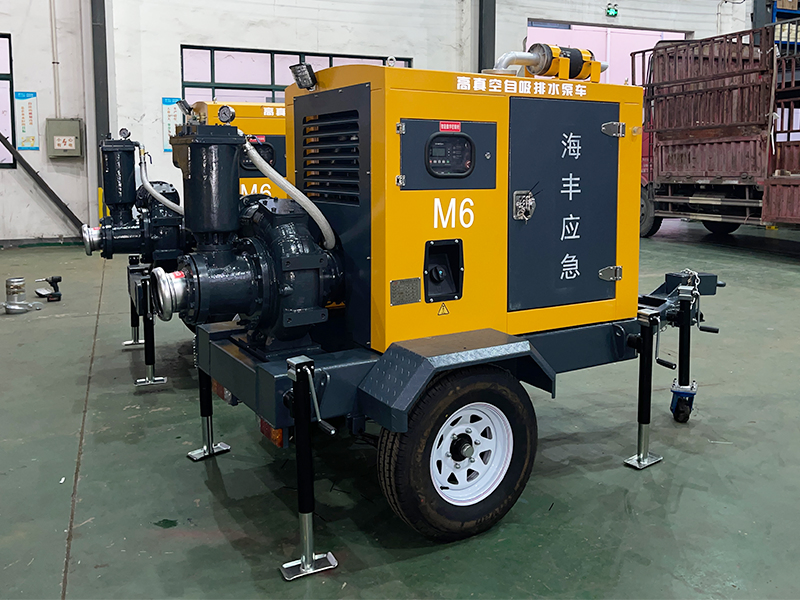

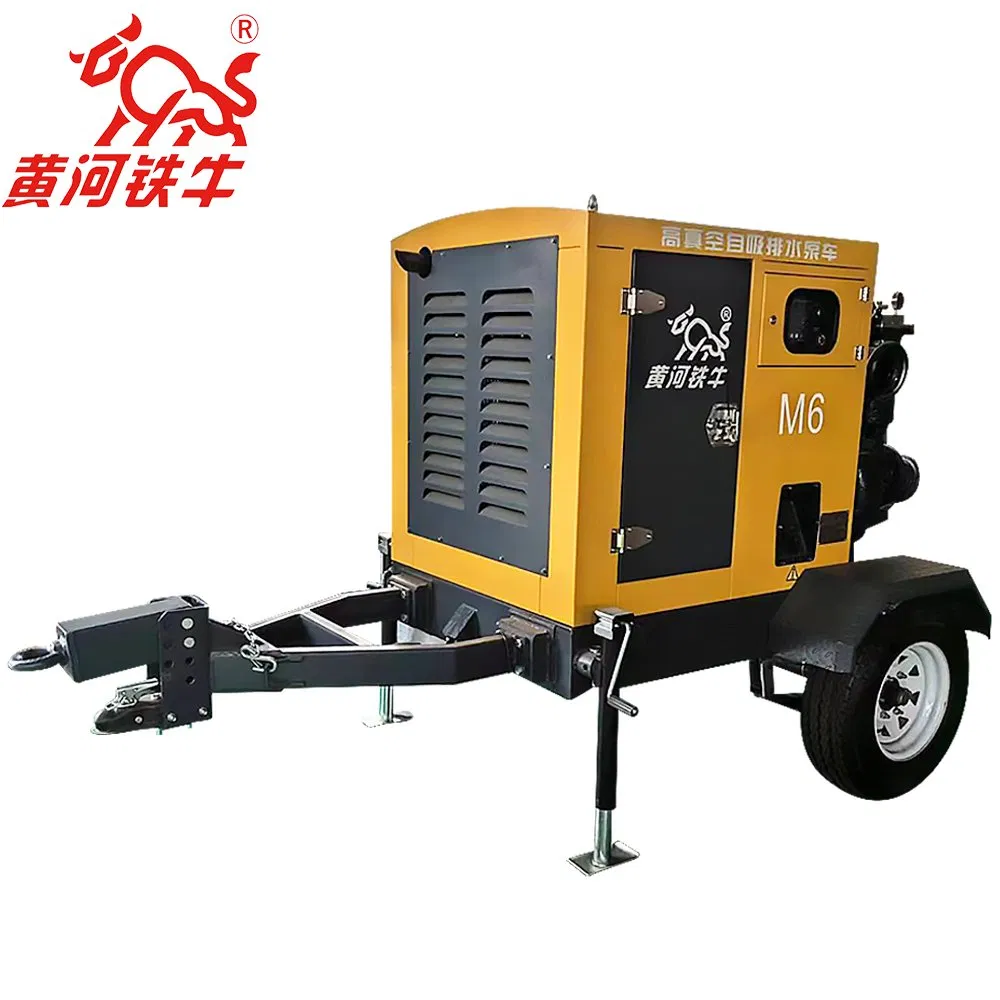

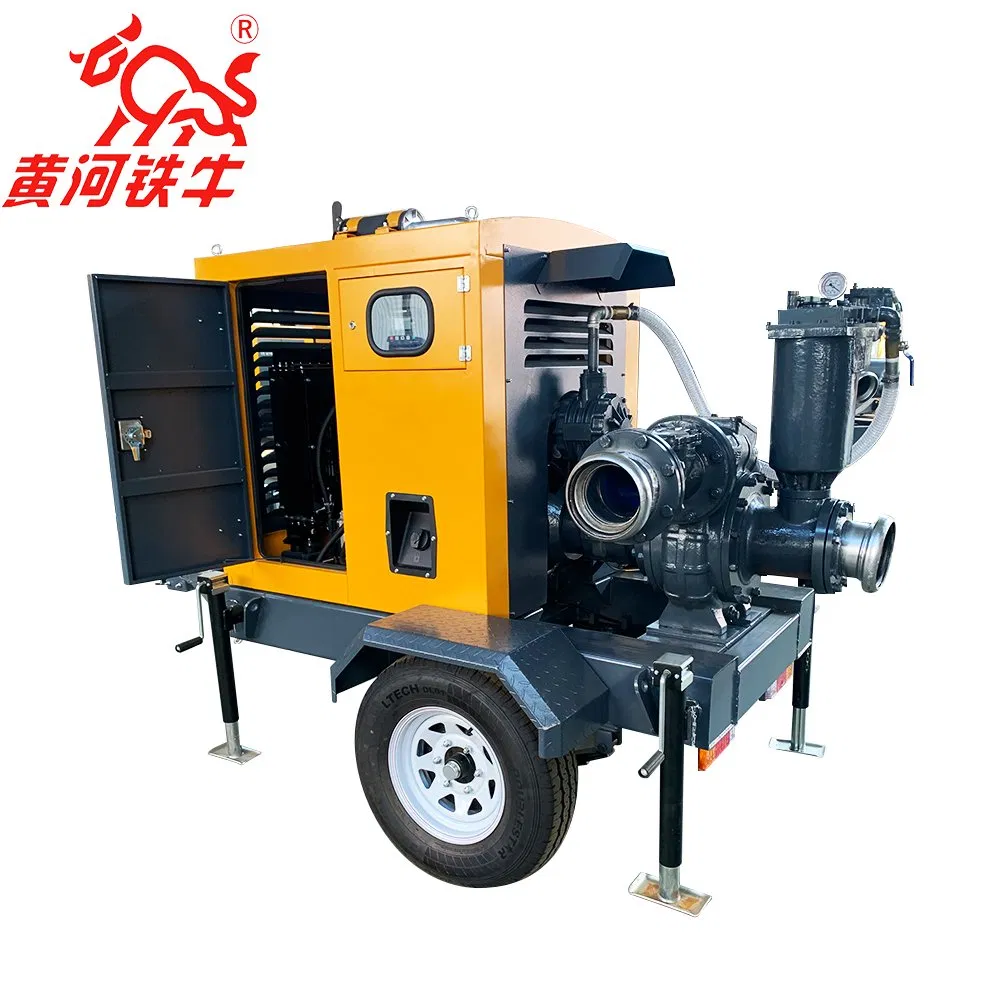

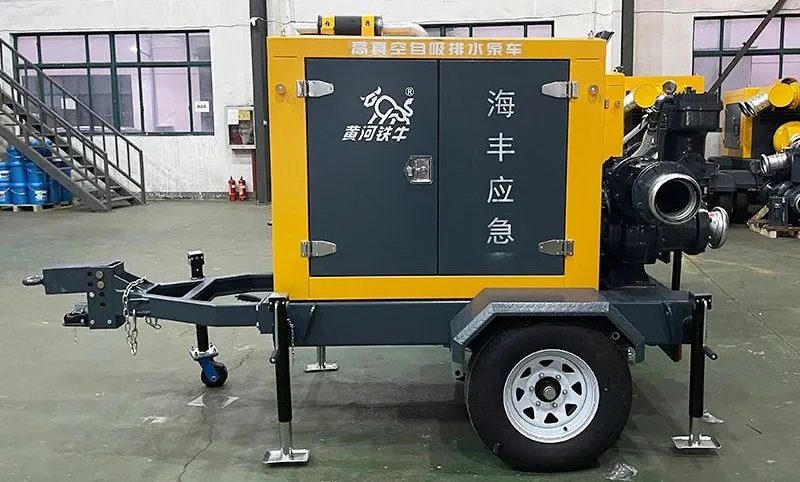

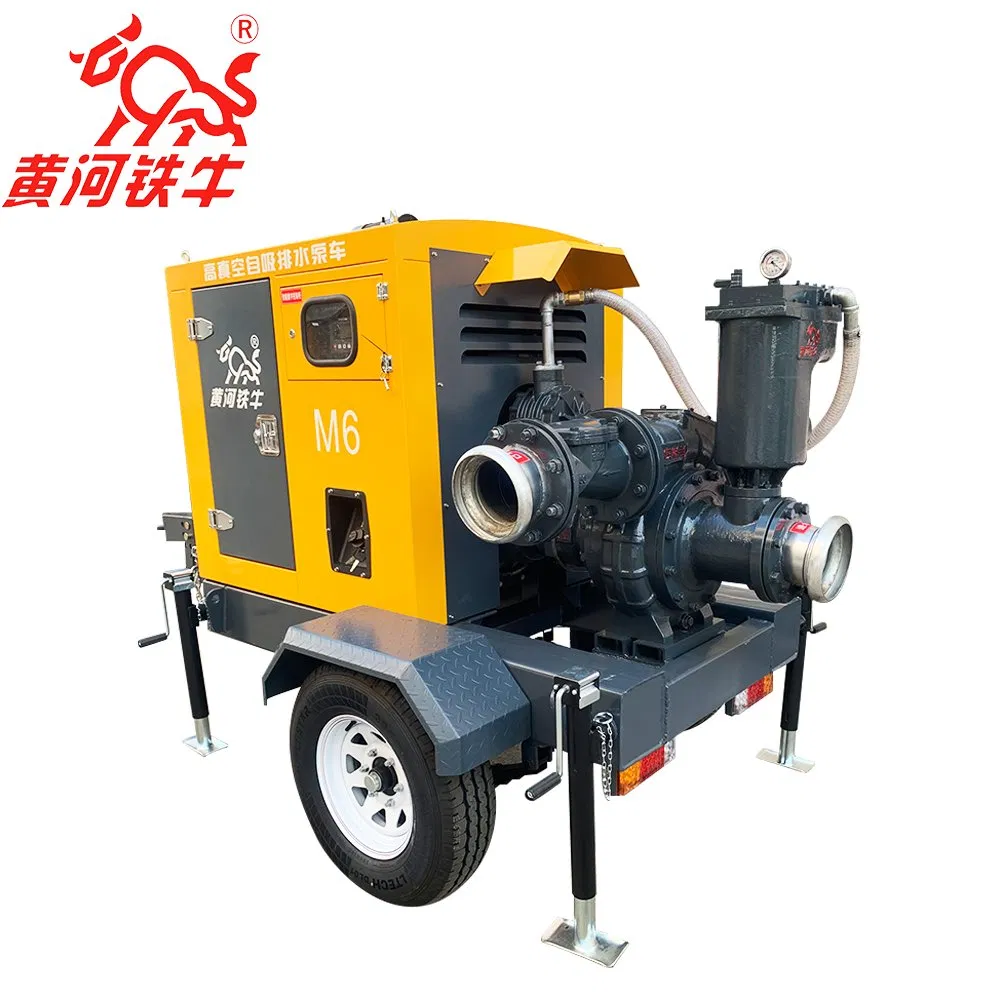

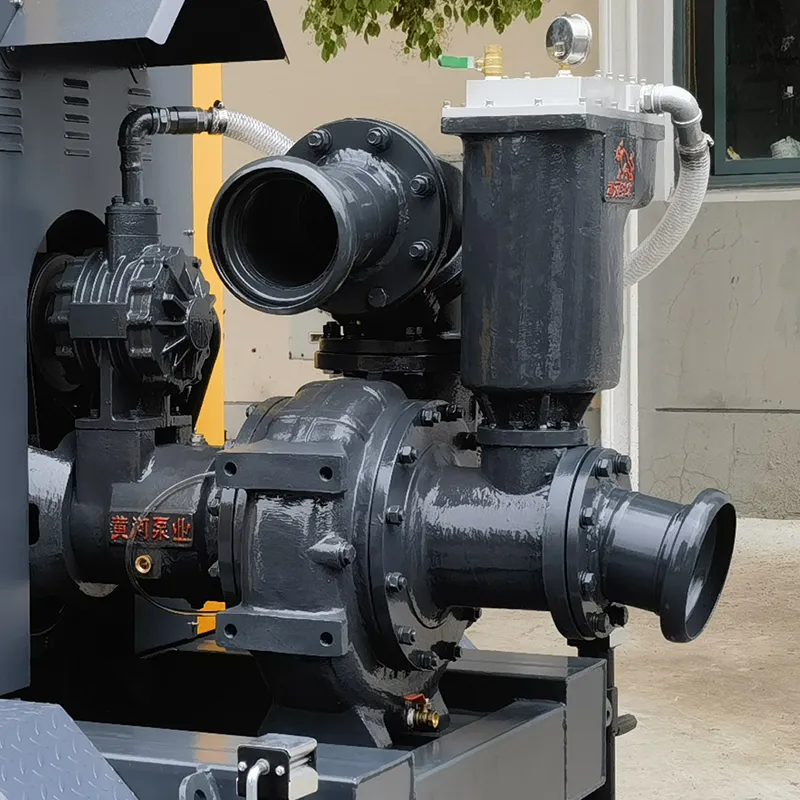

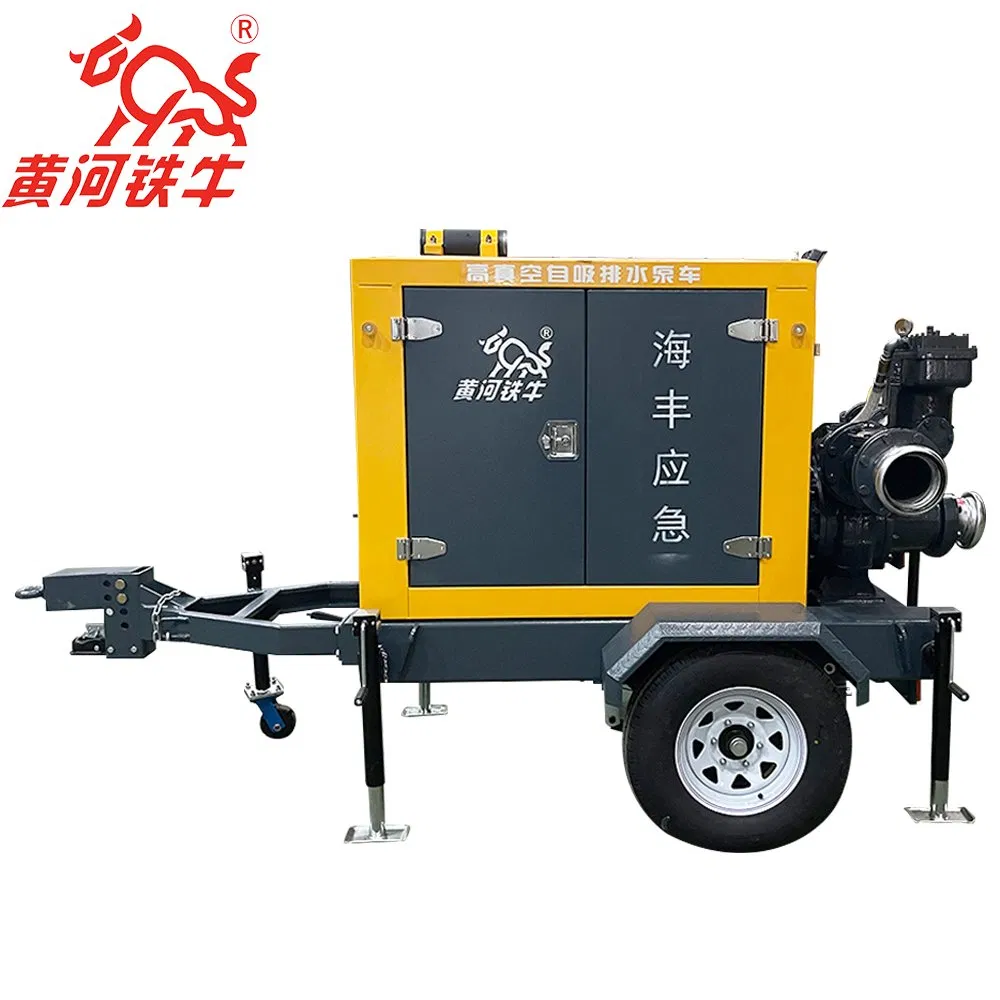

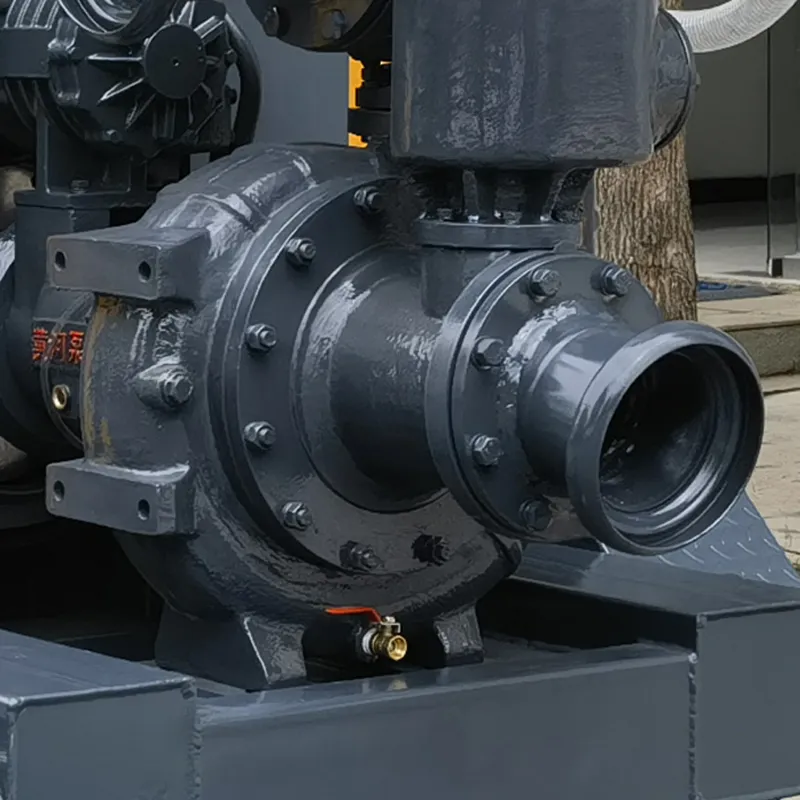

The high-vacuum assisted self-priming pump is a new design. We have solved various challenges of vacuum systems to ensure performance that competes with world-class brands. Our 6-inch and 8-inch models are designed for medium flow rate applications, with a suction lift of up to 9m and flow rates ranging from 300 to 700 cubic meters per hour. The machine is exceptionally user-friendly, allowing operators to master it within 5 minutes.
| Model | Flow (m³/h) | Lift (m) | Suction (m) | Speed (RPM) | Power (kw) |
|---|---|---|---|---|---|
| M6-20 | 160 | 20 | 9 | 2900 | 15 |
| M6-32 | 160 | 32 | 9 | 2900 | 22 |
| M6-20 | 200 | 20 | 9 | 1450 | 18.5 |
| M6-32 | 200 | 32 | 9 | 1450 | 30 |
| M6-50 | 200 | 50 | 9 | 1450 | 45 |
| M6-44 | 187 | 44 | 9 | 1450 | 37 |
| M6-80 | 200 | 80 | 9 | 1450 | 90 |
| M6-125 | 200 | 125 | 9 | 2900 | 110 |
| M6-180 | 200 | 180 | 9 | 2900 | 250 |
