Horizontal Resolution
1920*1080
Certification
CE, FCC, CCC, RoHS, EMI/EMC
Feature
Waterproof, HD, Mini Size

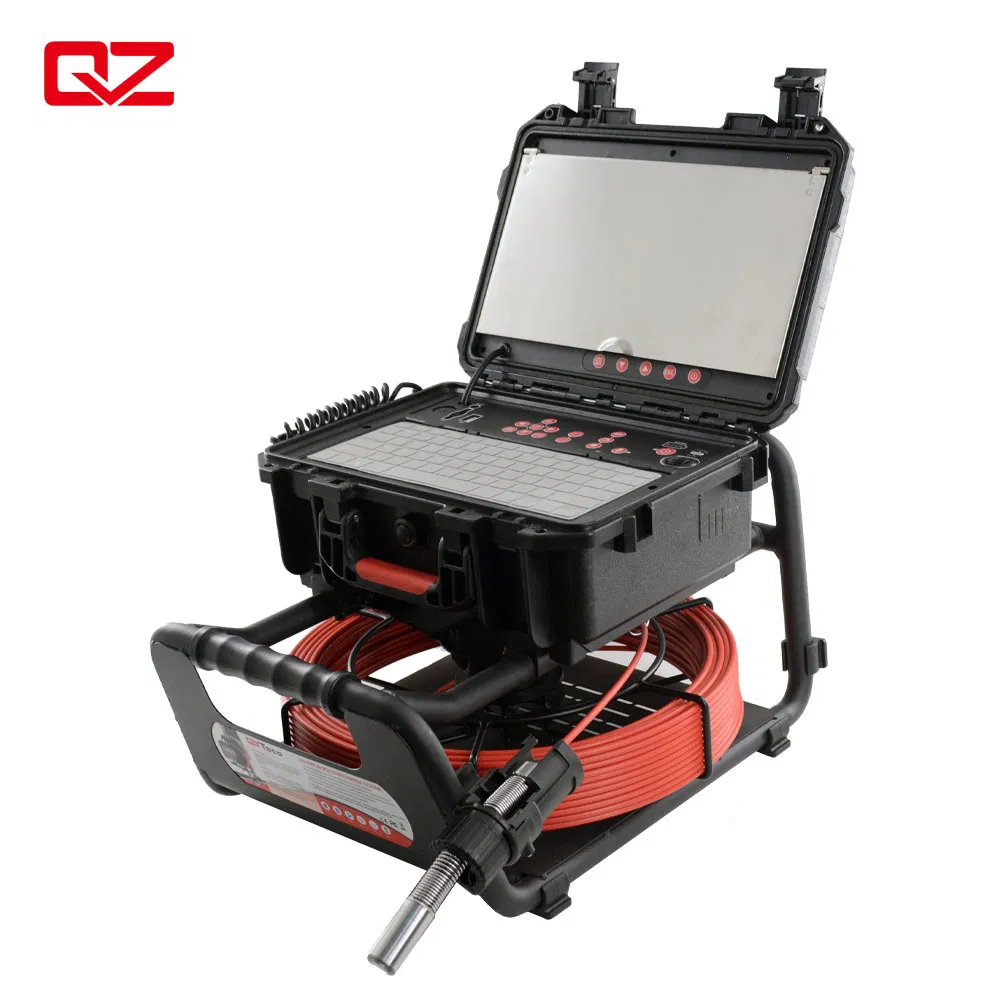

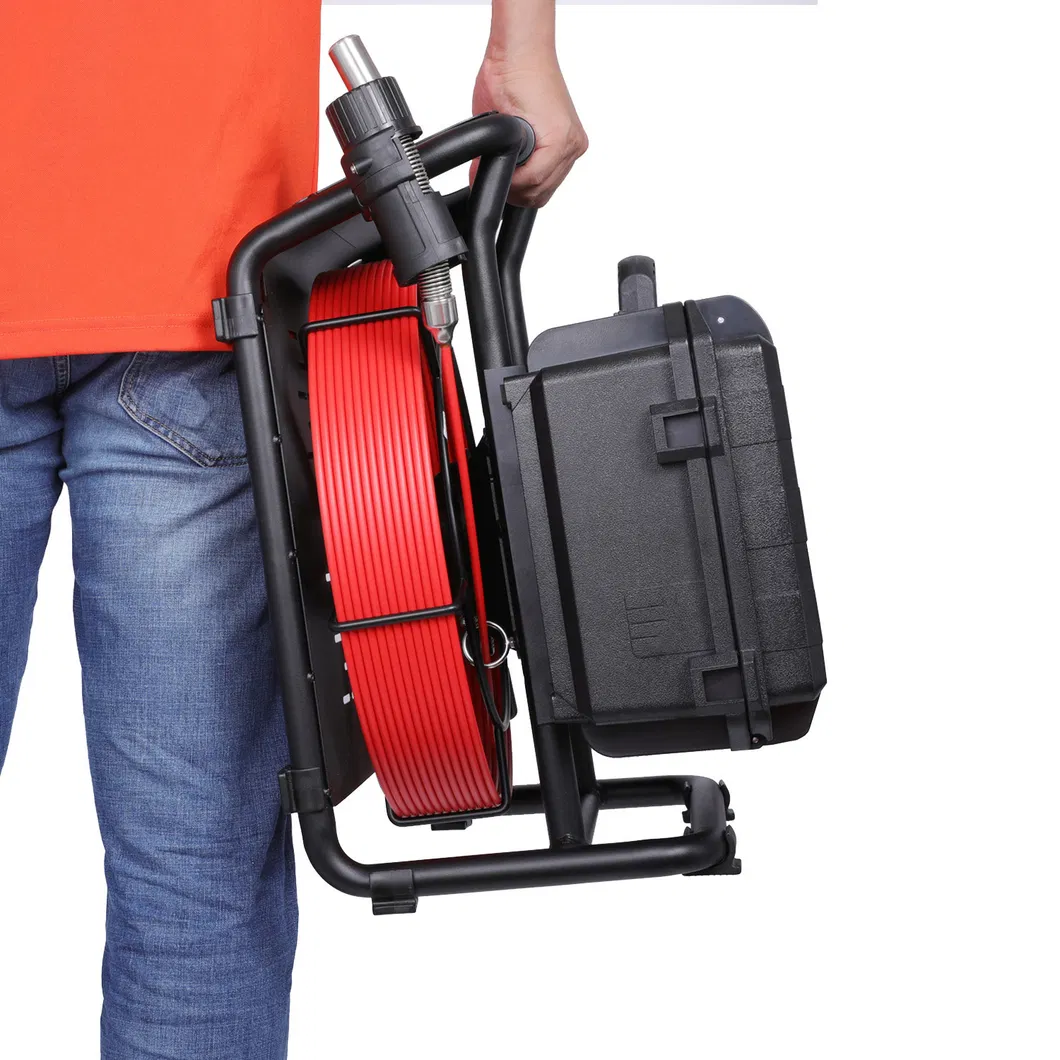

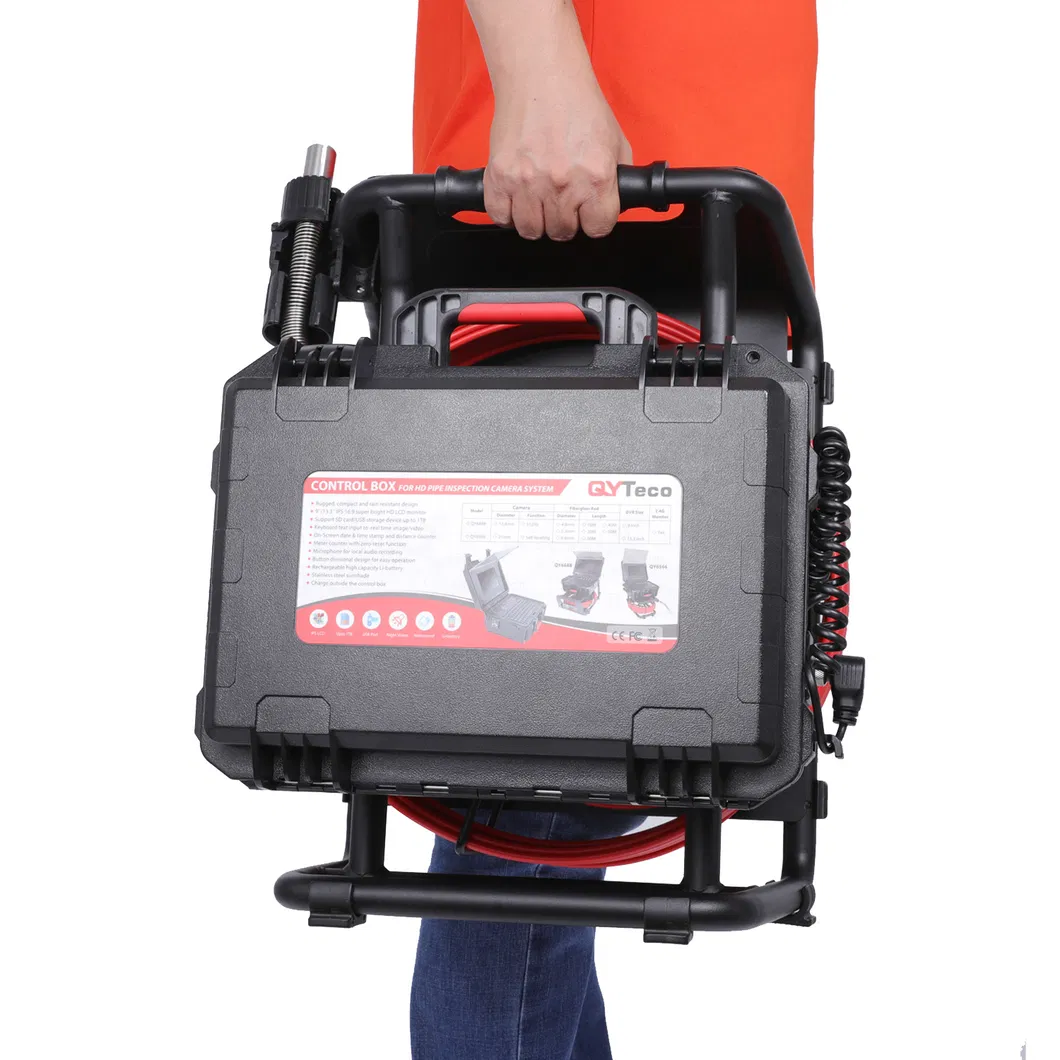

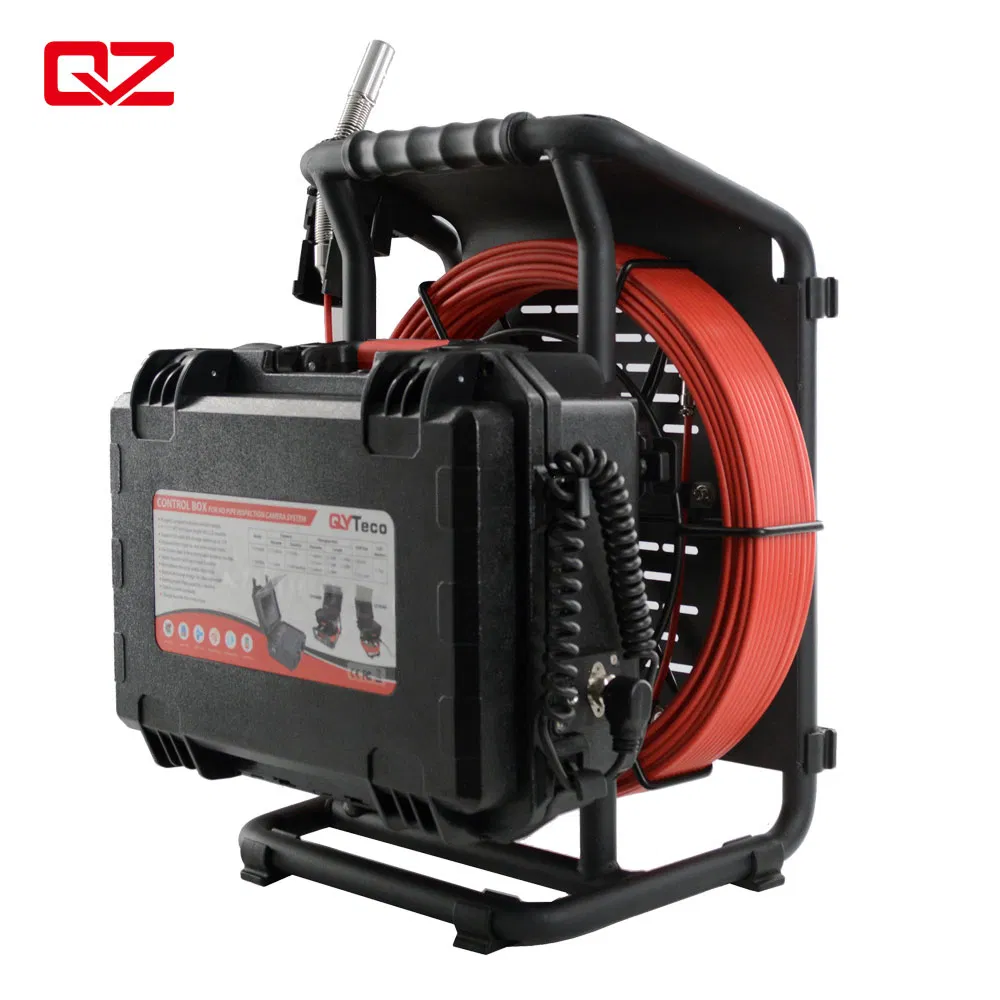

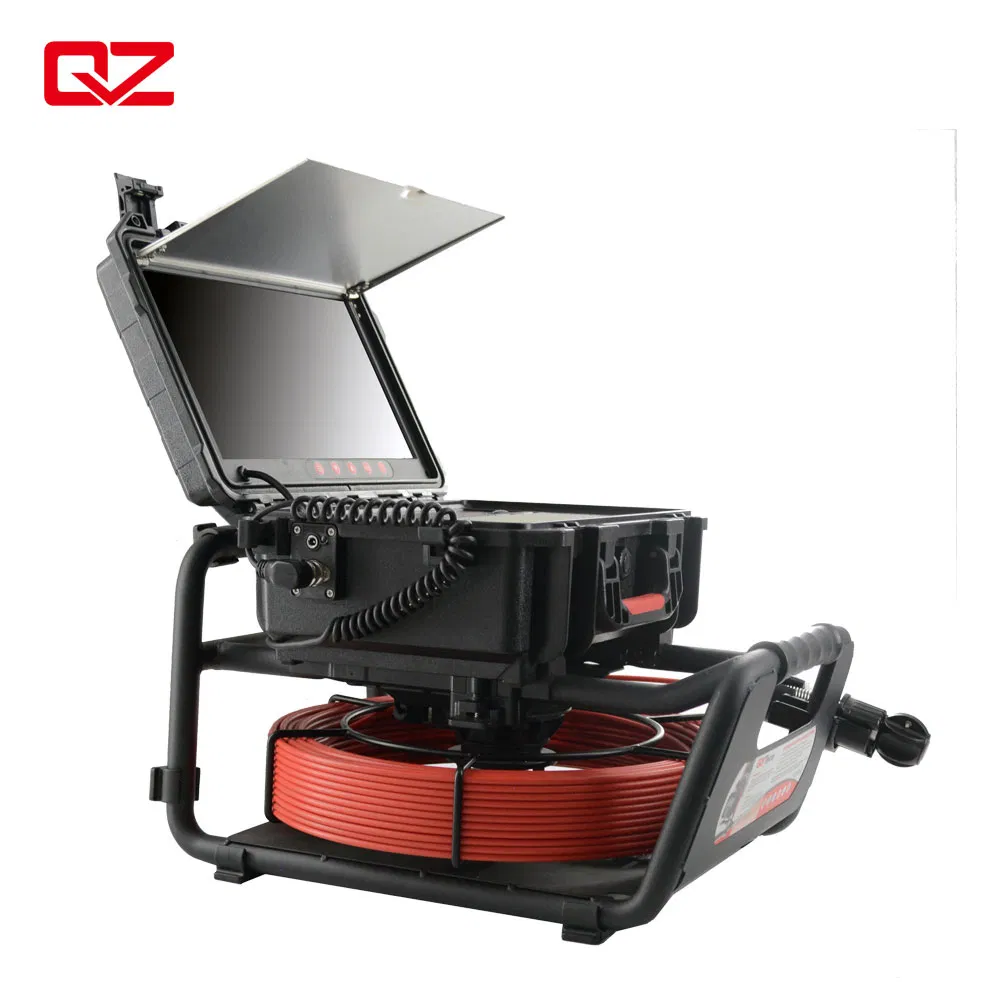

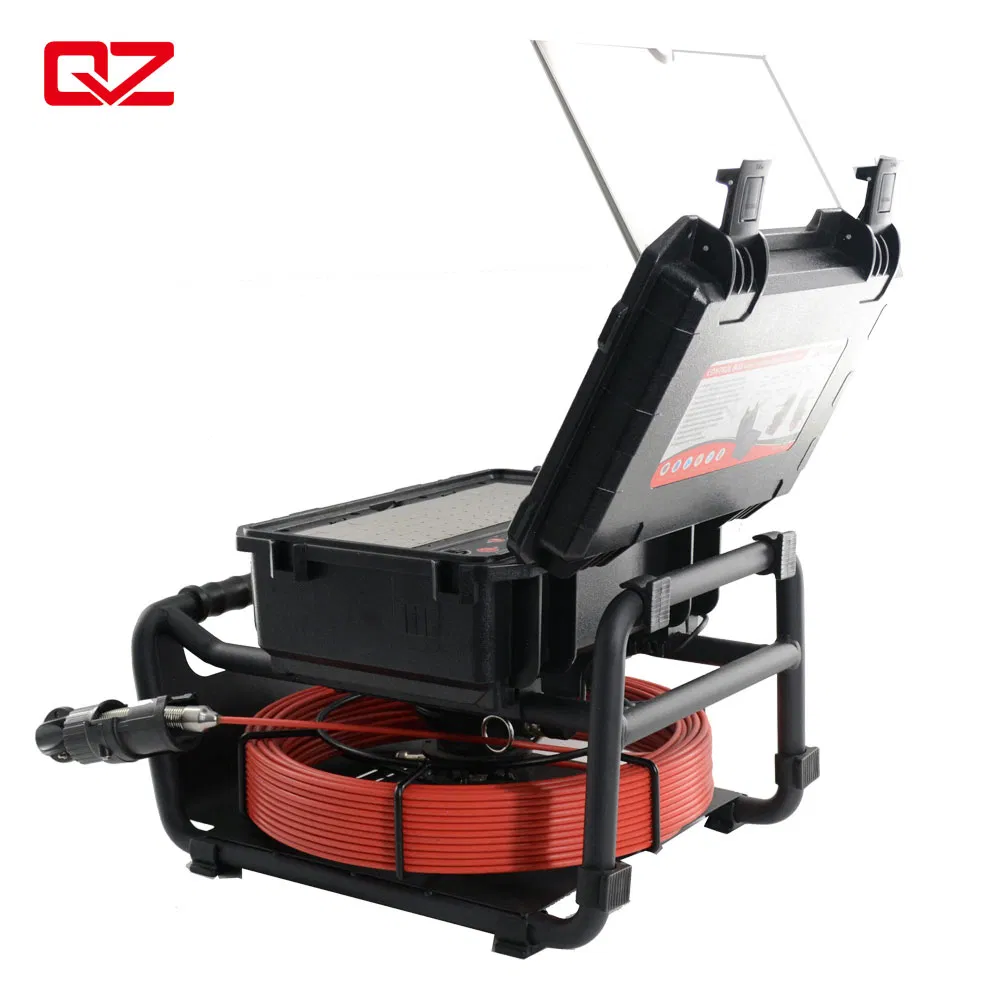

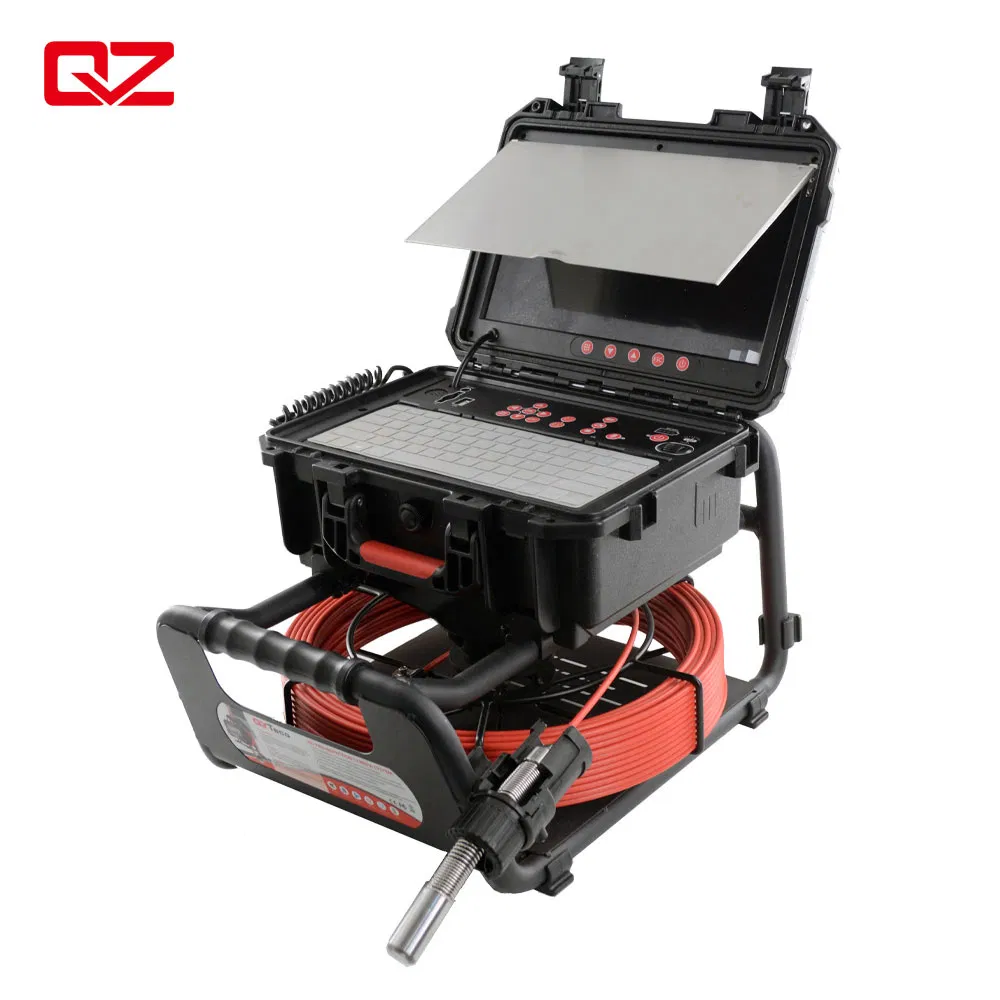

1080p pipe inspection camera with 20m cable and 120 degree wide angle
This pipe inspection camera system is designed as a HD real-time inspection tool to unveil internal structures with highlight LED illumination. It is specifically designed for pipelines, sewers, drains, ducts, chimneys, plumbing, swimming pools, and central air conditioning ventilation systems.
★Inspect lines from 2" to 6"

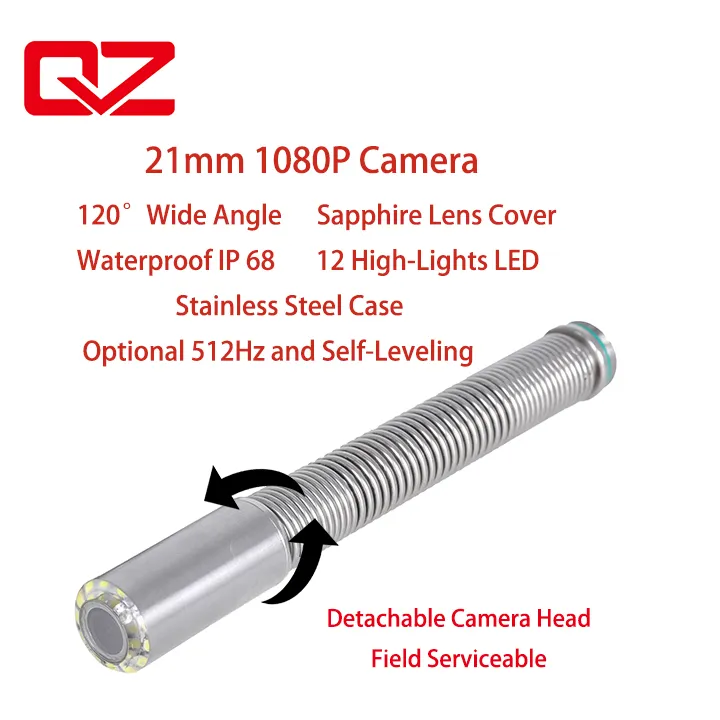

★21mm 1080P detachable waterproof camera head
★13.3 inch color monitor with 1080P resolution
★Digital recording via SD Card/USB storage
★5.3mm durable push rod (20M length)
★Built-in battery or wall charger power
| Camera Head Specification |
|---|
| Camera Size | φ21mm x 38mm |
| Sensor | 1/3" CMOS |
| Resolution | 720P (1280*720) |
| View Angle | 120° |
| Lighting | 12pcs High-intensity White LEDs |
| Control Box & DVR |
|---|
| Screen Size | 13.3 inch IPS Screen |
| Video Compression | H.264 |
| Battery | 9000mAh Li-ion (4 hours work time) |
| Storage | Supports up to 1TB SD/USB |
| Cable Reel |
|---|
| Cable Diameter | 5.3mm |
| Cable Length | 20 Meters |
| Counter | Meter & Feet Switching |

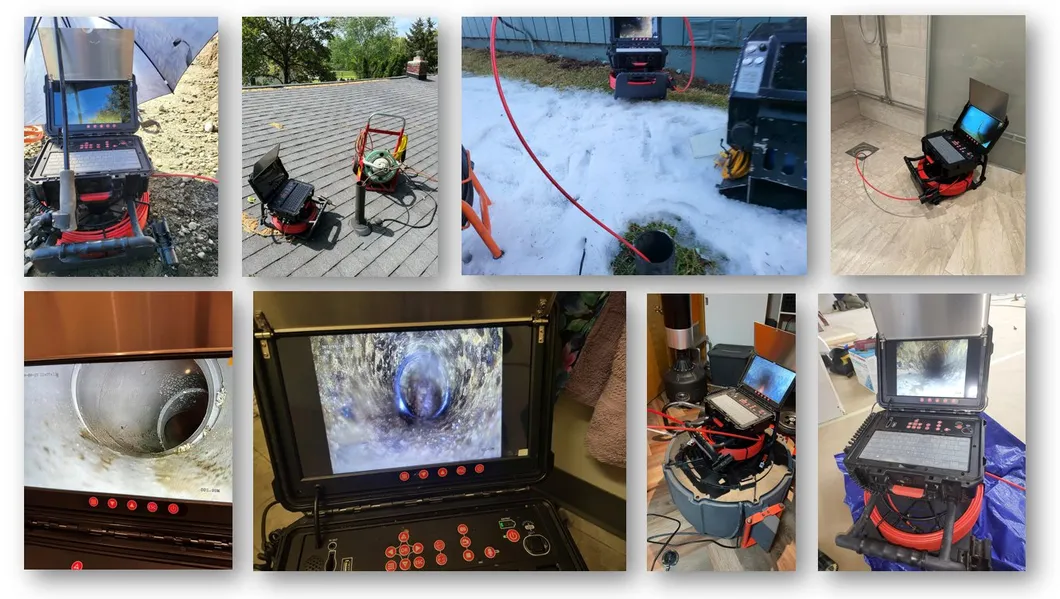

Widely used in NDT (Non-destructive Testing) and mechanical diagnosis.
- Sewer drain duct pipe inspection
- Cavity wall tie, rot, and property inspection
- Daily inspection of car engines, cylinders, and valves
- Chimney, swimming pool, and underground pipe inspection
Frequently Asked Questions
How long will it take for the shipment?
Delivery time is about 3-5 days after receiving payment, and shipping time is approximately 4-6 days. In total, it normally takes about two weeks.
What are the accepted payment terms?
We accept T/T and Western Union (Western Union is only for payments less than 2000 USD).
Do you offer wholesale pricing?
Yes, we supply products at producer prices. If you order in a large quantity, we can provide a further discount.
Is the product quality guaranteed?
Our products are managed by experienced R&D teams and built with premium raw materials to ensure high performance and innovation.
What is the warranty period?
Our products are warranted for one full year (checking and repairing services) from the date of purchase, covering non-man-made damage.
Can I get a free sample?
We can provide a sample for testing before a bulk order; however, we do not provide free samples.
