Qyteco 150 Degree View Angle 29mm Industrial Sewer Drain Pipe Endoscope Inspection Ccctv Camera Head

Basic Information

Video Logging

1920*1080

Hard Disk Size

1TB

Sensor

1/3" CMOS

Shell Material

Sapphire

Water Pressure

3 bars

View Angle

150 Degree

Camera Size

29*50mm

Lighting

Built-in 15*LED

Product Description

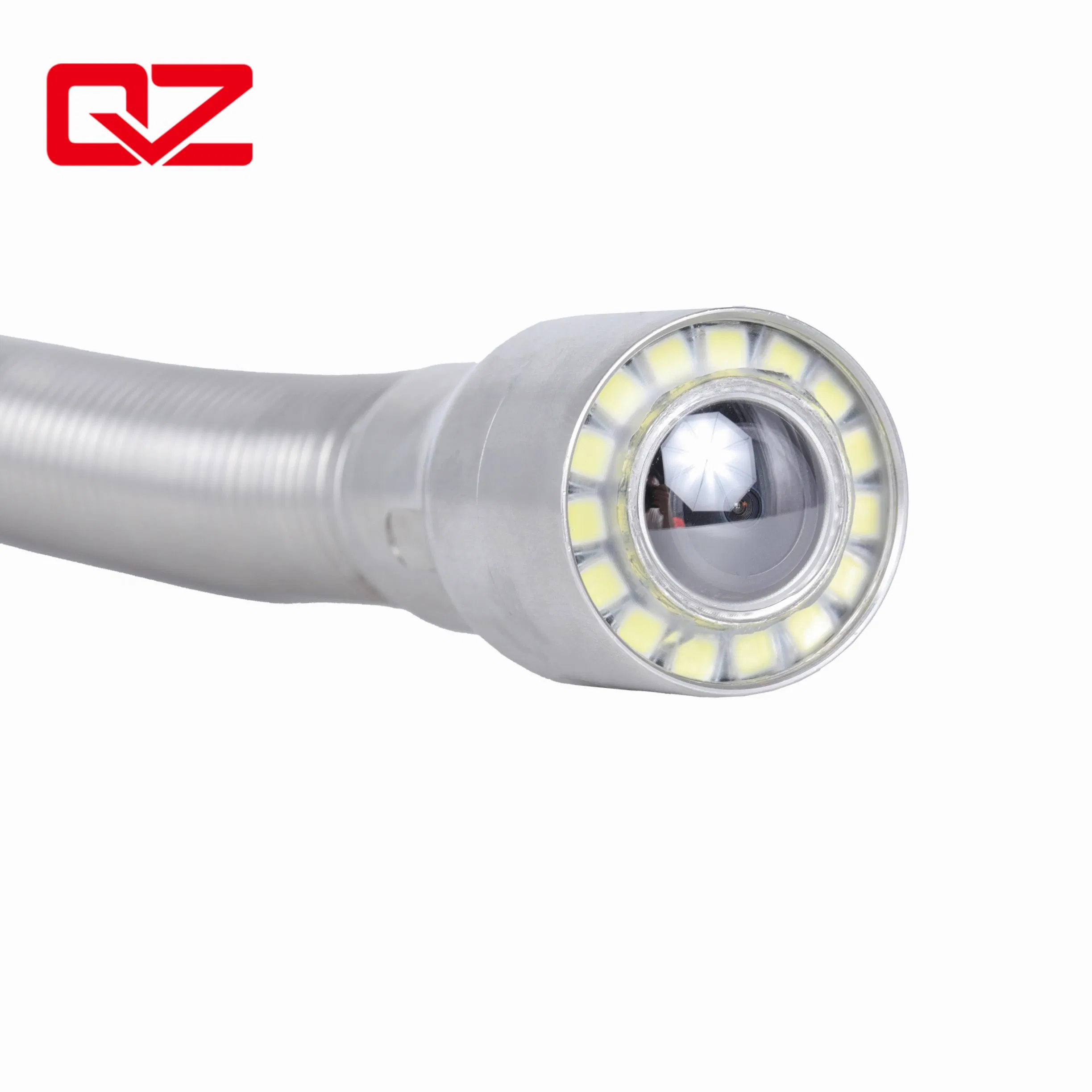

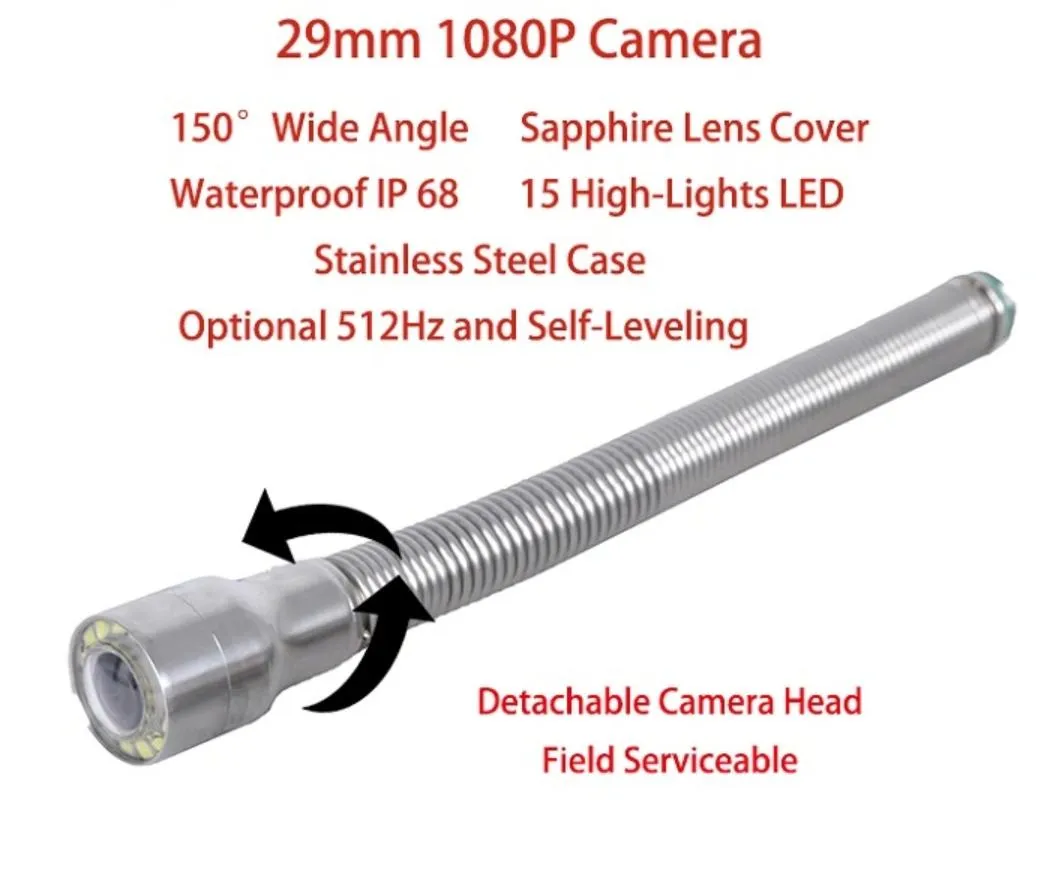

29mm Camera Head with 150 Degree Wide Angle

Industrial Sewer Drain Pipe Inspection Camera

150° Wide Angle
Sapphire Lens Cover
Waterproof IP68
15 High-Lights LED
Stainless Steel Case
Optional 512Hz and Self-Leveling
Detachable Camera Head
Field Serviceable

Product Parameters

General	Operating Temperature	-10~50°C / +14~+122°F
	Power Supply	DC 12V input
	Battery Capacity	9000mAh Li-ion Battery
	Work Time	7 Hours (9inch DVR); 5 Hours (13.3inch DVR)
	Waterproof Rating	IP66 (Whole machine when closed)
	Weight	Approx 9Kg - 13Kg (Depending on cable)
	Storage	Support MAX. 1TB SD Card or USB device
Camera	Resolution	1080P (1920*1080)
	View Angle	150°
	Focus Distance	10mm
	Shell Material	304# Stainless Steel
	Lighting	Built-in 15× LED (White) with Dimmer
	Water Pressure	3 Bars
Cable	Diameter	Φ6.8mm
	Color	Red
	Length Options	10/20/30/40/50 Meters
	Counter	Meter/Footage Counter Standard

Industrial Inspection Applications

• Locating water intrusion source
• Cavity wall inspections (insects/corrosion)
• Electrical & plumbing routing
• HVAC duct systems
• Sewer pipe & plumbing inspections
• Aviation & motor inspections
• Quality assurance & appraisal
• Small engine part inspections

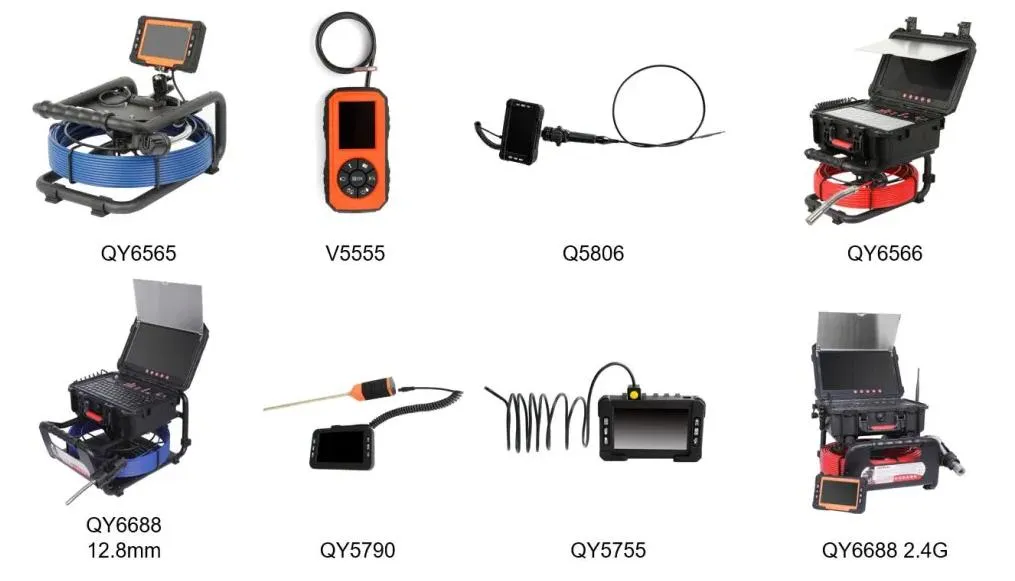

Product Showcase

Frequently Asked Questions

How long does shipping usually take?

Delivery typically takes 3-5 days after receiving payment, with shipping taking an additional 4-6 days. You can generally expect your order within two weeks.

What are the available payment terms?

We accept T/T (Bank Transfer) and Western Union (for payments under 2000 USD). Trade Assurance options are also supported.

Is the product quality guaranteed?

Yes, our products are warranted for one full year from the date of purchase. This covers checking and repairing services for non-man-made damages.

Do you offer OEM or ODM services?

Yes, OEM and ODM services are welcome. Models can be customized according to your specific requirements during mass production.

What is the waterproof rating of the camera?

The camera head is IP68 waterproof and rated for up to 3 bars of pressure. The entire control unit is IP66 rated when the case is properly closed.

Can I record audio with my inspection videos?

Yes, the system supports video recording with local sound/audio and allows for photo capture at 1920x1080 resolution.
