Qyteco Low and High Beams 29mm Outdoor Night Vision Video Digital Industrial Sewer Drain Pipe Endoscope Inspection CCTV Mini Camera Head

1

Basic Specifications

Model NO.

29mm camera head

Video Mode

1920*1080

Hard Disk

1TB Supported

Sensor

1/3" CMOS

Shell Material

Sapphire / Stainless Steel

Water Pressure

3 bars

View Angle

120 Degree

Camera Size

29*50mm

Lighting

12*LED Low Beam & 2*LED High Beam

Origin

China

2

Product Description

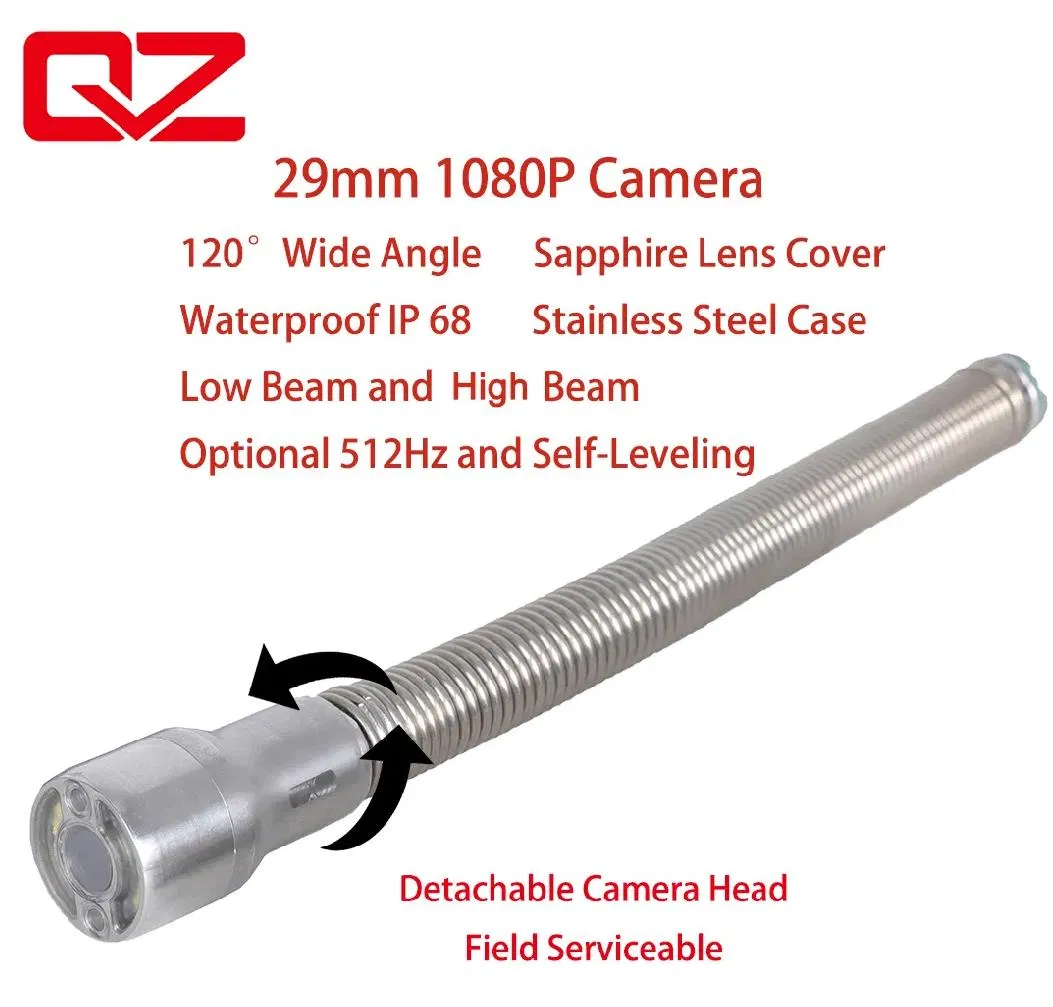

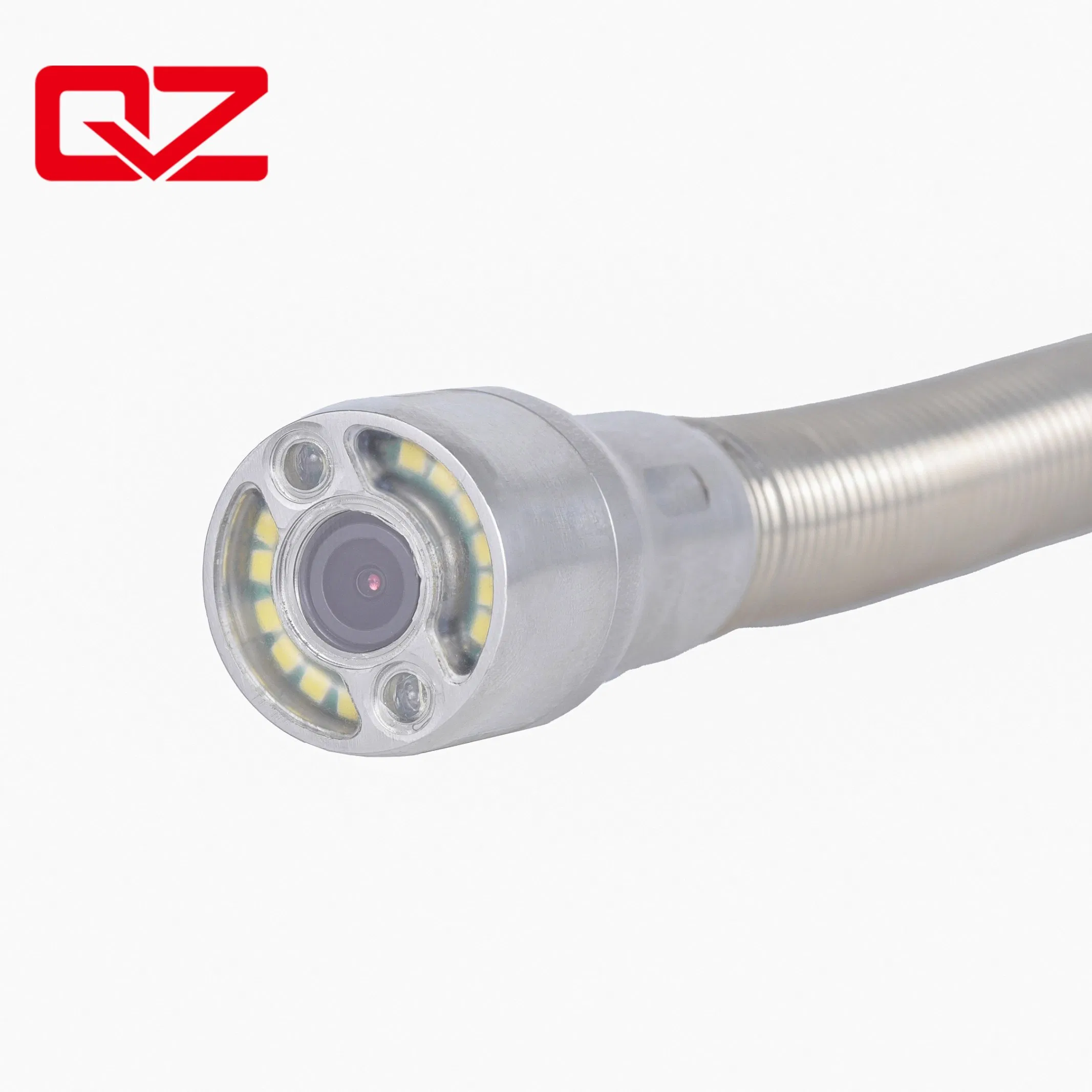

29mm Camera Head with Low Beam and High Beam

120° Wide Angle
Sapphire Lens Cover
Waterproof IP68
12 High-Lights LED
Stainless Steel Case
Optional 512Hz & Self-Leveling
Detachable Camera Head
Field Serviceable

3

Technical Parameters

Category	Parameter	Details
General	Operating Temperature	-10~50°C / +14~+122°F
	Power Supply	DC 12V Input / 9000mAh Li-ion Battery
	Working Time	Approx 5 Hours (13.3inch DVR)
	Waterproof Rating	IP66 (Whole machine when closed)
Camera Head	Resolution	1080P (1920*1080)
	Focus Distance	15cm (Approx)
	Lighting	12 LEDs (Low) & 2 LEDs (High) with Dimmer
	Pressure Rating	3 Bars

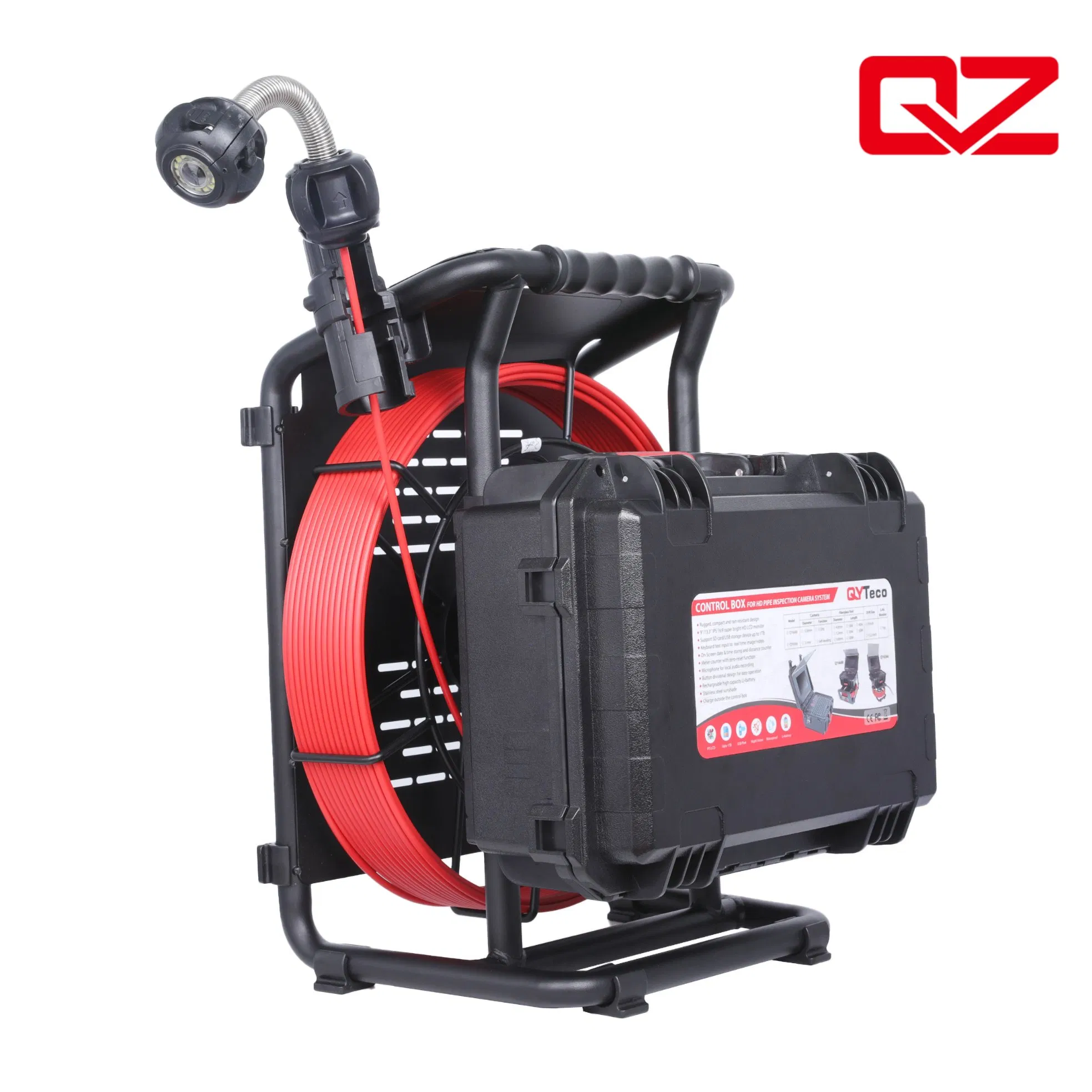

DVR Unit	Screen	13.3 inch IPS High-Definition Color LCD
	Video Encoding	H.264
	Storage	Support Max 1TB SD Card / USB Device
Cable	Diameter/Color	Φ6.8mm / Red
Cable	Available Lengths	20M / 30M / 40M / 50M

4

Industrial Applications

Commonly used in: Locating water intrusion, inspecting cavity walls for corrosion or pests, mold inspection, electrical/plumbing routing, automotive engine checks, HVAC duct systems, sewer pipe inspections, natural gas pipes, and building appraisal applications.

5

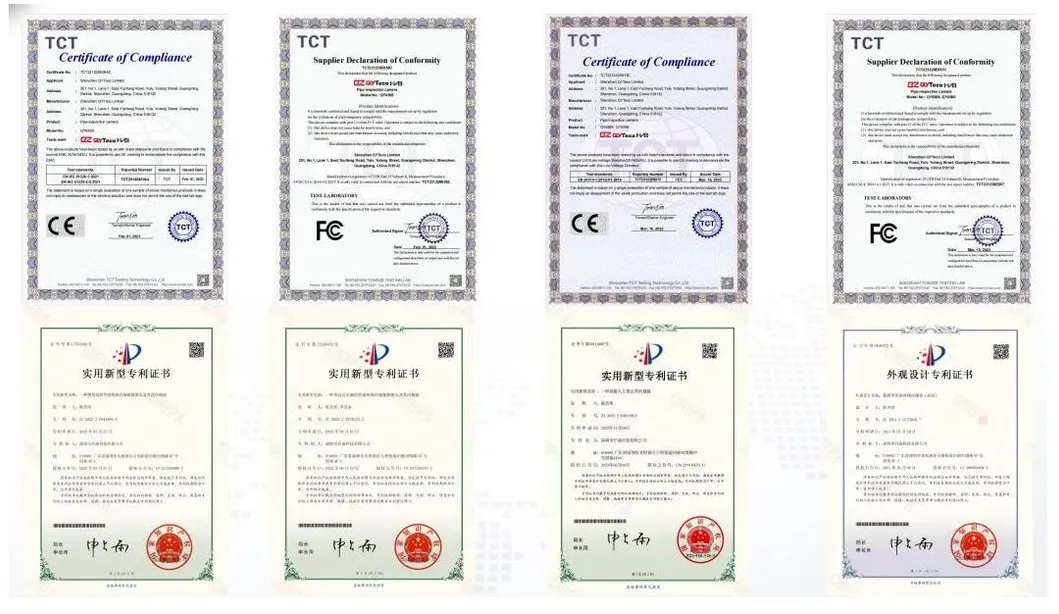

Certifications & Quality

?

Frequently Asked Questions

1. How long does the shipment take after ordering?

Delivery usually takes 3-5 days after payment receipt, with an additional 4-6 days for shipping. In total, it typically takes about two weeks.

2. What are the accepted payment terms?

We accept T/T and Western Union (for payments under 2000 USD). Trade Assurance is also a highly recommended option.

3. Do you offer wholesale pricing or discounts?

Yes, we provide products at producer prices. For large quantity orders, we can offer significant discounts and provide spare parts for future maintenance.

4. How is the product quality guaranteed?

Our R&D teams have decades of experience. We ensure original designs, top-tier raw materials, and rigorous testing. All products are warranted for one full year.

5. Can you provide OEM or ODM services?

Absolutely. OEM/ODM services are welcome, and we can customize models according to your specific requirements and standards.

6. What is the warranty policy for the inspection cameras?

Our products carry a one-year warranty for checking and repairing services from the date of purchase, provided the damage is not caused by man-made factors.

★
