The X5-HT pipeline CCTV Inspection robot is a professional solution designed on an industrial personal computer (IPC) system. By utilizing a laptop instead of traditional bulky controllers, it offers a streamlined workflow. During testing, defect pictures are acquired in real-time, and comprehensive testing reports can be generated immediately.
Featuring a fish-eye lens and panorama testing video analysis software, the system generates a full panorama image of the pipe's inner walls, allowing for quantitative measurement of pipe diameter and crack widths. In addition, it provides a pipeline gradient curve to determine sediment conditions inside the network.
High-definition visualization for clear defect detection.
Quick assembly and convenient operation on-site.
Advanced digital transmission for stable data flow.
Waterproof and explosion-proof for harsh environments.

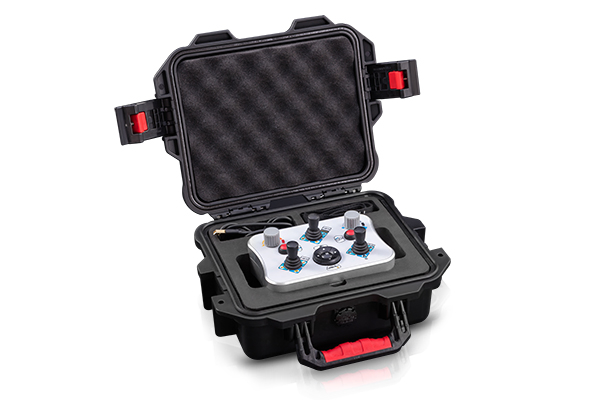

| Main Controller | - Compatible with any notebook/tablet computer as control system - Wireless control capability - Real-time display of date, time, distance, and crawling attitude |
| Electric Cable Reel | - Standard cable length: 120M - 150M - Two-core cable to reduce joint failure rate - Automatic retractable cord system |

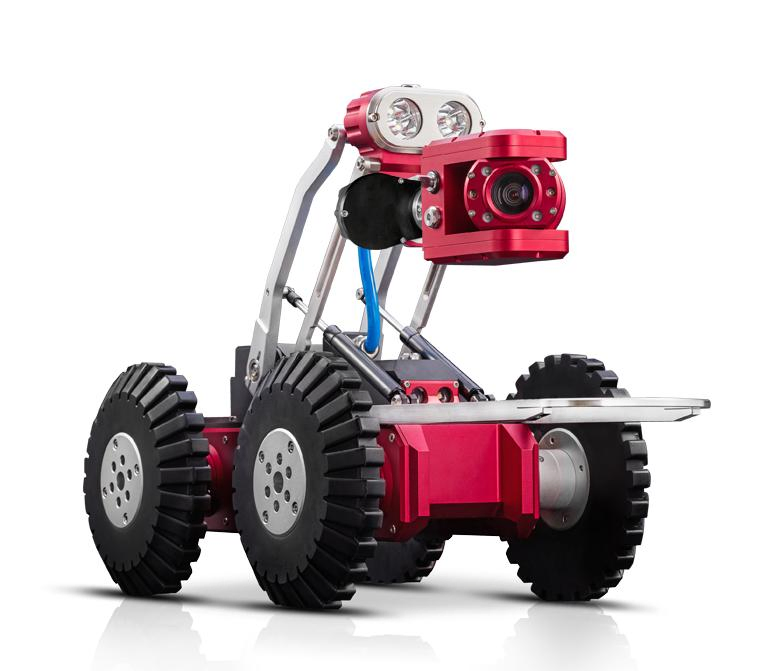

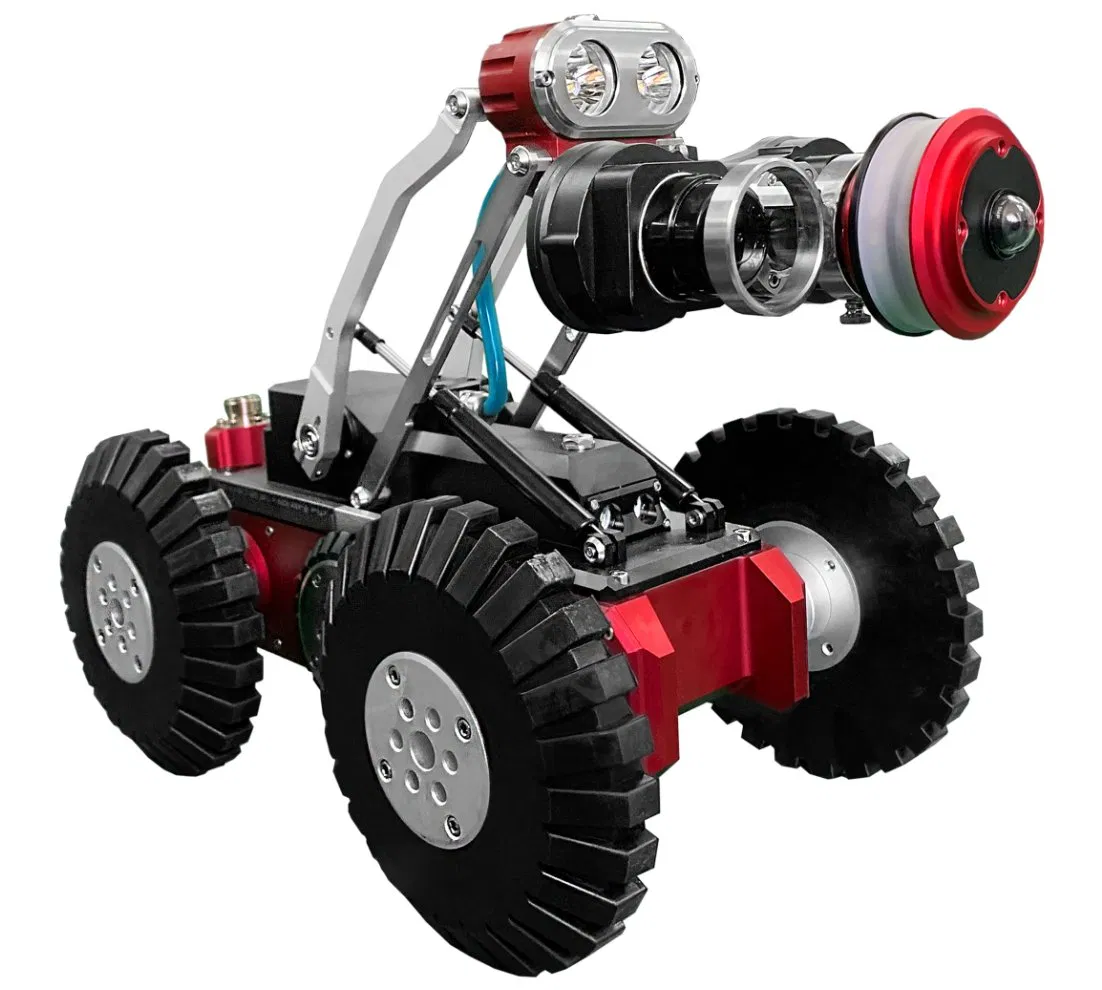

| Crawler Unit | - IP68 waterproof up to 10 meters depth - Suitable for Pipe Diameters: DN250mm - DN650mm - Electric lift frame and removable components - Forward 6 bright condenser LED lights |
| Camera Head | - High resolution 2592*1520 - 360° radial limitless rotation with one-click reset - High sensitivity (0.1Lux) and four LED lights |
Our products are widely applied to infrastructure development including geophysical prospecting, urban development, municipal construction, national defense, water conservancy, and hydro power projects.

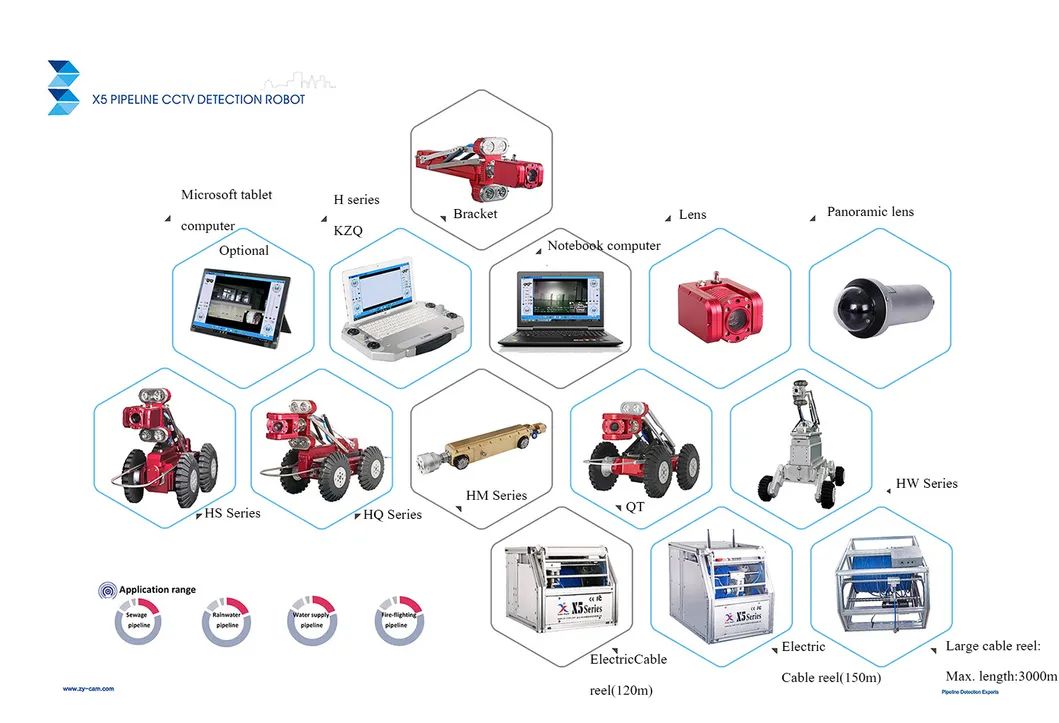

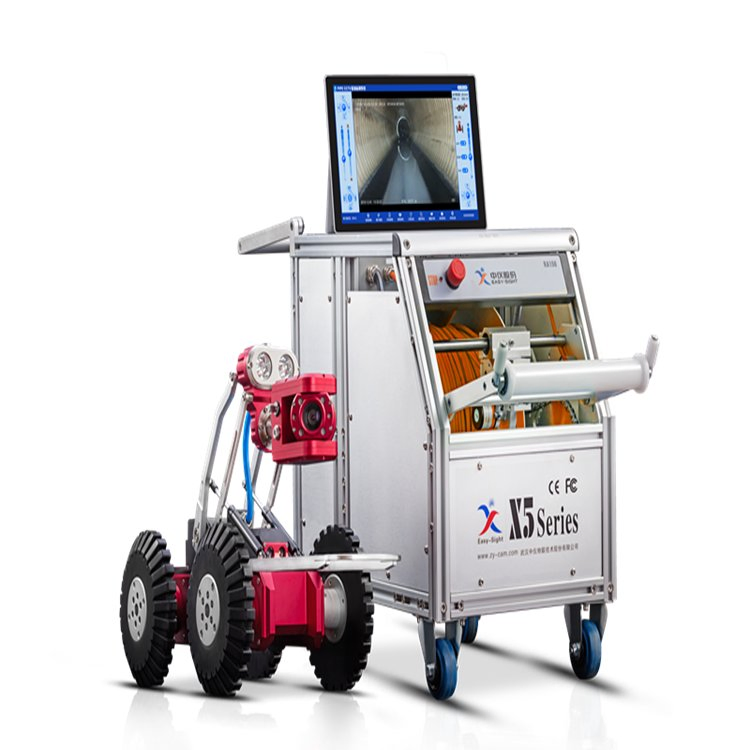

The system consists of the crawler, lens, cable reel, and main controller. The crawler can be equipped with various lens models (rotary, direct-view, or fish-eye) to respond to orders for advance, reverse, turning, and speed adjustment. The touch screen interface allows for real-time state monitoring and remark input.
1. After-service: We provide stable technology and outstanding professional support to ensure satisfactory returns on your investment.
2. Technical Help: We provide efficient and environmentally friendly drainage network solutions including maintenance and repair services.
3. Warranty: 12-month warranty from the date of arrival with lifelong maintenance support.
4. Quality Assurance: Every machine is strictly tested before packaging to ensure perfect operation.
5. Training: Detailed operational manuals and English version training materials are provided. Free factory training is available.
