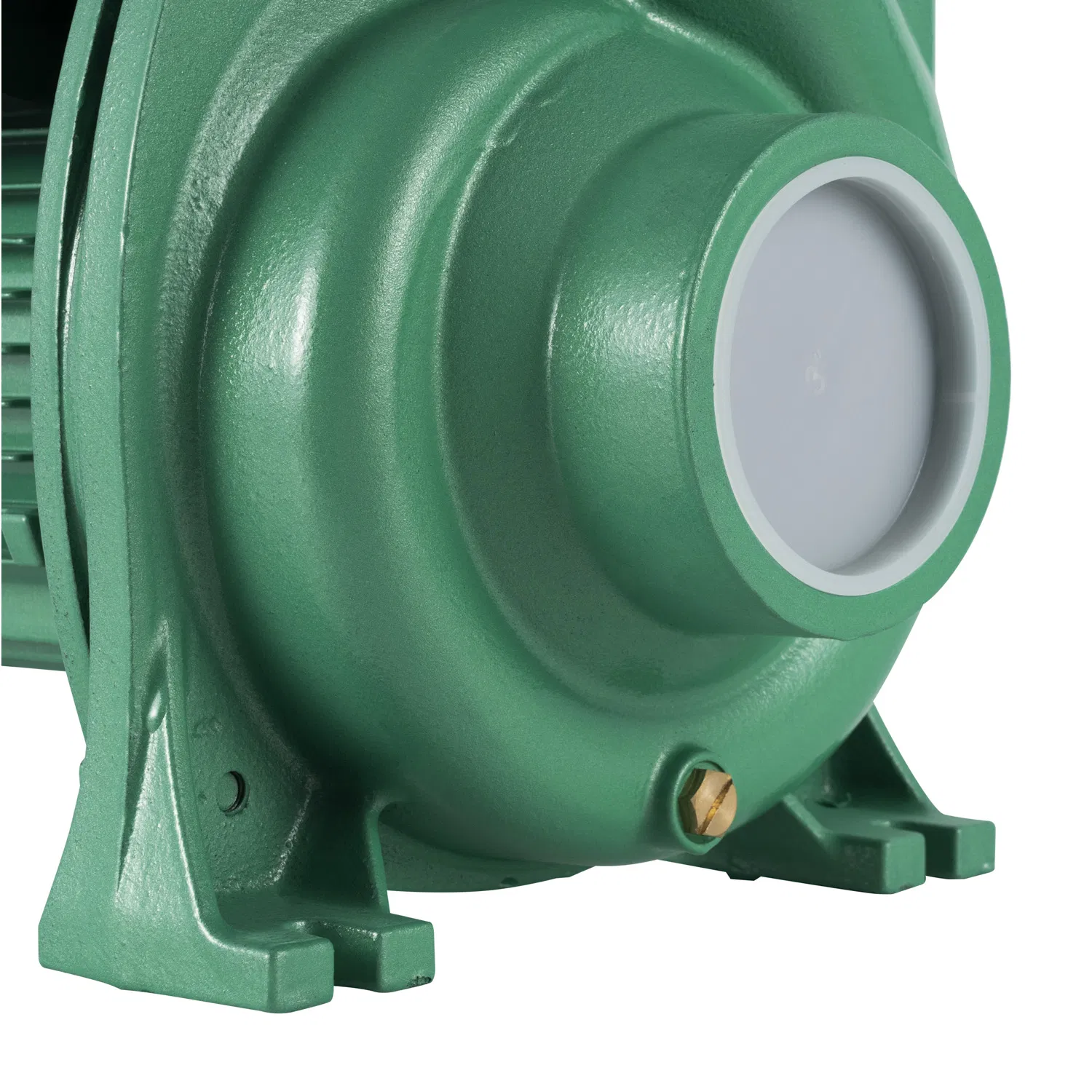

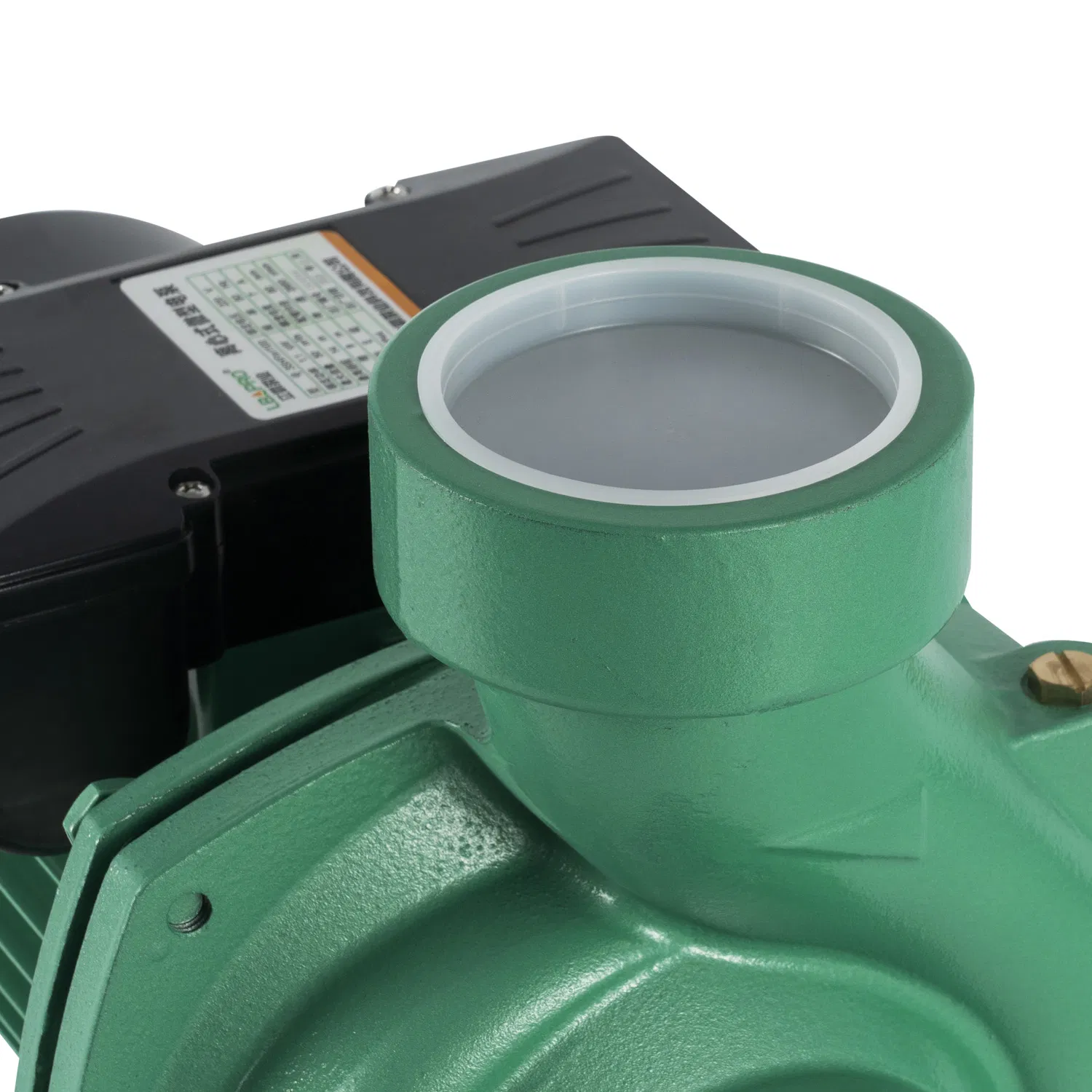

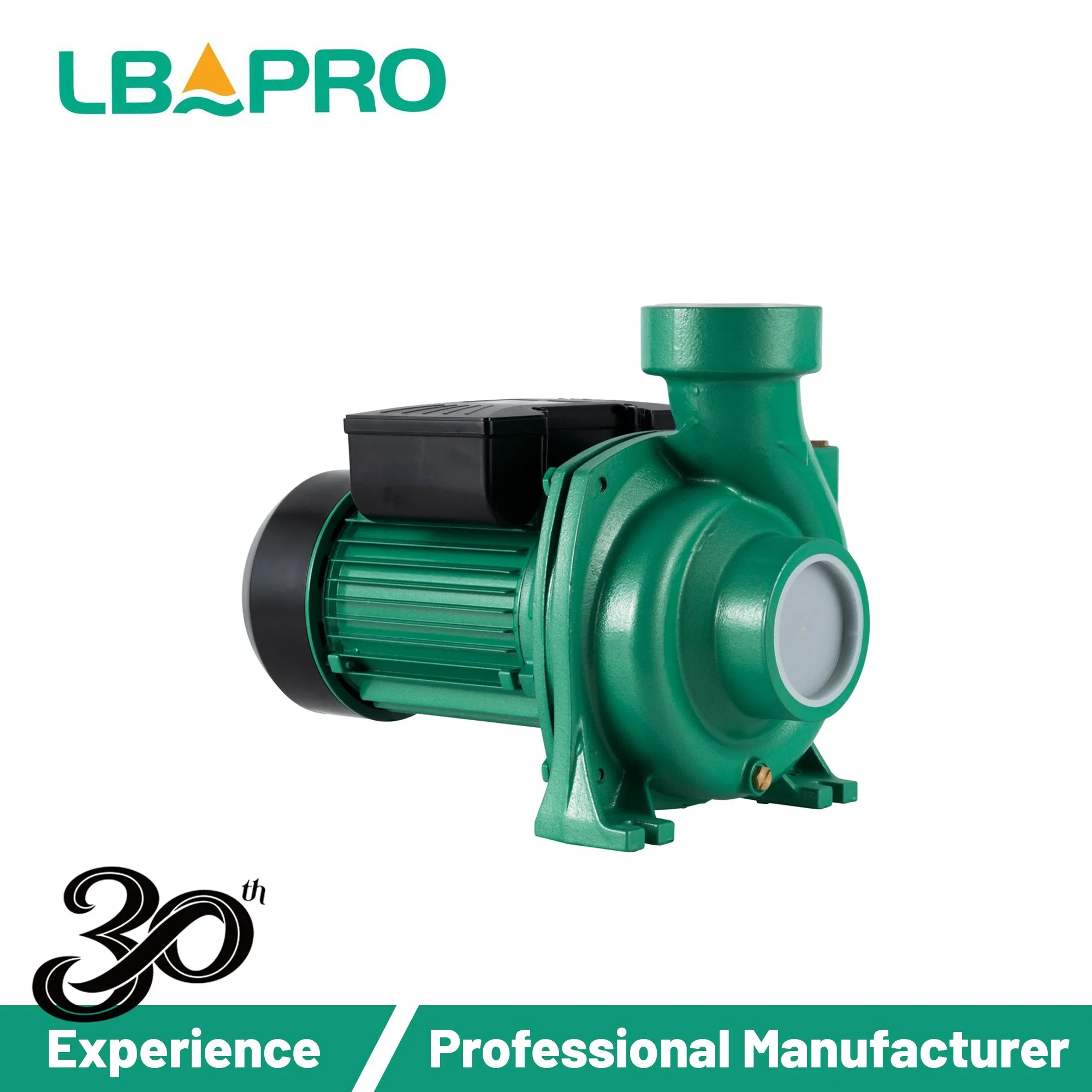

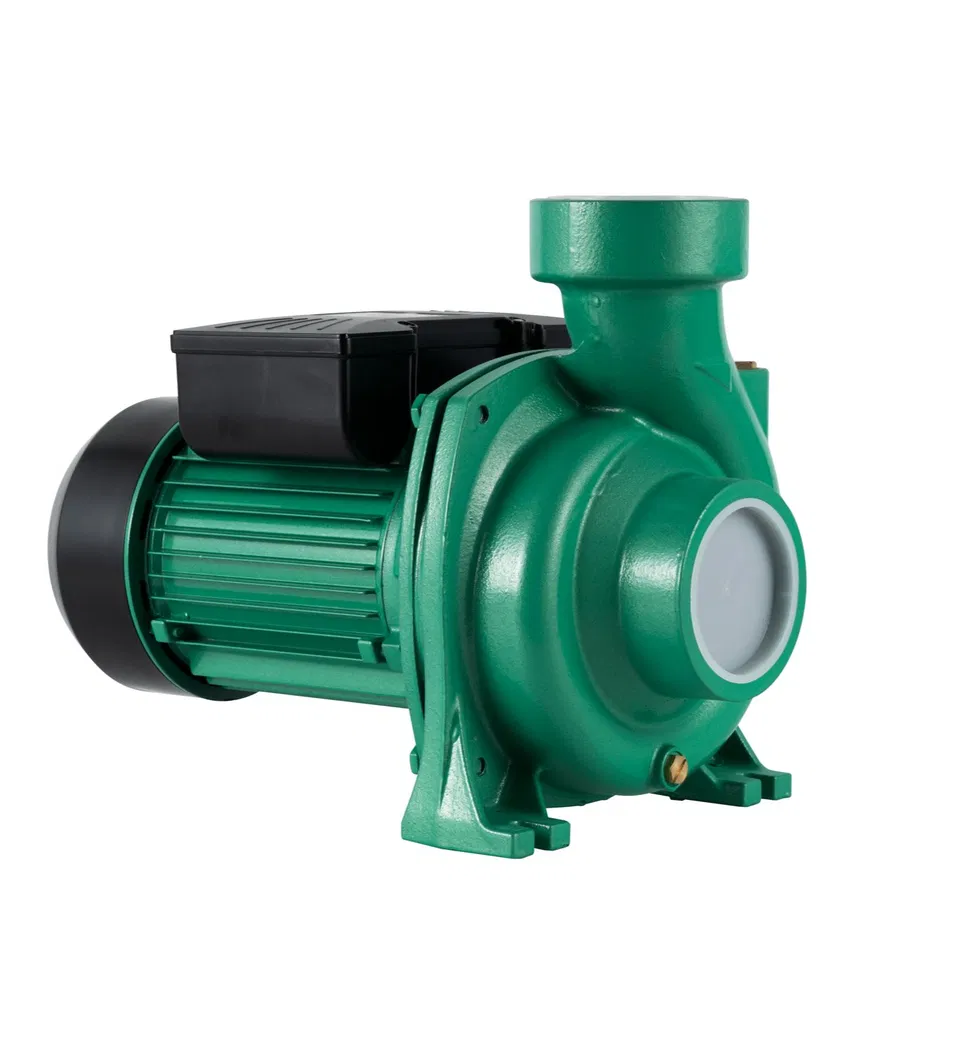

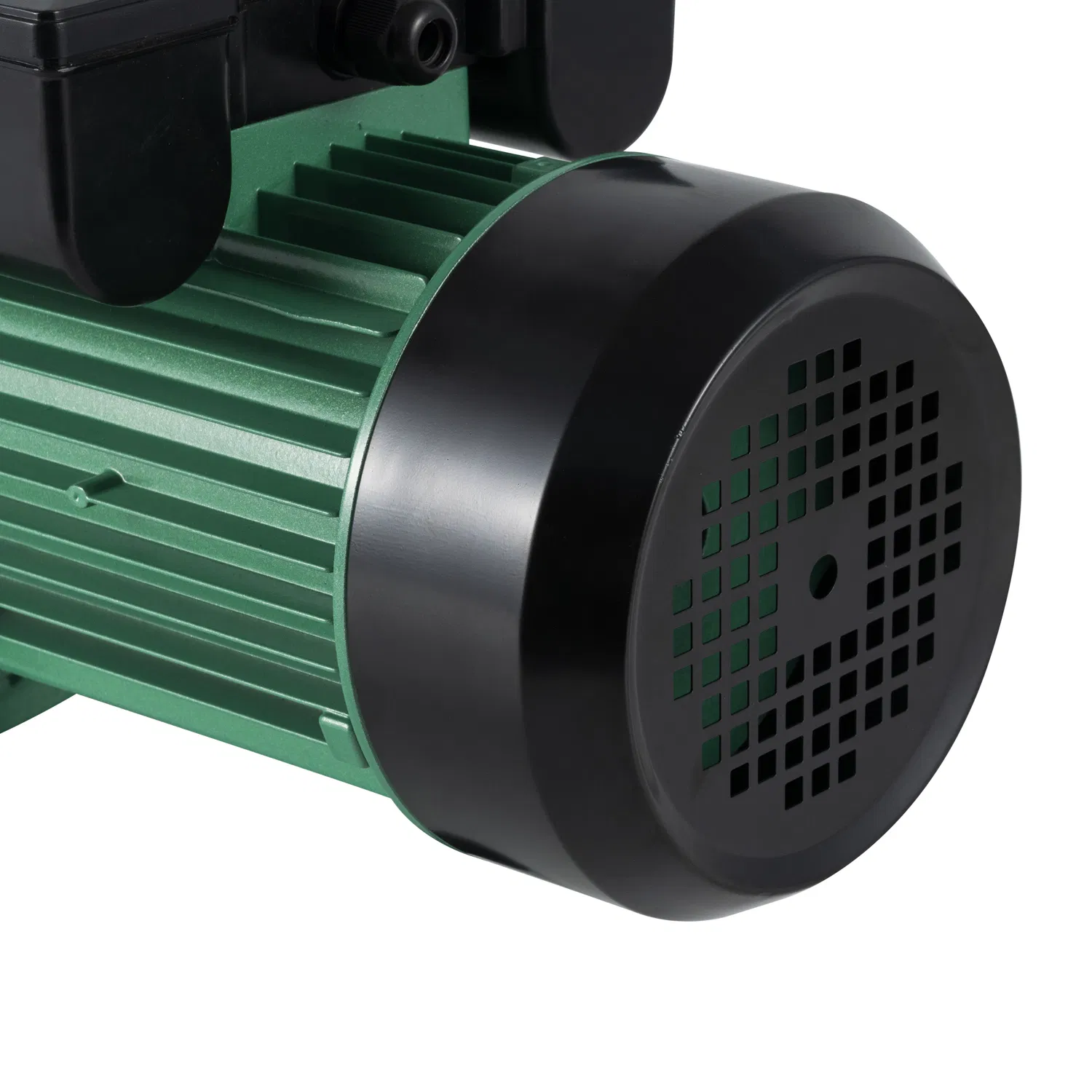

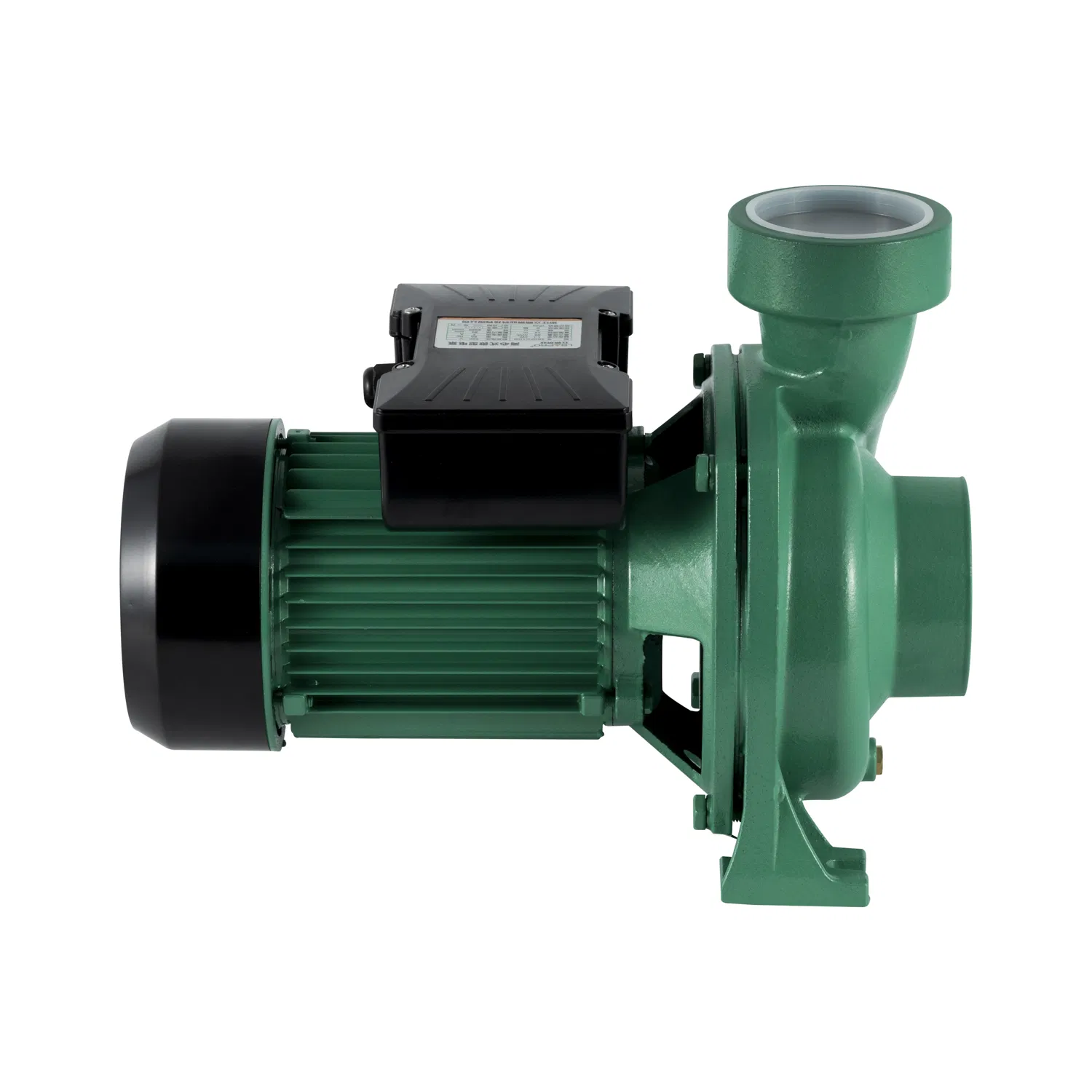

SHF Centrifugal Pump is designed for high efficiency and continuous duty. It is ideal for civil and agricultural applications, specifically flood and spray irrigation, drawing water from lakes, rivers, and wells. It excels in industrial applications requiring high flow rates and mid-to-low head characteristics.

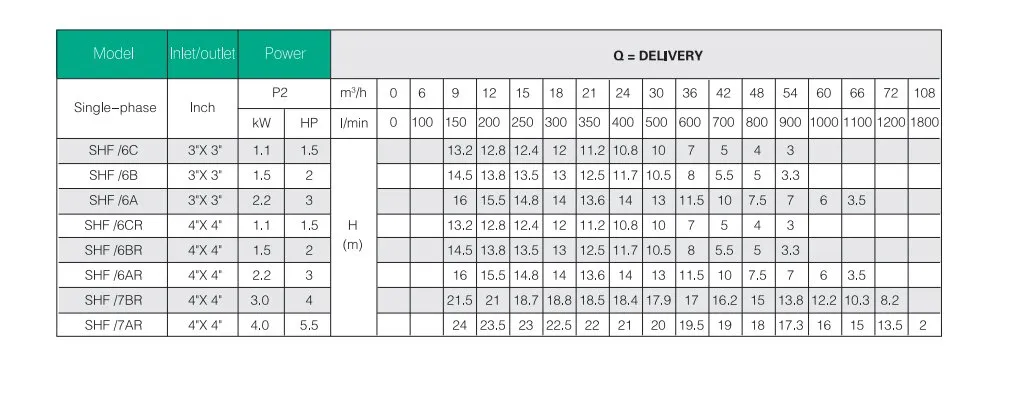

| Model | SHF Series | Max. Head | 24m |
| Max. Capacity | 1800L/Min | Driving Type | Magnetic |
| Impeller | Single-Stage / Vortex Type | Working Pressure | Low Pressure |
| Shaft Position | Horizontal | Material | Electrophoretic Body & Bracket |
| Mechanical Seal | Graphite to Ceramic | Impeller Material | Brass |
| Liquid Temp. | Max. +60℃ | Suction Head | Max. 8m |
