Waterproof Camera Head 1080P Endoscope Camera for Surgical

1 / 4

Waterproof Camera Head 1080P Endoscope Camera for Surgical

Customized:	Customized
Certification:	CE, ISO13485
Camera Sensor:	1/1.8'' Sony Signal CMOS

Send Inquiry

Product Description

Basic Info.

Model NO.

NCM-AS180

Material

Aluminum Alloy

Resolution

1080*1920p

Frame Rate

60fps

Language

Customized Acceptable

Output

HDMI, DVI, SDI, CVBS, USB

Transport Package

Carton

Specification

Aluminum Alloy

Trademark

YETKANG

Origin

China

Product Description

NCM-AS180 FHD Endoscope Camera

Item Name	Model	Parameter	Advantage & Features
Full HD Endoscope Camera (Aluminum alloy)	NCM-AS180	Output Video: 16:9 1080*1920P 60fps	Customizable camera head buttons Capture pictures & record video directly Instant playback on the camera USB video display support Mouse control for easy operation Direct file renaming on camera Four-state display for lesion comparison OEM/ODM: appearance, function, ports, keypad
		Effective Pixels: ≥ 2 Mega Pixels
		Scanning system: Progressive Scanning
		Image settings: AWB, Freeze, Zoom, Brightness, Color adjustment
		Record Format: MP4 via USB Disk
		Image Sensor: 1/1.8'' Sony CMOS
		Sterilization: Autoclave and waterproof IPX 67

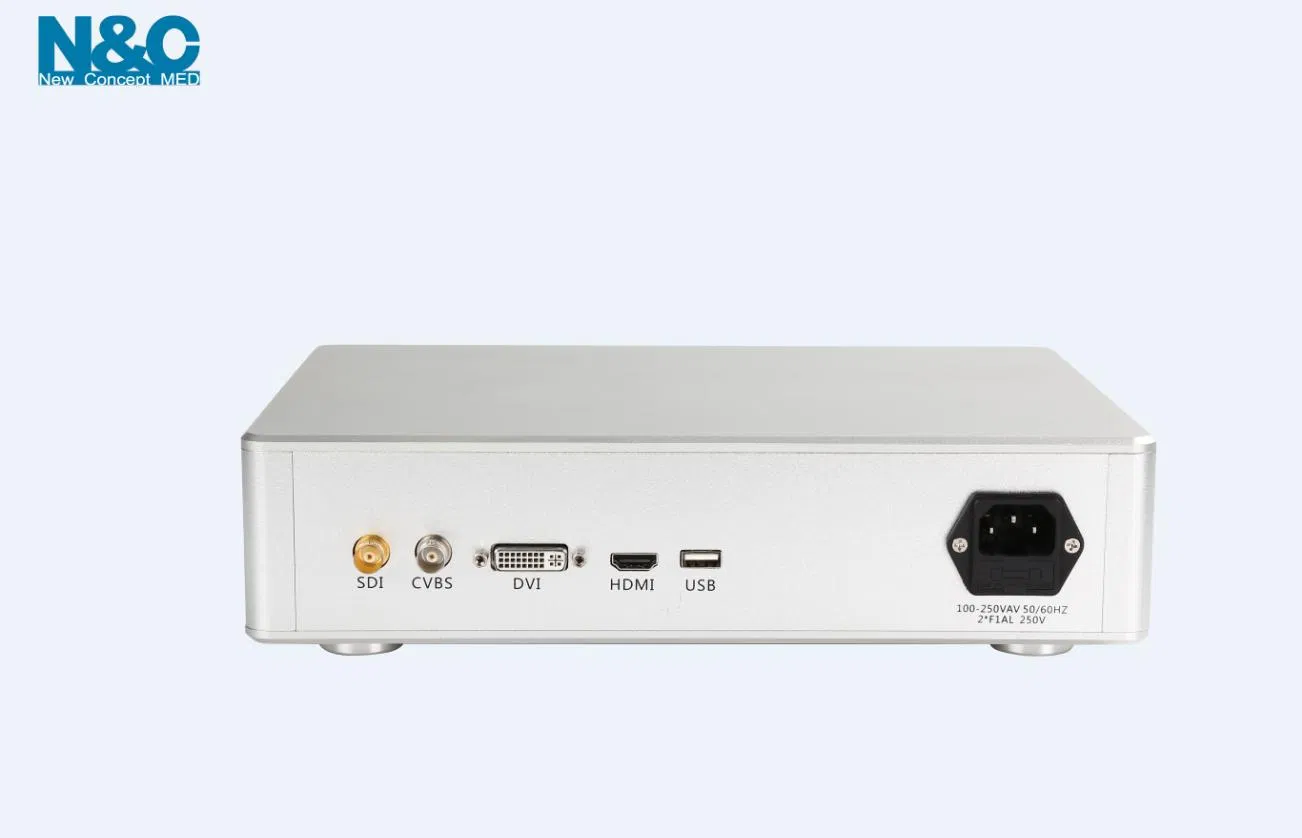

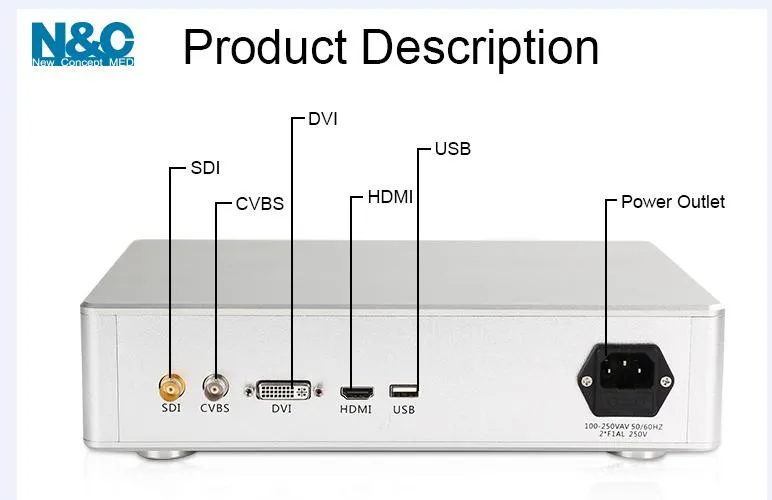

		Processor Output: HDMI+DVI+SDI+CVBS+USB+LVDS+Net port

Key Features

✓

High Definition: 1080P Full HD imaging at 60fps for smooth surgical visualization.

✓

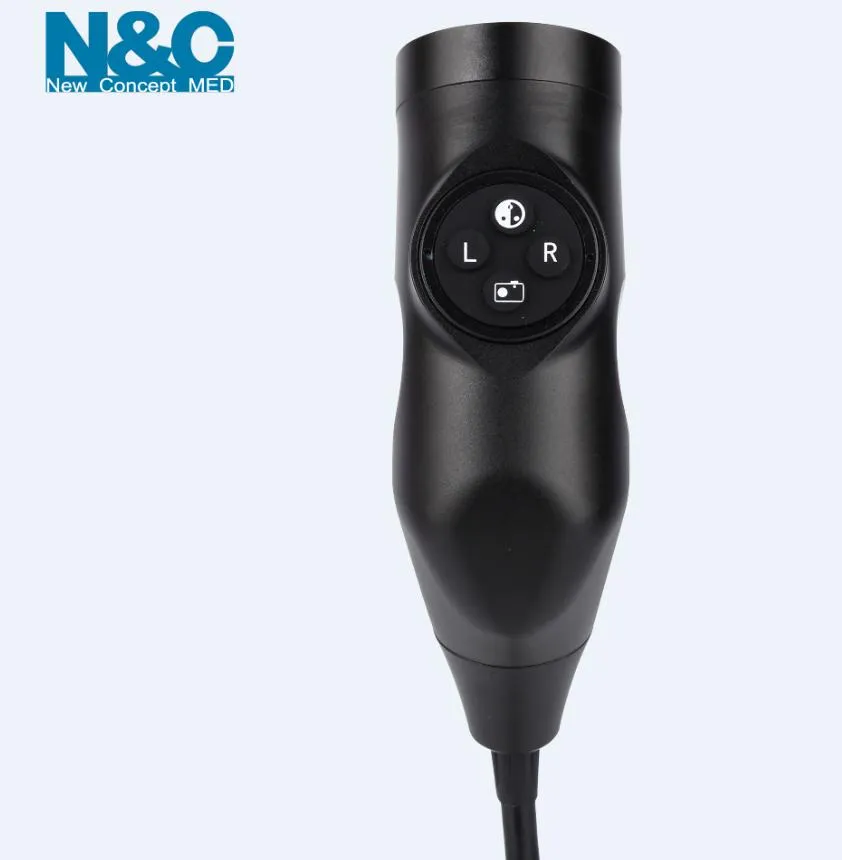

Waterproof Design: IPX67 rated camera head, compatible with autoclave sterilization.

✓

Smart Control: Integrated mouse control and customizable buttons for streamlined workflow.

✓

Versatile Connectivity: Multiple outputs including HDMI, SDI, and DVI for various monitors.

Medical Applications

Laparoscopy E.N.T. Urology Gynecology Cystoscope Arthroscopy

Waterproof Camera Head 1080P Endoscope Camera

Frequently Asked Questions

What is the video resolution of the NCM-AS180?

The NCM-AS180 provides Full HD resolution of 1080*1920p at a smooth frame rate of 60fps.

Is the camera head waterproof and sterilizable?

Yes, the camera head is IPX67 waterproof and supports autoclave sterilization for surgical safety.

Can I record surgery videos directly?

Absolutely. The system supports capturing images and recording MP4 videos directly to a USB disk with playback functionality.

What kind of image sensor does it use?

It utilizes a high-quality 1/1.8'' Sony CMOS signal sensor for superior color reproduction and clarity.

Does it support multi-monitor output?

Yes, it features various outputs including HDMI, DVI, SDI, CVBS, and USB to connect with different display systems.

Can the camera functions be customized?

Yes, we accept OEM/ODM demands, allowing customization of camera appearance, functions, ports, and keypad positions.
