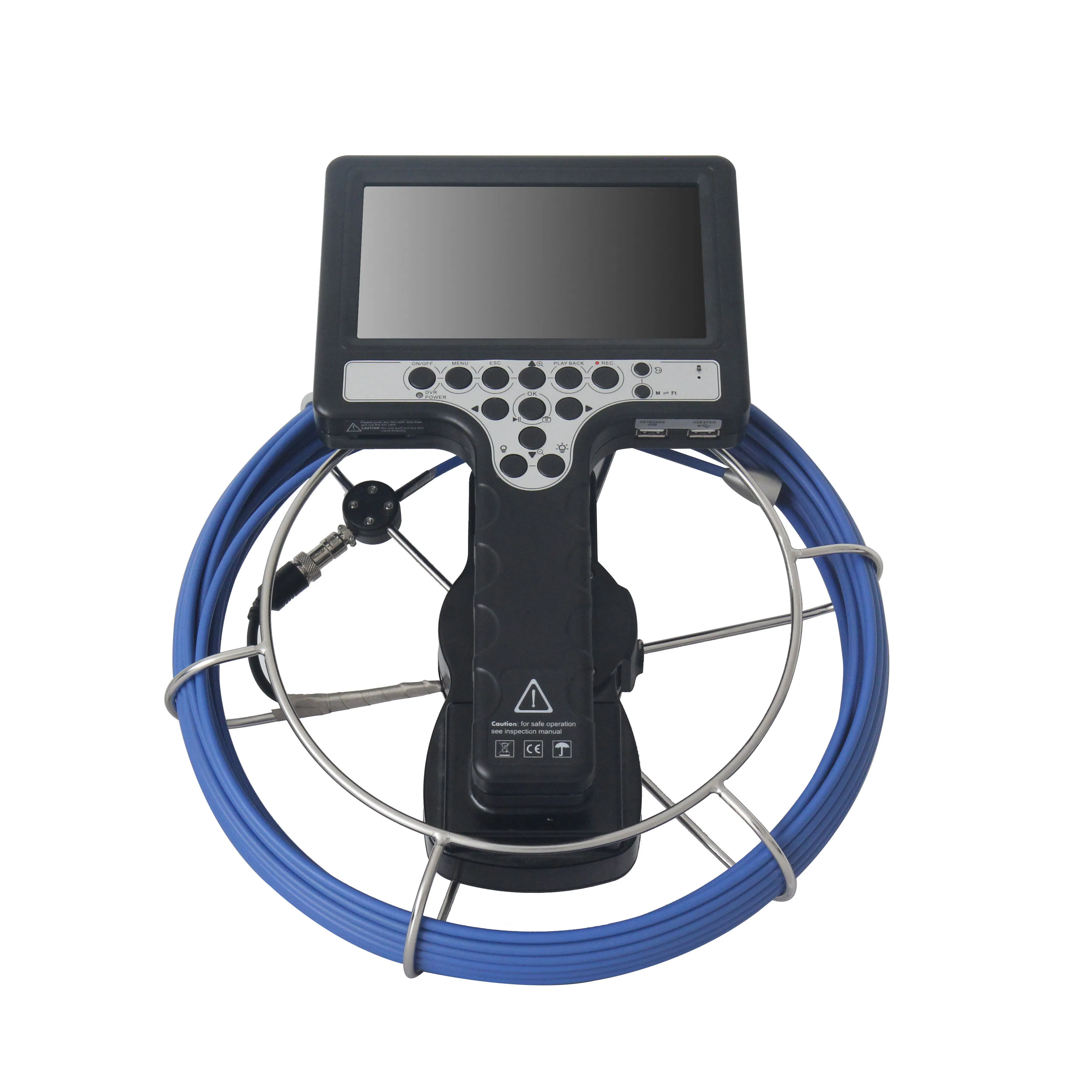

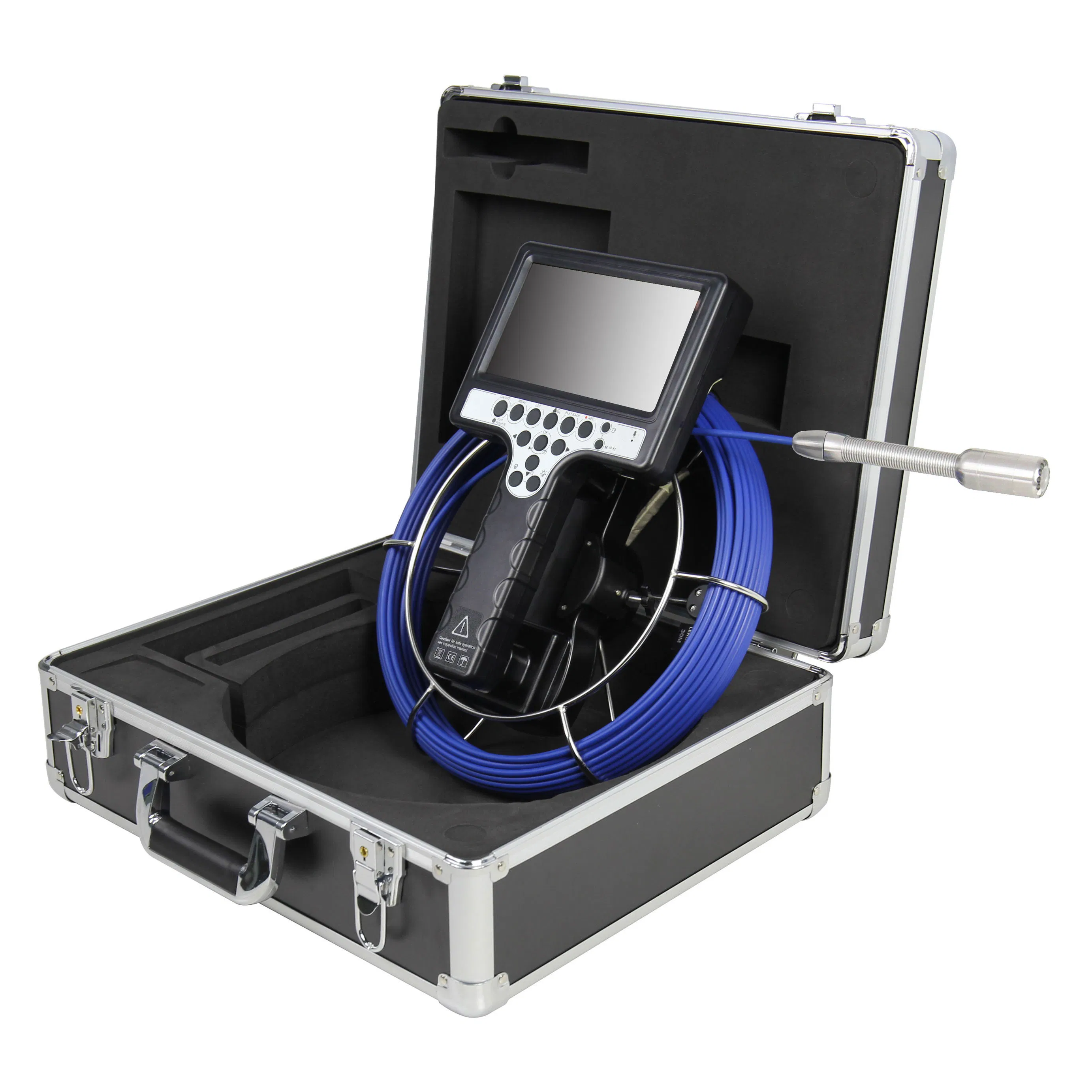

Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
1 / 5
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera
Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera

Wopson 23mm Head 7 Inch Monitor Endoscope Drain Sewer Underwater CCTV Camera

Customization: Available
Technology: DVR
Style: Dome Camera,Mini Camera
Send Inquiry

Product Description

Technical Specifications

Model NO.
WPS-B1-C23L
Type
Video Camera
Sensor
CMOS
HDMI Format
AVI
Resolution
720p
Kind
DVR
Certification
CE, FCC, RoHS, EMI/EMC, ISO9001
Feature
Waterproof, High Definition
Effective Distance
20-40m
Sensor Size
1/3 inch
Remote Control
Included
Customized
Logo, OEM, ODM Support

Product Overview

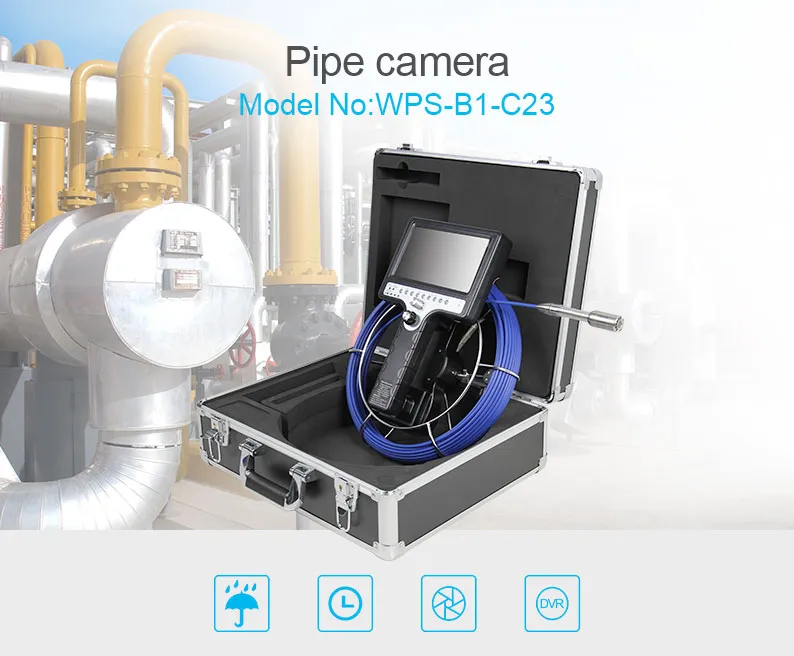

Endoscope System

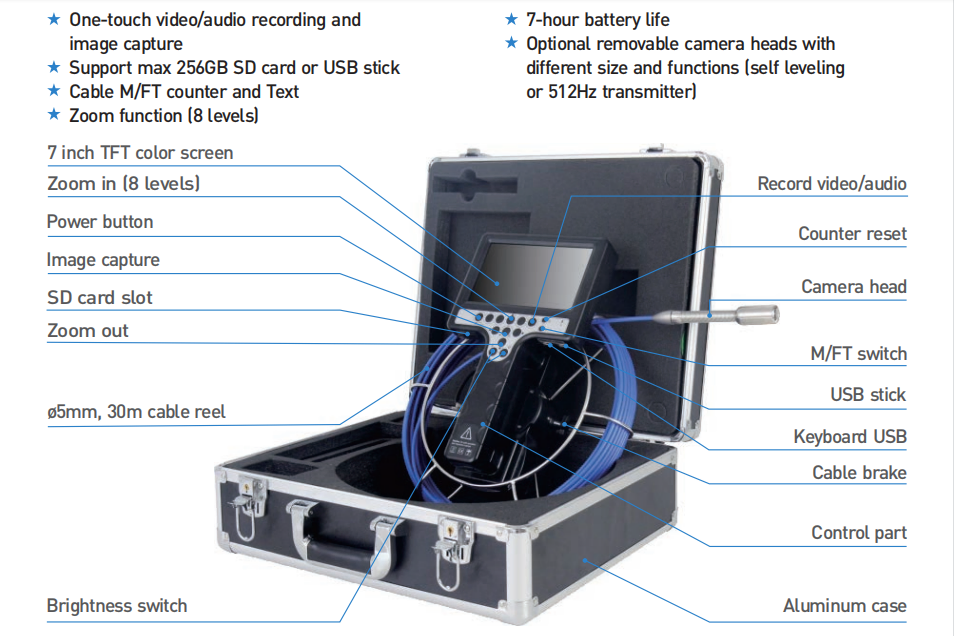

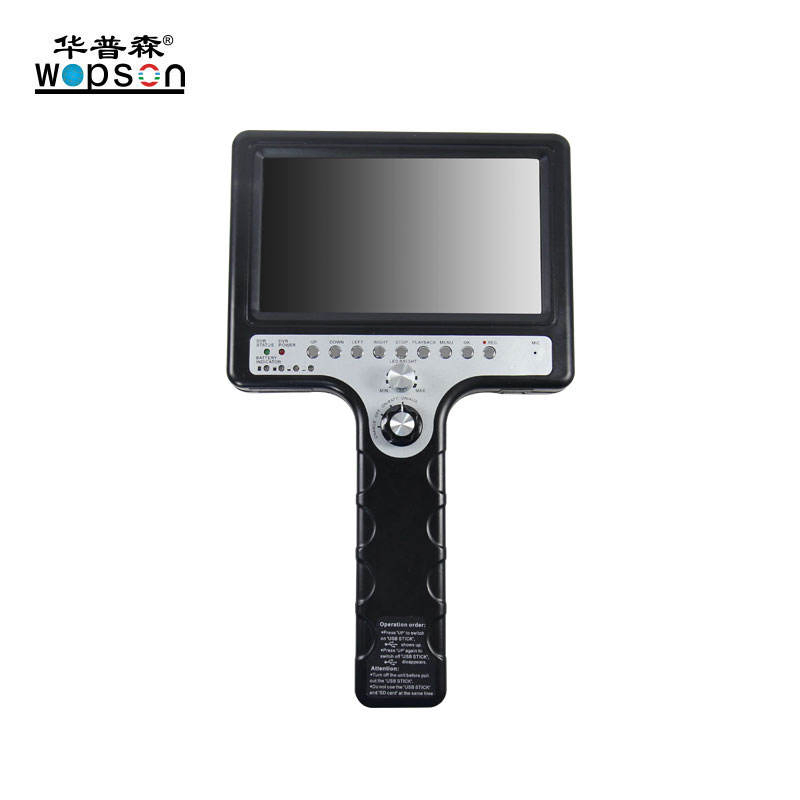

Monitor Detail
🔘 One-touch video / audio recording and image capture

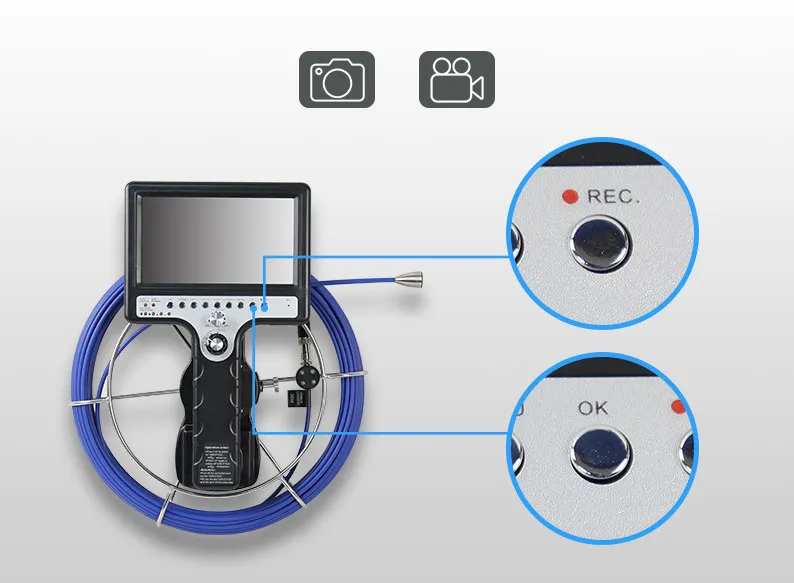

Control Panel

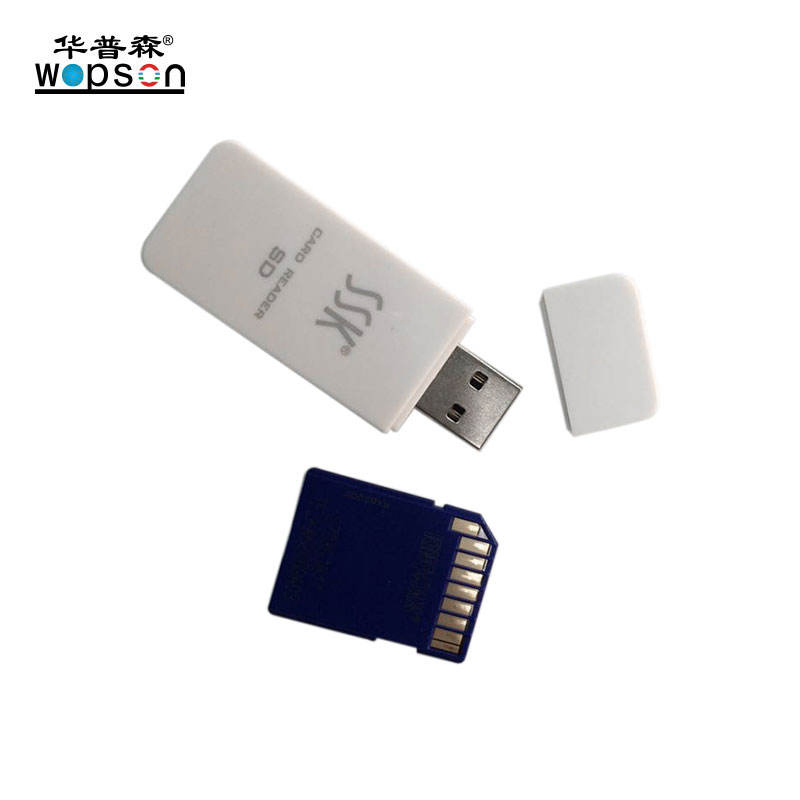

💾 Supporting max 256G SD card

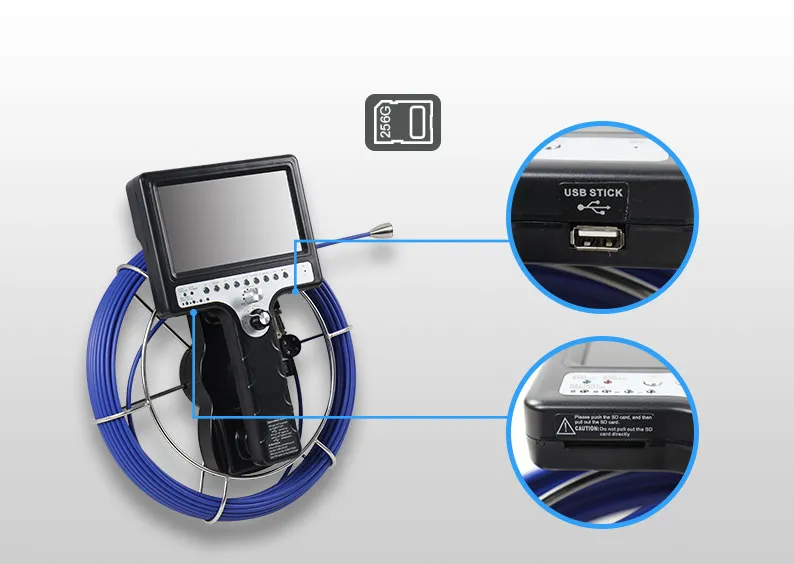

Storage Options

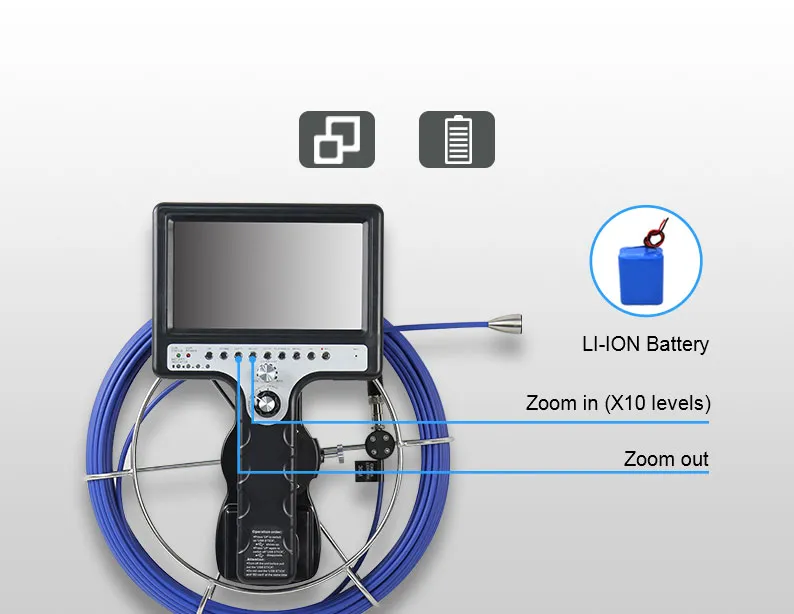

🔍 Zoom function (x10 levels) & 7-hour battery life
Zoom Interface

Optional Camera Heads

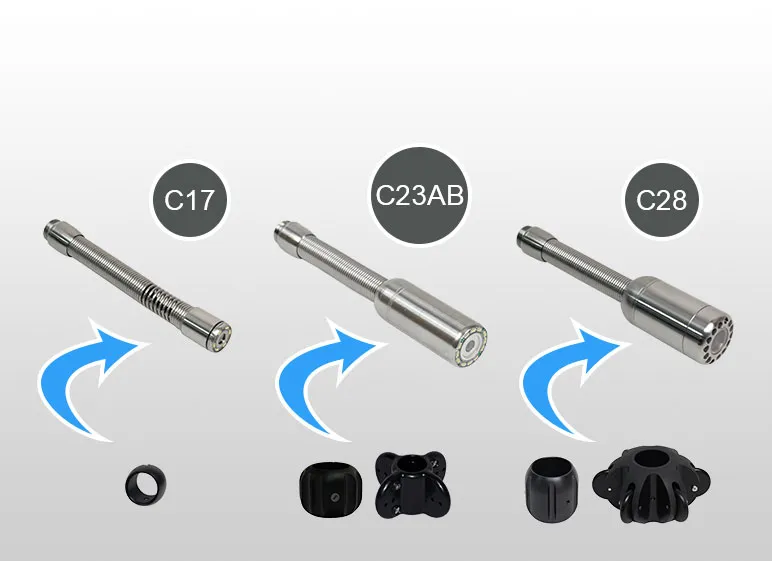

Camera Head Options
Model Size LEDs View Angle Pipe Diameter Function
C17 ø17*142mm 6pcs 60° 30-60mm none
C23AB ø23*160mm 12pcs 60° 30-150mm self-levelling
C28 ø28*156mm 12pcs 105° 70-200mm self-levelling / 512Hz (opt)

Cable & Sensor Specifications

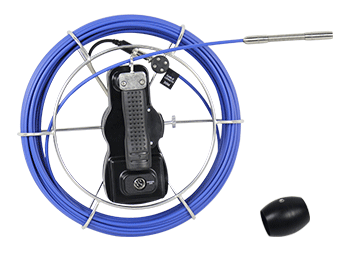

X-151CJ-C12

Model: X-151CJ-C12
Size: ø12*115mm | Angle: 65° | IP68

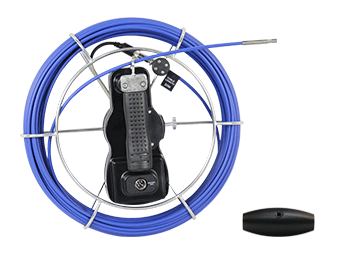

X-156CJ

Model: X-156CJ
Size: ø6*48mm | Angle: 60° | IP66

512R Receiver & Transmitter

512R

512R Receiver
Range: 4.5m

512T1

512T1 Transmitter
Size: ø16*45mm

512T

512T Transmitter
Size: ø22.5*48mm

Application Fields

Application
Introduction

Related Series

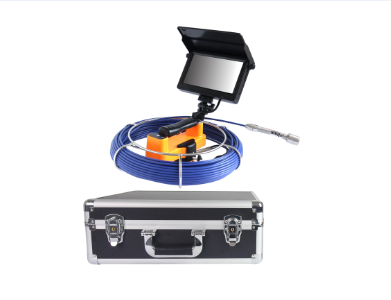

Simplified Series 1

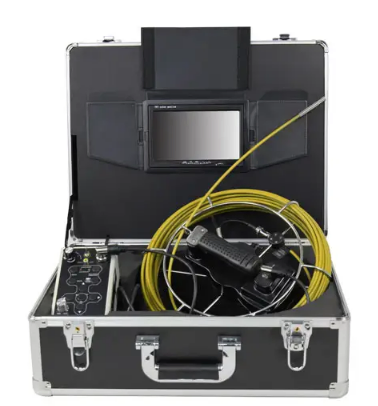

Simplified Series 2

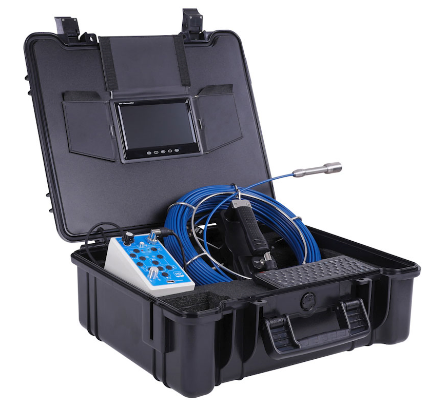

HD Series 1

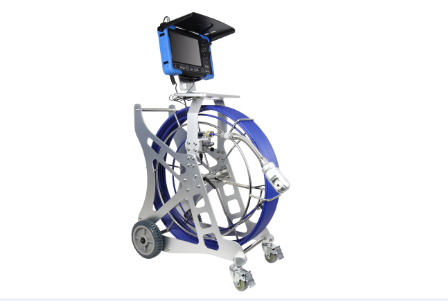

HD Series 2

Frequently Asked Questions

How long does shipment take after ordering?
Delivery time is typically 3-5 days after payment is received. Depending on your chosen shipping method, transit time is usually between 4-10 days.
What are the available payment terms?
We accept a variety of payment methods including T/T (Bank Transfer), PayPal, and Credit Cards for your convenience.
Is there a discount for large quantity orders?
Yes, we offer competitive wholesale pricing and additional discounts for bulk orders. Please contact us with your specific requirements.
What is the warranty period for your products?
We provide a one-year limited manufacturing warranty. Every item undergoes a strict QC process to ensure the highest quality before shipping.
Do you offer OEM and ODM services?
Absolutely. We provide full OEM/ODM support, including customized logos, mould adjustments, and necessary certifications as per your request.
How can I trust the product quality for my first purchase?
We maintain high standards with individual item inspections. If a defective item is received, we offer refunds or compensation items to ensure your satisfaction.
