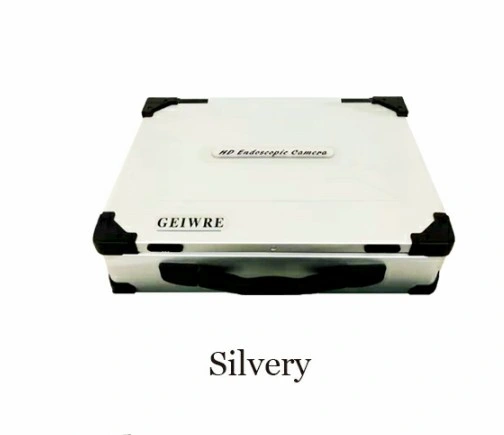

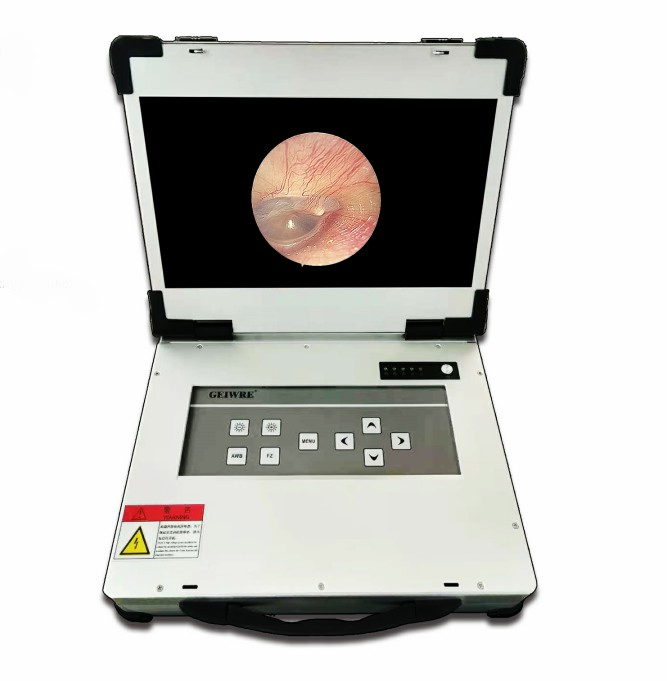

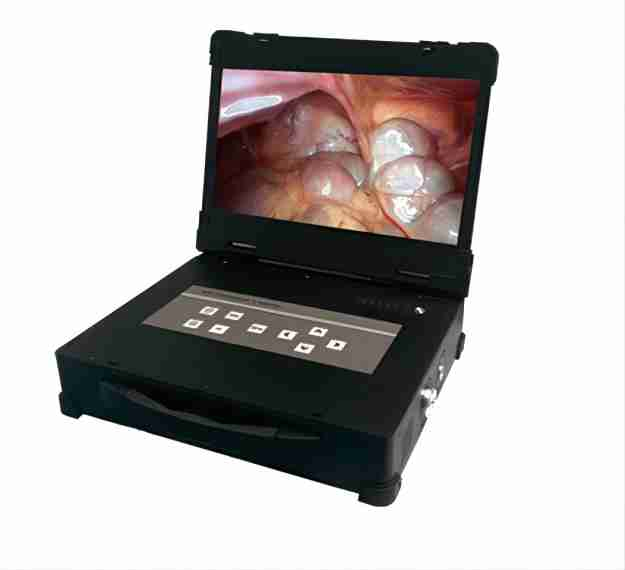

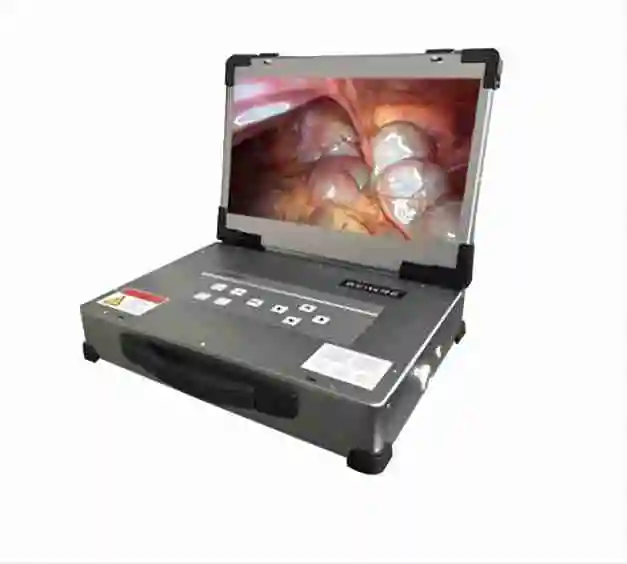

Cold Light Source for Endoscopic Imaging

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Digital Imaging System

Send Inquiry

Product Description

Basic Specifications

Model NO.

HD320

Certification

CE, FDA, ISO13485

Group

Endoscopic Surgical

Clarity

1200 lines

Power Supply

AC110/220V +/-10%

Gain Control

Automatic

Camera Device

2 Million 300 Thousand Pixel 1/2.8" CMOS

Illumination

Color: 1lux / B&W: 0.5lux

Specification

1944(H)*1092(V)

Origin

China

Technology Data Comparison

Parameter	HD310	HD320	HD330
Camera Device	1/2.8 inch CMOS	1/2.8 inch CMOS	1/2.8 inch CMOS
Monitor Size	15.6"	15.6"	17.3"
Effective Pixel	2010(H)×1108(v)	2010(H)*1108(v)	2010(H)*1108(v)
White Balance	Automatic/Manual	Automatic/Manual	Automatic/Manual
Resolution (Digital)	1920×720	1920×1080	1920×1200
Video Output	3G-SDI / CVBS	3G-SDI / CVBS	3G-SDI / CVBS
Handle Wire	2.3m	2.3m	2.3m
Shutter Speed	1/25~60000(PAL)	1/25~60000(PAL)	1/50~50000(PAL)
Color Temperature	3000K-7000K	3000K-7000K	3000K-7000K
Illumination	1600000lx	1600000lx	1600000lx
Luminous Flux	600lm	600lm	600lm

Product Features

High-Definition Imaging: Uses a digital photographic chip with 1920 x 1080p output and ENH color enhancement for sharp mucosal morphology and clear blood vessel visualization.
Multi-Function Camera: Features integrated brightness adjustment, white balance, image freeze, and color enhancement for clinical convenience.
Electronic Amplification: Powerful zoom capabilities make it easier to identify and observe small lesions.
Rapid Response: Extinction rate is less than 0.1 second, significantly reducing visual fatigue during surgery.
User-Friendly Menu: Simple and practical interface allows for quick adjustment of parameters and operating modes.
Open Integration: Rear panel supports third-party systems or tablets for image and video saving, improving operating room efficiency and safety.

Frequently Asked Questions

Q1: What is the resolution of the HD320 model? A: The HD320 provides a digital resolution of 1920×1080 pixels for high-definition clarity.

Q2: Which certifications do these medical devices hold? A: The equipment is certified by CE, FDA, and ISO13485, meeting international medical standards.

Q3: Can the white balance be adjusted during surgery? A: Yes, the system supports both automatic and manual white balance functions for convenience.

Q4: What are the benefits of the ENH color enhancement feature? A: It enhances mucosal morphology and the sharpness of blood vessels, making the structure of capillaries fine and true in the image.

Q5: Is the camera system compatible with external recording devices? A: Yes, the rear panel is equipped with an integrated interface that allows connection to third-party systems or tablets to save images and video.
