📋 Basic Information
Certification
CE, ISO13485
Product Name
LED Cold Light Source
Specification
Camera light source screen all in one
🔍 Product Features

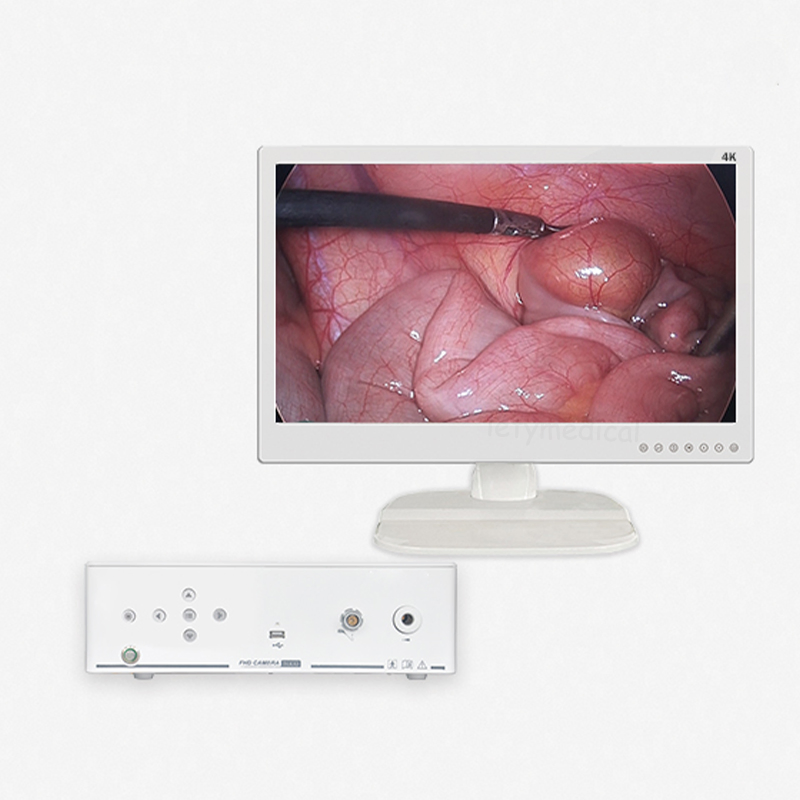

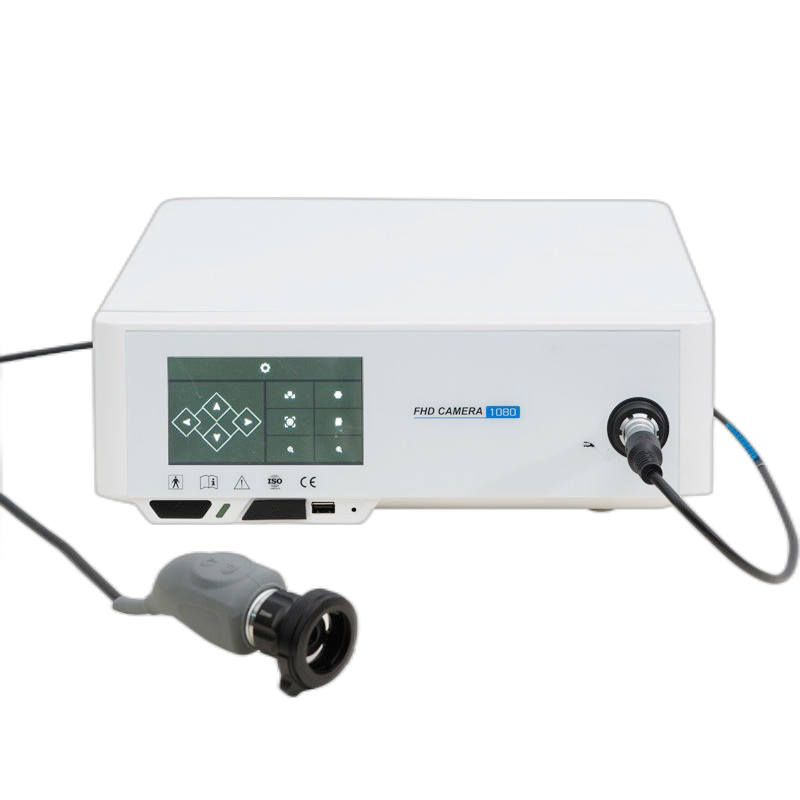

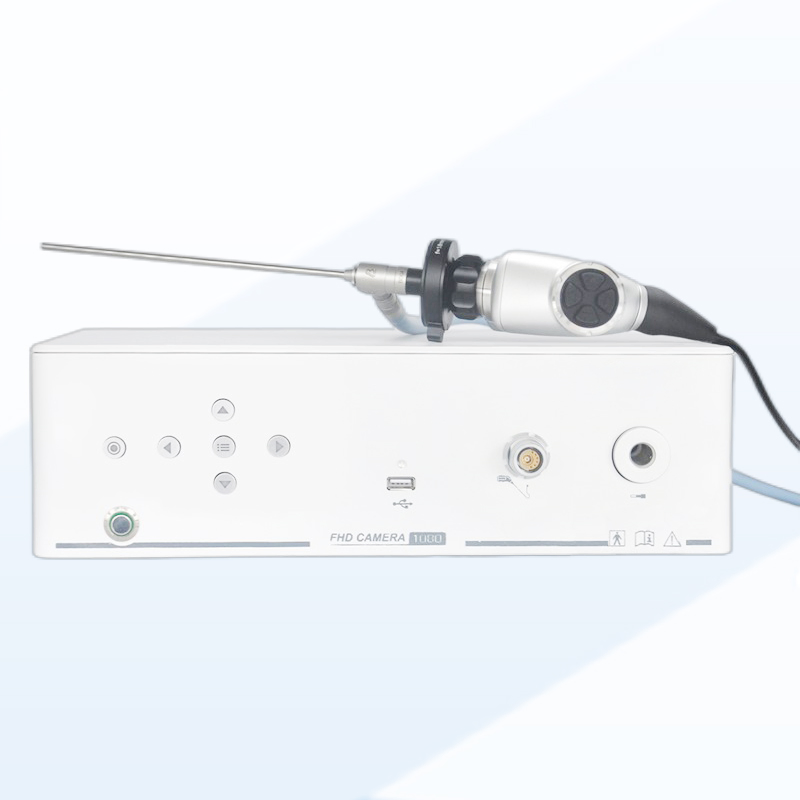

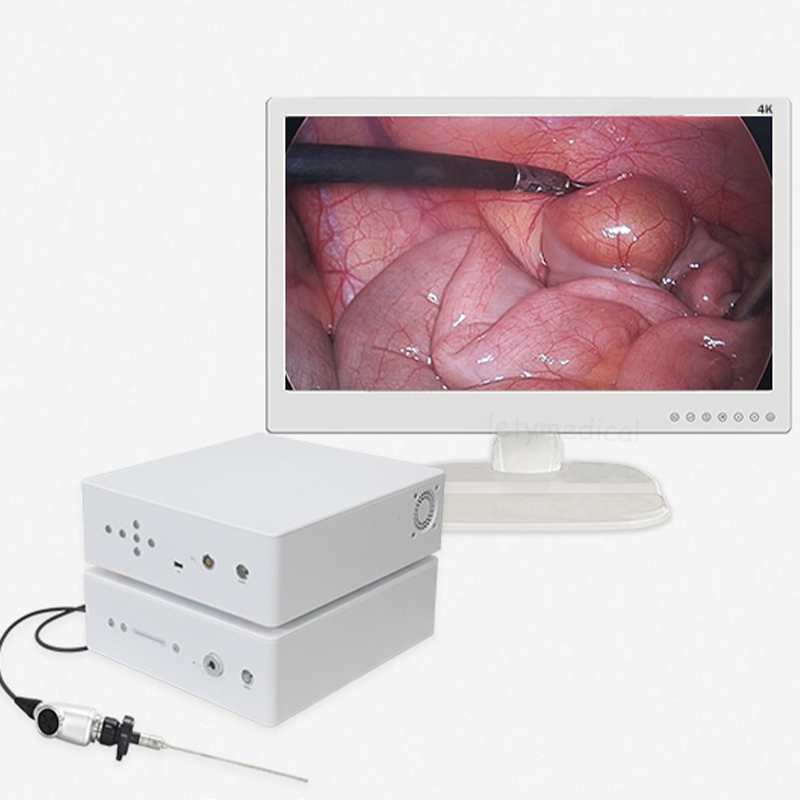

- SONY CMOS 1080P HD camera: High-definition imaging for precise medical observation.
- Built-in 80W LED light source: Powerful and efficient cold light illumination.
- Extended Connectivity: Supports additional 21''/22''/24'' HD monitors.
- HD Video Recording: Connect to HD recorders for seamless procedure documentation.
- Workstation Integration: Compatible with workstations for report printing functions.
- IPX8 Waterproof: Durable camera head designed for rigorous medical environments.
Primary Advantages
As a professional manufacturer, we provide competitive pricing with high cost-performance ratios. Benefit from promoted shipping and excellent after-sales technical support for all medical camera systems.
⚙️ Technical Parameters
| No. |
Item |
Specifications |
| 1 | Camera | 1/2.8 inch Sony CMOS HD camera |
| 2 | Pixel | 2,100,000 pixels |
| 3 | Horizon Resolution | 1080 lines |
| 4 | SNR | ≥50dB |
| 5 | Scanning System | Progressive Scanning |
| 6 | Image size | 1920×1080p |
| 7 | Video output | HDMIx3, CVBS |
| 8 | Frame rate | (1920×1080) 60p |
| 9 | Light source | Built-in 80W LED cold light source |
| 10 | Function | USB storage |
📦 Delivery & Services
Shipping Methods:
- Express (UPS/DHL/FEDEX/TNT): 3-5 days delivery with online tracking.
- Air Cargo: Approximately 1 week for arrival.
- Sea Freight: 20-30 days depending on the destination.
Warranty & Support:
We provide a 12-month warranty. During this period, replacement parts for technical issues are sent free of charge. Continuous technical support is available throughout the product's lifespan.
❓ Frequently Asked Questions
Q1: What is the resolution of the endoscopic camera?
A: The system uses a SONY CMOS sensor providing 1080P Full HD resolution with 2,100,000 pixels.
Q2: Is the camera head waterproof?
A: Yes, the camera head is rated IPX8 waterproof, making it suitable for standard medical sterilization and surgical procedures.
Q3: Can I connect this system to an external monitor?
A: Absolutely. It features 3 HDMI outputs and CVBS, allowing connection to additional 21'', 22'', or 24'' HD monitors.
Q4: Does it have an integrated light source?
A: Yes, it features a built-in 80W LED cold light source, providing powerful illumination without the heat of traditional bulbs.
Q5: What happens if I encounter a technical issue during the warranty?
A: We offer a 12-month warranty. Replacement parts are provided free of charge for technical issues, and we offer lifetime technical support.
Q6: Can I save videos or images from the procedures?
A: Yes, the system supports USB storage and can be connected to HD recorders or workstations for documentation and reporting.
