Product Description

📋 Basic Specifications
Model NO.
E22B
Certification
CE, ISO13485
Image Sensor
1/2'' Coms
Resolution
1920X1080p IPX8 Waterproof
Scanning System
Progressive Scanning
Screen Size
7'' with Output Display
Storage
U Disk / Hard Disk / SD Card
Video Recording
1920X1080p, MP4 Format
Photograph
1920X1080p 8 Megapixel JPG
Video Output
USB 2.0, HDMI 1.4, DVI, CVBS, SDI
LED Life Span
50,000 Hours
Origin
China
🔍 Product Description

FHD Image System with Light Source for Endoscope E22B with Output Display

The 1080P Full HD Endoscope Camera is designed for use with Medical Light sources and Medical Trolleys for comprehensive endoscope inspection and surgery. The resolution of 1920 x 1080 presents delicate images with superior noise reduction, sharpening, brightness, and contrast functions, effectively meeting clinical needs in complex surgical treatments.

Endoscopic Image System 1

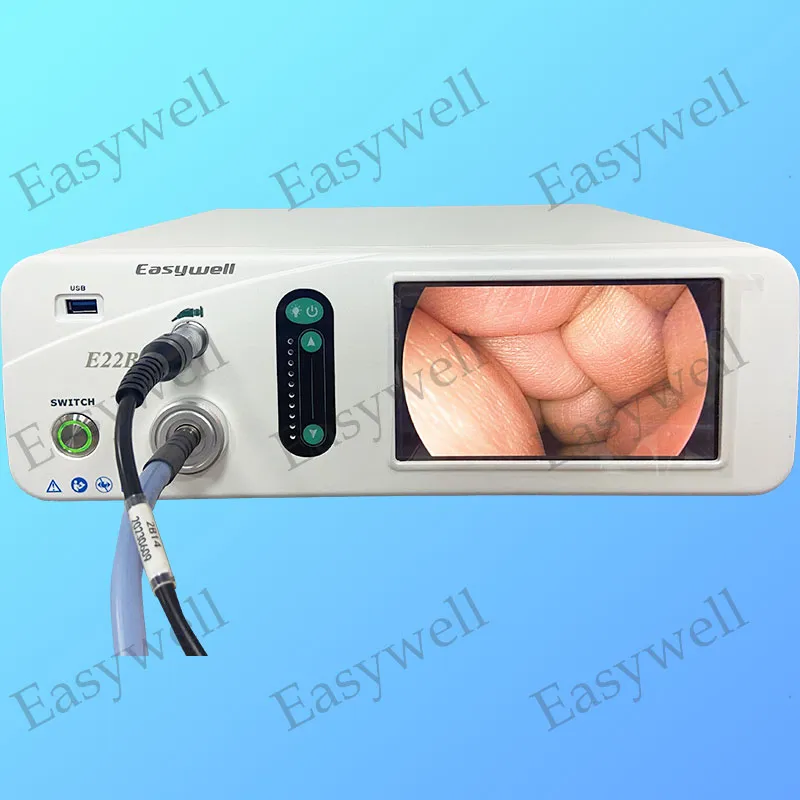

Endoscopic Image System 2
Endoscopic Image System 3
🚀 Key Features & Technical Parameters
Models E22A / E22B Touch Screen 7 inch (E22B display)
Image sensor 1/2'' COMS Storage U disk or Hard disk
Resolution 1920x1080p Coupler F=25mm (Standard), F=18/35mm (Option)
Color Temp 3500k/6500k/7500k Photograph 2 megapixel JPG
Video Output HD-SDI, HDMI, USB, DVI, CVBS Recording 1920x1080p
LED Life Span 50,000 Hours Illumination > 2,000,000 Lux
Net Weight 5.8 kgs CRI > 90
🖥️ System Configurations

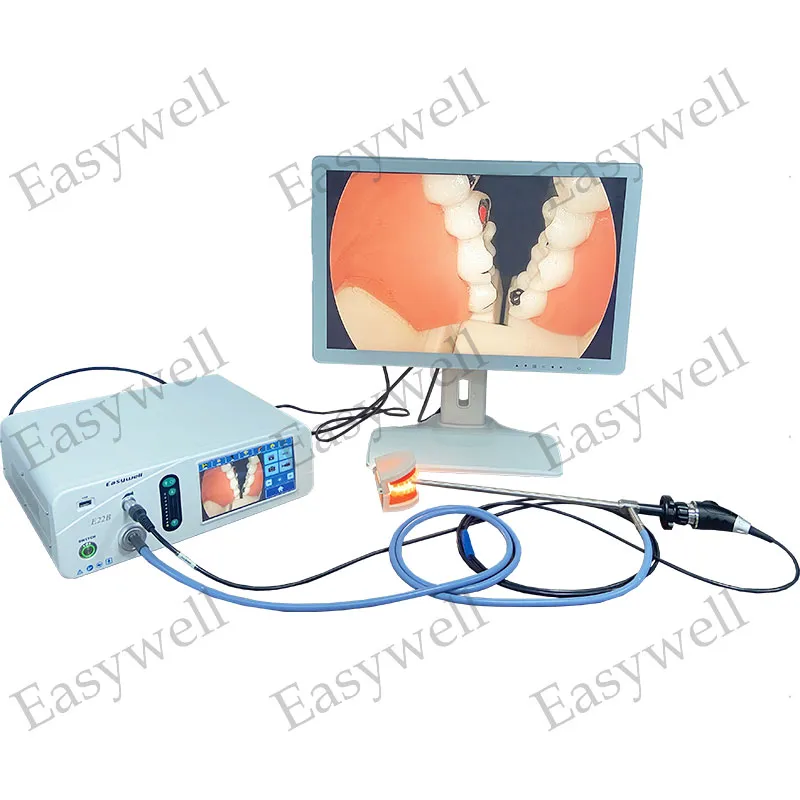

System with monitor 1

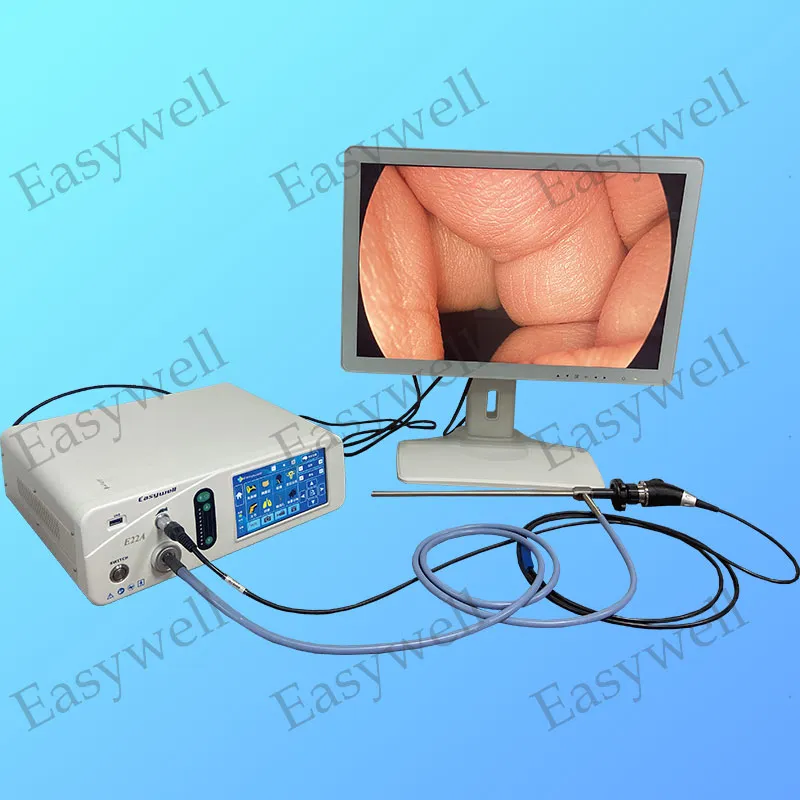

System with monitor 2

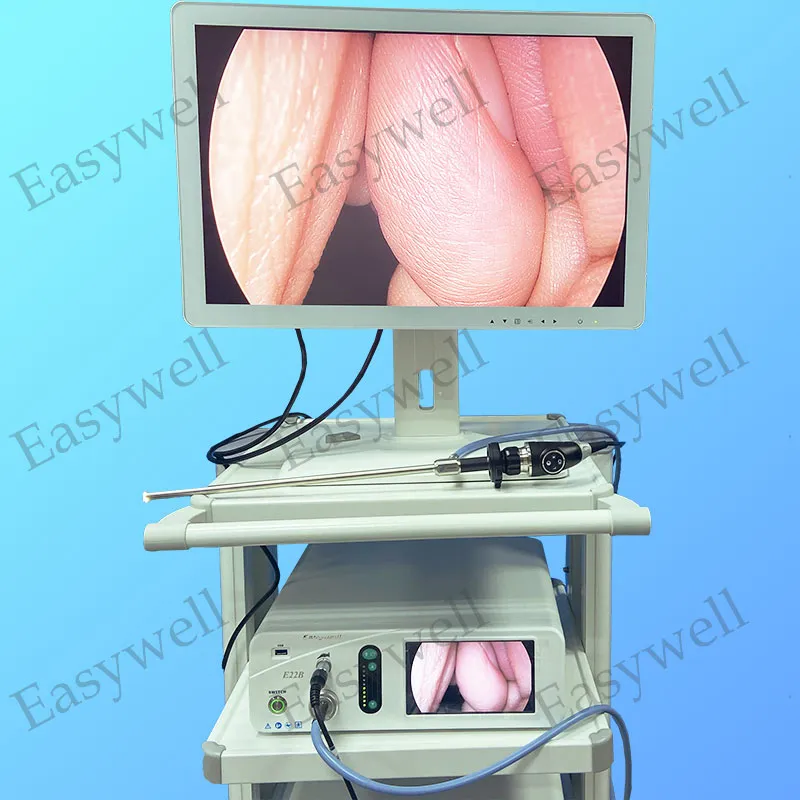

System with trolley 1

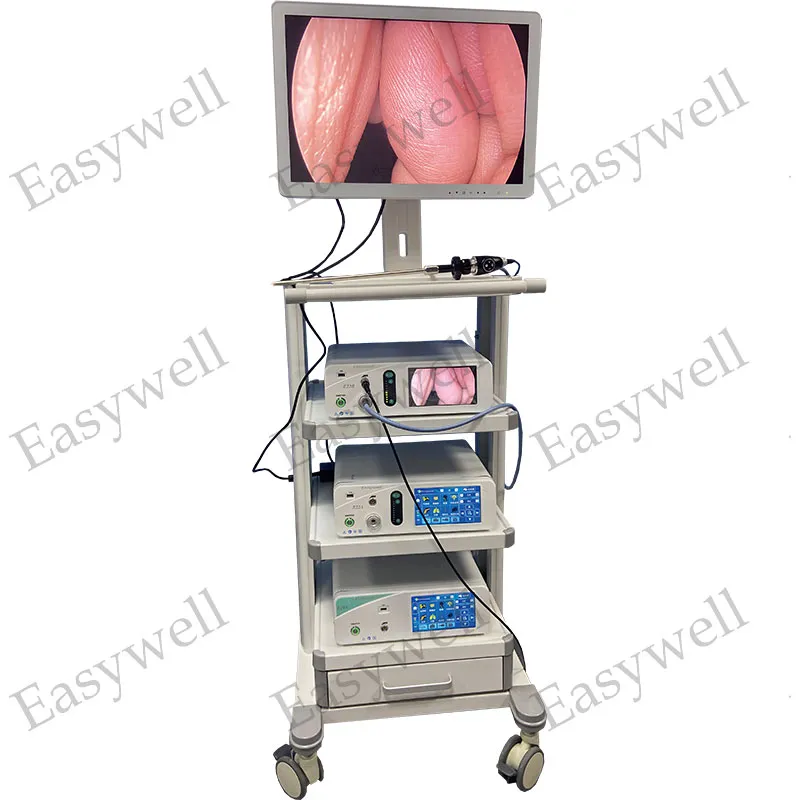

System with trolley 2
📜 Certificate of Quality
Quality Certificate 1
Quality Certificate 2
❓ Frequently Asked Questions
What is the maximum resolution of the E22B endoscope camera?
The E22B system supports Full HD 1080P resolution (1920 x 1080 pixels) for both video recording and photography.
How can I store the recorded surgical videos and images?
The system supports multiple storage options including U-disks, mobile hard disks, and SD cards via the integrated USB ports.
What are the available video output interfaces?
It provides versatile connectivity with HD-SDI, HDMI, USB, DVI, and CVBS outputs, making it compatible with various medical monitors.
Does the camera head have waterproof protection?
Yes, the camera head is IPX8 waterproof rated, allowing for standard disinfection and safe use in surgical environments.
What is the lifespan of the integrated LED light source?
The high-intensity LED light source is designed for long-term use with an estimated life span of approximately 50,000 hours.
What is the difference between E22A and E22B models?
The E22B model specifically features an integrated 7-inch touch display for output and control, whereas the base model focuses on external output.
