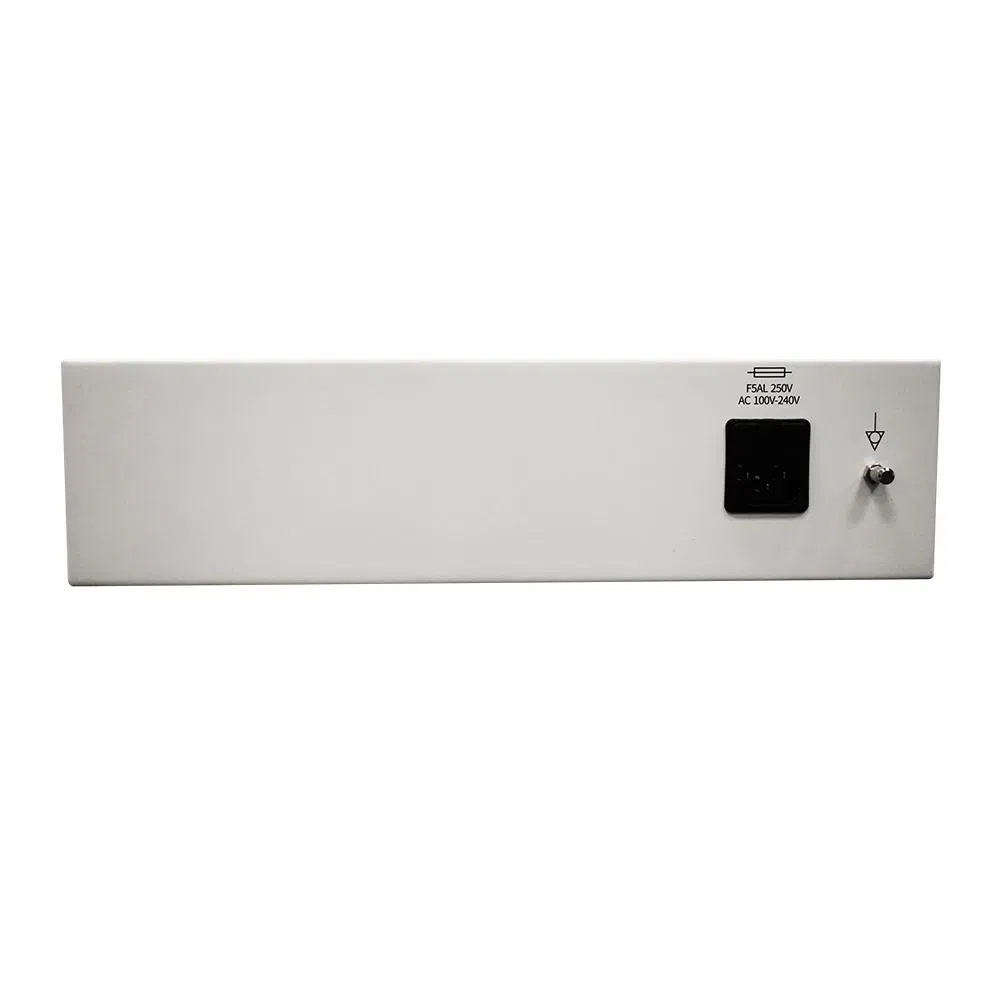

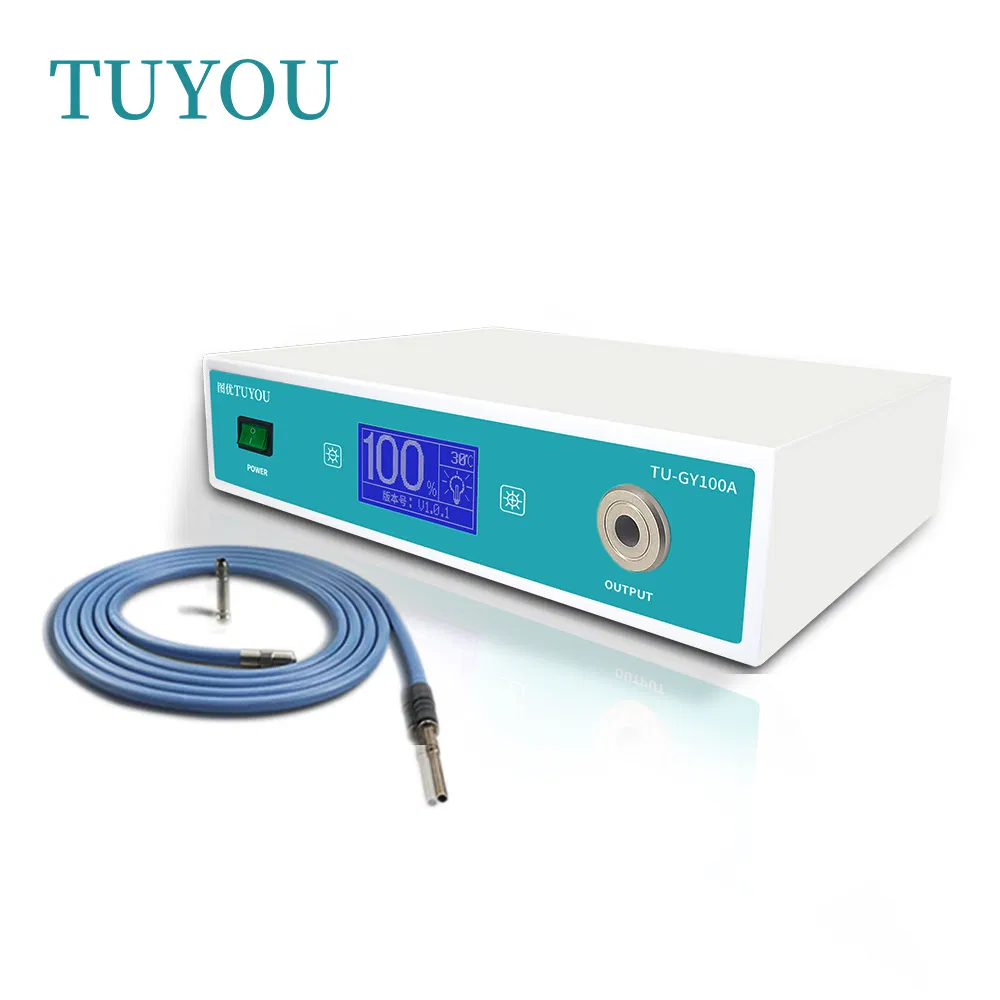

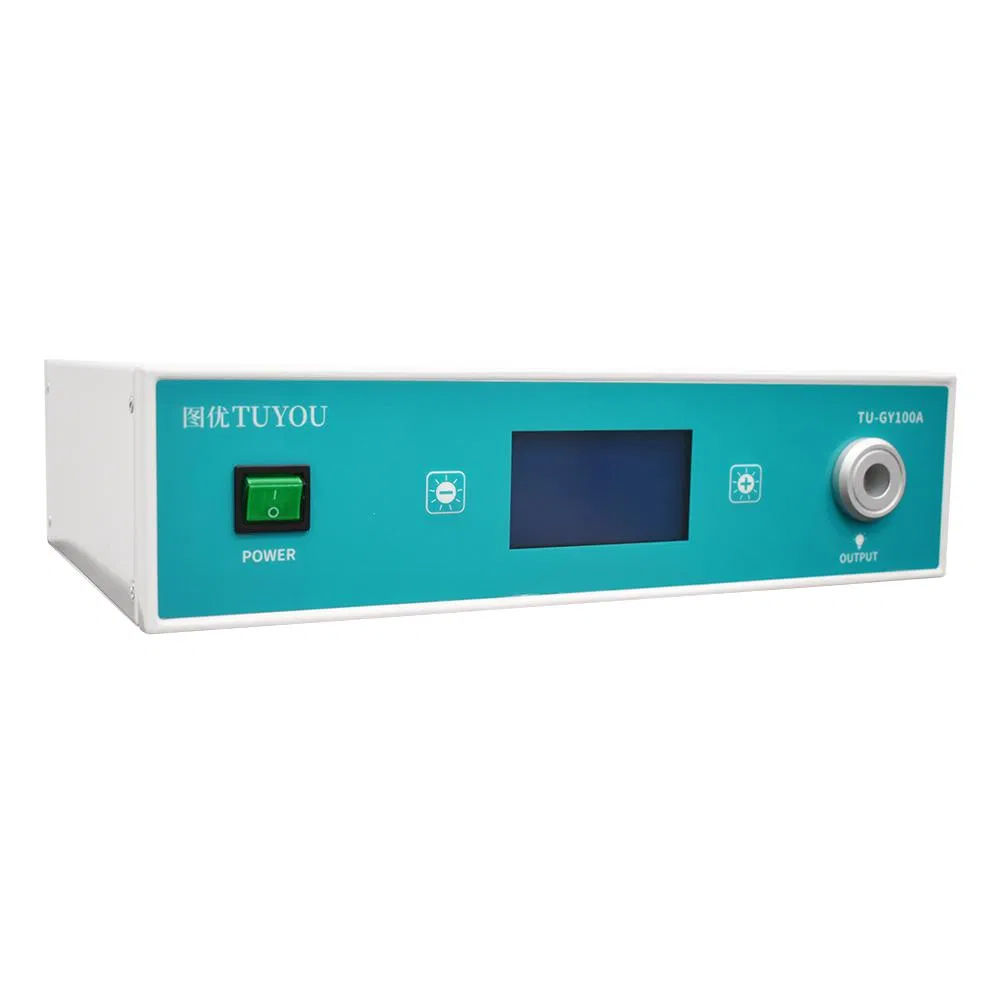

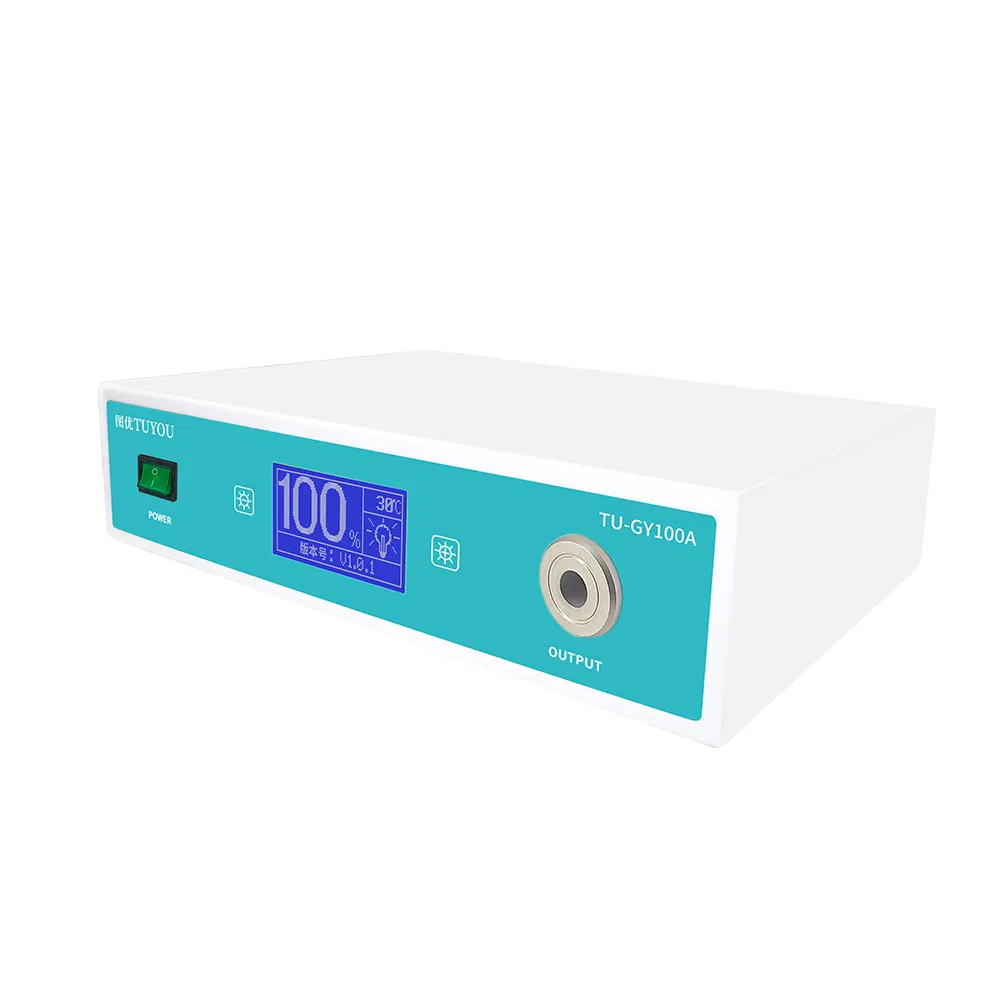

Medical Endoscopic 100W LED Cold Light Source for Physical Examinatiojn Surgery

Customization:	Available
Classification:	Medical Light Source
Type:	Endoscopy Light

■

Basic Information

Model NO.

TU-GY100A

Certification

CE, FCC

Transport Package

Carton

Specification

36*30*16cm

Trademark

TUYOU

Origin

China

Production Capacity

500,000 PCS/Year

■

Product Parameters

Endoscope LED Light Source Parameters (Model: TU-GY1001A)
Light Type	LED
Light Source Rated Power	100W
Illuminance	400W LUX
Color Temperature	5800-6500K
Brightness Adjustment	Support 0-100
Light Emitting Area (m²)	7.7
Color Rendering Index (CRI)	80/92
Light Source Maximum Current	13A
System Power	220V
Operating Temperature	-10ºC to 60ºC
Lifetime	30,000h
Size	L336W330H116mm

■

Product Description & Features

Product Composition:

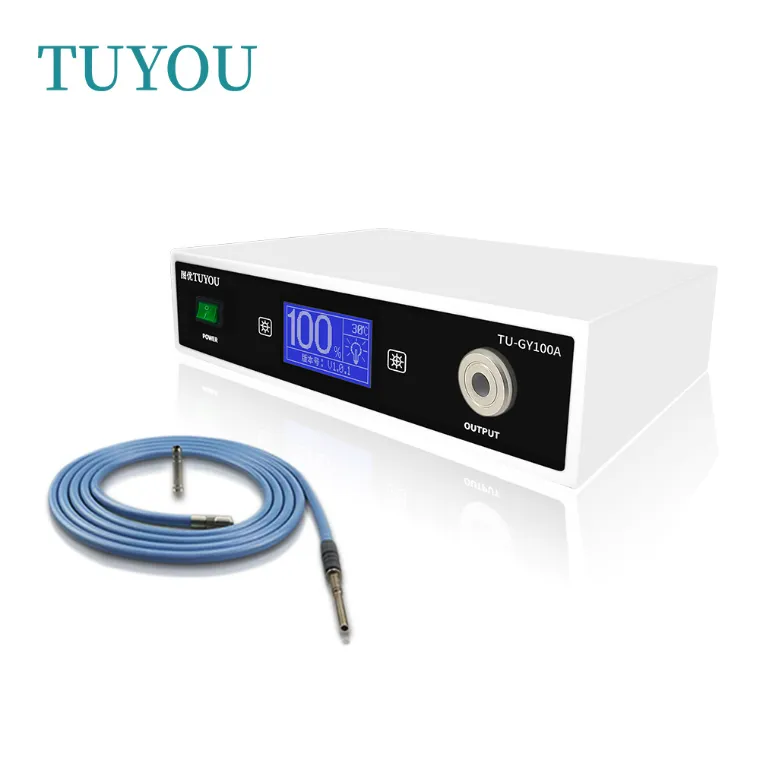

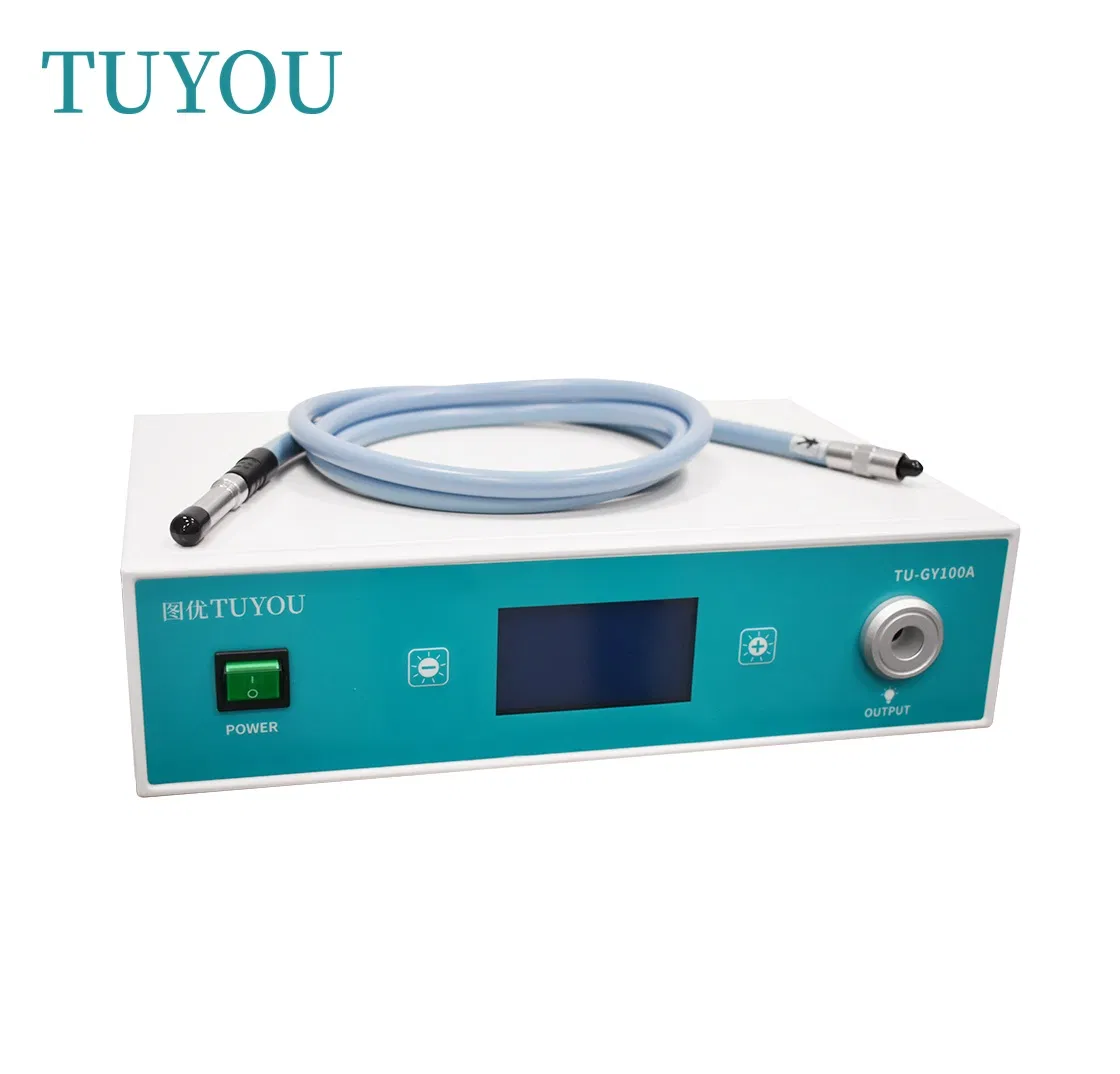

The endoscope cold light source is composed of a power module, a light source control system, an LED light source module and a light guide.

Key Features:

Built-in LED cold light source, 100-level adjustable, with memory function.
Long service life of more than 30,000 hours.

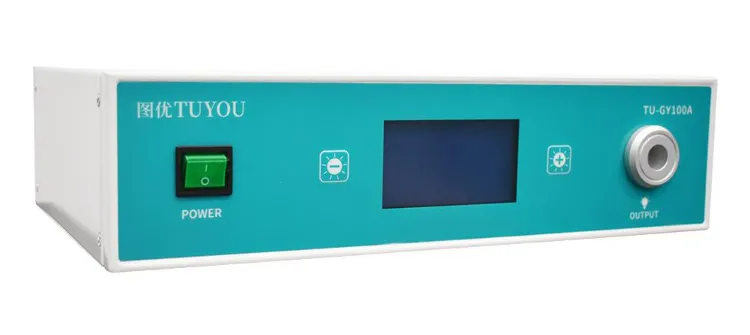

Knob adjustment with digital display for quick light source control.
Button sleep mode and strong anti-interference capability.

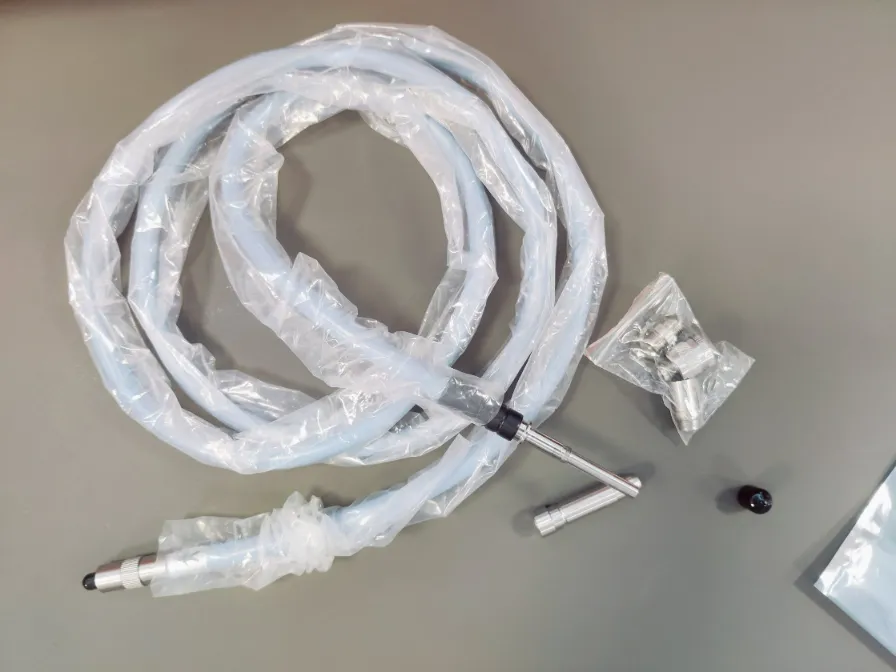

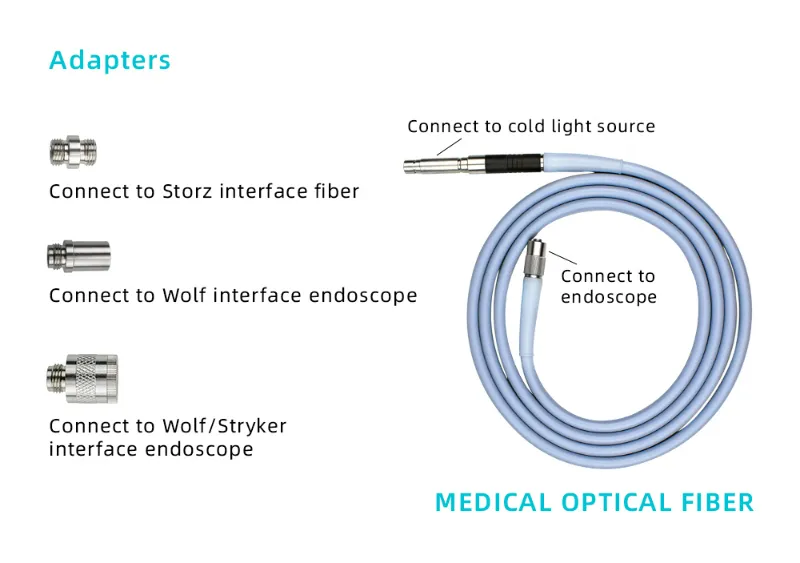

High-temperature resistant and durable light guide.
Latest LED chip with color rendering index (CRI) up to 92.
Luminous flux up to 900lm.
Output hole diameter: 10mm ± 0.1mm.

■

Manufacturing Excellence

We are a high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in independent production and R&D of video products, we have completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems, as well as disposable flexible endoscope series products.

Our facility features an advanced medical-grade environmental protection plant covering more than 2,000 square meters. We have won numerous national product R&D patents and passed international quality systems including CE, FCC, and RoHS certifications. We are committed to providing global customers with advanced, high-quality, and cost-effective endoscopic medical holistic solutions.

■

Certifications & Packing

■

Frequently Asked Questions

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made by our workers.

Q: Can you visit the factory?

A: Yes, you are welcomed to visit our factory located in Shenzhen City, Guangdong Province, China.

Q: Can you accept OEM?

A: Yes, we offer our own brand, but we can also provide professional OEM services according to your needs.

Q: What's your delivery time?

A: It will be delivered within 7 working days upon your payment. Samples are typically ready-made and available quickly.

Q: What is the warranty policy?

A: The free warranty period is two years. If there is any fault with our products during this period, we will repair or change the fault assembly for free.

Q: What are the payment terms?

A: We accept payment by T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash, etc.
