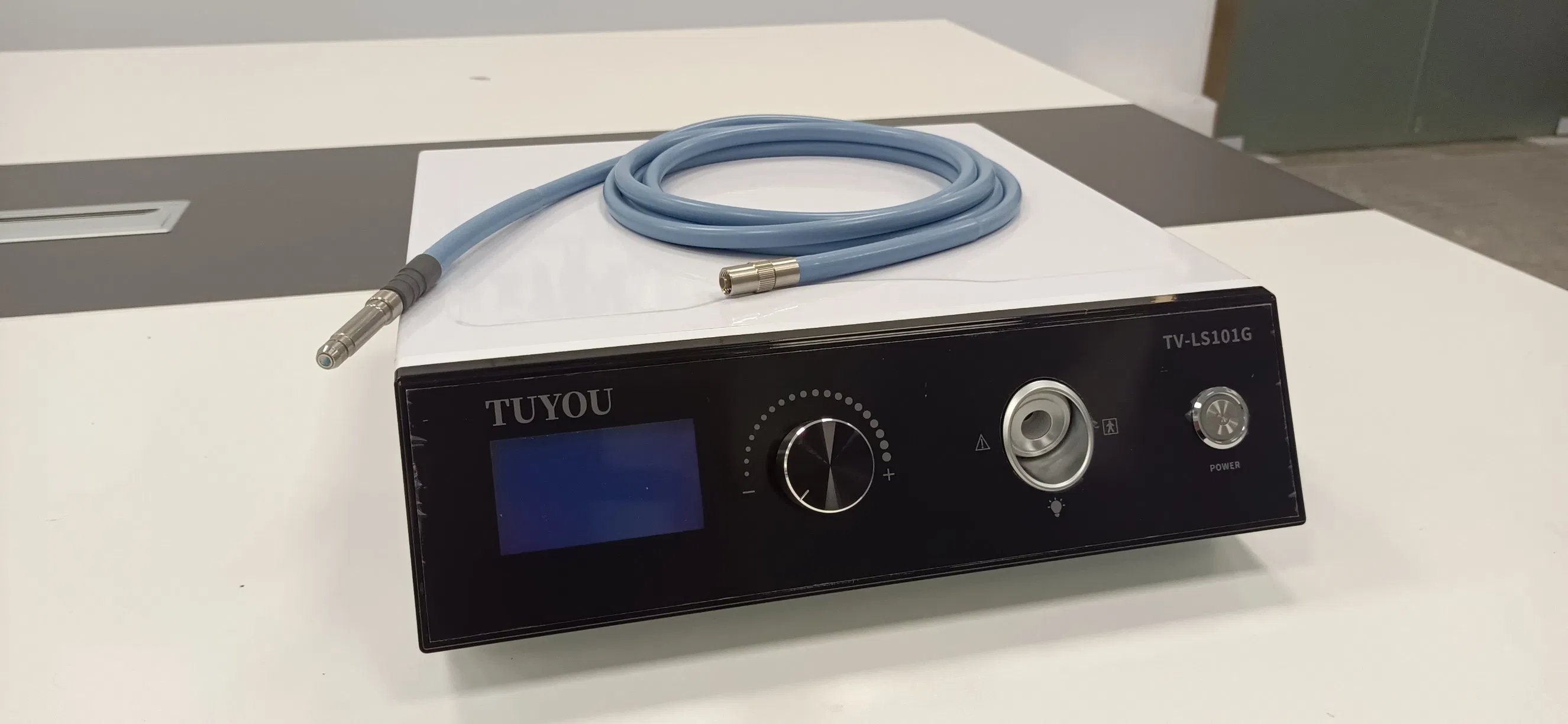

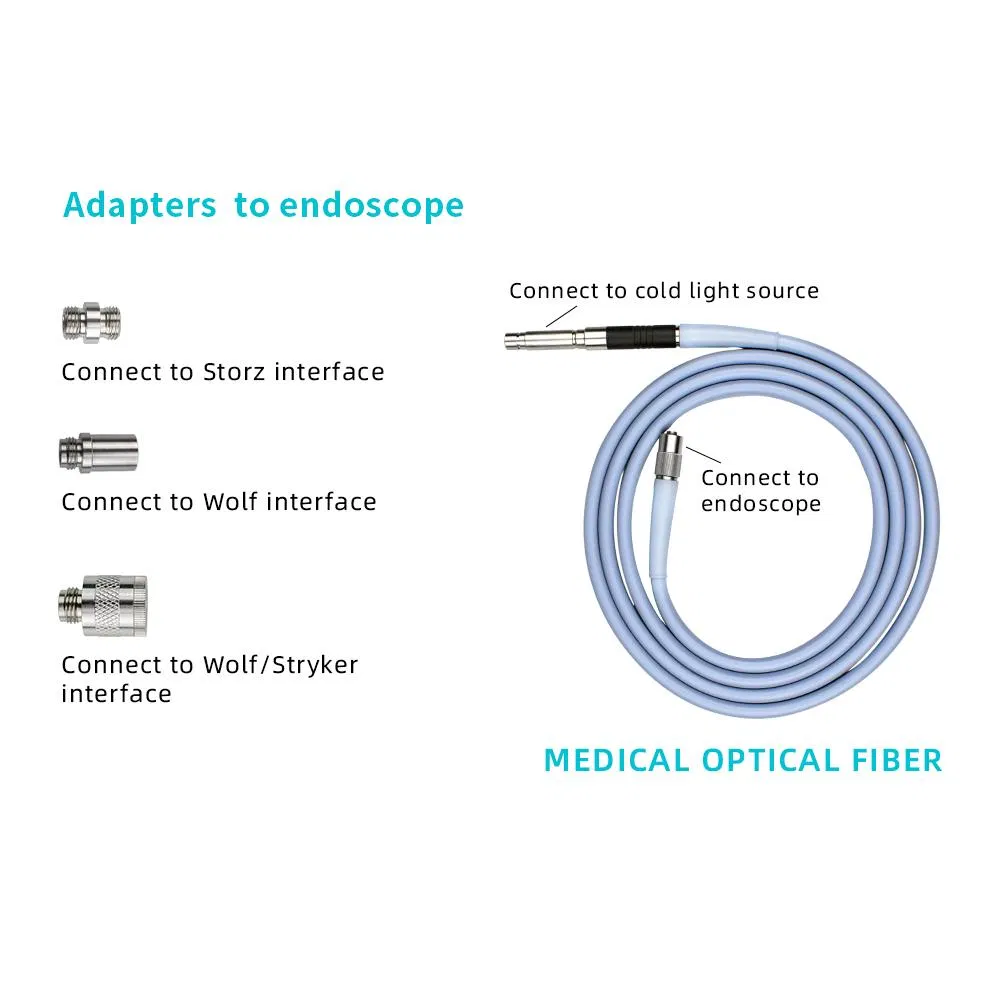

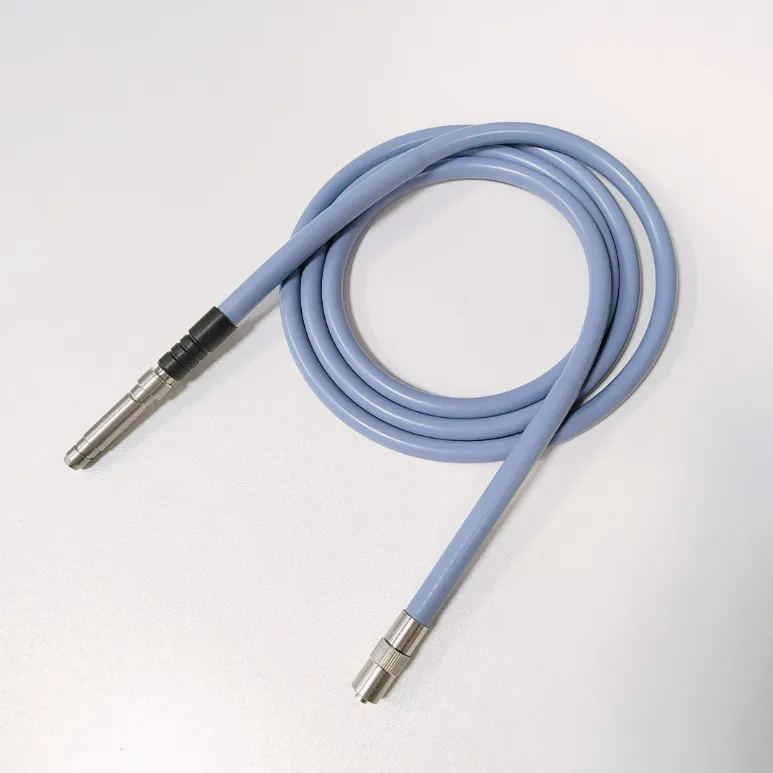

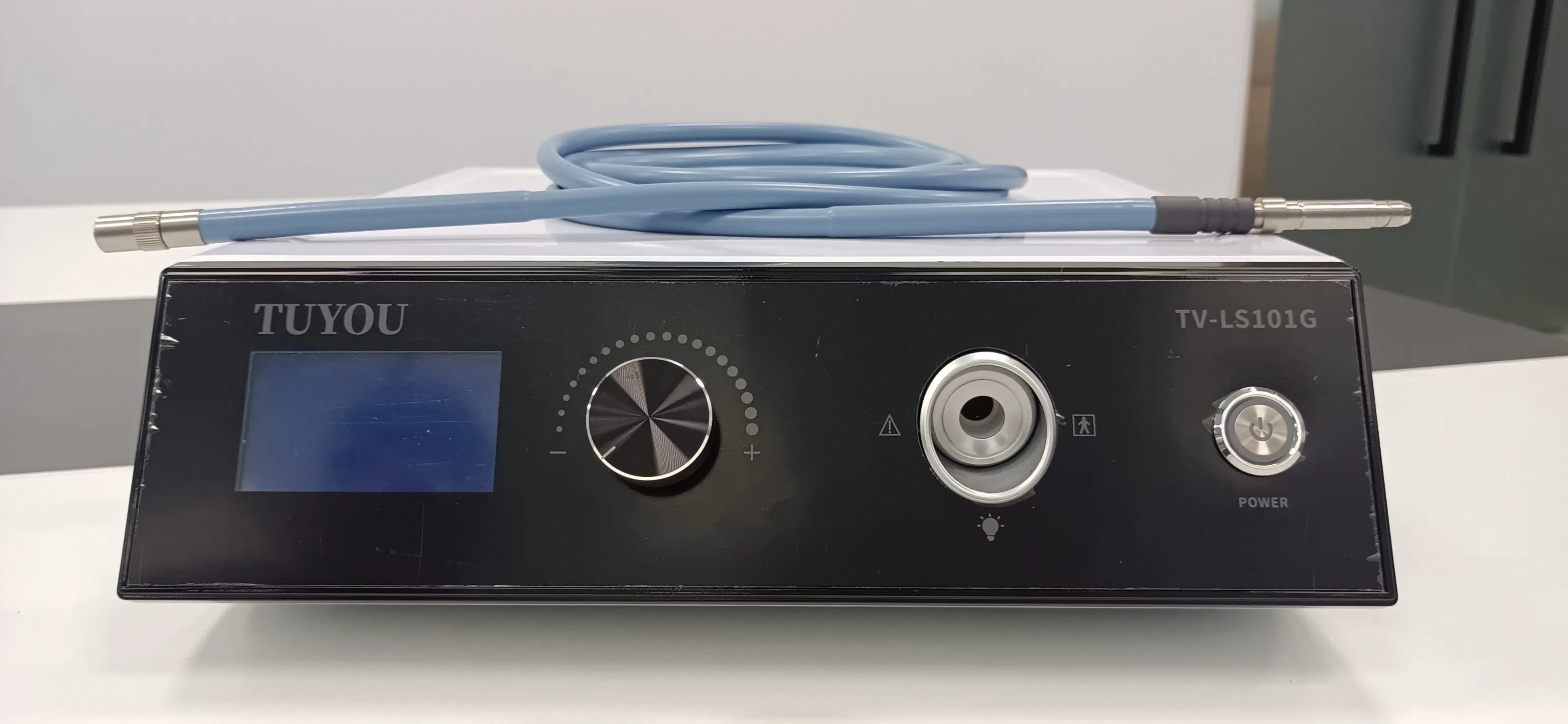

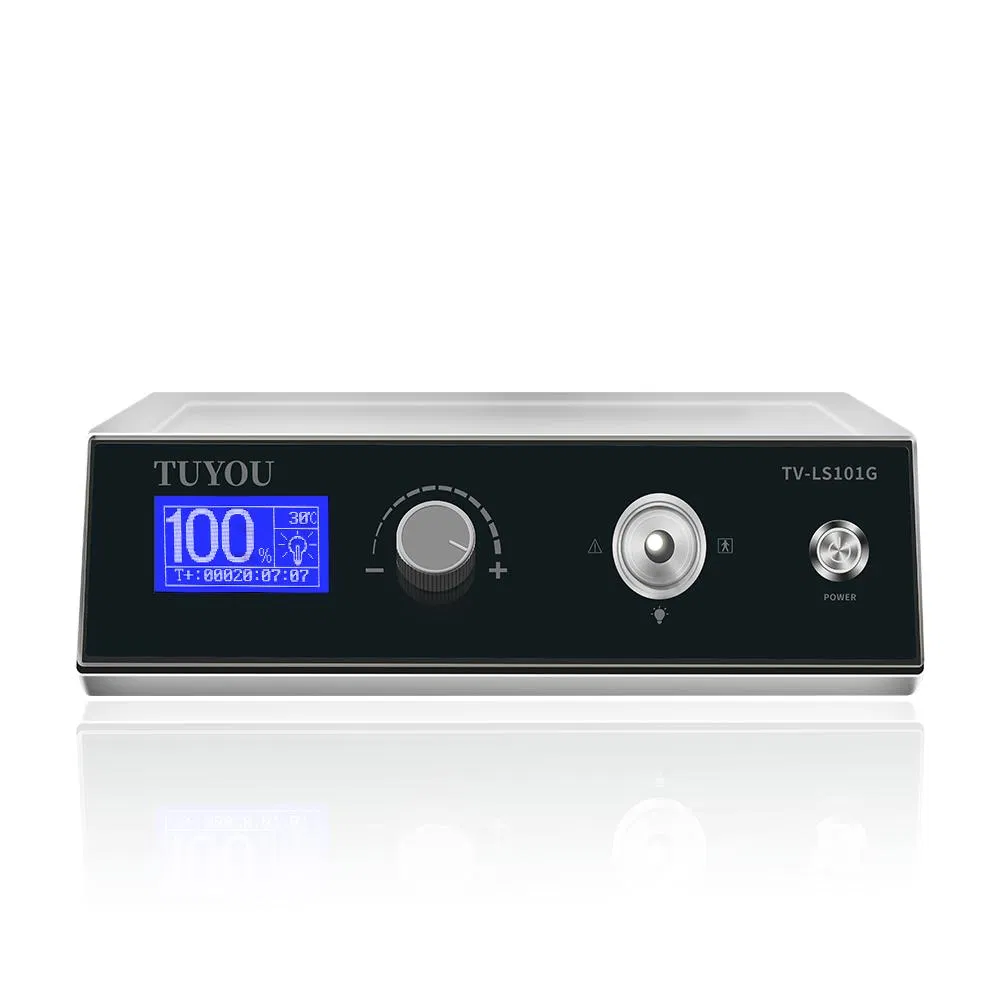

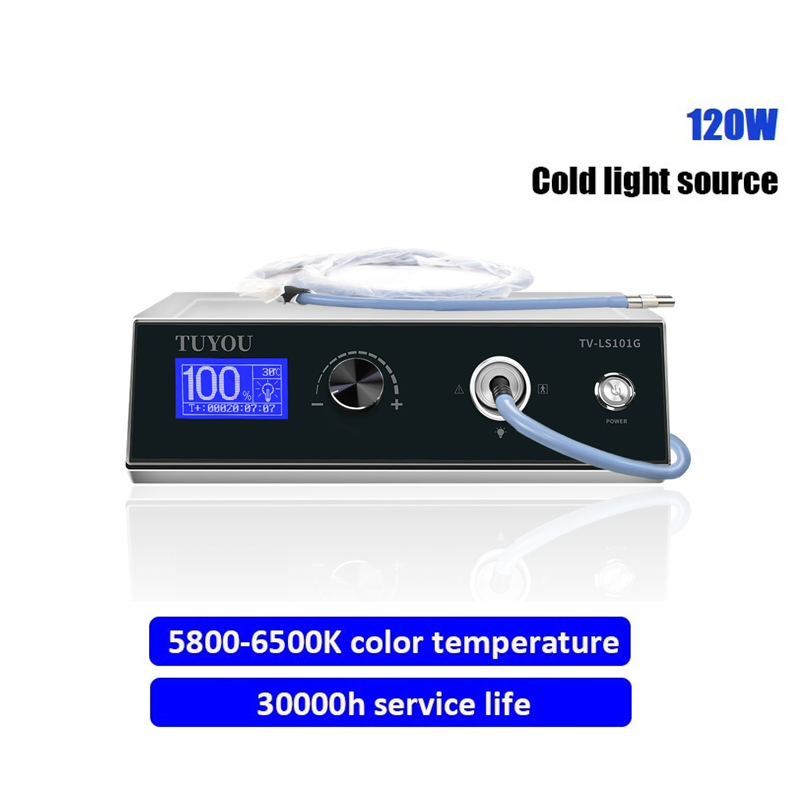

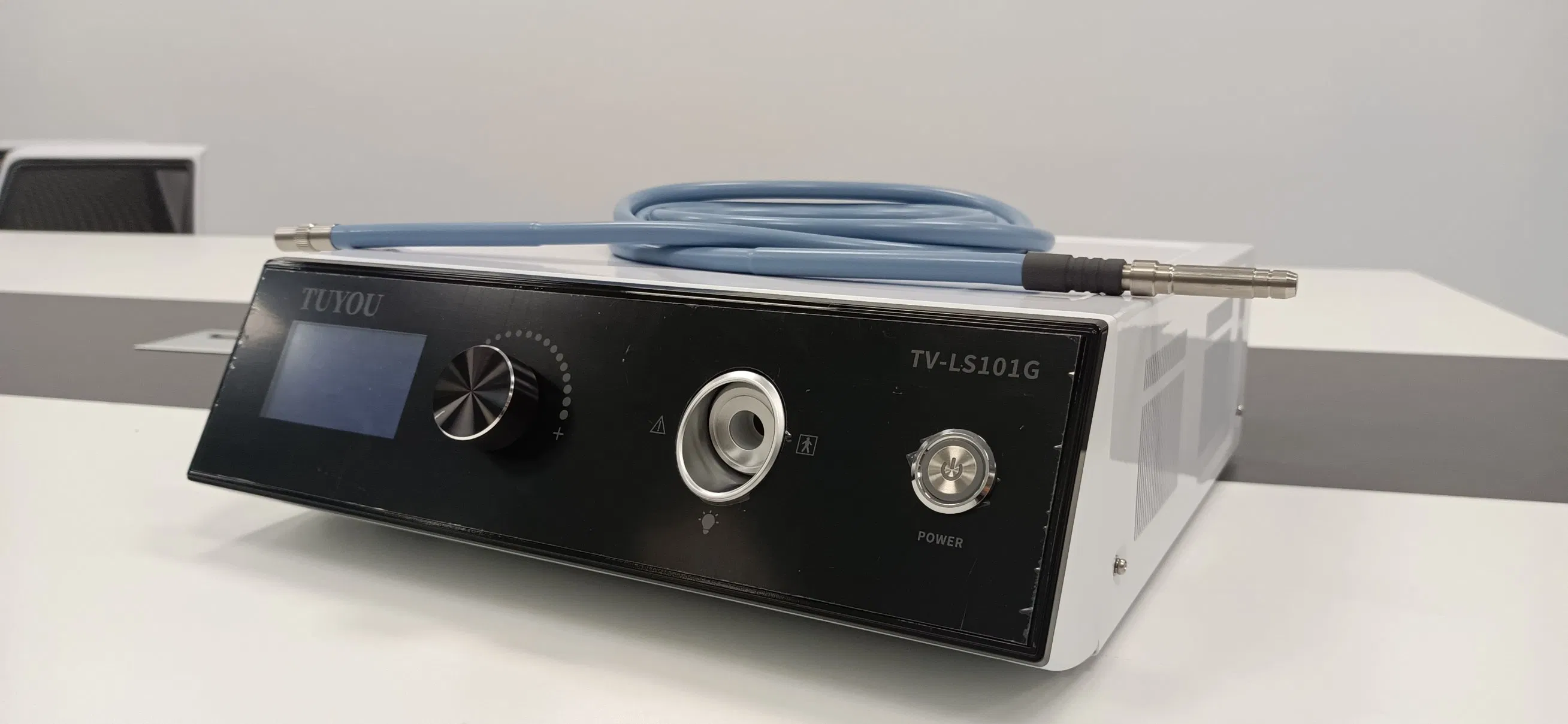

The endoscope cold light source is composed of a power module, a light source control system, an LED light source module and a light guide.
Built-in LED cold light source, 100-level adjustable with memory function.
The service life of the LED module is more than 30,000 hours.
Knob adjustment, digital display, button sleep mode, and strong anti-interference.
CRI: 92; Luminous flux: 900lm; Output hole: 10mm±0.1mm.
| Endoscope LED Light Source Parameters | |
|---|---|
| Light Type | LED |
| Light Source Rated Power | 100W |
| Illuminance | 400W LUX |
| Color Temperature | 5800-6500K |
| Brightness Adjustment | Support 0-100 |
| Light Emitting Area (m²) | 7.7 |
| Color Rendering Index CRI | 80/92 |
| Light Source Maximum Current | 13A |
| System Power | 220V |
| Operating Temperature | -10ºC to 60ºC |
| Lifetime | 30000h |
| Size | L336*W330*H116mm |
| Weight | 5.5KG |
A high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in video products, we have completed SD, HD, 2K, 4K, fluorescence and other endoscope image and video systems.

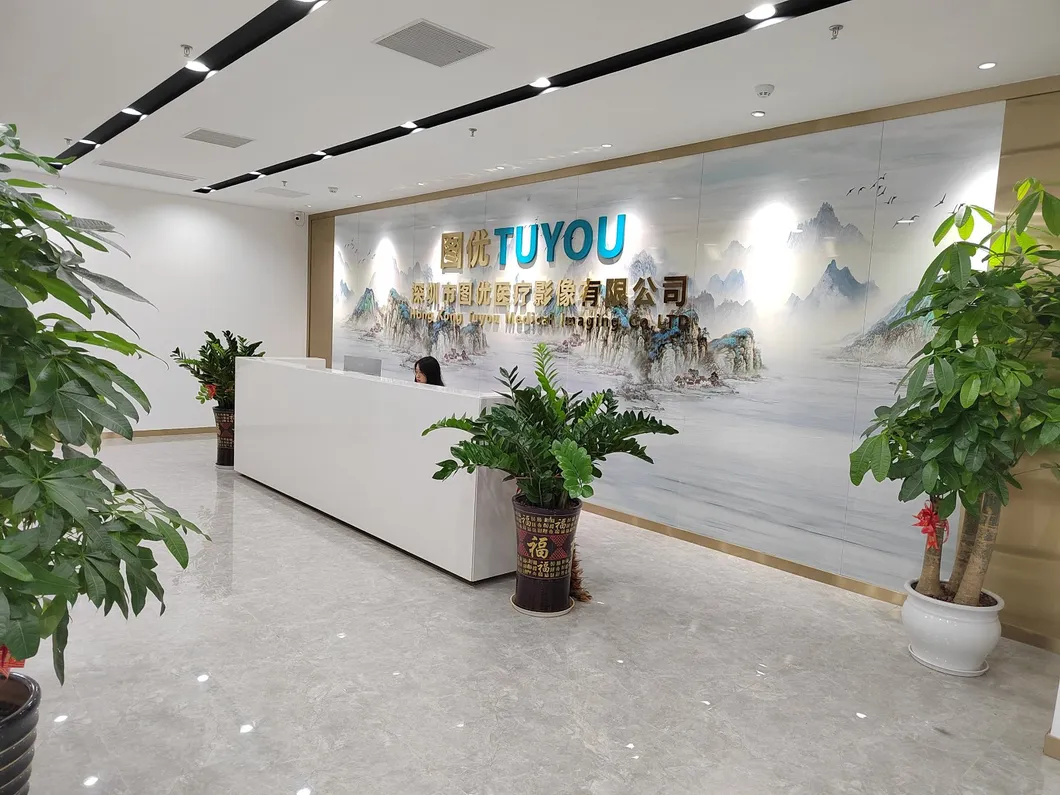

Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, holding a number of national product R&D patents. We have passed international quality systems including CE, FCC, and ROSH certifications, providing OEM/ODM services for numerous well-known enterprises.
