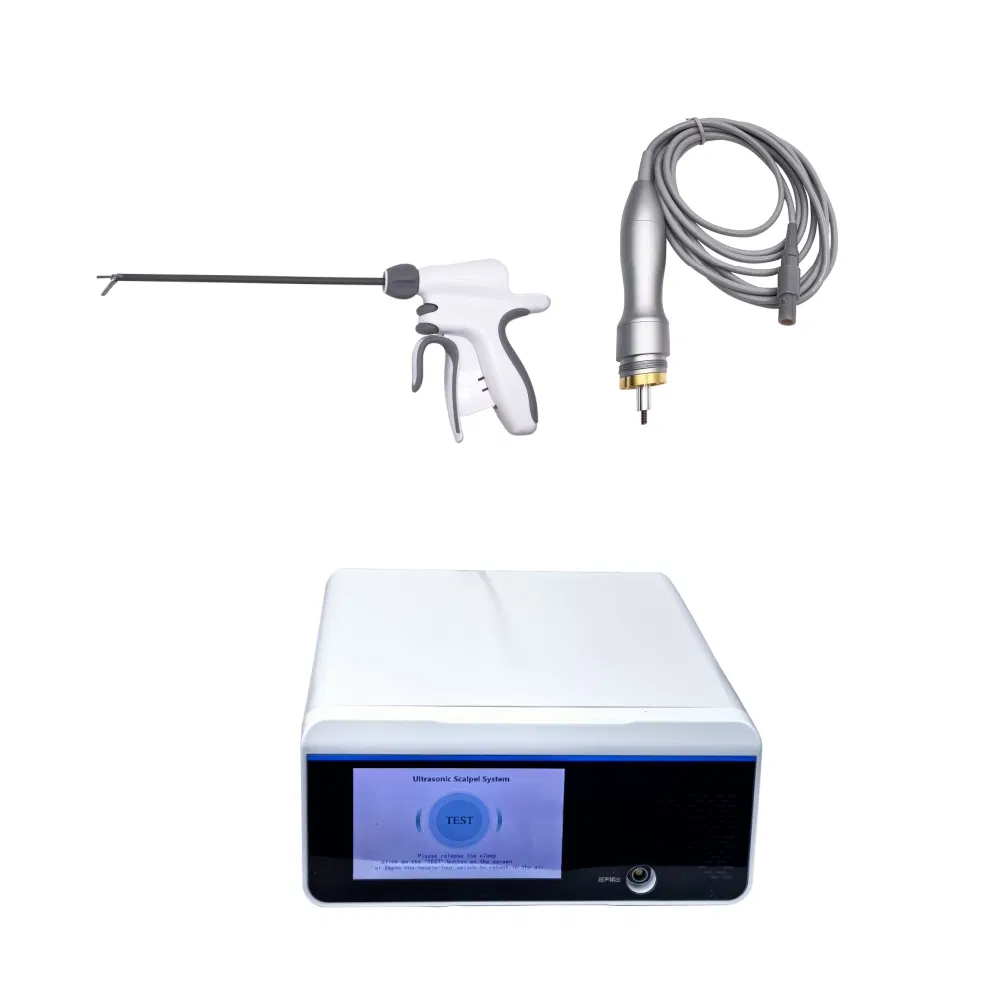

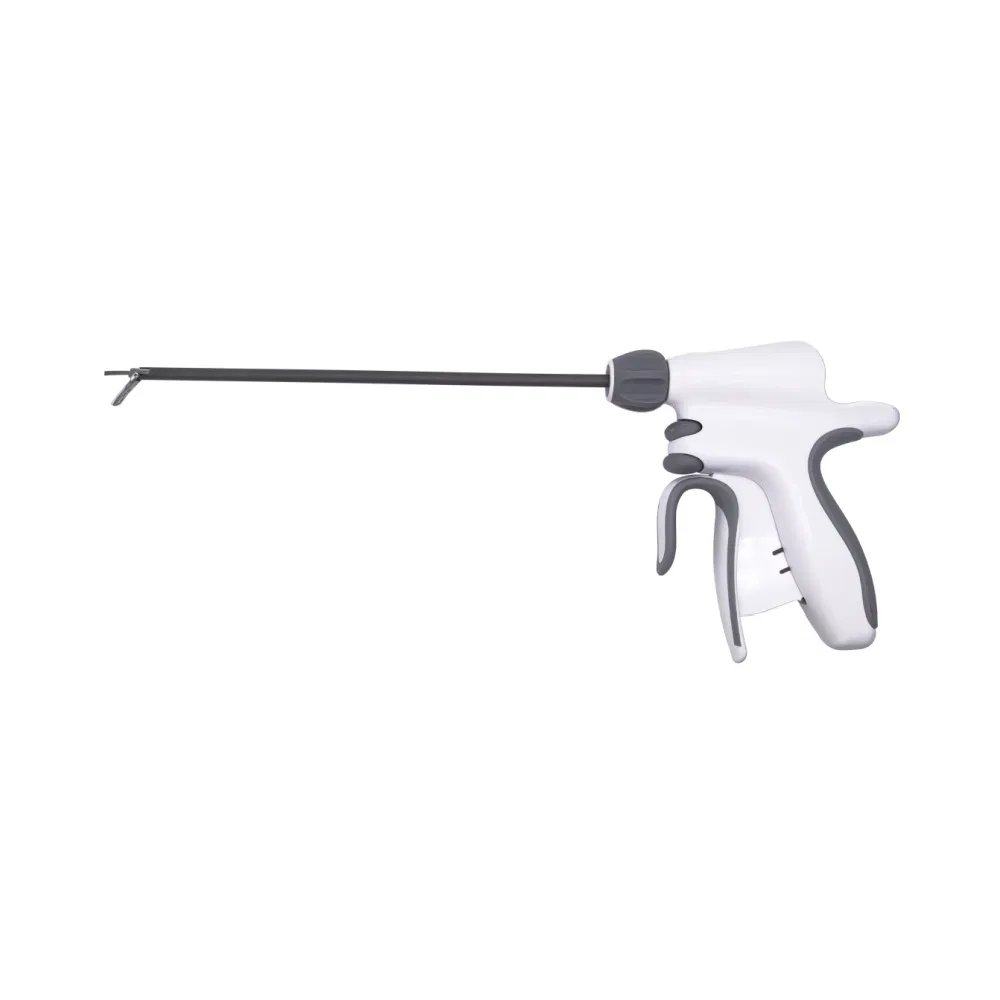

WYHS36S Series cutter head with manual button, connected with the main machine, transducer, rotary knob and torque wrench integrated.
Types according to length: WYHS36S (Laparoscopic), WYHS23S (Open surgery), WYHS14S (Superficial surgery).
Compatible host: W500, GEN04, GEN11. Disinfection: supports 134ºC high temperature.
Input voltage: AC 90V to 240V | Frequency: 50/60Hz | Driving frequency: 55.5KHz | Power: 300VA max.
Interfaces: Foot switch WYFS01/GEN300, Transducer WYST09G/HP054/HPBLUE.
Product Codes: WYSS09G, WYSS17G | Handpiece: WYSP35 | Shaft Length: 9mm, 17mm | Jaw: Curved | Vessel Indication: ≤5mm and lymphatics.

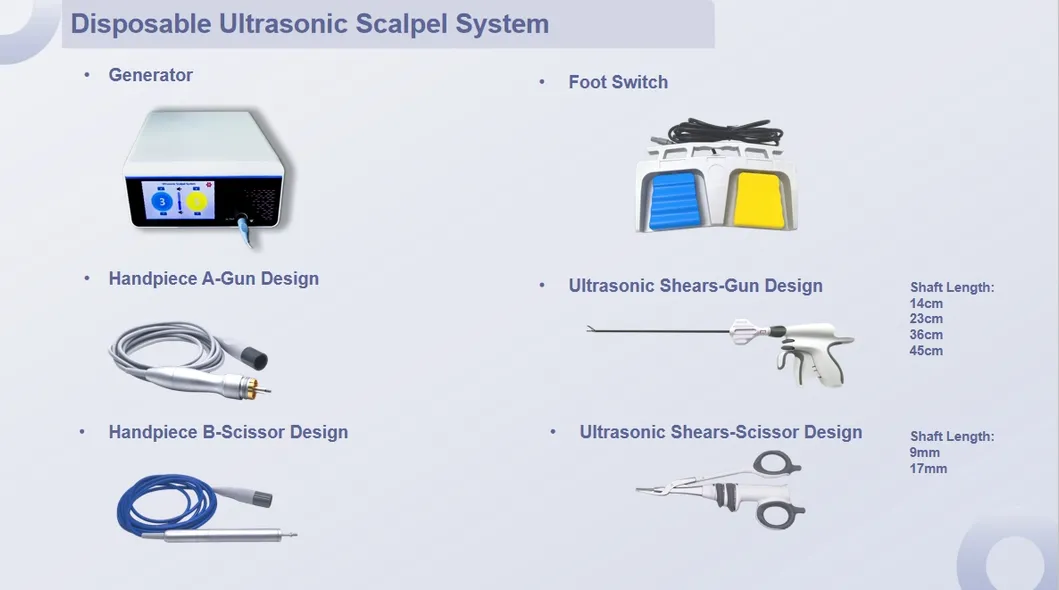

| Name | Product Code | Description |
|---|---|---|

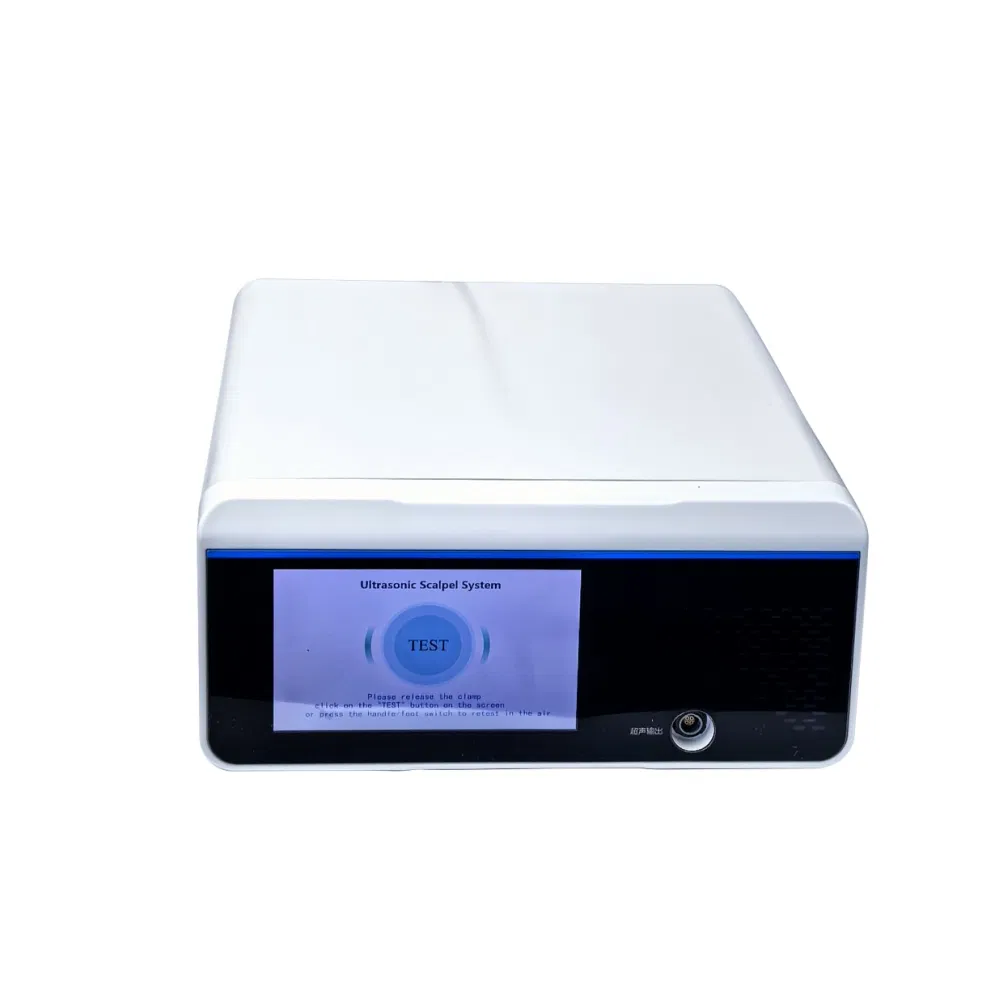

| Generator/Host | W500 | AC 90V-240V, 55.5KHz, 300VA |
| 14cm Shears | WYHS14S | Gun design, Diameter 5mm, Shaft 140mm |
| 23cm Shears | WYHS23S | Gun design, Diameter 5mm, Shaft 230mm |
| 36cm Shears | WYHS36S | Gun design, Diameter 5mm, Shaft 360mm |
| 9cm Shears | WYSS09G | Scissor design, Length 9cm |
| 17cm Shears | WYSS17G | Scissor design, Length 17cm |

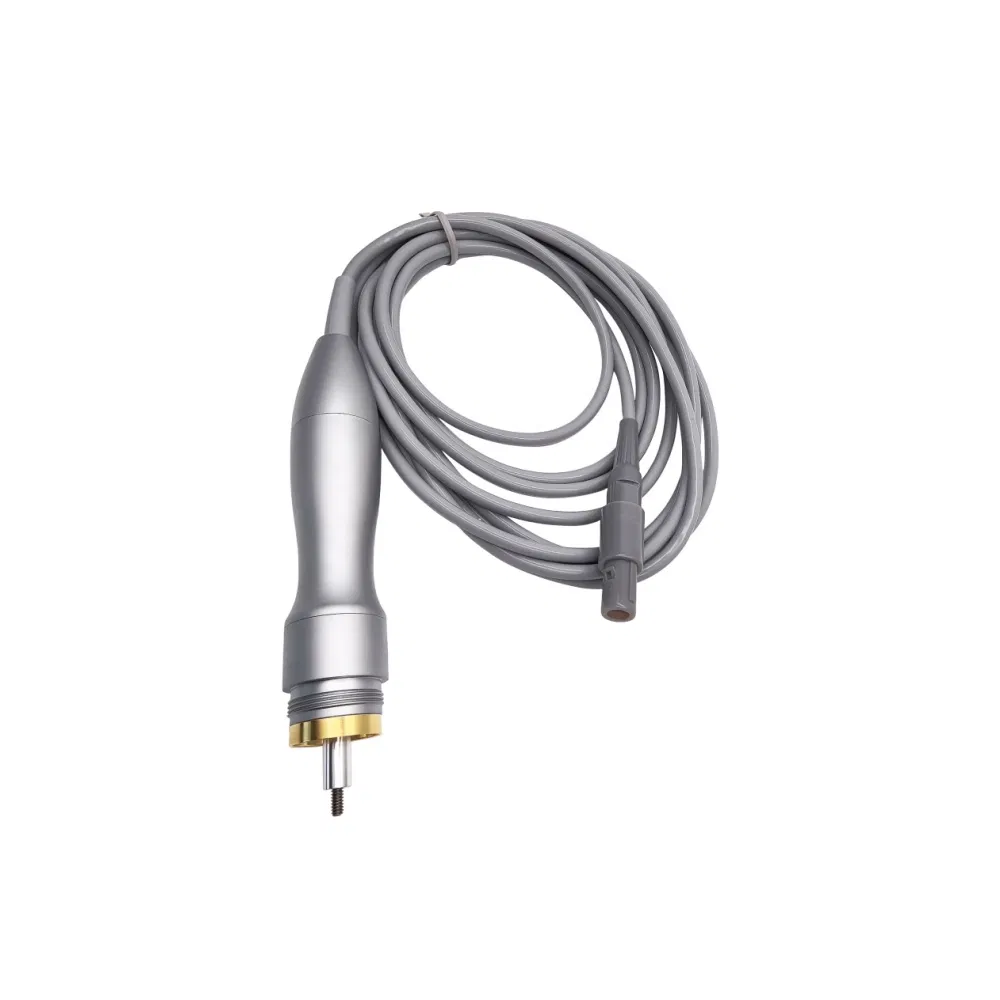

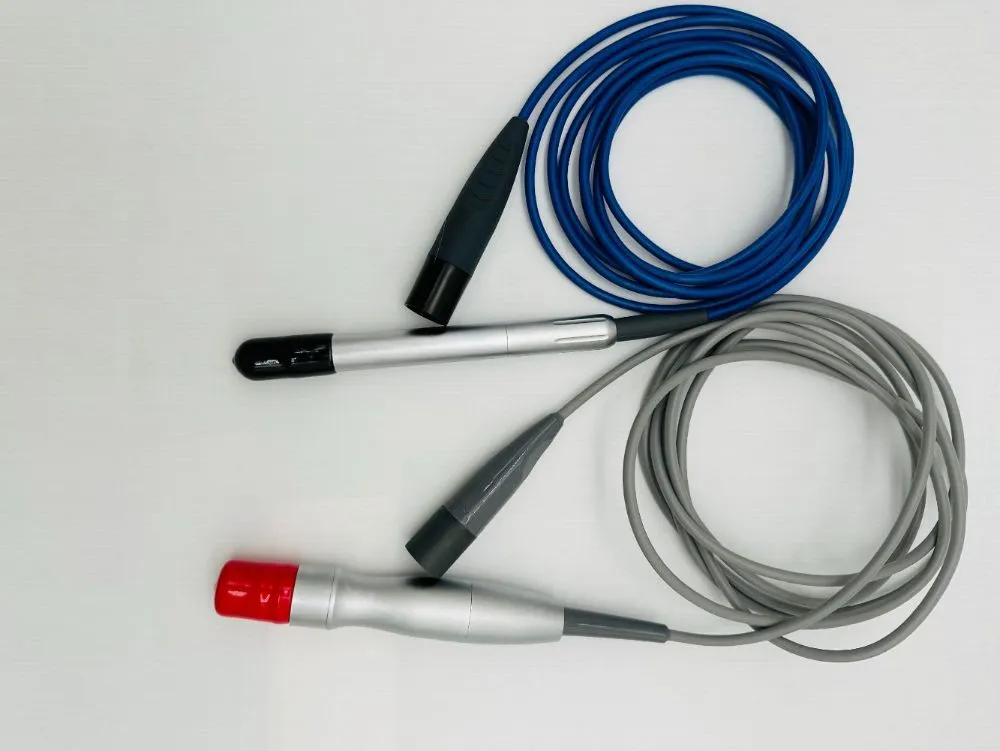

| Transducer A | WYHP35 | Handpiece for gun design, 55.5 KHz |

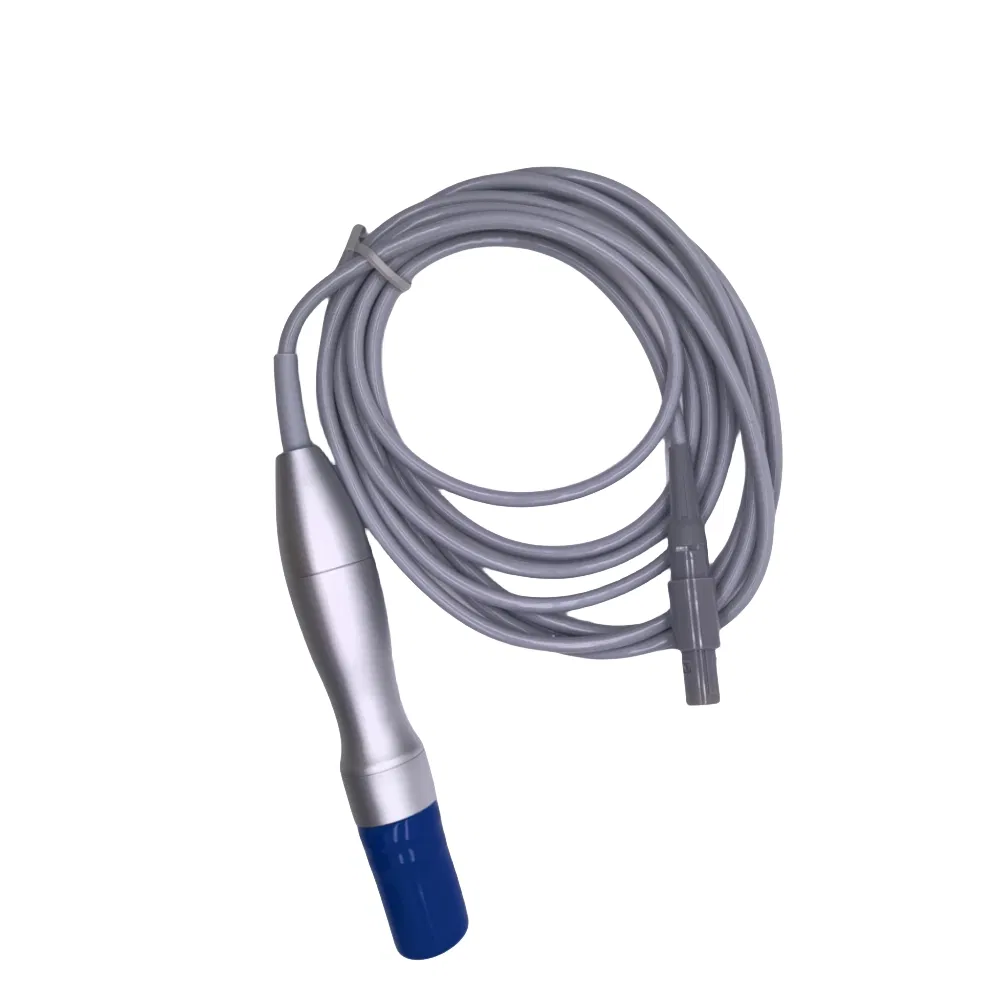

| Transducer B | WYSP35 | Handpiece for scissor design, 55.5 KHz |
| Specifications | Open & Laparoscopic | Open Only (9mm) | Open Only (17mm) |
|---|---|---|---|
| Matching Generator | GEN04, GEN11 | GEN04, GEN11 | GEN04, GEN11 |
| Shaft Length | 14-45mm | 9mm | 17mm |
| Jaw Type | Curved | Curved | Curved |
| Vessel Indication | ≤7mm | ≤5mm | ≤5mm |
