24 Inch Medical Grade Full HD Endoscope Monitor for Ent

Basic Information

Model NO. EC2240-2

Trademark N&C

Origin Guangdong

Production Capacity 300 Unit/Month

Product Overview

24 inch Surgical Medical Monitor with 1920X1200 Full HD resolution, satisfying endoscopic equipment and high-definition field photography High-end display requirements for cameras. White and dust-free in appearance design, the metal closed design also effectively prevents dust and surgery Liquid contamination in process. Configure professional video processing chip, with a variety of GAMMA curves, different interface modes, true Meet the various needs of endoscopic clinical diagnosis and surgical treatment.

✨ Key Features:

✓ True color re-production and delicate picture quality.

✓ Full viewing angle display (178 degree H/V).

✓ Long-term continuous and stable work capability.

✓ Compliance with international medical standards.

✓ Antibacterial treatment and waterproof design.

Technical Specifications

Parameter	Details
Screen Size	24 inch
Resolution	1920*1200 (16:10)
Brightness	300 cd/m²
Contrast	1000:1
Response Time	<14ms
Hue	16.7M

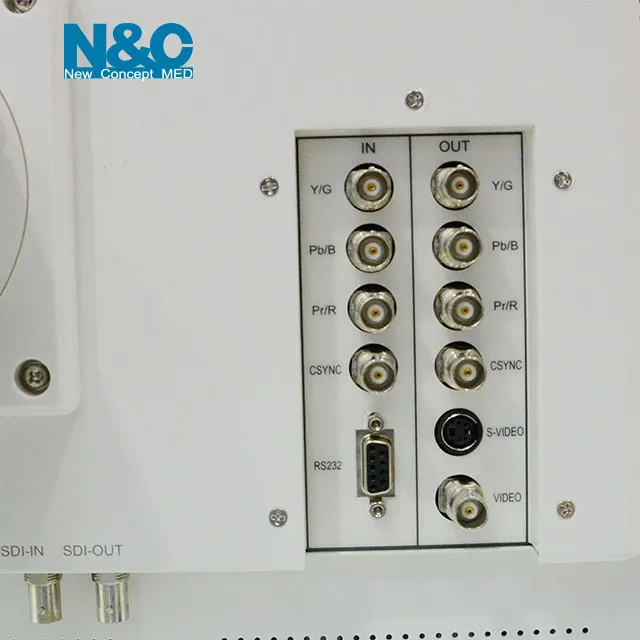

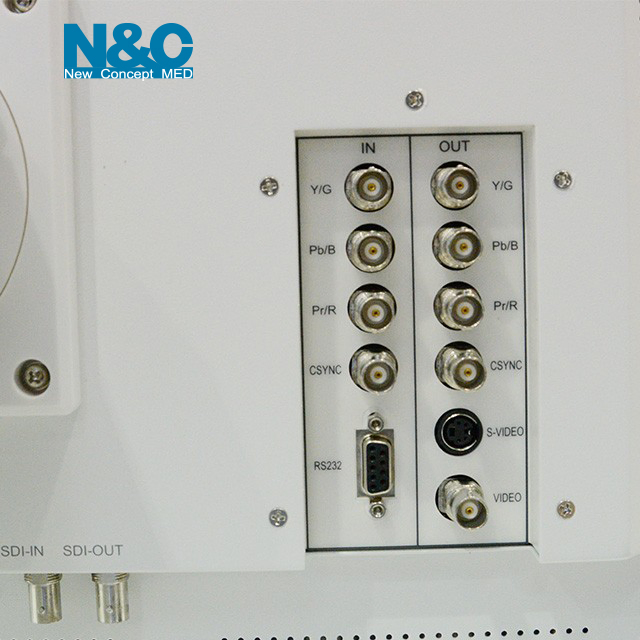

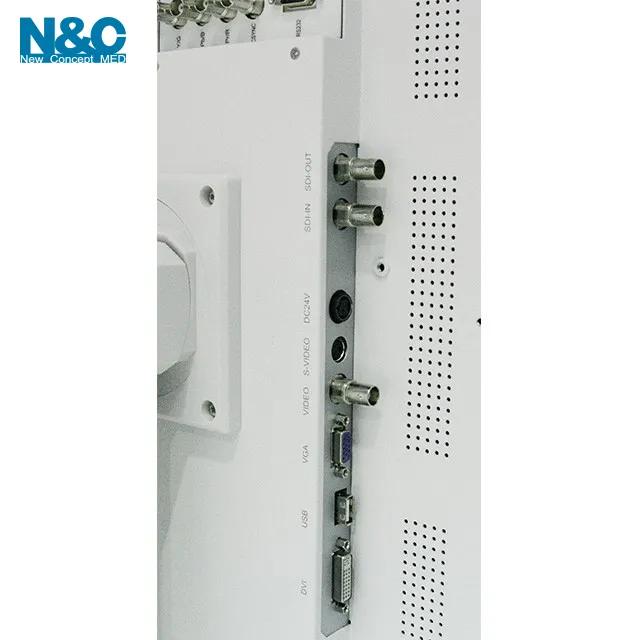

Input Signals	VGA/DVI/S-VIDEO/BNC(video)/BNC*3(RGB/YPbPr)/BNC(CSYNC)/BNC(SDI)
Output Signals	BNC(VIDEO)/S-VIDEO/BNC(CSYNC)/BNC*3(RGB/YPbPr)/BNC(SDI)
Power Supply	DC24V (<48W max)
Appearance	Metal case (White/Dust-free)
Dimensions	57137680mm
Weight	7.3 KGS
Installation	VESA 100*100

Clinical Applications

This medical monitor is perfectly suited for minimally invasive surgery and high-precision observation in operating rooms or ICU environments. It is applicable for:

Arthroscopy ENT Laparoscope Cystoscope Hysteroscopy Thoracoscopy Urology Resectoscope Fiber Bronchoscope Gastroenteroscope Plastic Surgery Endoscope

Product Gallery

Frequently Asked Questions

Q1: What is the maximum resolution of this medical monitor?

The monitor features a Full HD resolution of 1920x1200 with a 16:10 aspect ratio, providing crisp and detailed medical imagery.

Q2: Can this monitor be used in a sterile operating room environment?

Yes, it features a white, dust-free metal closed design with antibacterial treatment, effectively preventing liquid contamination during surgery.

Q3: What types of input signals does the EC2240-2 support?

It supports a wide range of inputs including VGA, DVI, S-VIDEO, BNC (Video/SDI/CSYNC), and RGB/YPbPr to ensure compatibility with various endoscopic equipment.

Q4: Is the monitor compatible with standard mounting systems?

Yes, it follows the VESA 100*100mm installation standard, making it compatible with most medical arms and wall mounts.

Q5: What is the power consumption of this device?

The monitor operates on a DC24V power supply with a maximum power consumption of less than 48W.

Q6: What is the viewing angle of the screen?

It offers a full viewing angle of 178 degrees both horizontally and vertically, ensuring clear observation from different positions in the operating room.
