Contec Cms6000 Multi-Parameter Hospital ICU Equipment Medical Grade Patient Monitor

1 / 5

Contec Cms6000 Multi-Parameter Hospital ICU Equipment Medical Grade Patient Monitor

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📊

Basic Information

Model NO.

CMS6000

Certification

Group

Middle-aged and Old

OEM/ODM

Yes

After-Sale Service

Repair and Replacement

Classification

Class II

Warranty

1 Year

Material

Plastic

🏥

Product Description

CMS6000 Medical Examiner Equipment Patient Monitor Vital Sign

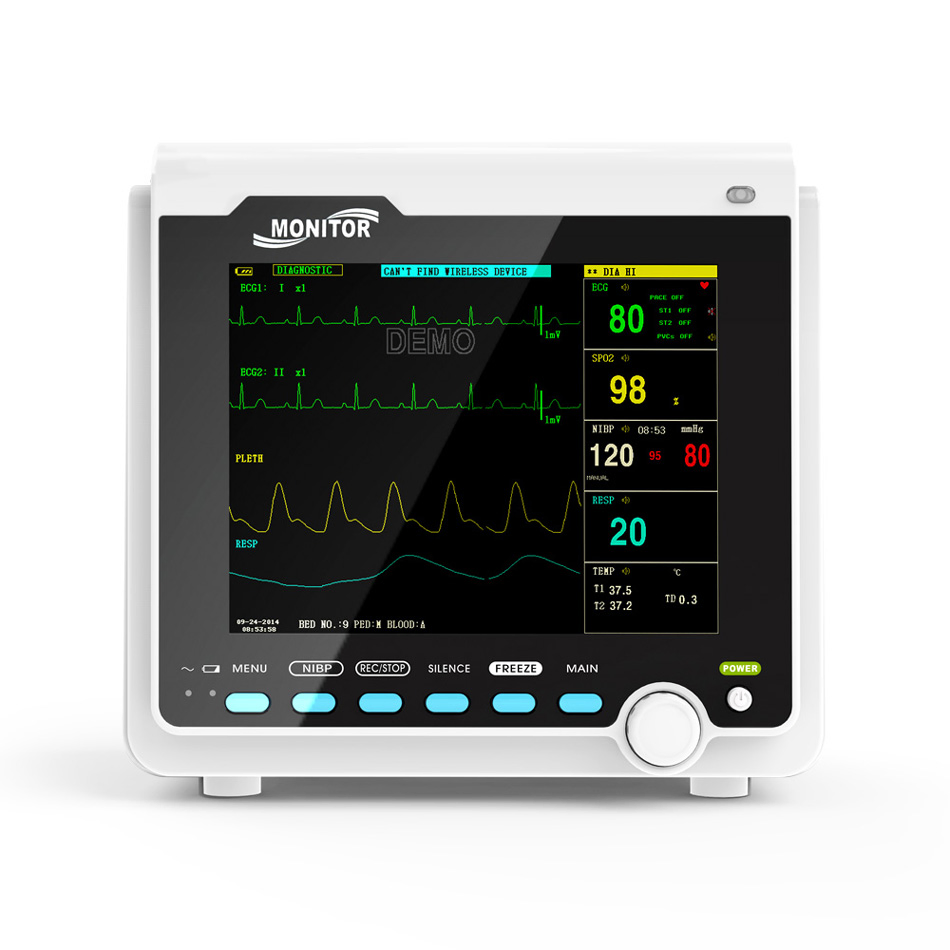

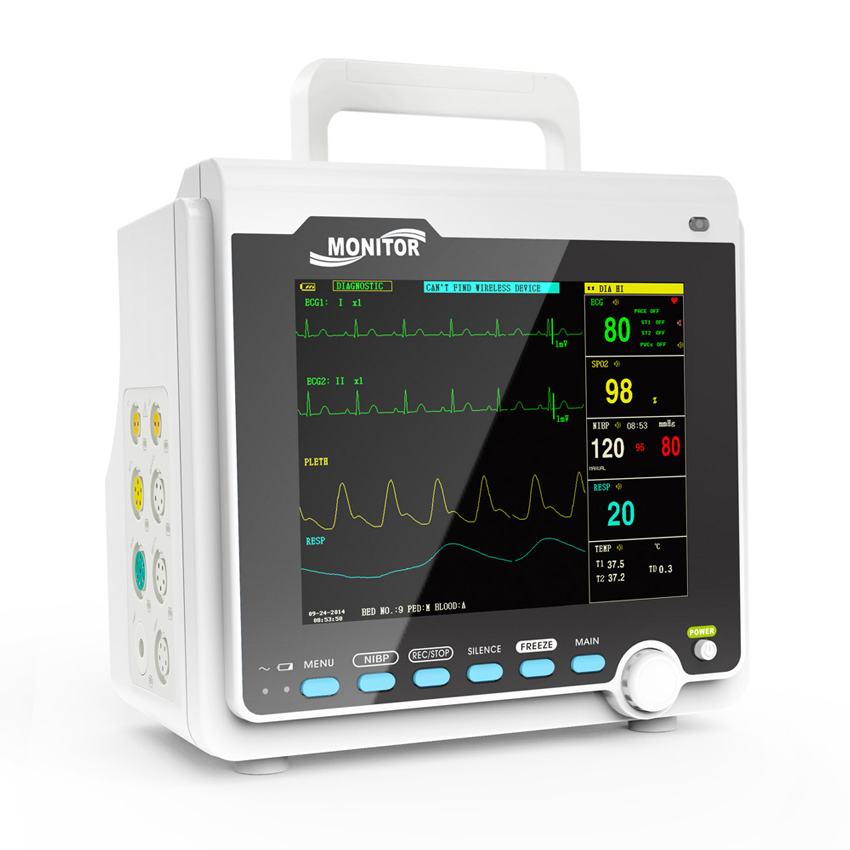

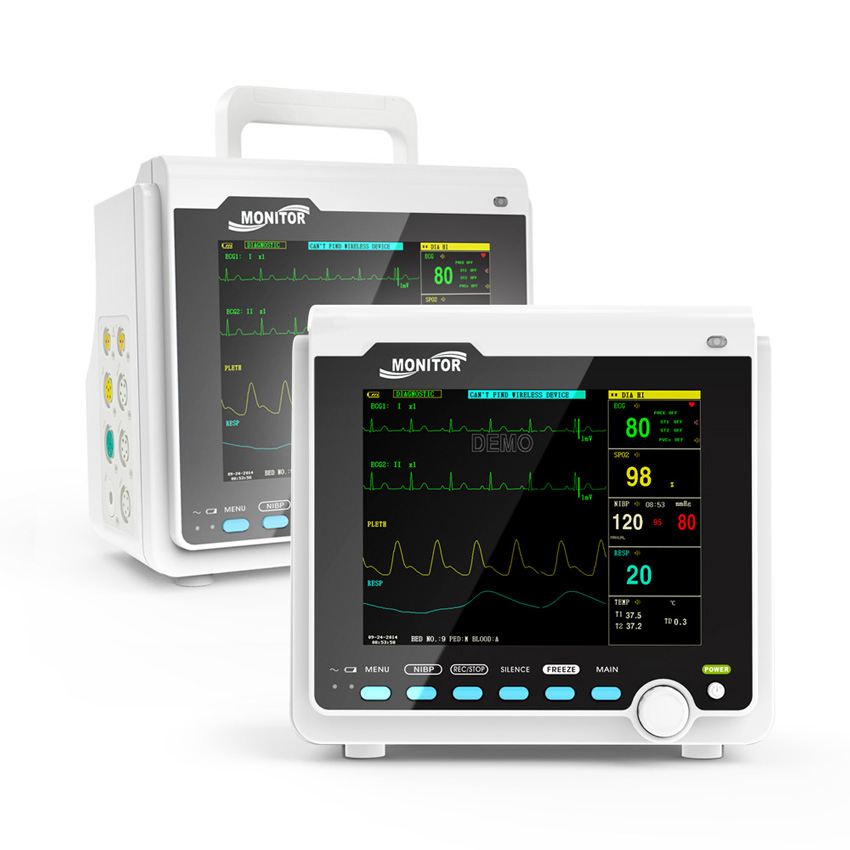

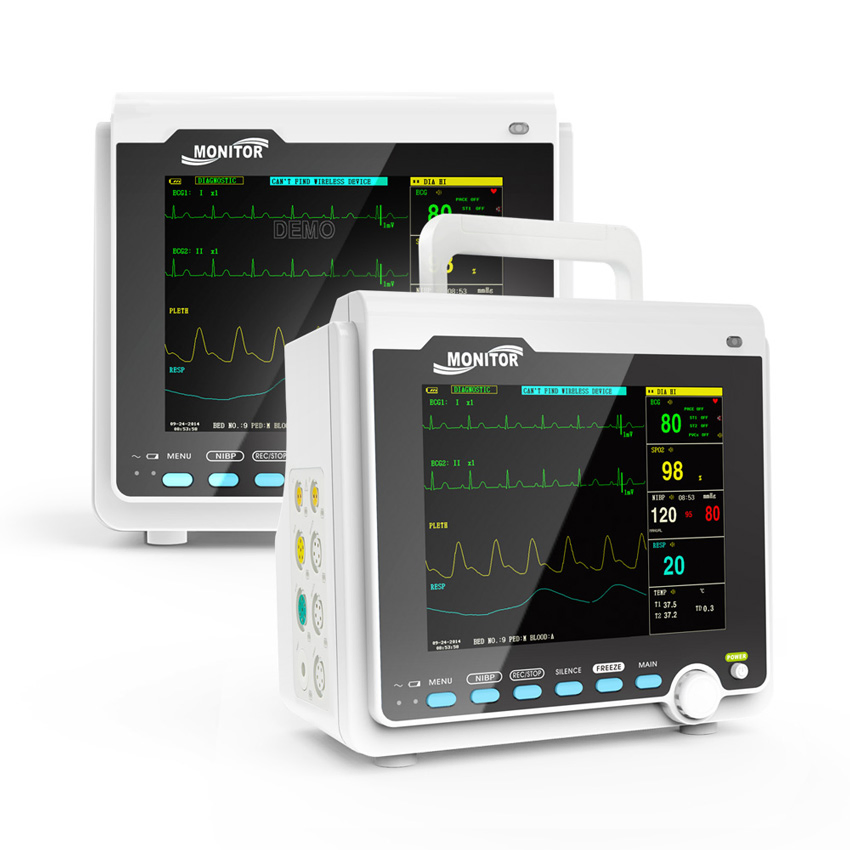

Equipped with an 8'' TFT color LCD, this portable multiparameter monitor is designed for comprehensive patient care.

💡 Key Features

Universal Monitoring: Suitable for adult, pediatric, and neonate patients.
Multi-language Interface: Supports 15 languages including English, French, German, Spanish, and more.

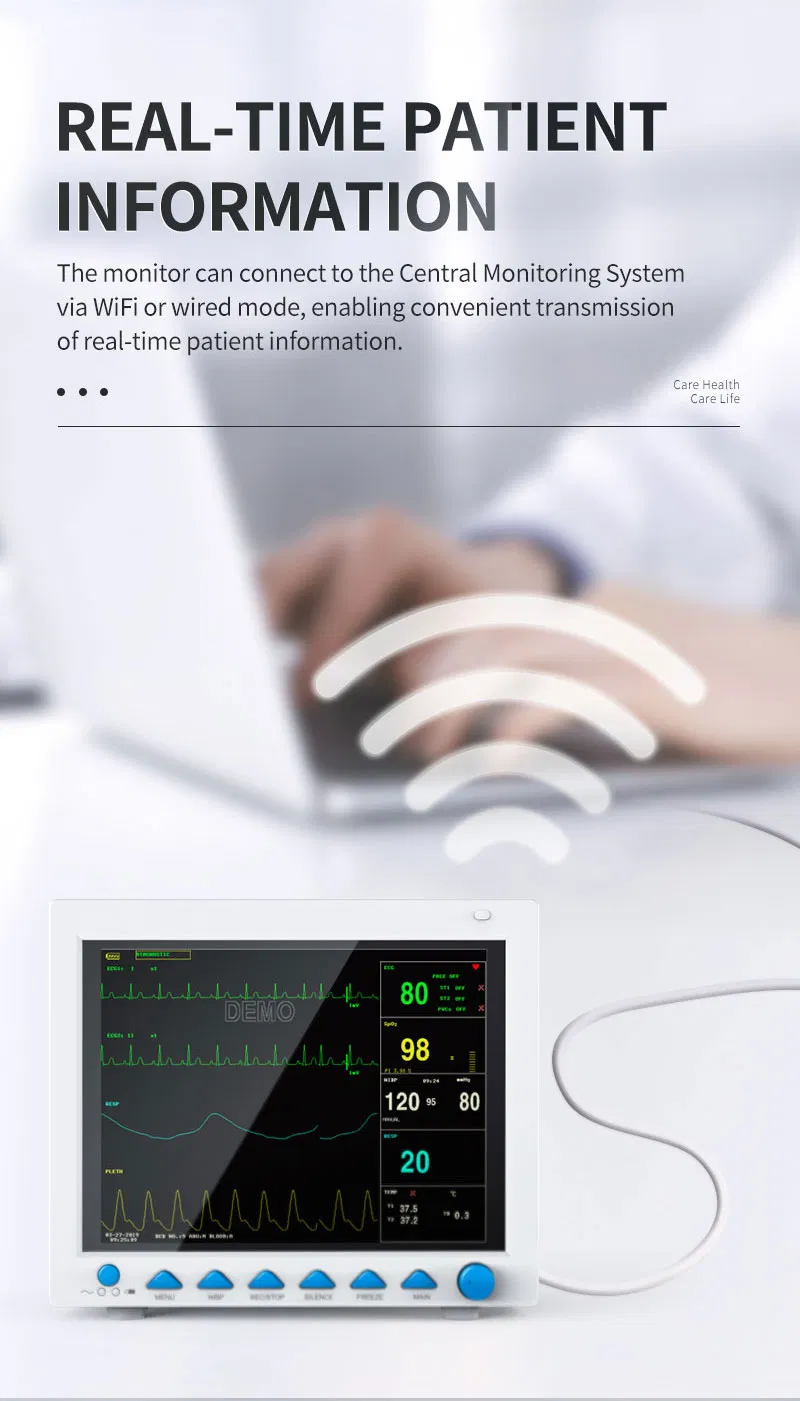

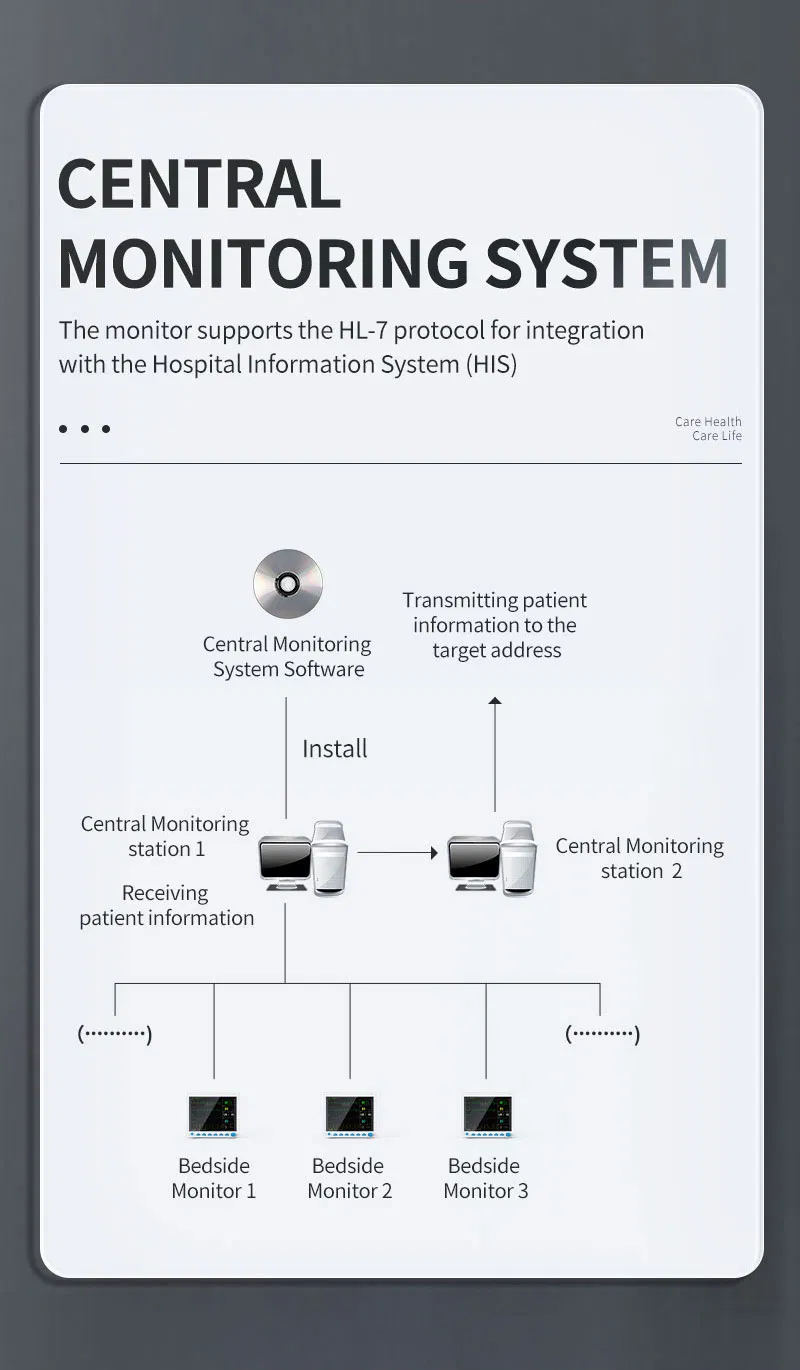

Connectivity: Connects to Central Monitoring System via 3G, WiFi, or wired mode.
Fanless Design: Quiet, energy-saving, and reduces cross-infection risks.

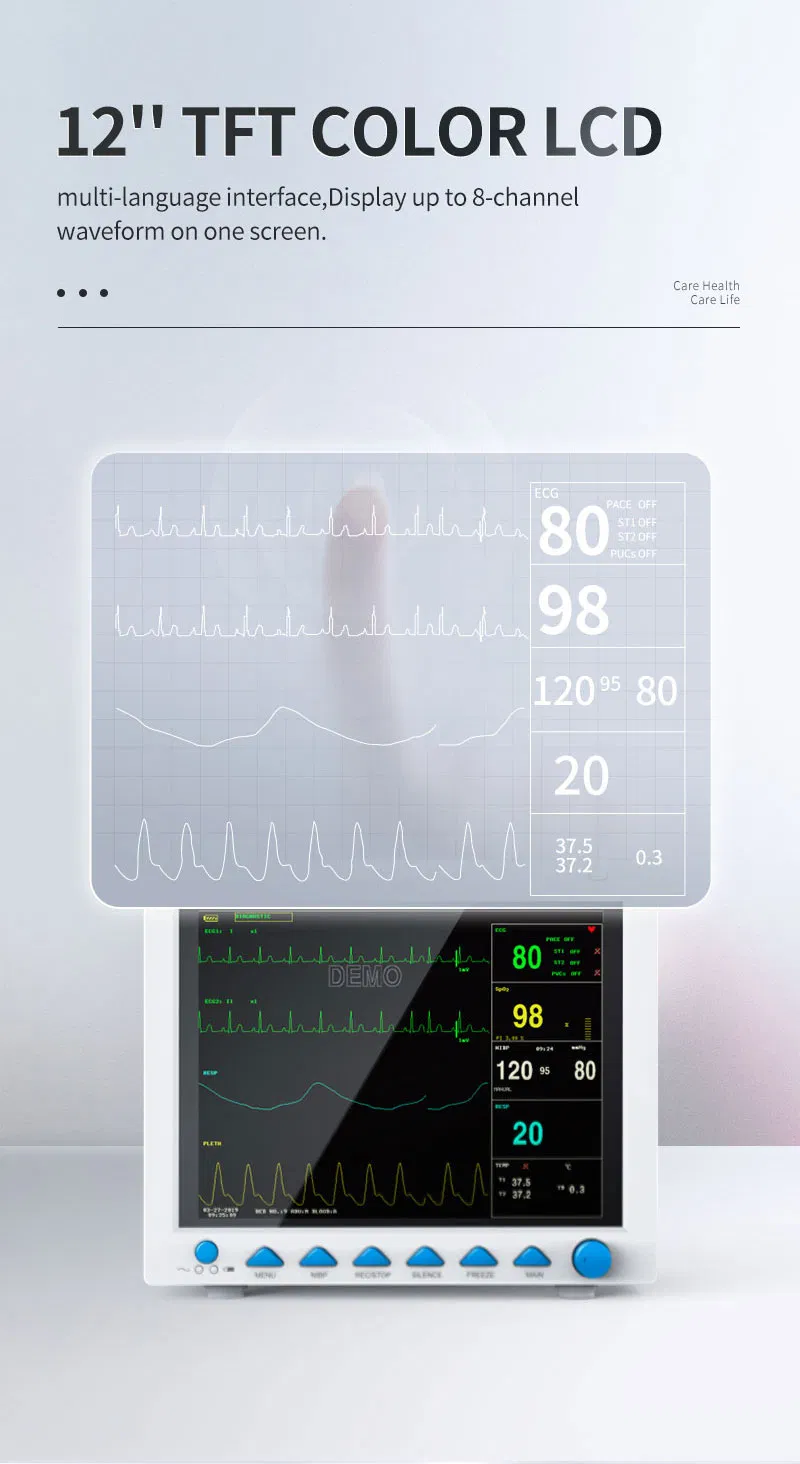

Advanced Display: Up to 8-channel waveform on one screen with customizable parameter colors.
NIBP Data Storage: Large capacity storage for up to 4800 groups of NIBP data.
Power Reliability: Built-in rechargeable lithium battery for uninterrupted monitoring.

⚙️ Functions

Standard parameters monitored: ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP. Additionally features:

Audible and visual alarms for critical states.
Arrhythmia and ST-segment analysis.
Drug concentration calculation and titration tables.
Digital SpO2 technology with anti-motion interference.

📋

Technical Performance

Parameter	Specifications
ECG	3-lead or 5-lead mode; Gain: 2.5mm/mV to 40mm/mV; Scan speed: 12.5mm/s to 50mm/s.
HR	Range: 15~350bpm; Accuracy: ±1% or ±1bpm.
Respiration	Method: Impedance; Range: 0~150rpm; Apnea alarm: 10~40s.
NIBP	Method: Oscillometry; Modes: Manual/AUTO/STAT; Range: 10~270 mmHg.
SpO2	Range: 0~100%; Accuracy: 70%~100% (±2%).
TEMP	Dual-channel; Range: 0~50ºC; Accuracy: ±0.1 ºC.
EtCO2	Sidestream or Mainstream; Range: 0~150mmHg.

📦

Accessories & Specs

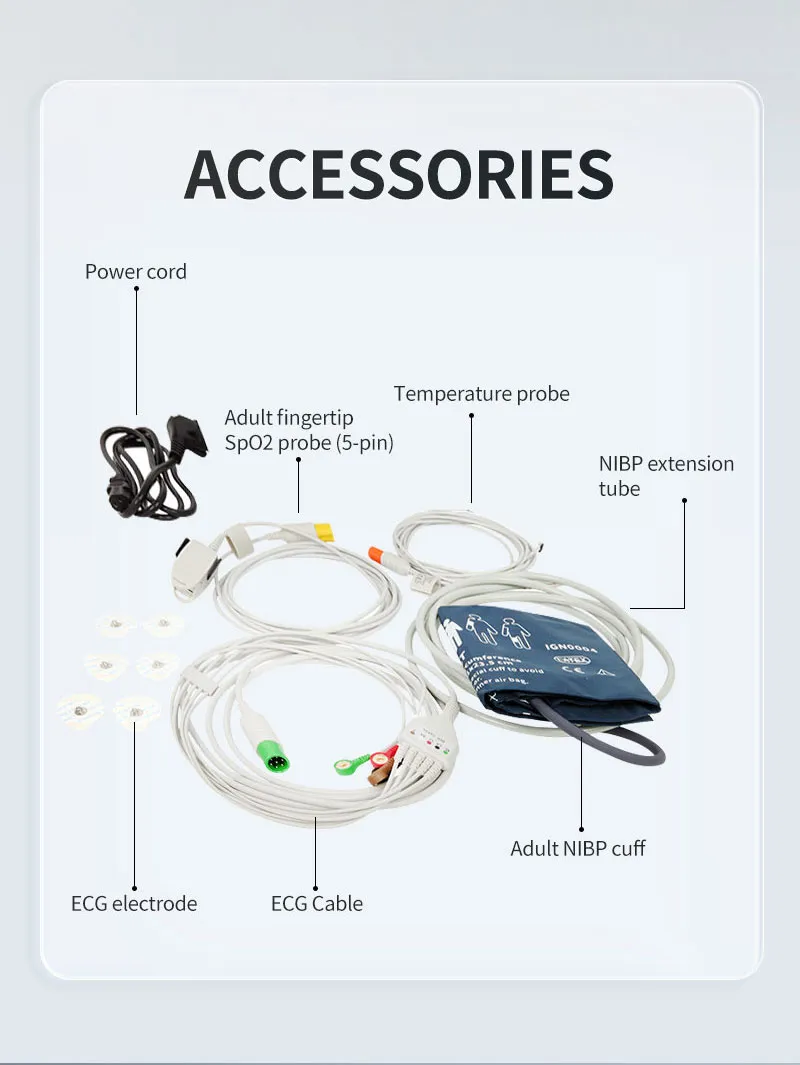

Standard Accessories:

Adult SpO2 probe (5-pin)
Adult NIBP cuff & extension tube
ECG lead cable & electrode
Temperature probe
Power adapter & cord

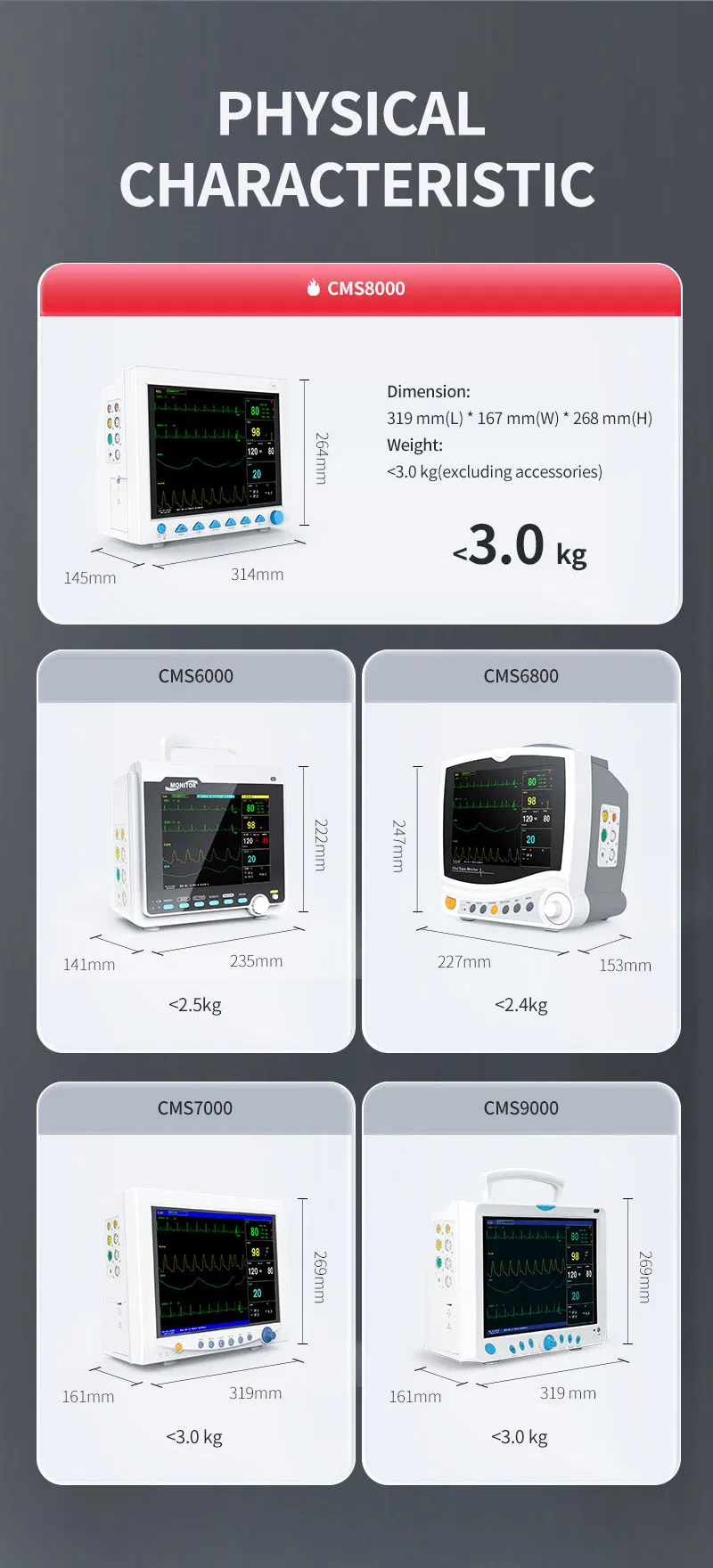

Physical Characteristics:

Dimensions: 235 mm(L) × 141 mm(W) × 222 mm(H)
Weight: 2.5 Kg
Power: 100-240V~, 50/60Hz

🖼️

Product Gallery

❓

Frequently Asked Questions

1. What patient types can the CMS6000 monitor? The CMS6000 is an all-round monitor suitable for adult, pediatric, and neonatal patients.

2. Does the device support wireless connectivity? Yes, it can connect to a Central Monitoring System via WiFi, 3G, or a standard wired mode.

3. How much NIBP data can be stored on the device? The monitor features a large storage capacity capable of holding up to 4800 groups of NIBP data.

4. Is the CMS6000 quiet enough for bedside use? Yes, it features a fanless design which makes it quiet, energy-saving, and helps in reducing cross-infection risks.

5. Can I use this monitor during surgical procedures? The CMS6000 is designed to be anti-high frequency surgical unit and defibrillation-proof, though special leads are necessary for these environments.

6. What is the screen size and display type? It features an 8-inch high-resolution TFT color LCD that can display up to 8 channels of waveforms simultaneously.
