One Stop Supplier Human Animal Use Factory Supply Emergency Ambulance ICU Use Medical Grade 15inch Remote Patient Monitor

Customization:	Available
Classification:	Patient Monitor
Type:	Hospital Products

📋

Basic Information

Model NO.

MCS1530

Certification

CE, FDA, EEC, MSDS

Function

6 Vital Signs

Usage

Healthcare / Medical Surgery

Keyword

Multiparameter Patient Monitor

Feature

Portable, 15-Inch Remote Monitor

Production

500,000 set/Month

Origin

Guangdong, China

🏥

Product Description

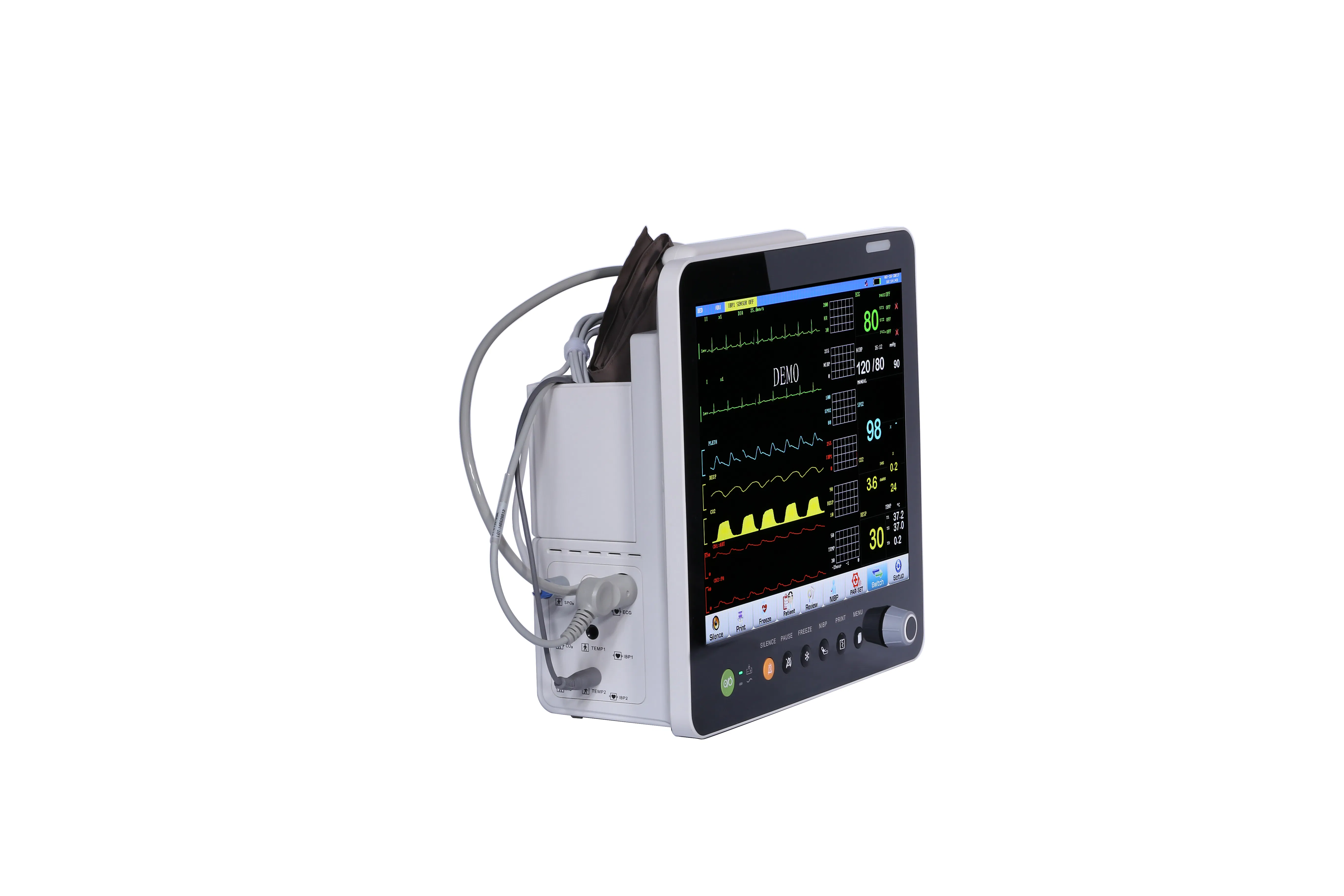

Medical Grade 15-Inch Patient Monitor for Human and Animal Use

Key Features:

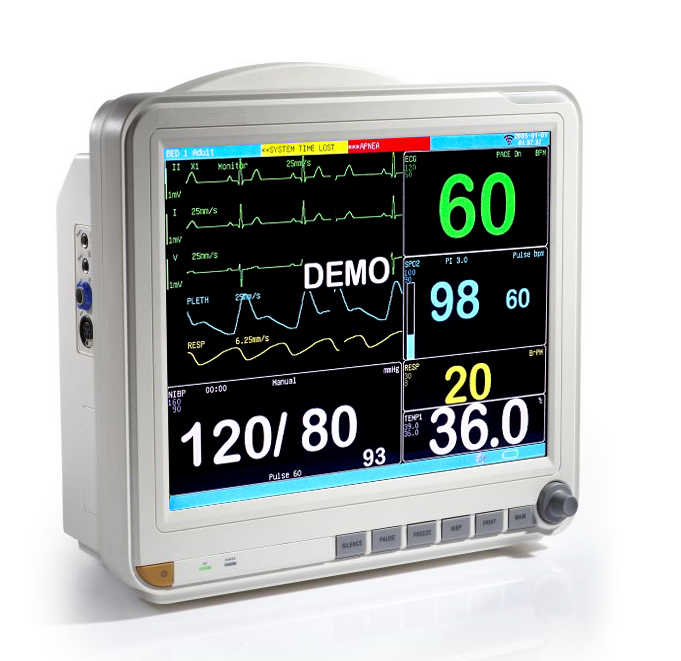

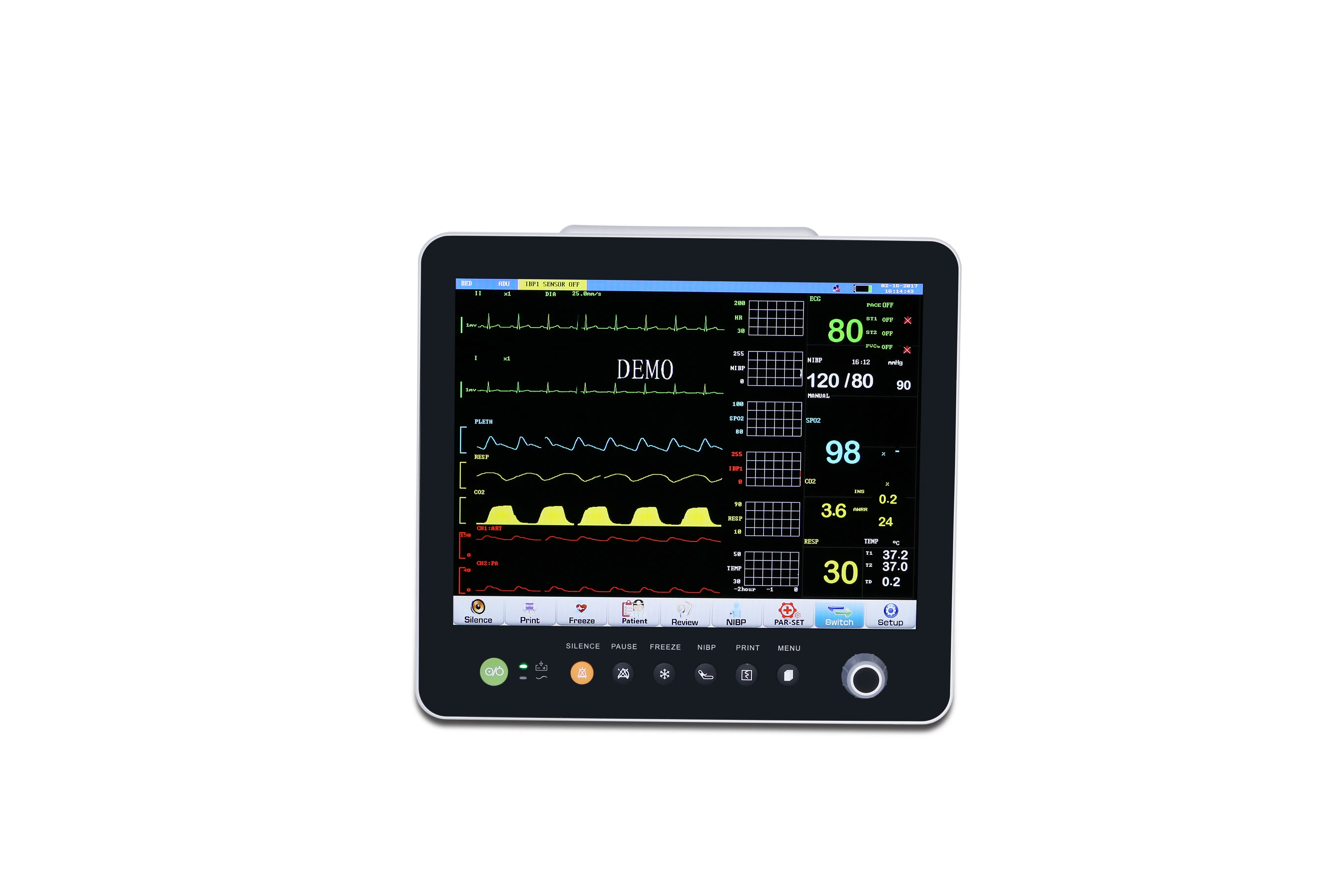

High-Resolution Display: 15-inch 800x600 color TFT, supporting multi-channel display with up to 13 waveforms.
Advanced DSP Algorithm: SpO2 features excellent performance during movement and low perfusion; includes PI display.
Customizable Layout: Multiple screen layouts including Big Font screen; parameters and waves can be toggled individually.
Veterinary & Human Support: NIBP VET algorithm supports animals from small cats to horses with over-pressure protection.

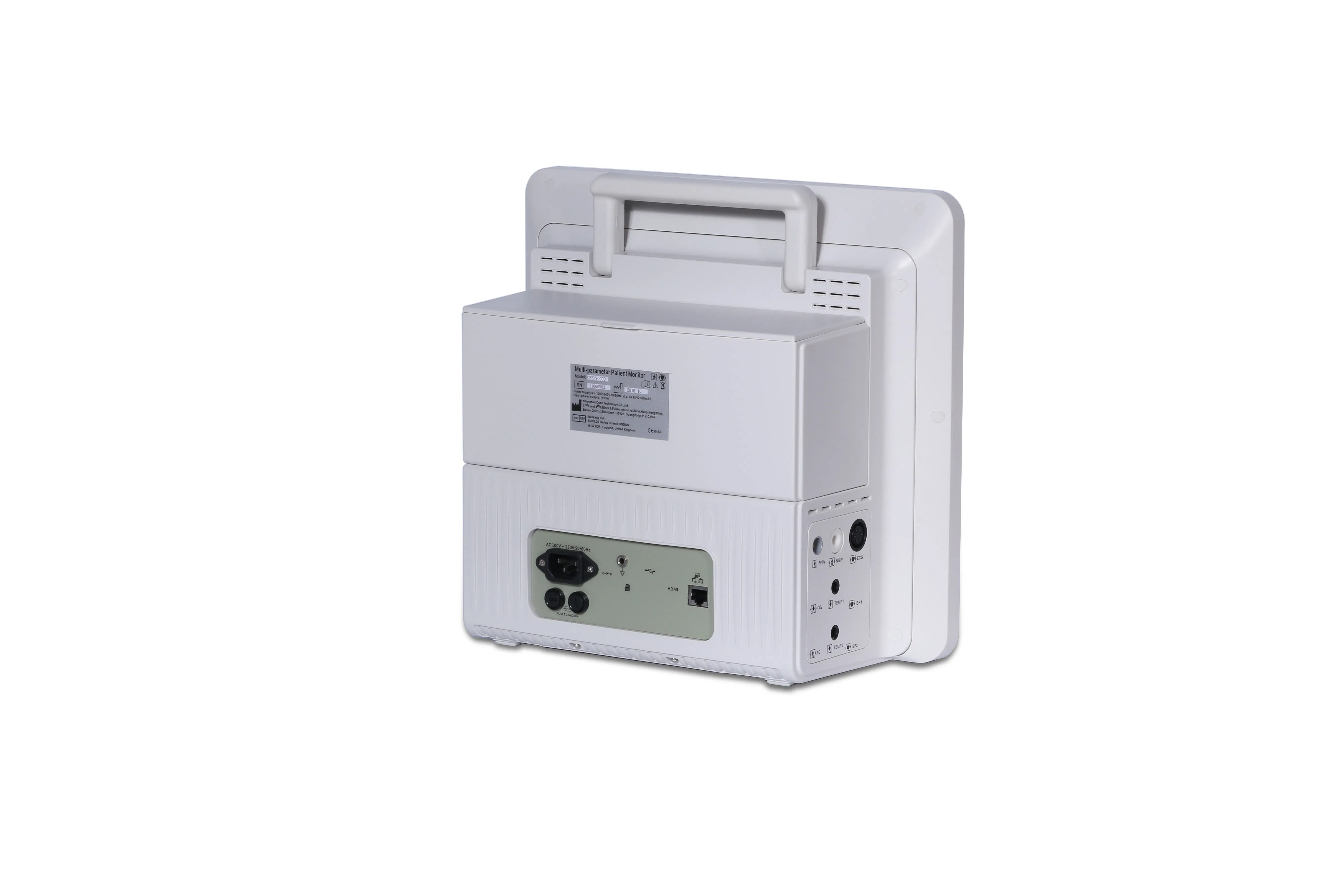

Smart Connectivity: Standard RJ45 network port and optional USB WIFI module for easy CMS connection.
Data Management: USB data output with specialized software for computer-based data review.

⚙️

Technical Specification

ECG	Lead: 3/5 (I, II, III, aVR, aVL, aVF, V). 3/7 channels. HR: 15~500BPM. Gain: X1/4, x1/2, x1, x2. Pacemaker & Arrhythmia/ST analysis.
RESP	Impedance between RA-LL or RA-LA. Wave speed: 6.25, 12.5, 25mm/s. Apnea Alarm: 5~120s.
NIBP	Method: Oscillometry. Mode: Manual, Auto, STAT. Range: SYS 40-280 mmHg, DIA 10-220 mmHg. Automatic interval: 1-480 min.
SPO2	Parameters: SpO2, PR, PI. Accuracy: 2% (70~100%). Pulse Rate: 20~250bpm.

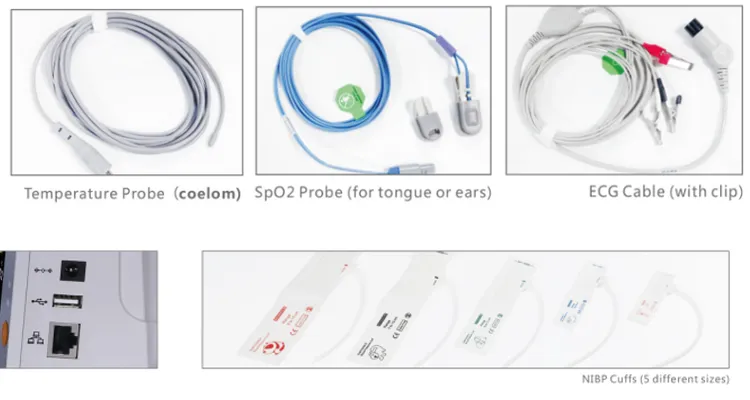

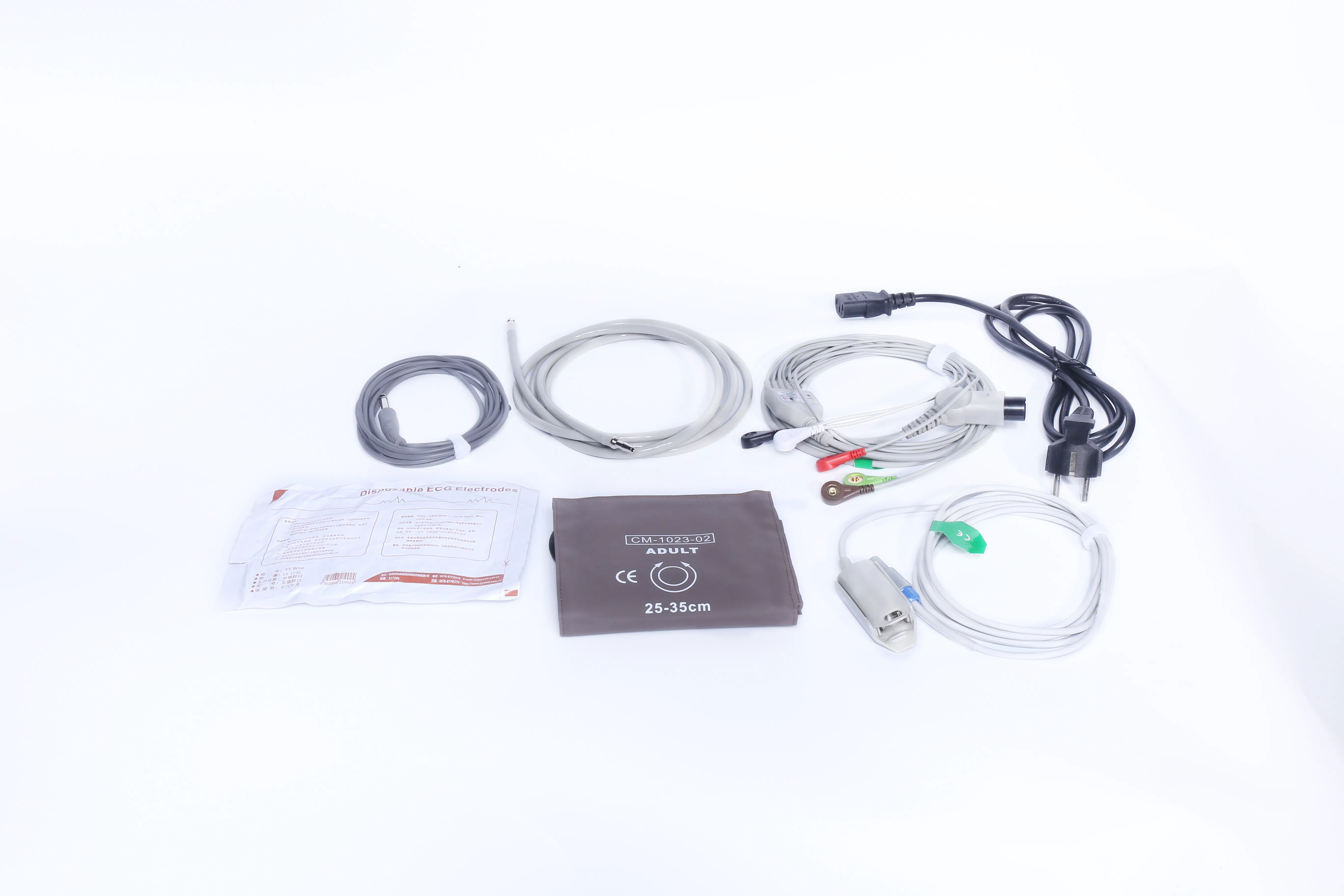

Standard	ECG, NIBP, SpO2, PR, TEMP, RESP.
Optional	Mainstream/Sidestream EtCO2, Wall Mount, Trolley, CMS.

📸

Product Details

🌟

Why Choose Our Solutions

One-stop medical equipment service with proven experience

Supplying one-stop solutions to more than 2,000+ hospitals worldwide.
Pioneer in medical equipment services with extensive global project involvement.
High-quality components shared with national aerospace projects.
Certified Golden Supplier with visualization in production and delivery.
Professional training provided for installation, operation, and daily maintenance.
Flexible ODM/OEM services with no MOQ requirement.
Multilingual support: English, Spanish, French, and Cantonese.

❓

Frequently Asked Questions

What is the warranty for the patient monitor?

We provide a one-year warranty for free. Technical support is available via operating manuals and video guidance.

How do you provide after-sales technical support?

Our engineers provide prompt responses via email or phone. For hardware issues within the warranty period, we send spare parts free of charge or offer free repair services.

What are the available delivery methods and times?

We offer Express (7-10 days), Air Freight (3-10 days), and Sea Freight (12-45 days depending on the port).

What is the standard production lead time?

About 40% of our products are in stock. Production typically takes 3-10 days for standard items and 15-30 days for others.

What payment methods do you accept?

Our payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, PayPal, and Trade Assurance.

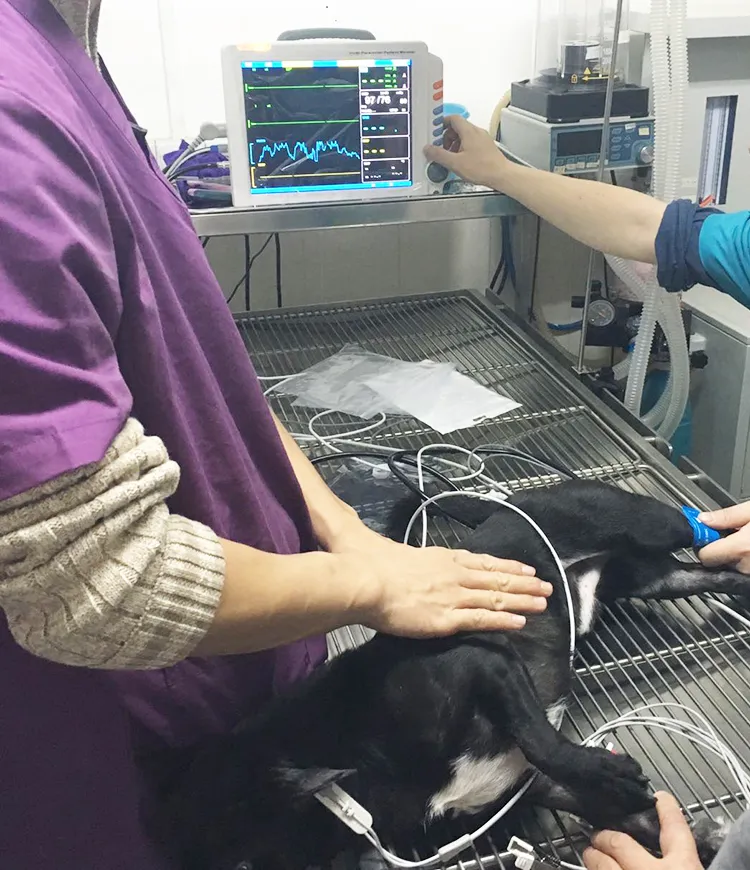

Can this monitor be used for both humans and animals?

Yes, the device features a specialized NIBP VET algorithm that supports a wide range of animals from small cats to large horses, as well as medical grade human monitoring.
