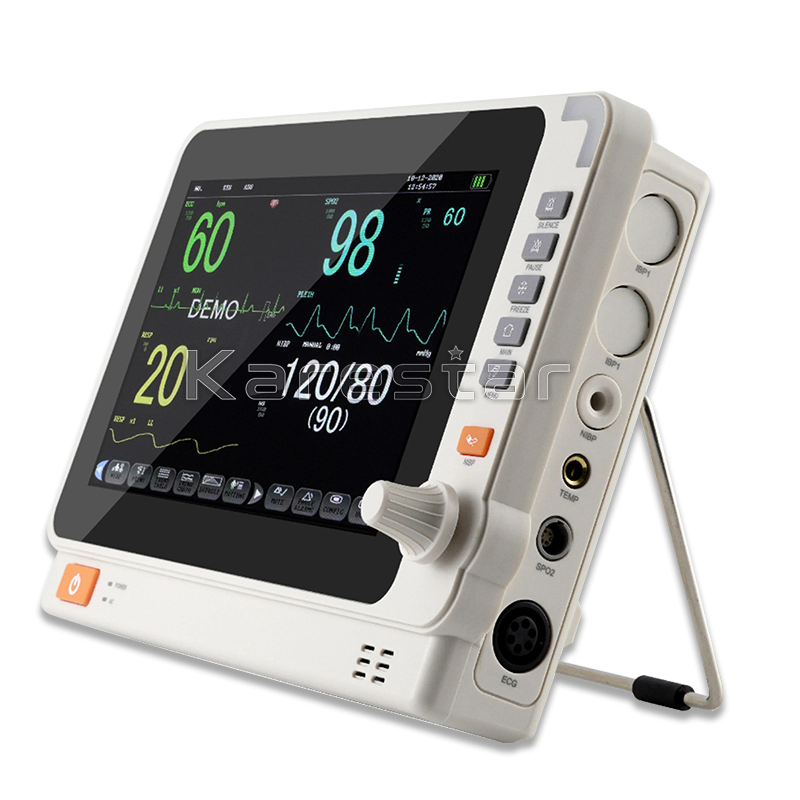

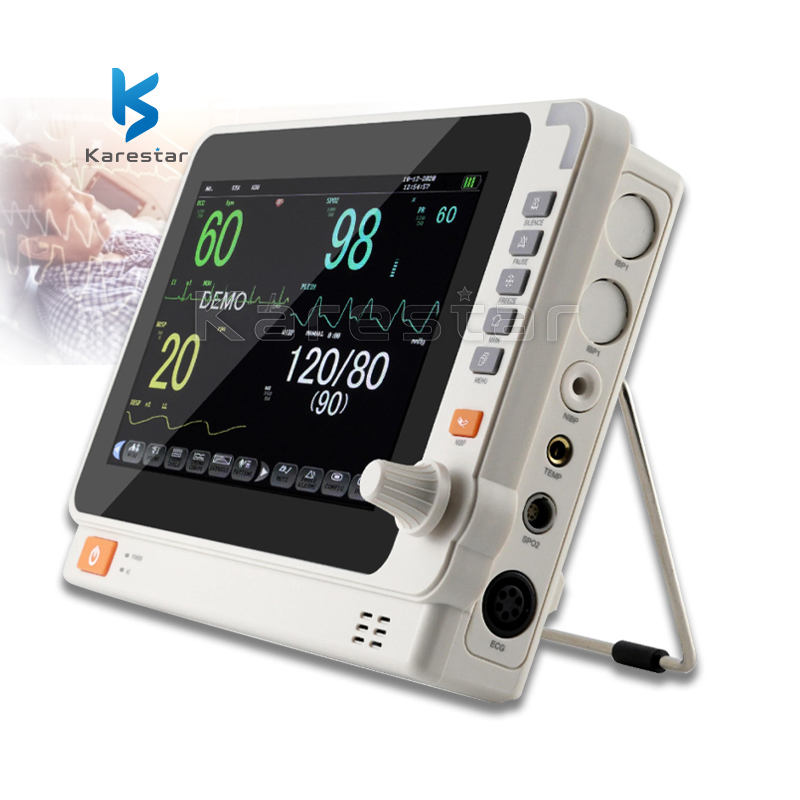

Factory Sale Medical Grade Vital Signs Monitor Multi-Parameter Patient Monitor

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📋

Basic Information

Model NO.

K-J60A

Certification

CE, FDA, EEC, MSDS, ISO13485

Group

Infants and Young Children

Working Modes

Monitoring, Surgery and Diagnosis

Standard Parameters

ECG, Resp Temp, NIBP SpO2, Pr

Display

10.1 Inch High Resolution Color TFT

USB Disk

Support

Alarm Function

Support

Freeze Function

Support

Transport Package

Carton

Dimensions

380mm*300mm*340mm

📦

Product Description

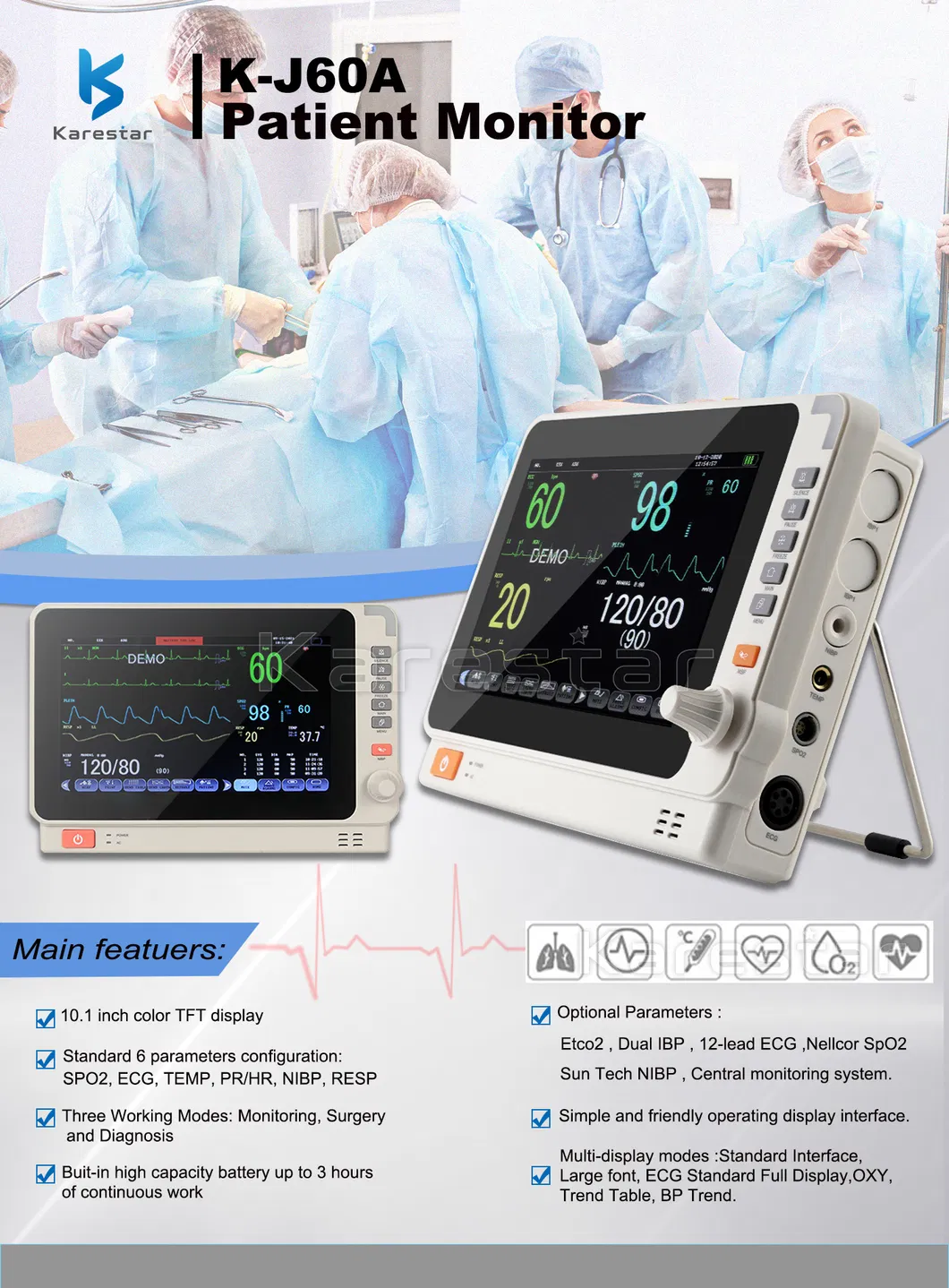

Medical Grade Vital Signs Monitor Multi-Parameter Patient Monitor. High-precision monitoring solution designed for clinical excellence.

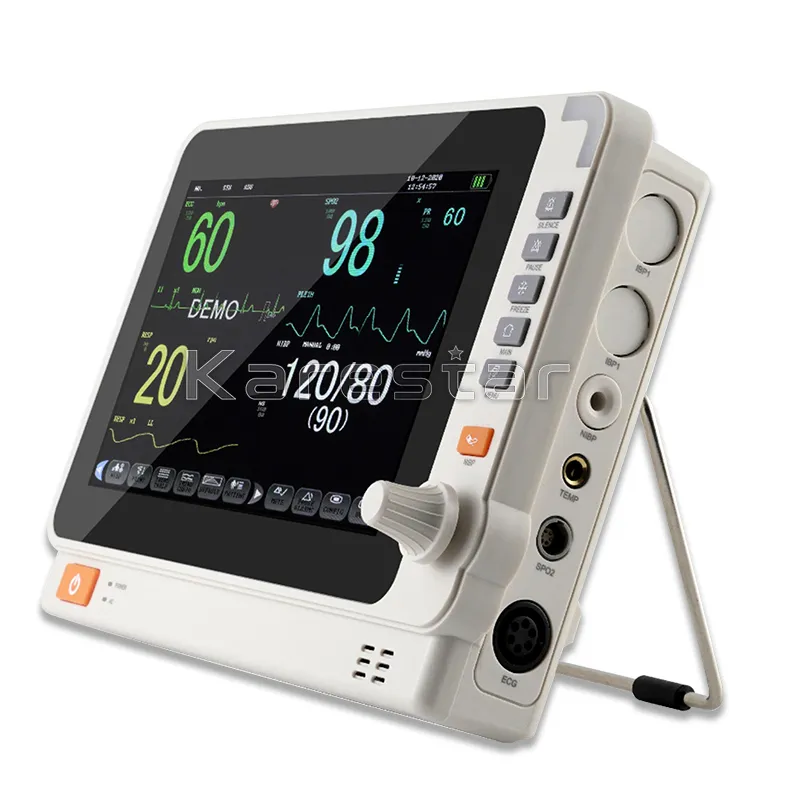

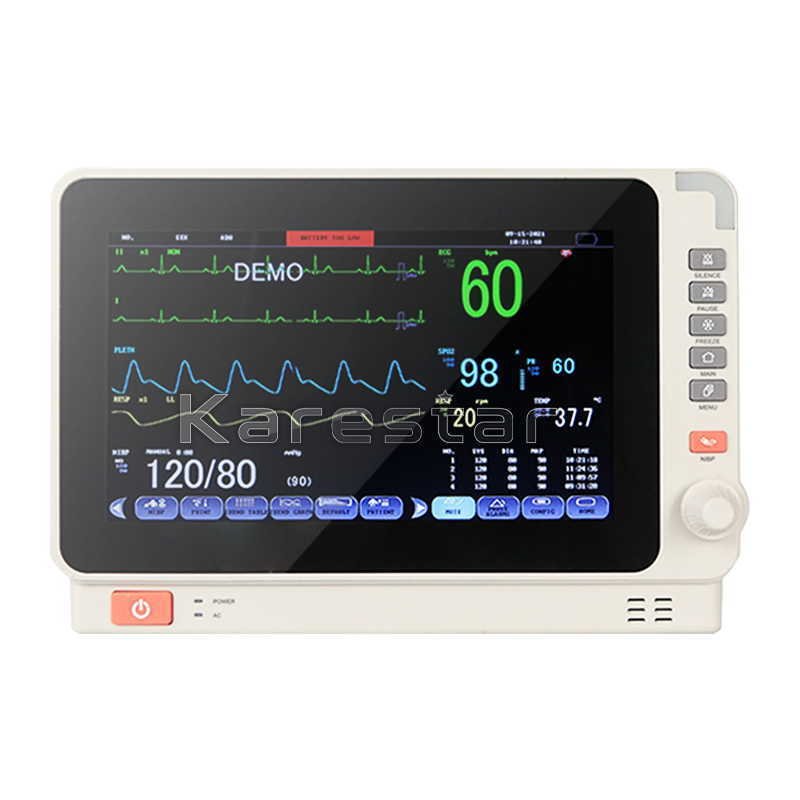

10.1 inch high resolution color TFT display

Three Working Modes: Monitoring, Surgery and Diagnosis.

Standard 6 parameters configuration: ECG, RESP, TEMP, NIBP, SPO2, PR.

Built-in high capacity battery up to 3 hours of continuous work.

Multi-display modes: Large font, ECG Standard Full Display, OXYTrend Table, BP Trend.

⚙️

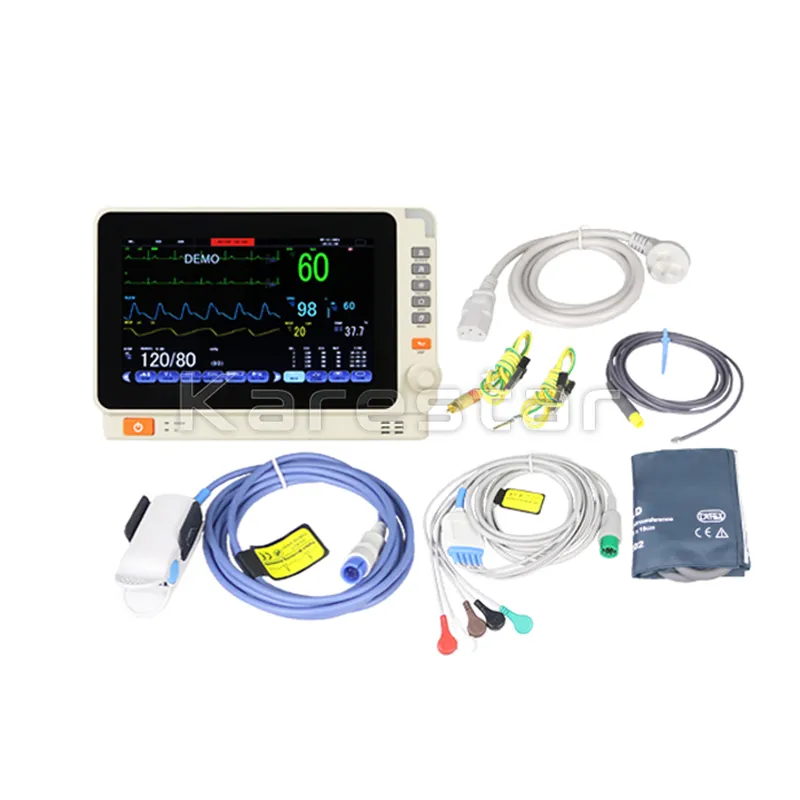

Configuration

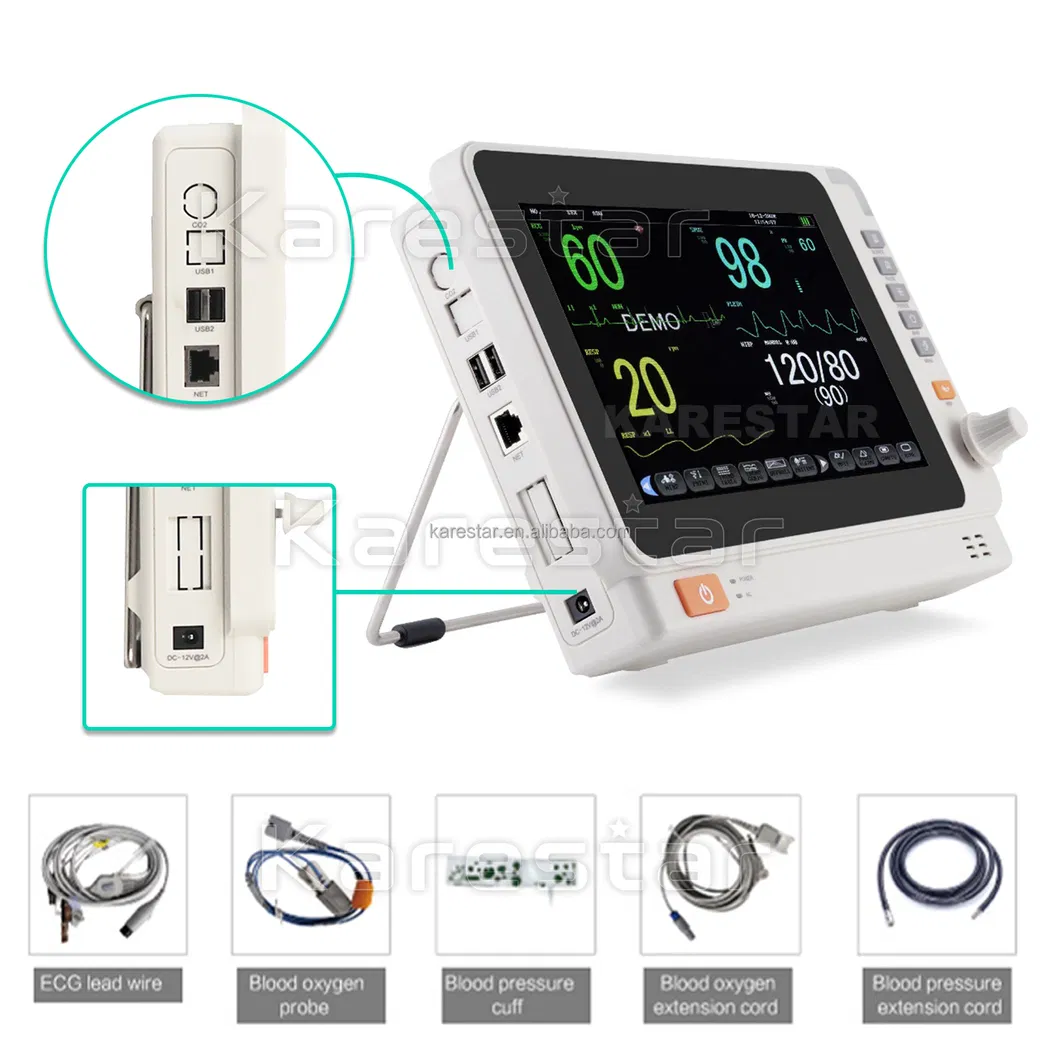

Standard Configuration	Qty	Optional Configuration
Main machine	1 PC	ETCO2, Dual IBP, Nellcor/Masimo SPO2
ECG lead wire	1 PC	Suntech NIBP, Anesthetic gas module, Printer
SPO2 sensor	1 PC	Touch screen function
BP cuff	1 PC	Trolley, Wall mount
SPO2 extension cord	1 PC	Center monitoring system
Temperature probe	1 PC	12 lead ECG
User Manual	1 PC	-

📷

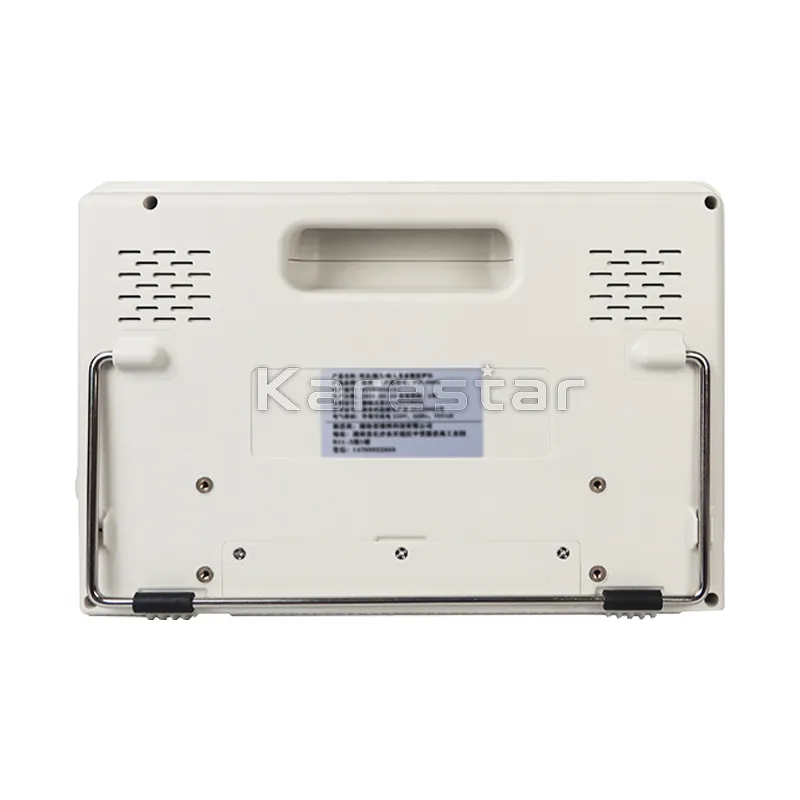

Product Gallery

📊

Technical Specifications

Parameter	Specification Details
ECG	5 Leads (I, II, III, AVR, AVL, AVF, V); HR Range: 15-350 BPM; Accuracy: ±1%
SPO2	Measuring Range: 0 ~ 100%; Resolution: 1%; Accuracy: 70% ~ 100% (±2%)
NIBP	Method: Oscillometry; Modes: Manual, Auto, STAT; Range: SYS 40 ~ 280 mmHg
RESP	Method: Impedance; Range: 7 ~ 150 BrPM; Accuracy: ±2 BrPM
TEMP	Range: 0 ~ 50 °C; Resolution: 0.1°C; Accuracy: ±0.1°C
