| Model NO. | TU-27LSH1A |
| Certification | CE |
| Transport Package | Standard Shipping Package |
| Specification | 46.5*45*21.5cm 29.6kg |
| Production Capacity | 2000/Month |

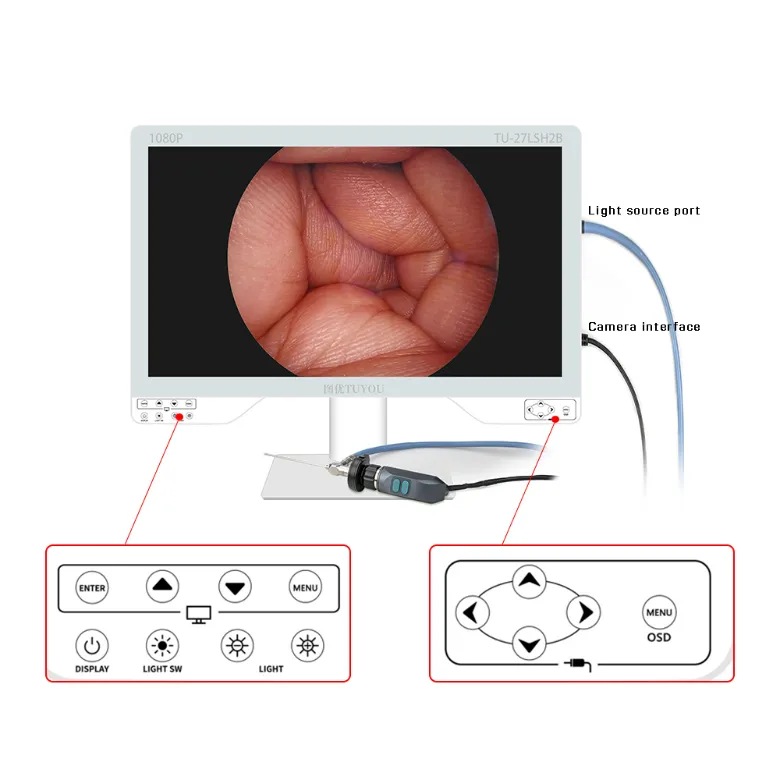

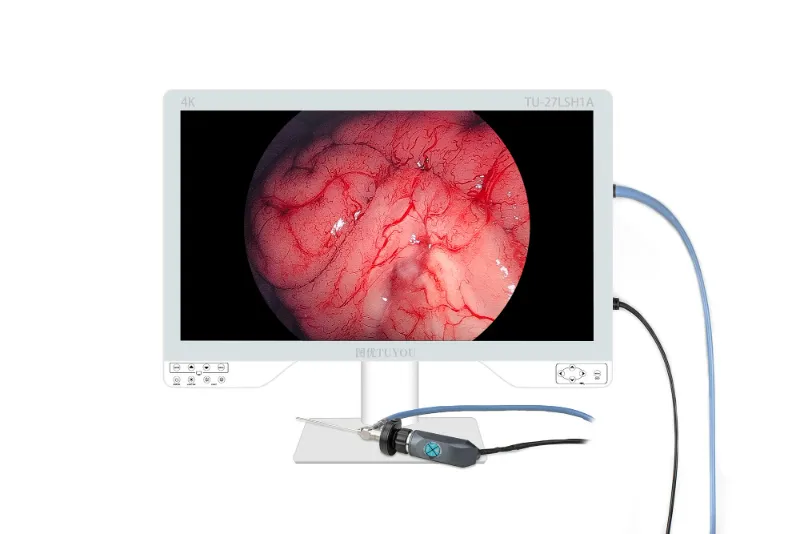

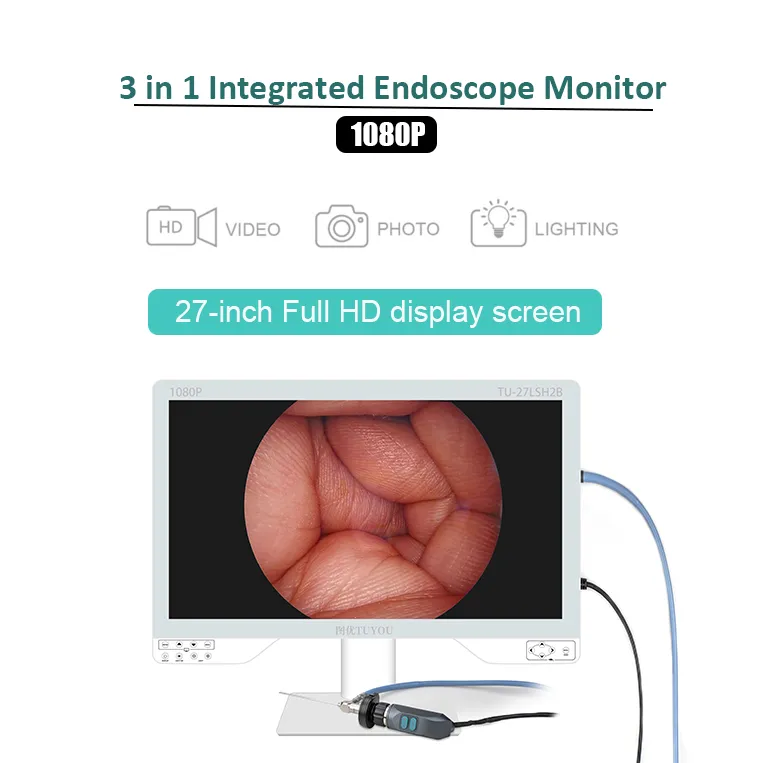

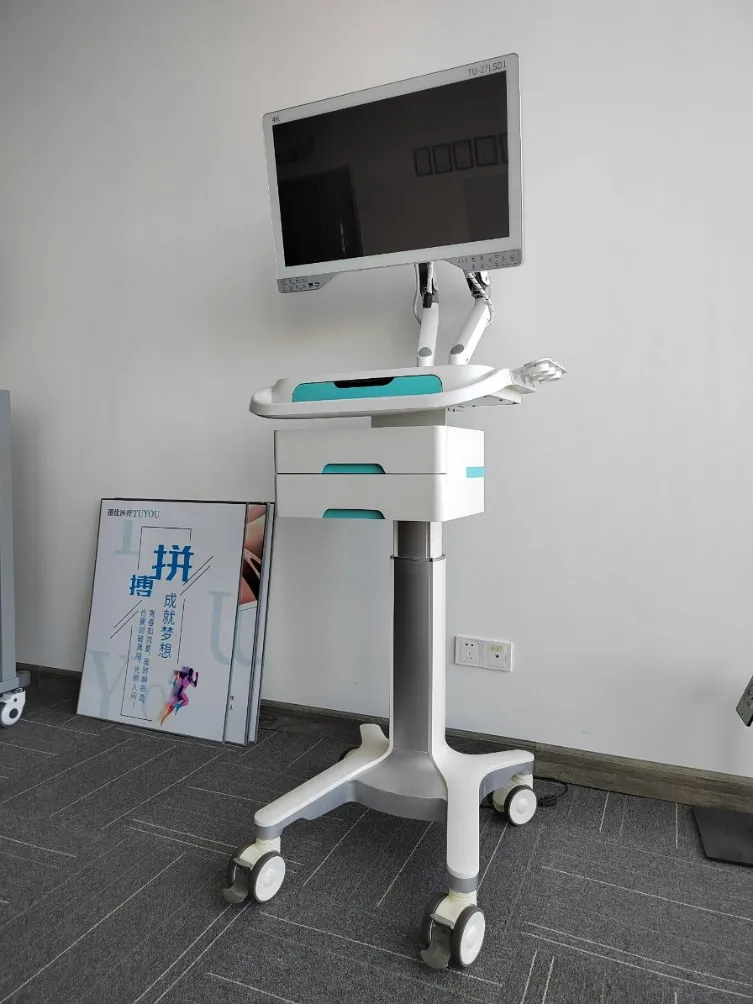

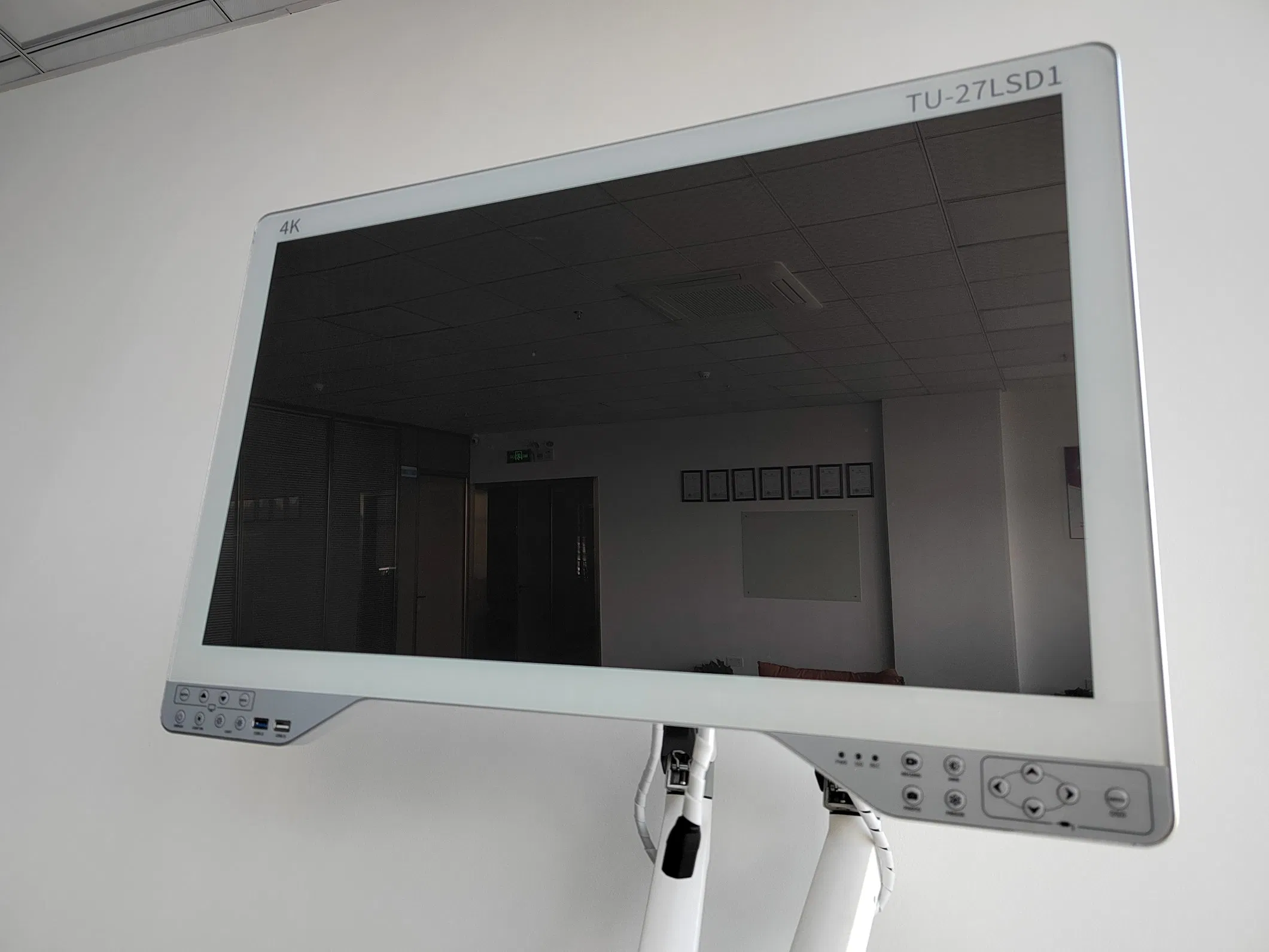

The endoscope integrated imaging system is a high-performance medical solution designed for precision diagnostics. It features a high-definition 27-inch display, professional camera control, and a high-efficiency light source.
| System Parameters | |
|---|---|
| Input Interface | SDI 4K 60FPS |

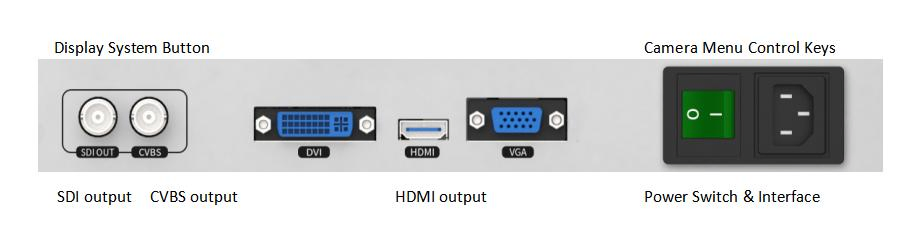

| Output Interface | HDMI/SDI/CVBS/VGA/DVI |
| Max Resolution | 4096*2160@60H |
| Net Weight | 12.4KG |
| Camera Parameters | |
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 4K Pixels (3840*2160P) |
| Signal Output | SDI, CVBS, DVI, HDMI, VGA |
| Mode Selection | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom |
| Light Source Parameters | |
| Light Type | LED |
| Power | 100W |
| Color Temp | 5700K +/-500K |
| Illuminance | 400W LUX |
As a high-tech manufacturing enterprise, we focus on the R&D, production, and service of medical endoscope camera systems. With over 20 years of experience in video product innovation, our portfolio includes SD, HD, 2K, 4K, and fluorescence systems, as well as disposable flexible endoscope series.

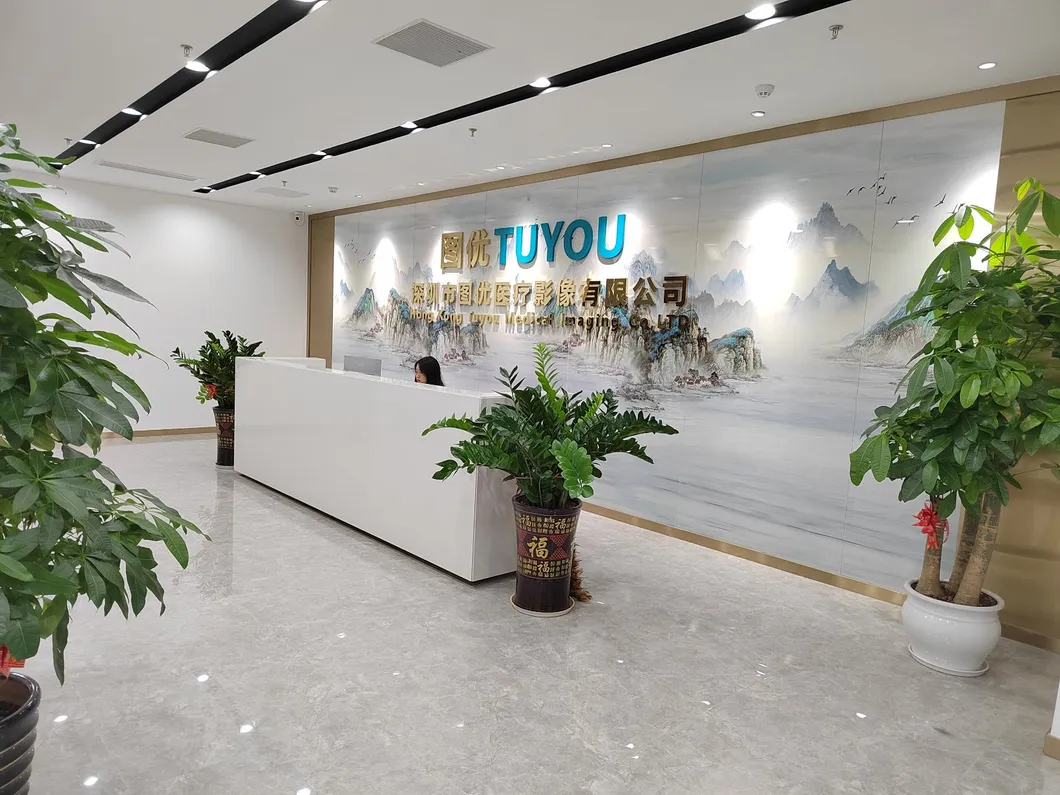

Our advanced medical-grade plant spans over 2000 square meters and is equipped with modern production facilities. We hold numerous R&D patents and international certifications including CE, FCC, and RoHS, providing comprehensive OEM/ODM services for global clients.
